CV03010002

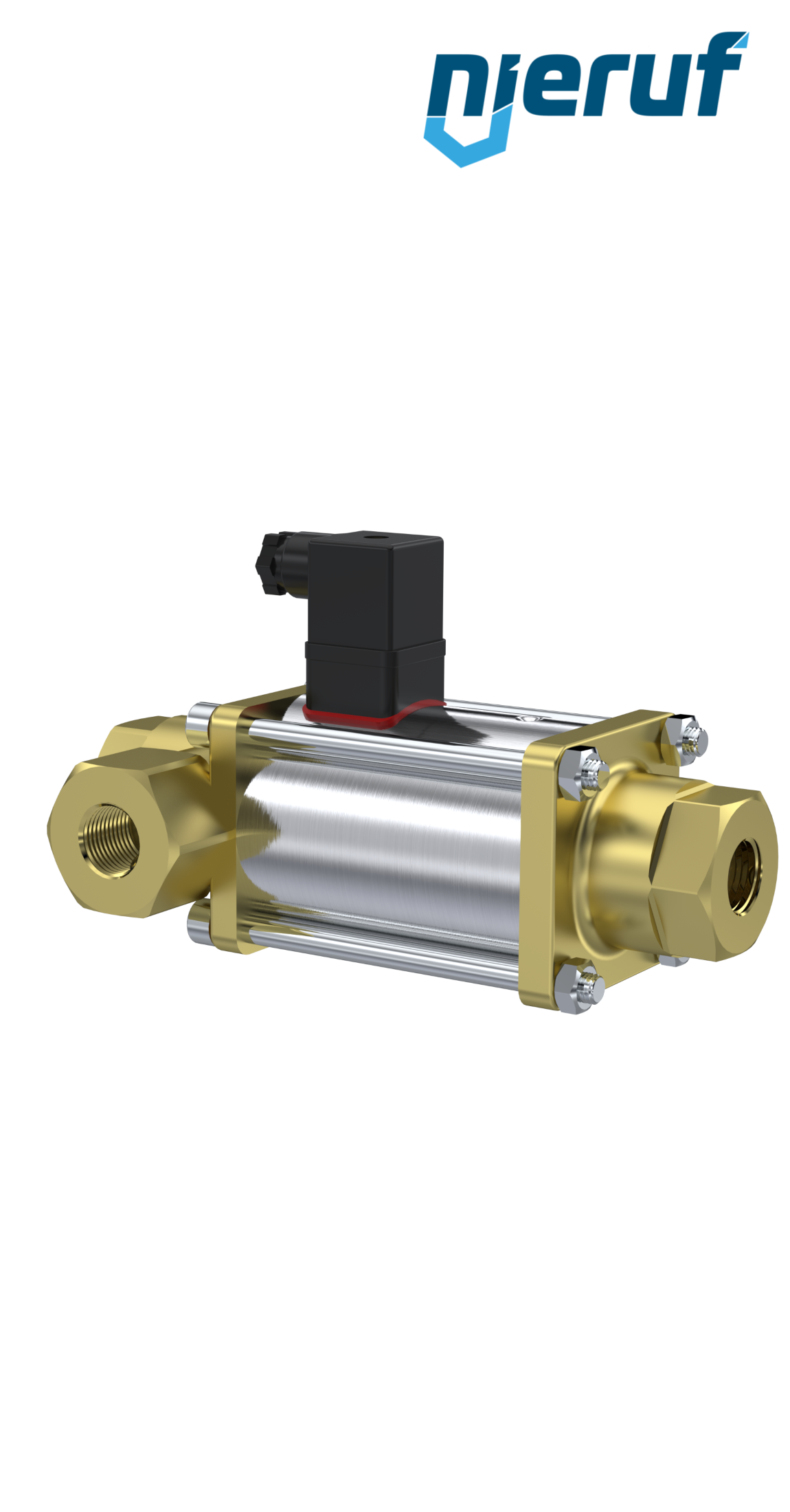

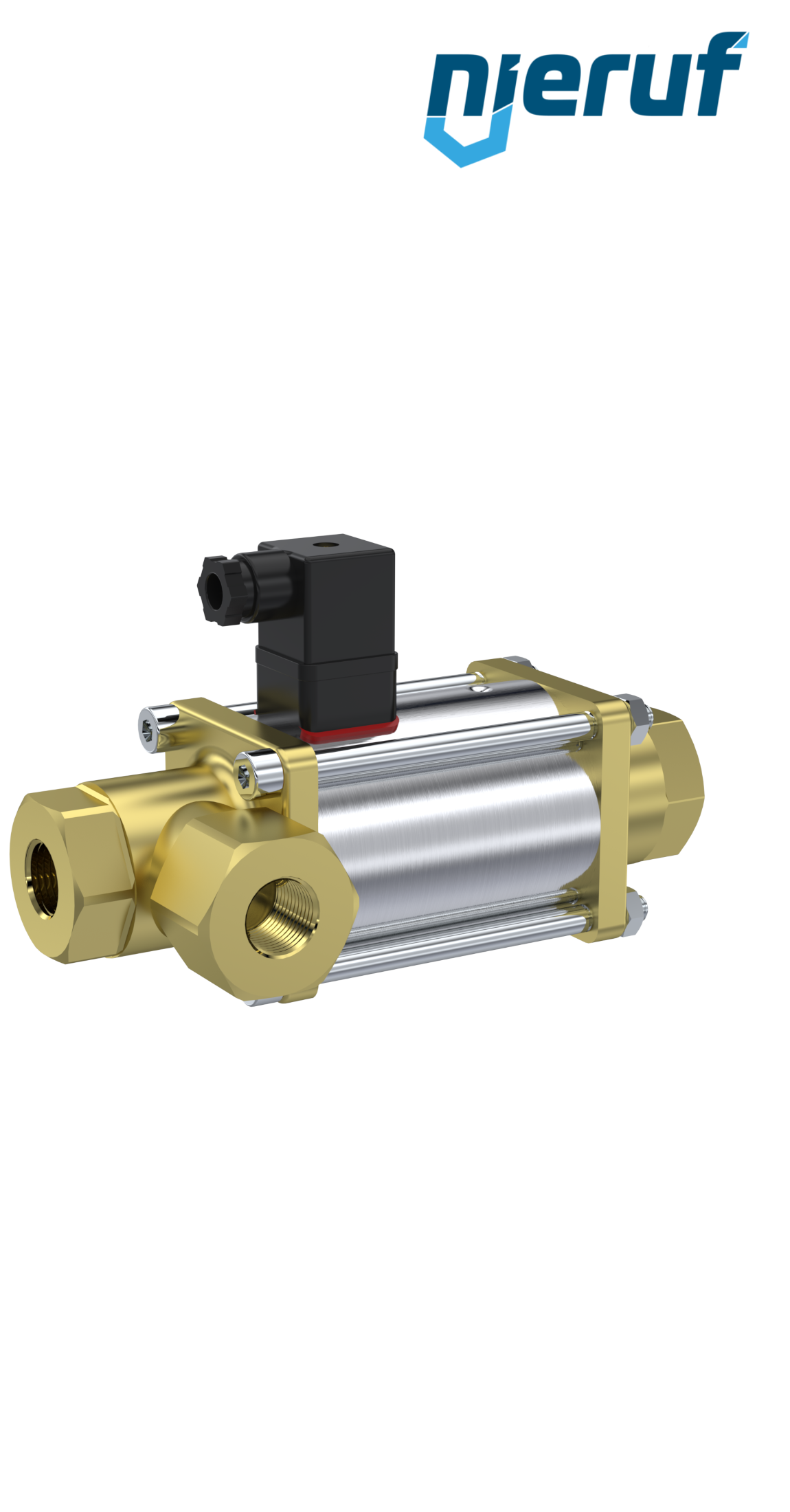

3/2-Way-Coaxial-valve 3/8" inch fm - DN10 brass 24V DC NC

€285.60*

€339.86 VAT included.

Delivery time: On request

Delivery information

Equipment

GF01300002

double nipple 3/8" inch male stainless steel 316

€1.40*

€1.67 VAT included.


Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-04

E-Mail: beck@nieruf.com

Certified

Certified

Product number: CV03010002
3/2-Way-Coaxial-valve 3/8" inch fm - DN10 brass 24V DC NC

3/2 Way-valve Coaxial-valve 3/8" inch fm - DN10 made of brass, direct acting up to max. 40 bar, NC - normal closed voltage 24V DC

product: Coaxial-valve
type: CV03
manufacturer: NieRuf
design: 3/2 Way-valve
diameter: 3/8" inch fm - DN10
connection: female thread
material: brass
seal: FPM
function: NC - normally closed
operation: with spring return
control: direct acting
voltage: 24V DC
media: liquid and gaseous media
temperature: from -20°C to max. +100°C
pressure range: up to max. 40 bar
installation position: any position
product feature: Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3/2-Way-Coaxial-valve 3/8" inch fm - DN10 brass 24V DC NC

Article no. : CV03010002
product: Coaxial-valve
type: CV03
manufacturer: NieRuf
design: 3/2 Way-valve
diameter: 3/8" inch fm - DN10
connection: female thread
material: brass
seal: FPM
function: NC - normally closed
operation: with spring return
control: direct acting
voltage: 24V DC
media: liquid and gaseous media
temperature: from -20°C to max. +100°C
pressure range: up to max. 40 bar
installation position: any position
product feature: Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
