CV01001005
Coaxial-valve 1" inch fm - DN25 brass 230V AC NC - for water application
- Lead time
- 1 - 2 weeks
Equipment
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

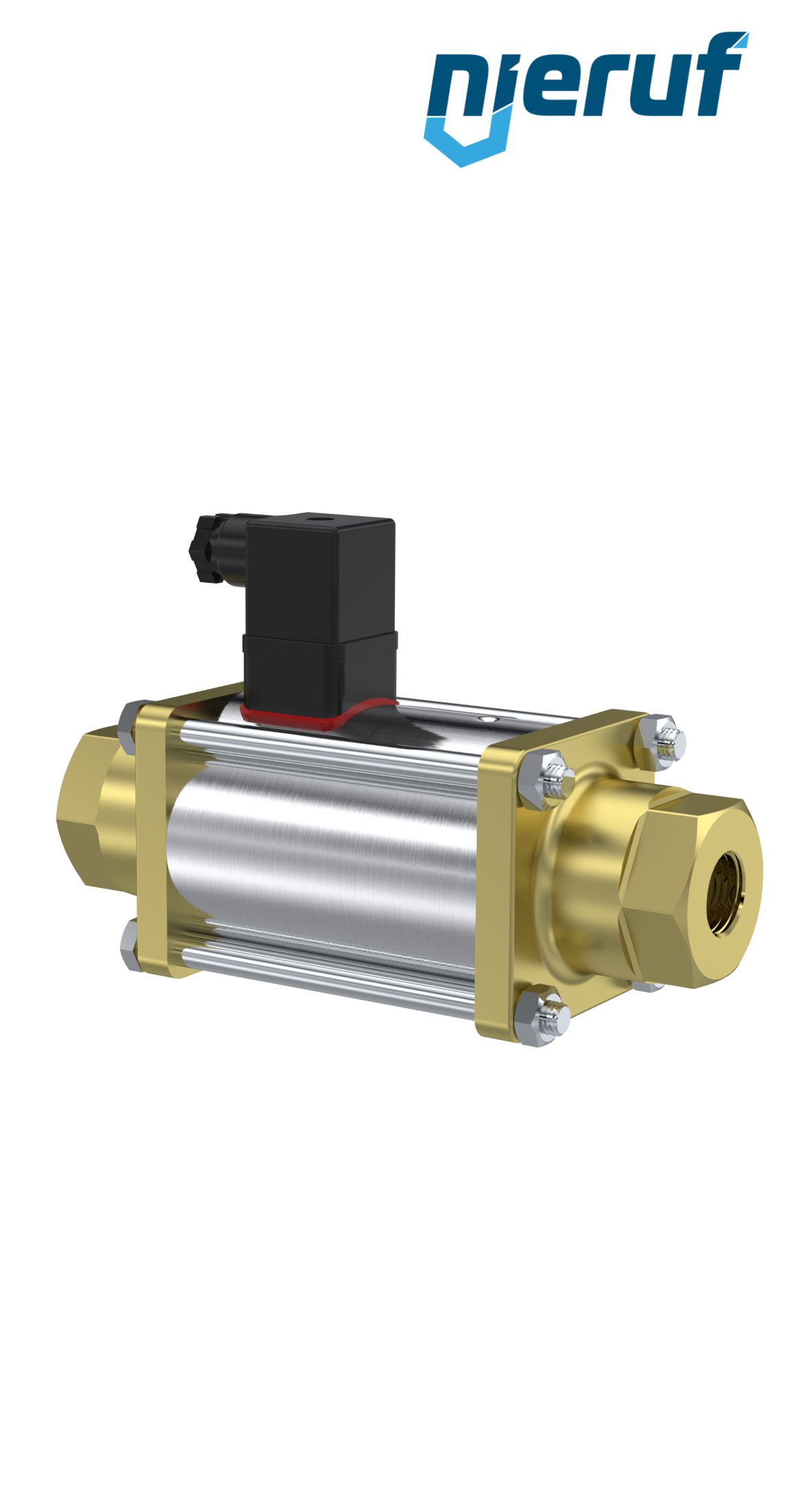

Coaxial-valve 1" inch fm - DN25 brass 230V AC NC - for water application
2/2 Way-valve Coaxial-valve 1" inch fm - DN25 made of brass, direct acting up to max. 40 bar, NC - normal closed voltage 230V AC - for Water
| product | Coaxial-valve |
|---|---|
| type | CV01 |
| manufacturer | NieRuf |
| design | 2/2 Way-valve |
| diameter | DN25 - 1" inch |
| connection | female thread |
| material | brass |
| seal | FKM / PTFE |
| function | NC - normally closed |
| control | direct acting |
| voltage | 230V 50Hz |
| media | Water |
| temperature | from -10°C to max. +80°C |
| pressure range | up to max. 40 bar |
| installation position | any position |
| product feature | Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Coaxial-valve 1" inch fm - DN25 brass 230V AC NC - for water application
Article no.
: CV01001005
product:
Coaxial-valve
type:
CV01
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN25 - 1" inch
connection:
female thread
material:
brass
seal:
FKM / PTFE
function:
NC - normally closed
control:
direct acting
voltage:
230V 50Hz
media:
Water
temperature:
from -10°C to max. +80°C
pressure range:
up to max. 40 bar
installation position:
any position
product feature:
Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
