RV04000205
check valve DN25 - 1" inch stainless steel 1.4408 FKM
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 05. October
Guaranteed delivery until Tuesday, 06. October, 12 o'clock
Equipment
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
check valve DN25 - 1" inch stainless steel 1.4408 FKM

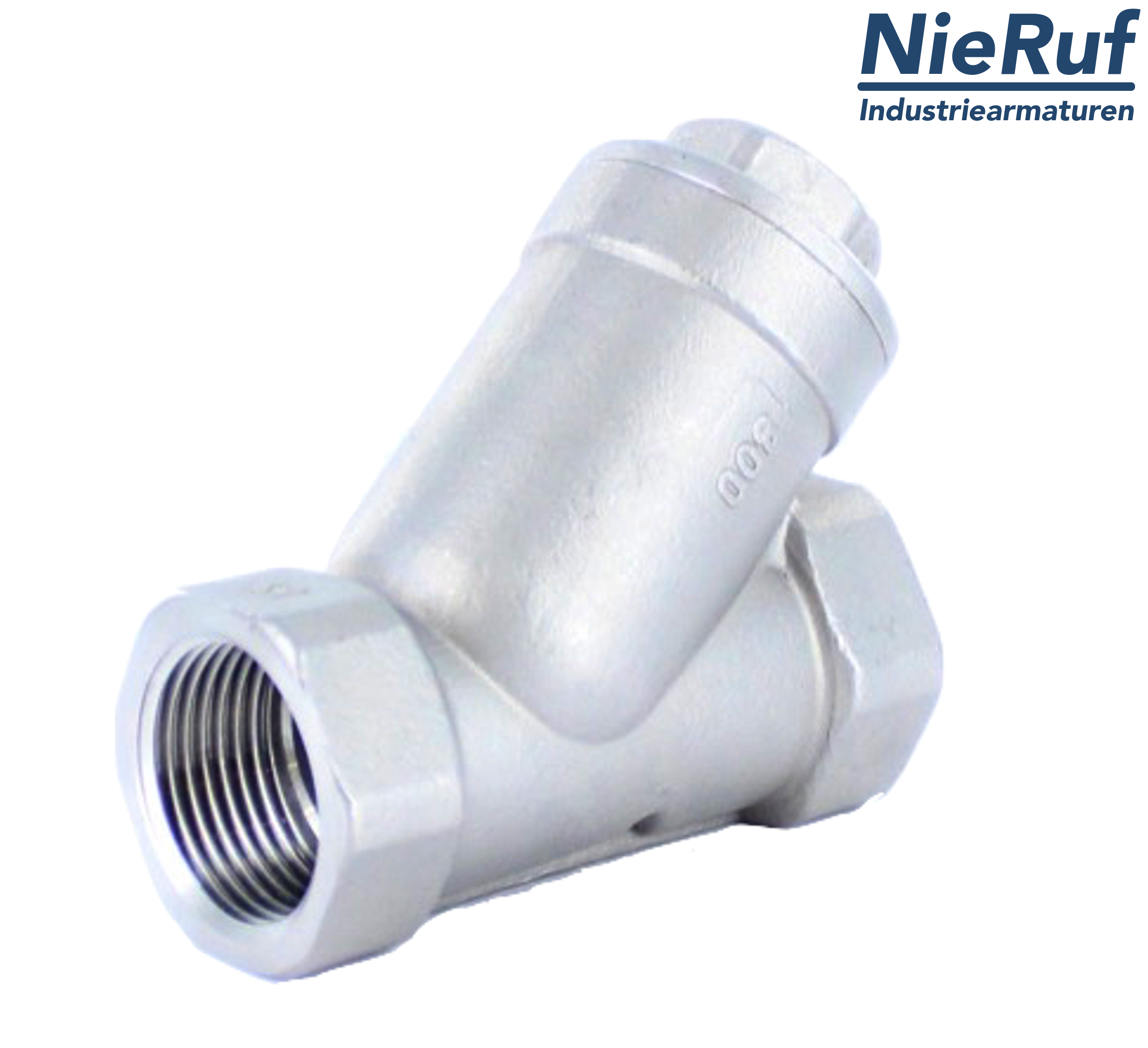

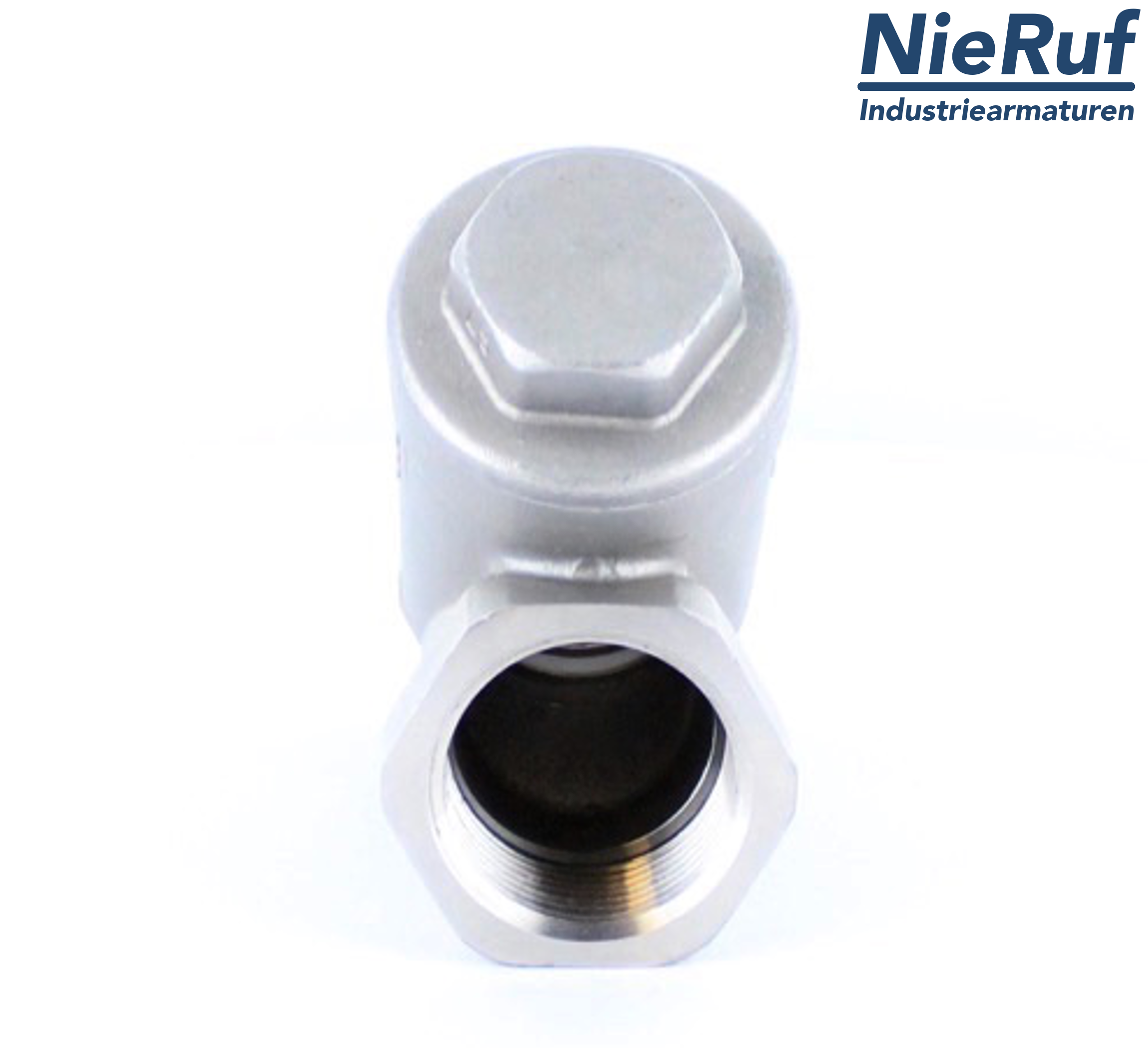

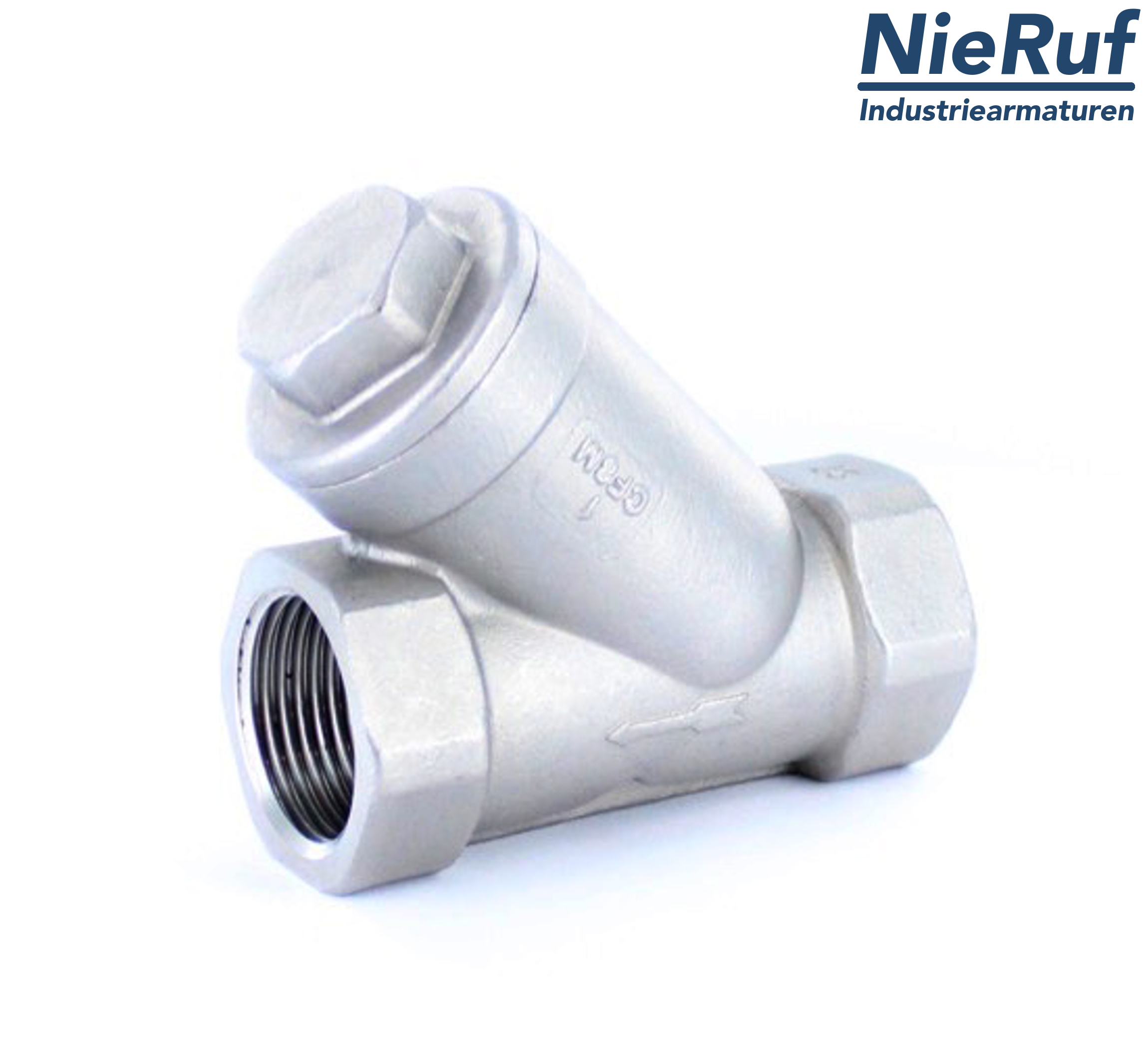

Y-type check valve DN25 - 1" inch made of stainless steel 1.4408 seal FKM for liquid and gaseous media
| product | check valve |
|---|---|
| type | RV04 |
| manufacturer | NieRuf |
| design | Y-type check valve |
| diameter | DN25 - 1" inch |
| body material | stainless steel 1.4408 / CF8M |
| disc material | stainless steel 1.4408 / CF8M |
| seal | FKM |
| tightness acc. to DIN EN 12266 | leak rate A |
| temperature | -25°C up to +200°C |
| connection | female thread BSP |
| pressure range | 0 - 40 bar |
| Kv-value in m3/h | 8,00 |
| spring material | stainless steel 1.4401 / AISI 316 |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | y-design and low opening pressure |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN25 - 1" inch stainless steel 1.4408 FKM
Article no.
: RV04000205
product:
check valve
type:
RV04
manufacturer:
NieRuf
design:
Y-type check valve
diameter:
DN25 - 1" inch
body material:
stainless steel 1.4408 / CF8M
disc material:
stainless steel 1.4408 / CF8M
seal:
FKM
tightness acc. to DIN EN 12266:
leak rate A
temperature:
-25°C up to +200°C
connection:
female thread BSP
pressure range:
0 - 40 bar
Kv-value in m3/h:
8,00
spring material:
stainless steel 1.4401 / AISI 316
media:
liquid and gaseous media
installation position:
any position
product feature:
y-design and low opening pressure
