RV02100507
check valve DN 40 cast steel 1.0619 metall PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
- Lead time
- 3 - 5 working days
Equipment
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
€3.21 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

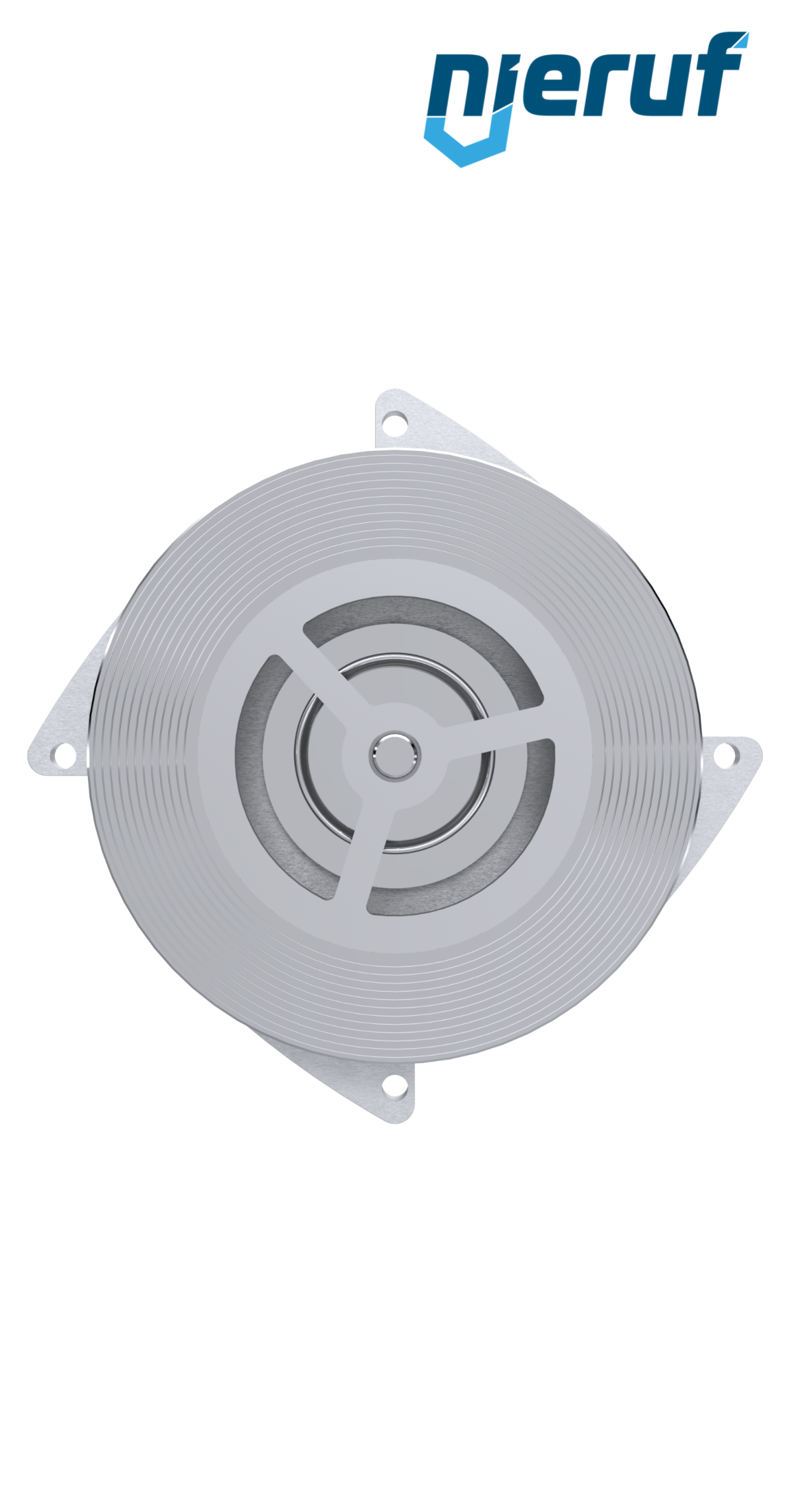

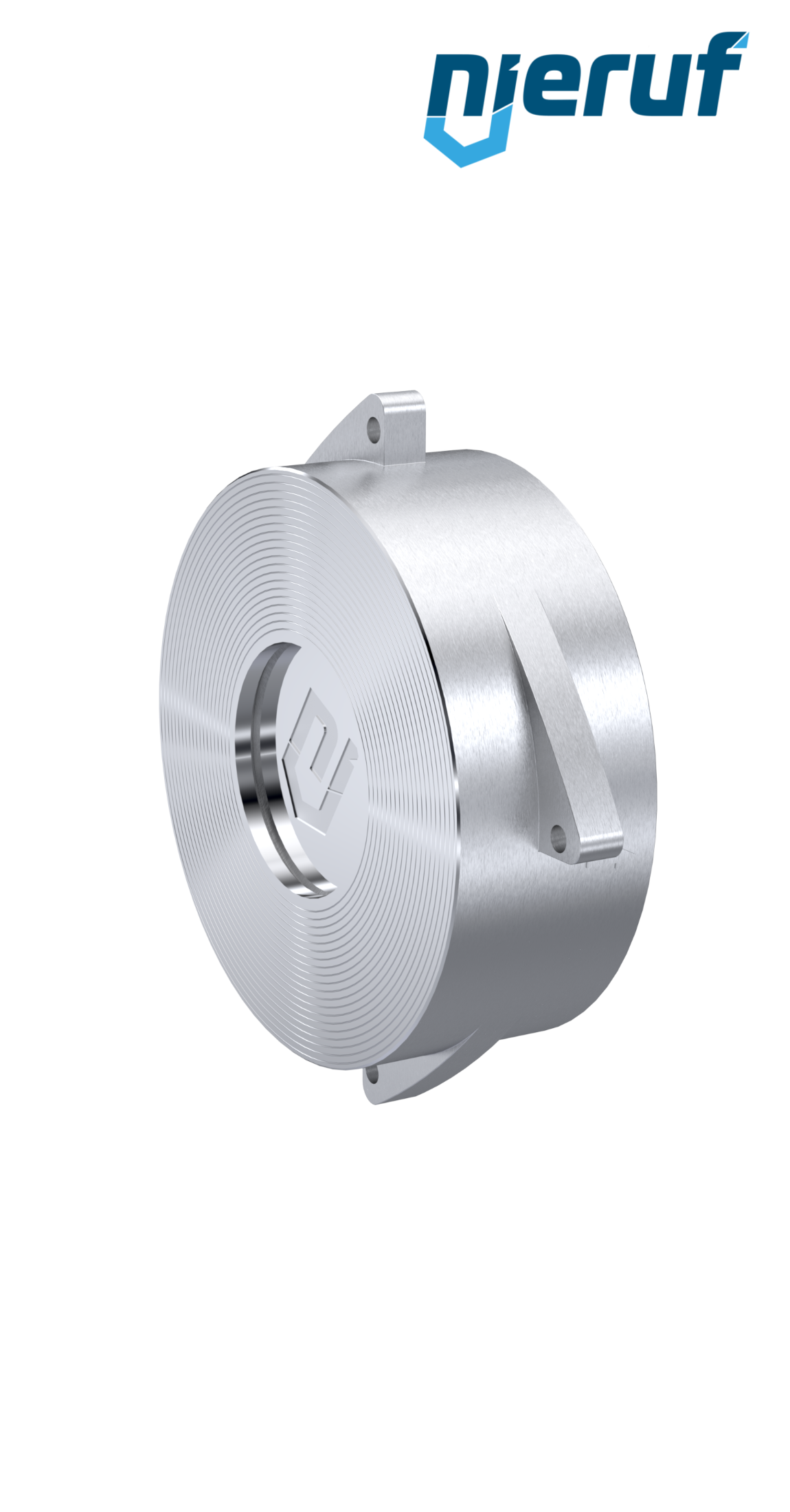

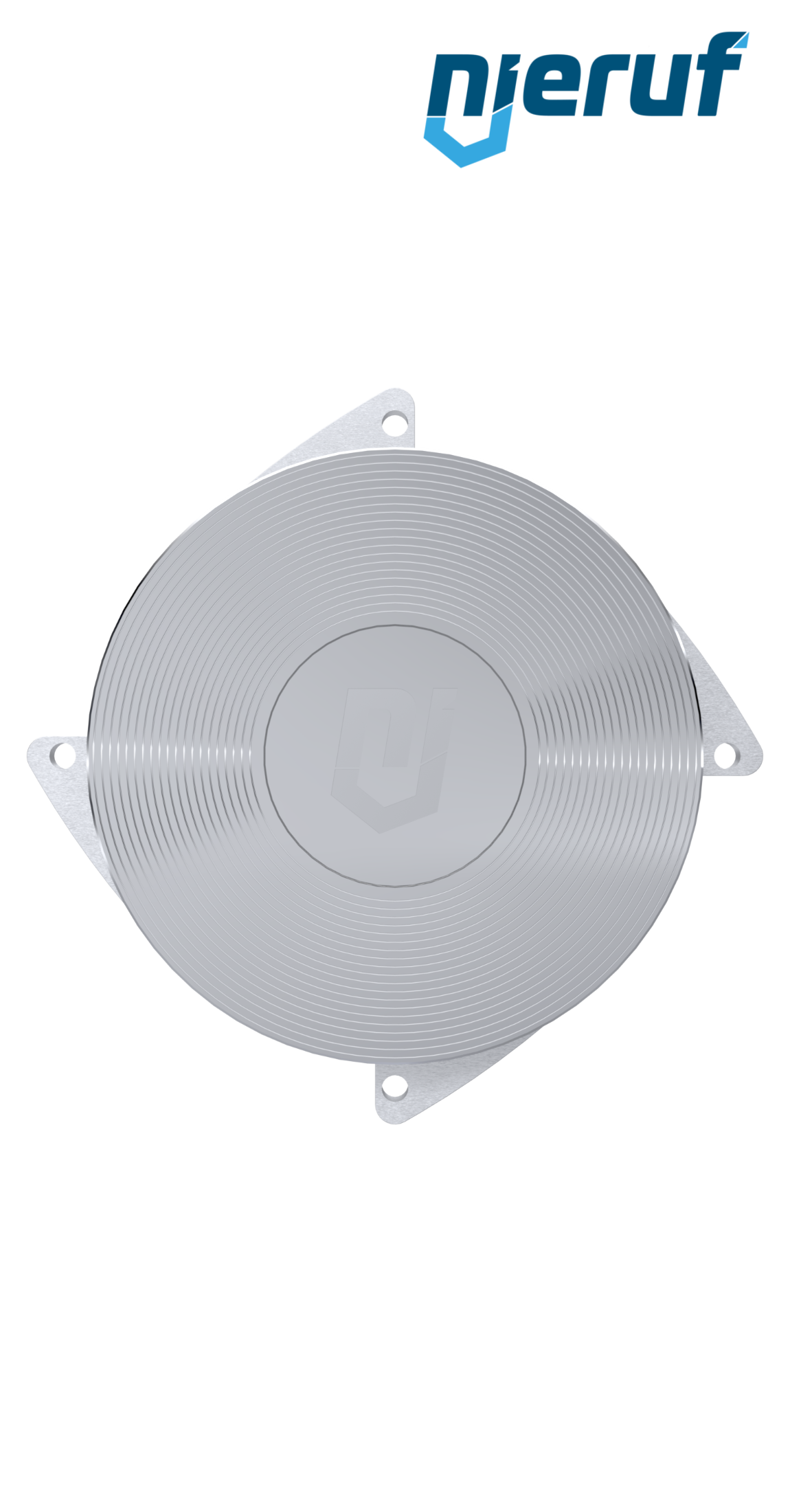

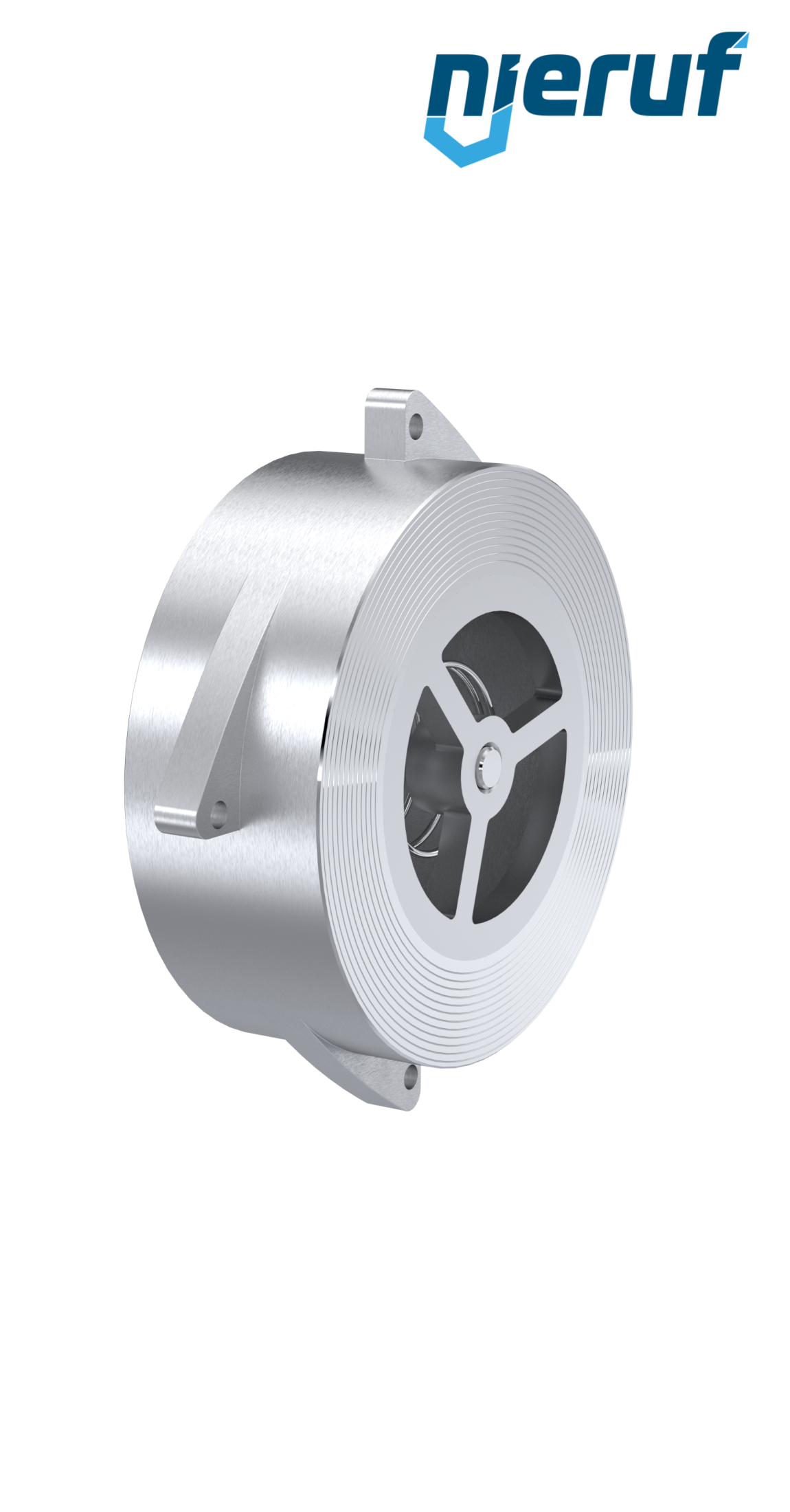

check valve DN 40 cast steel 1.0619 metall PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
disco check valve DN 40 made of cast steel 1.0619 seal metall for liquid and gaseous media PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
| product | check valve |
|---|---|
| type | RV02 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 40 |
| body material | cast steel 1.0619 |
| disc material | stainless steel 1.4408 / CF8M |
| seal | metall |
| tightness acc. to DIN EN 12266 | leak rate ≥ G |
| temperature | -10°C up to +300°C |
| flange | PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) |
| pressure range | 0 - 40 bar |
| Kv-value in m3/h | 24,00 |
| spring material | stainless steel 1.4571 / AISI 316Ti |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 40 cast steel 1.0619 metall PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
Article no.
: RV02100507
product:
check valve
type:
RV02
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 40
body material:
cast steel 1.0619
disc material:
stainless steel 1.4408 / CF8M
seal:
metall
tightness acc. to DIN EN 12266:
leak rate ≥ G
temperature:
-10°C up to +300°C
flange:
PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
pressure range:
0 - 40 bar
Kv-value in m3/h:
24,00
spring material:
stainless steel 1.4571 / AISI 316Ti
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
Equipment
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Lead time: in stock
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
