FK06010008

flange ball valve DN50 FK06 ANSI 150 stainless steel 1.4408

€310.10*

€369.02 VAT included.

Delivery time: 3 - 5 working days

Delivery information

×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: FK06010008

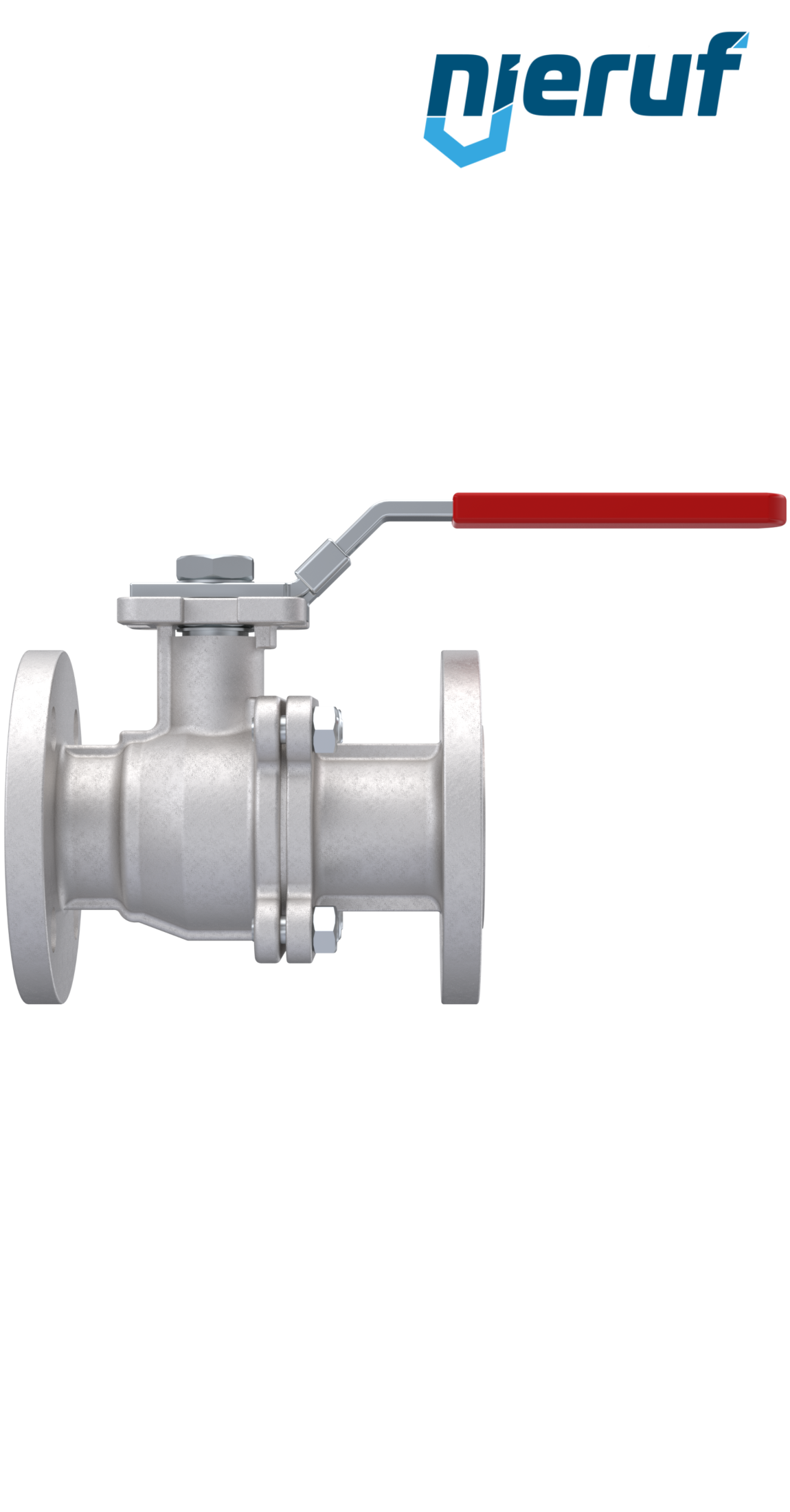

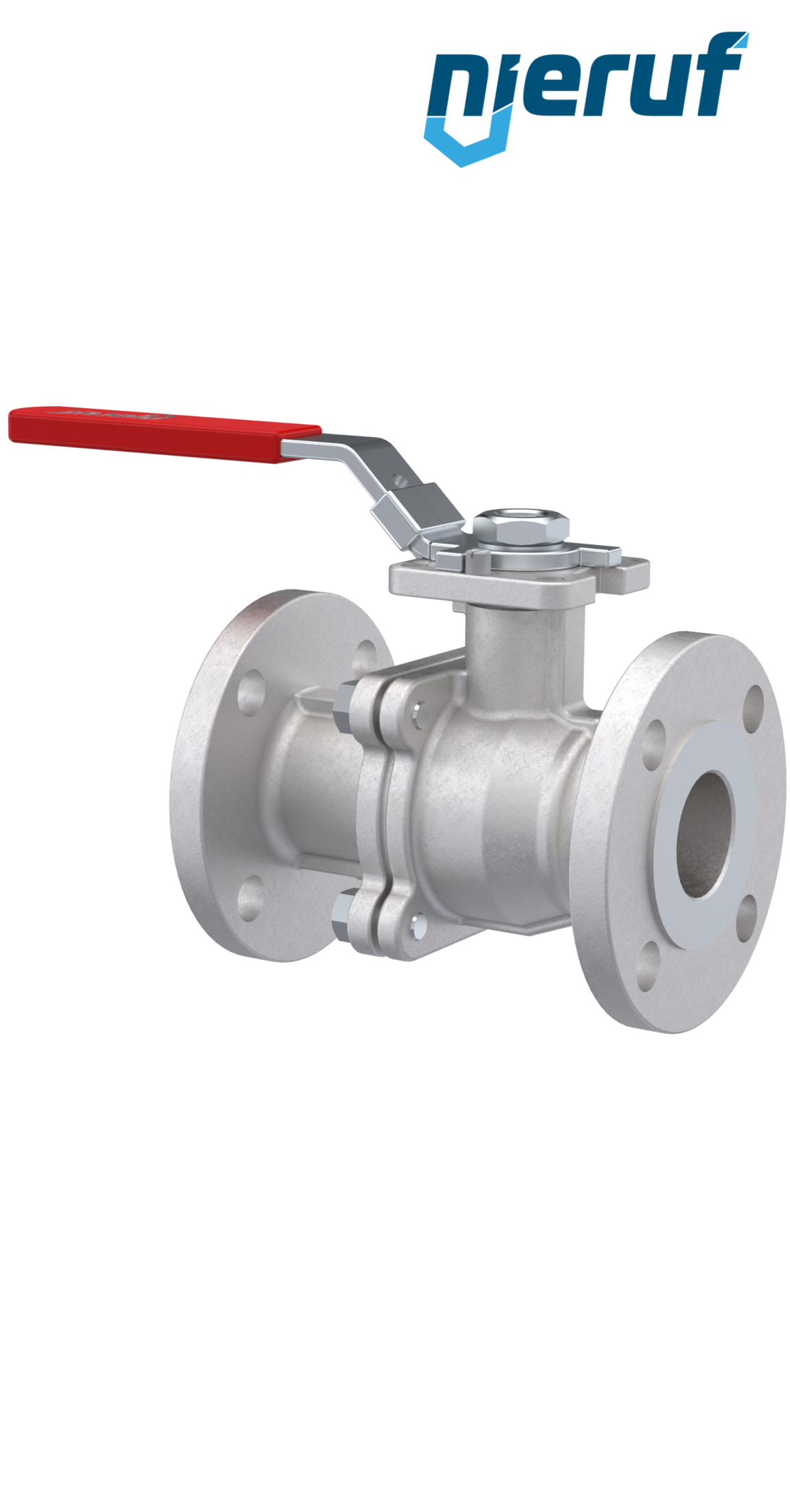

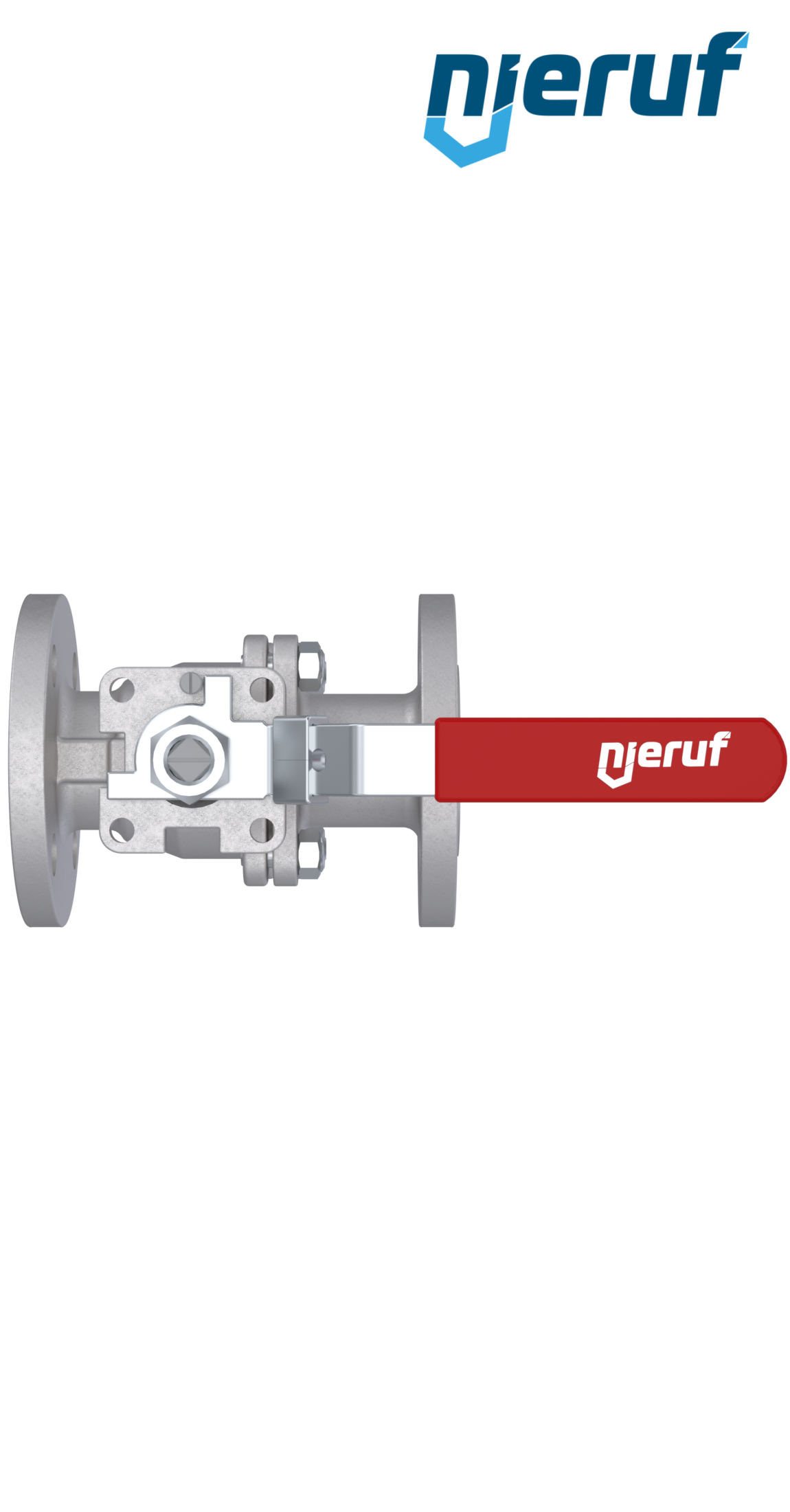

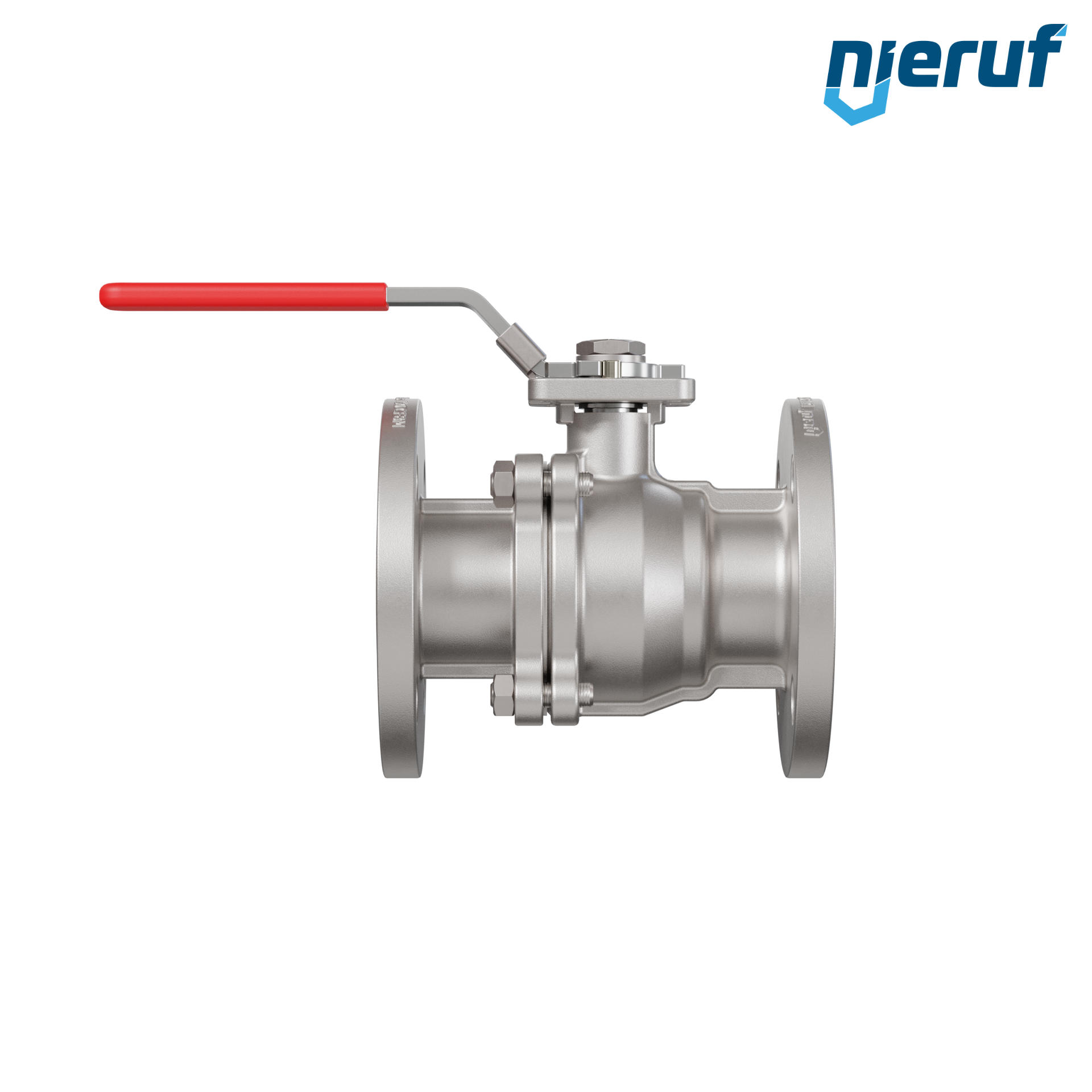

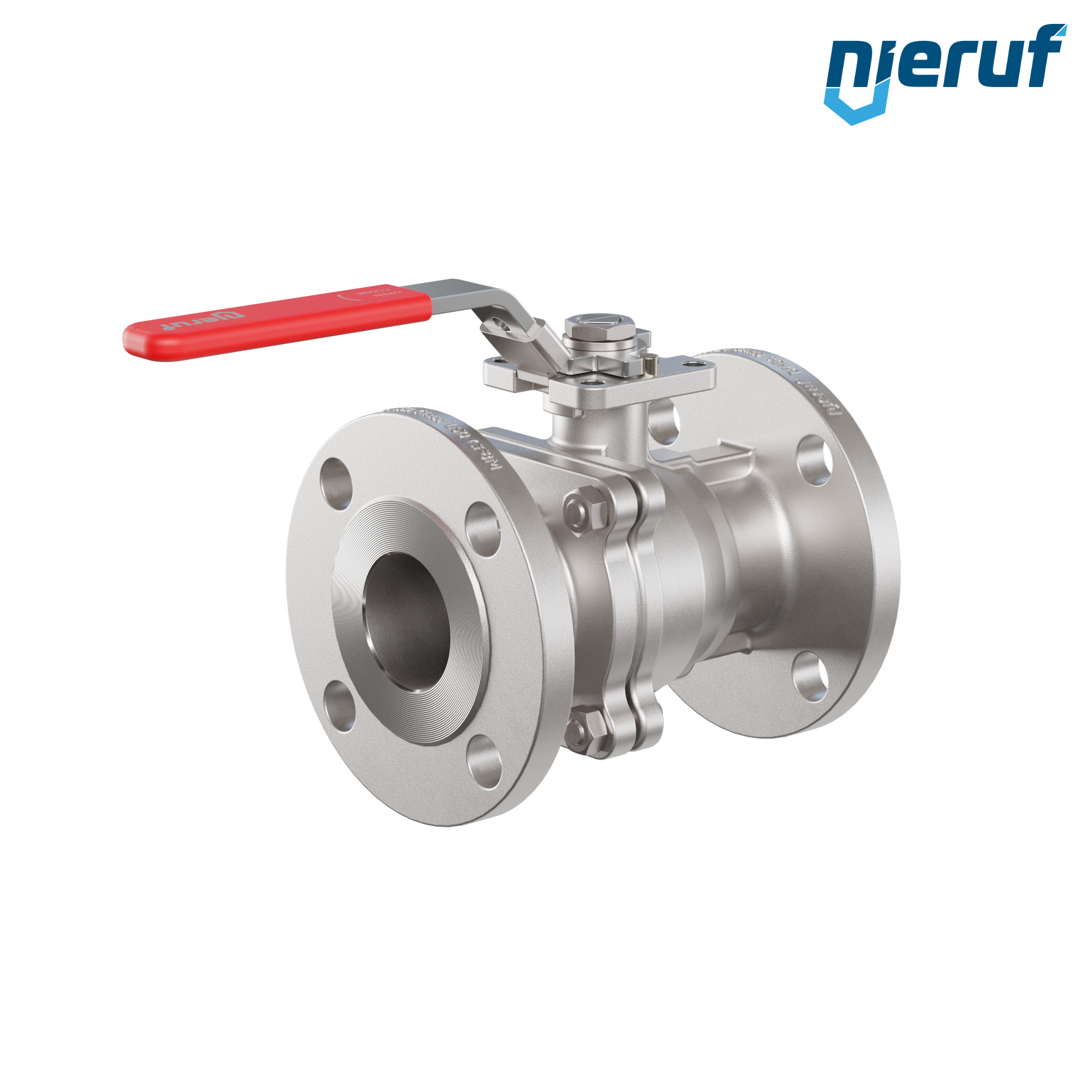

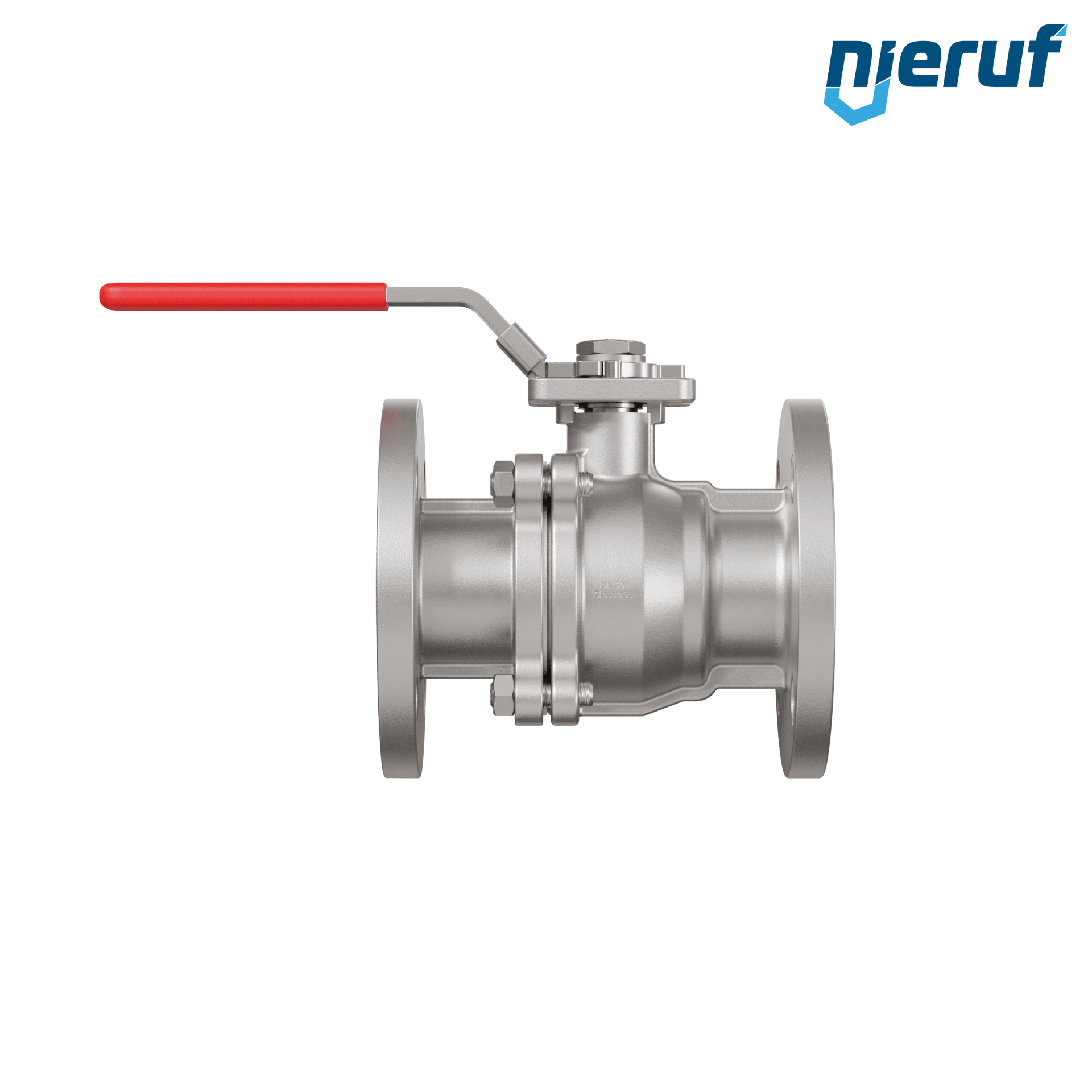

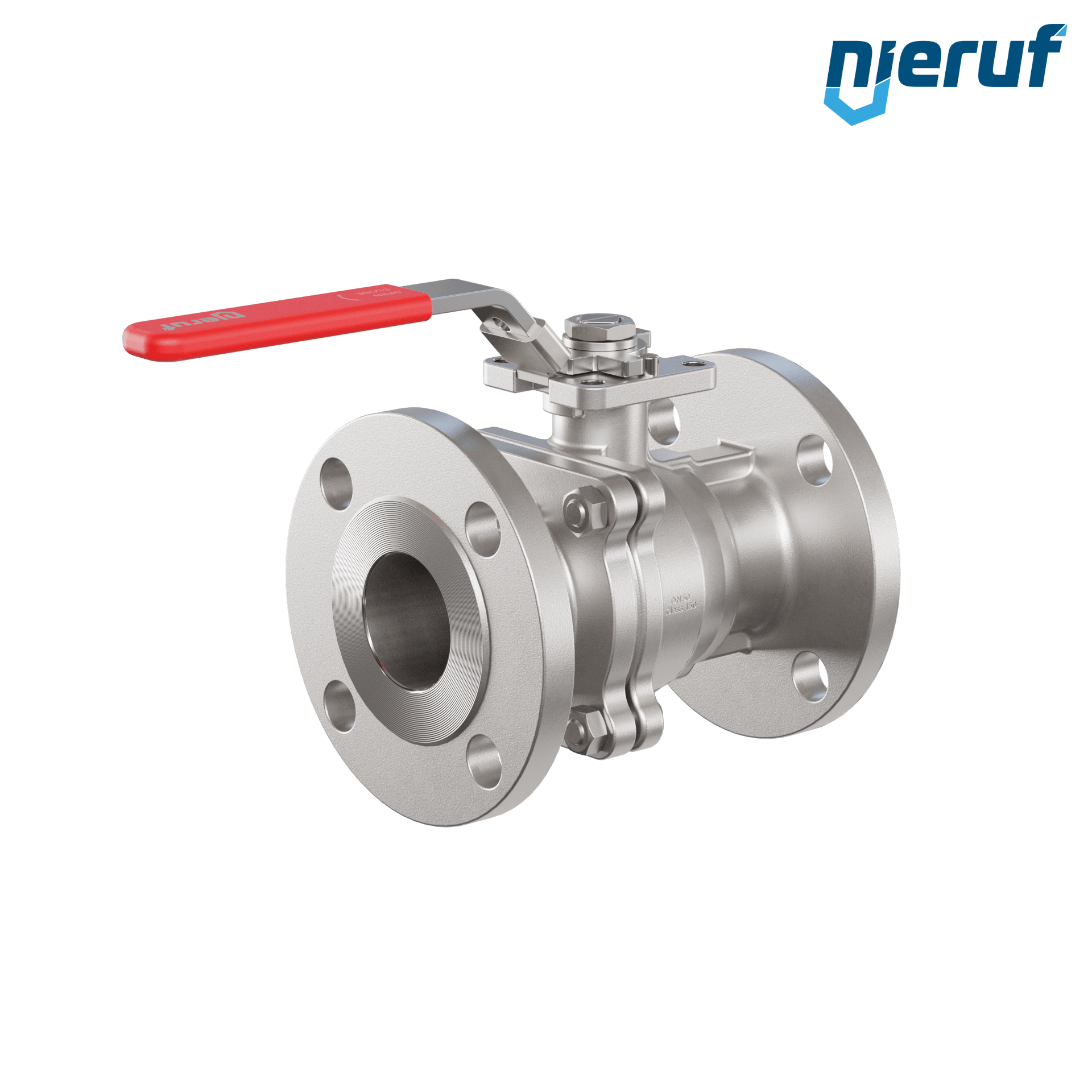

flange ball valve DN50 FK06 ANSI 150 stainless steel 1.4408

flange ball valve DN50 ANSI 150 FK06 body stainless steel 1.4408 ball stainless steel 1.4401 seal PTFE for liquid and gaseous media

product: flange ball valve
type: FK06
manufacturer: NieRuf
diameter: DN50
connection: flange dimensions acc. to ASME B16.5 ANSI 150
Seal steam: O-ring FKM
ball seal: PTFE
media: liquid and gaseous media
temperature: -10°C up to +180°C - depending on working pressure and media
max. pressure: PN20
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: ASME B16.10
actuator: lever handle made of stainless steel with plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange ball valve DN50 FK06 ANSI 150 stainless steel 1.4408

Article no. : FK06010008
product: flange ball valve
type: FK06
manufacturer: NieRuf
diameter: DN50
connection: flange dimensions acc. to ASME B16.5 ANSI 150
Seal steam: O-ring FKM
ball seal: PTFE
media: liquid and gaseous media
temperature: -10°C up to +180°C - depending on working pressure and media
max. pressure: PN20
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: ASME B16.10
actuator: lever handle made of stainless steel with plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.
