FK06010013

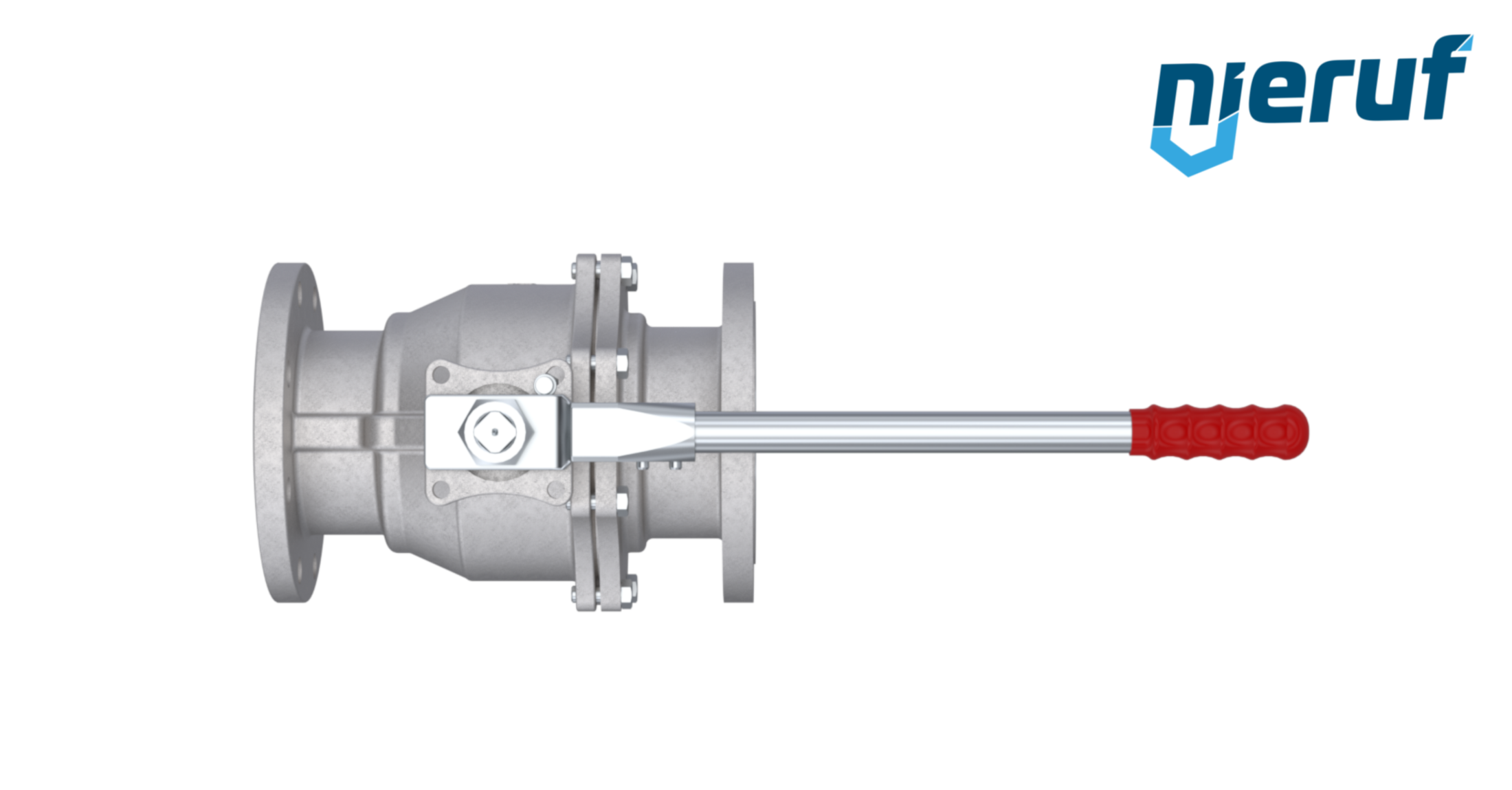

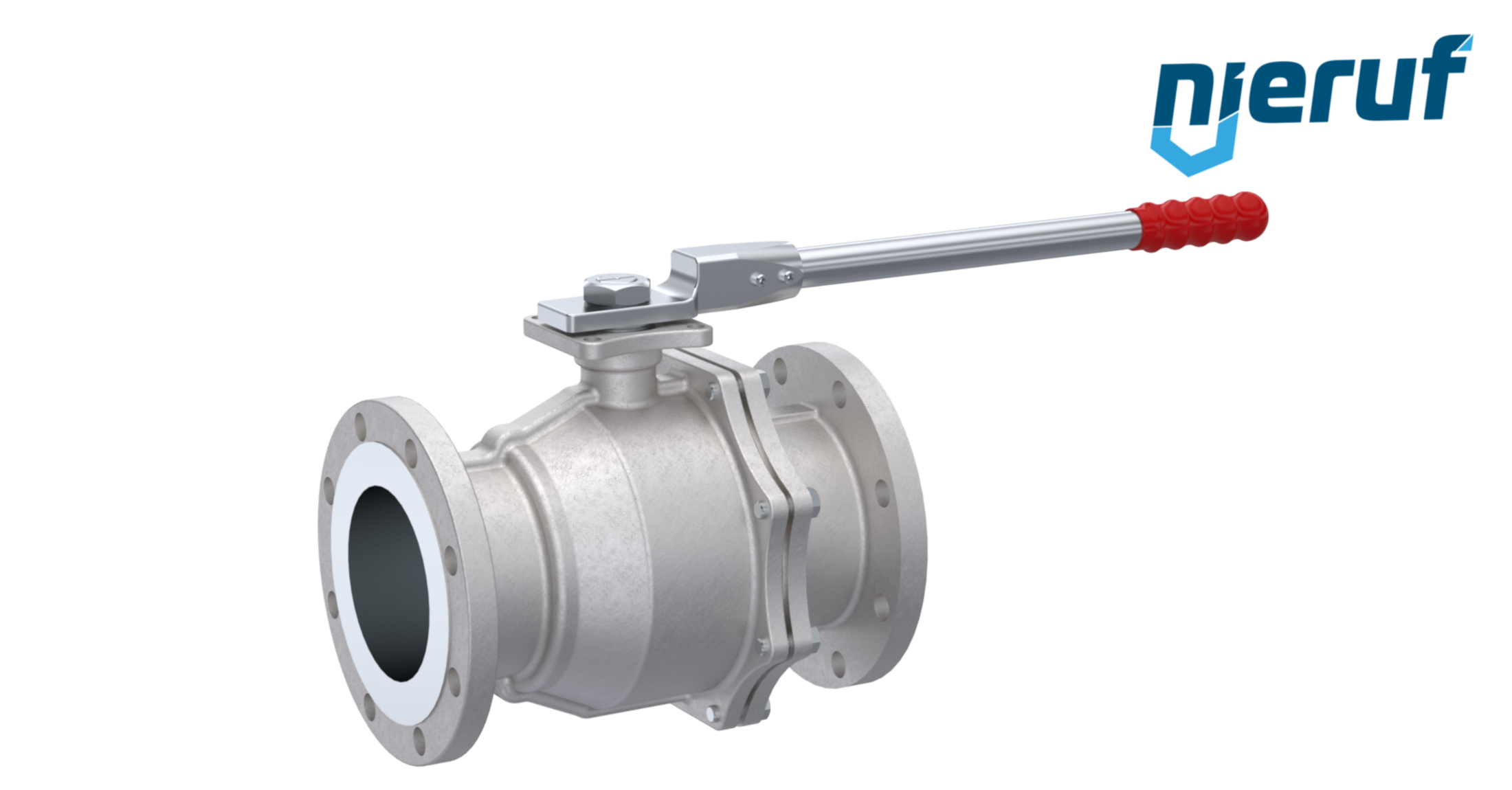

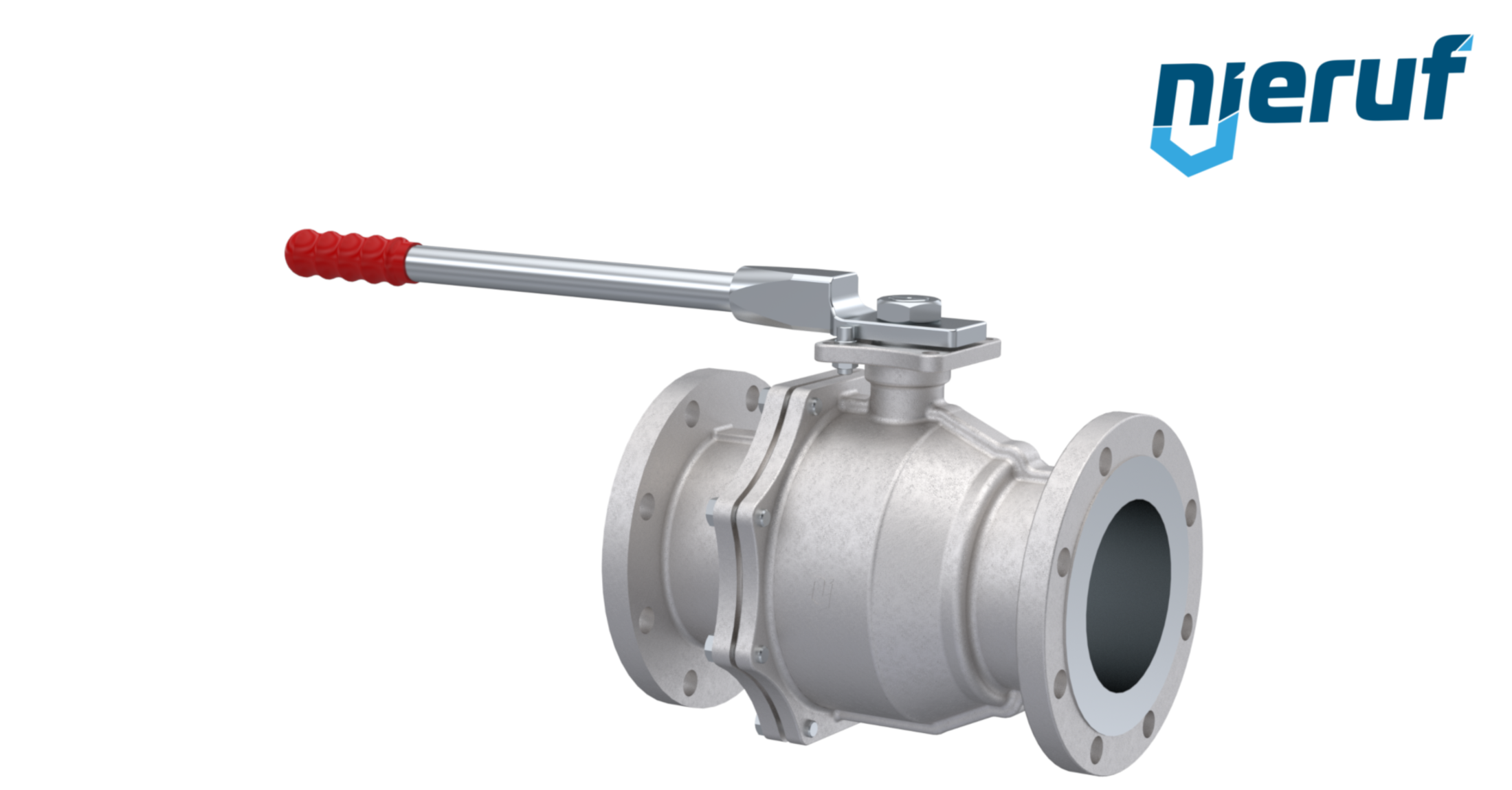

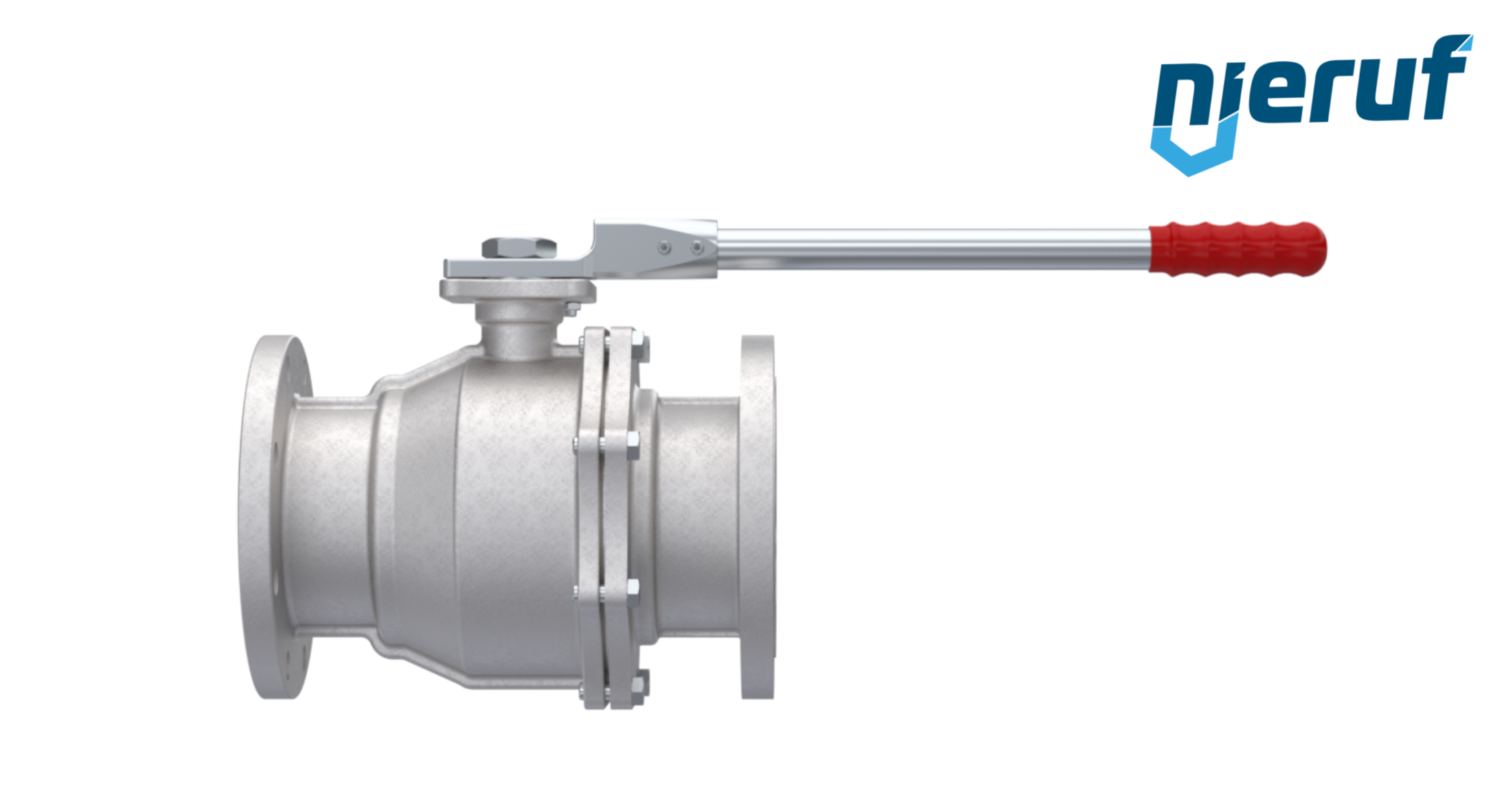

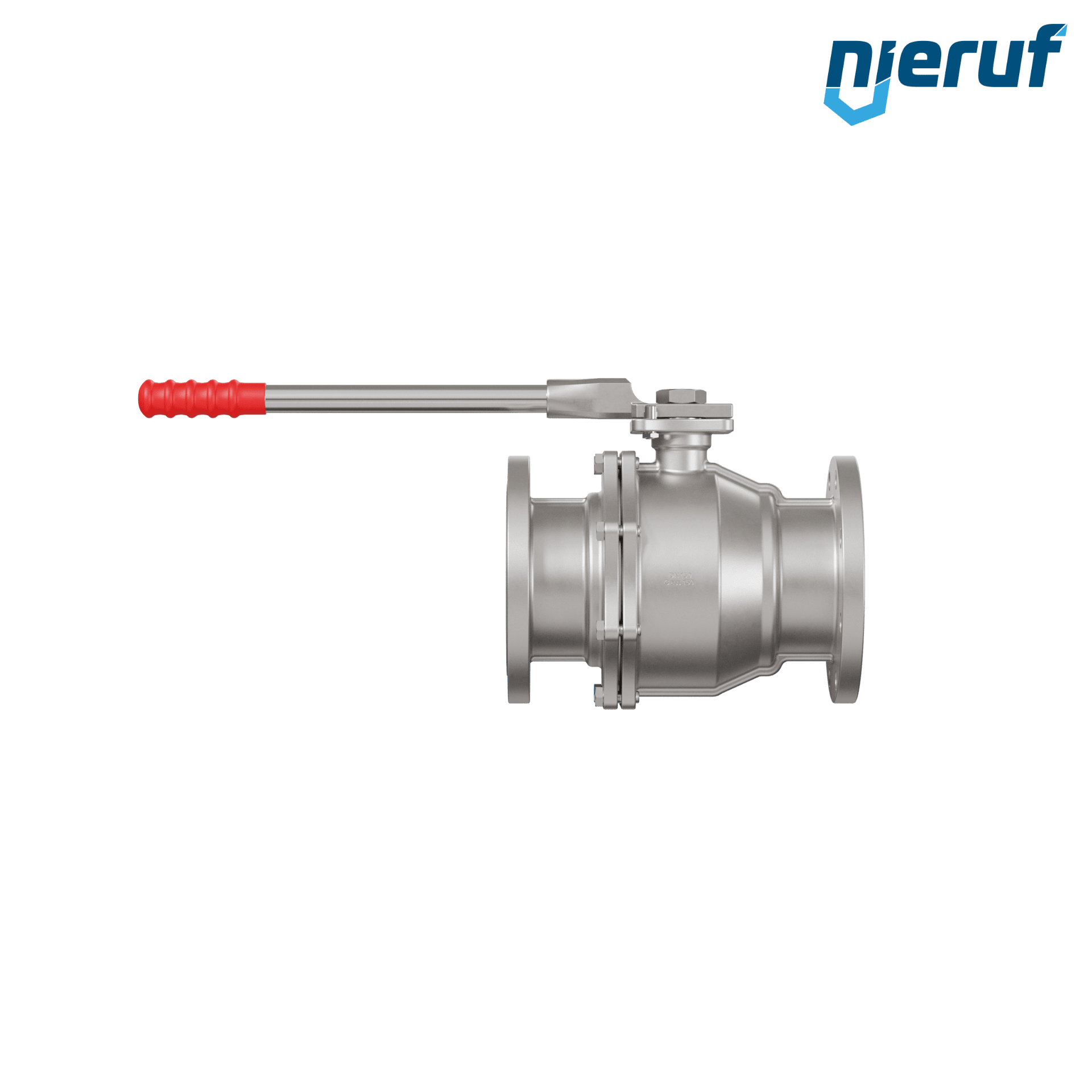

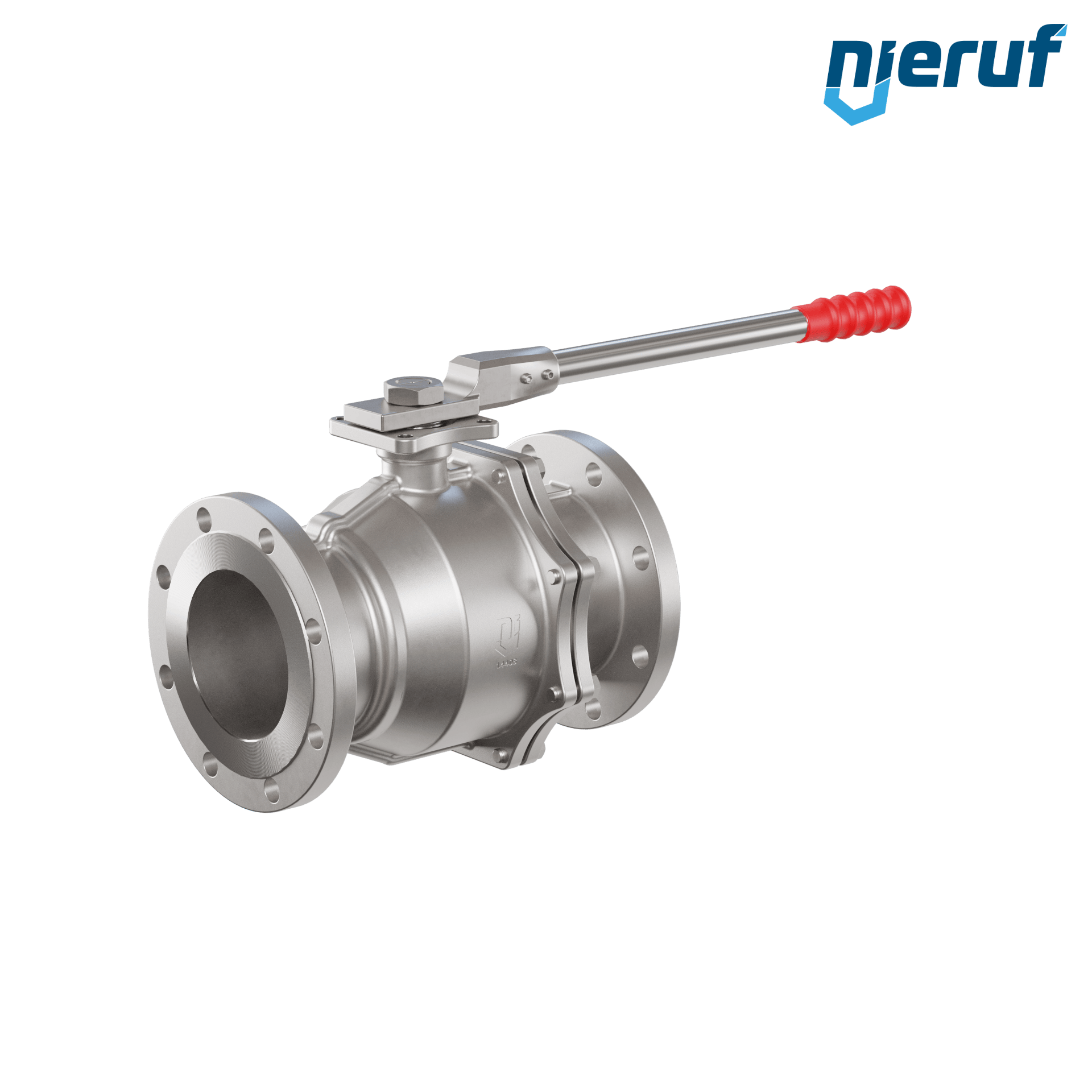

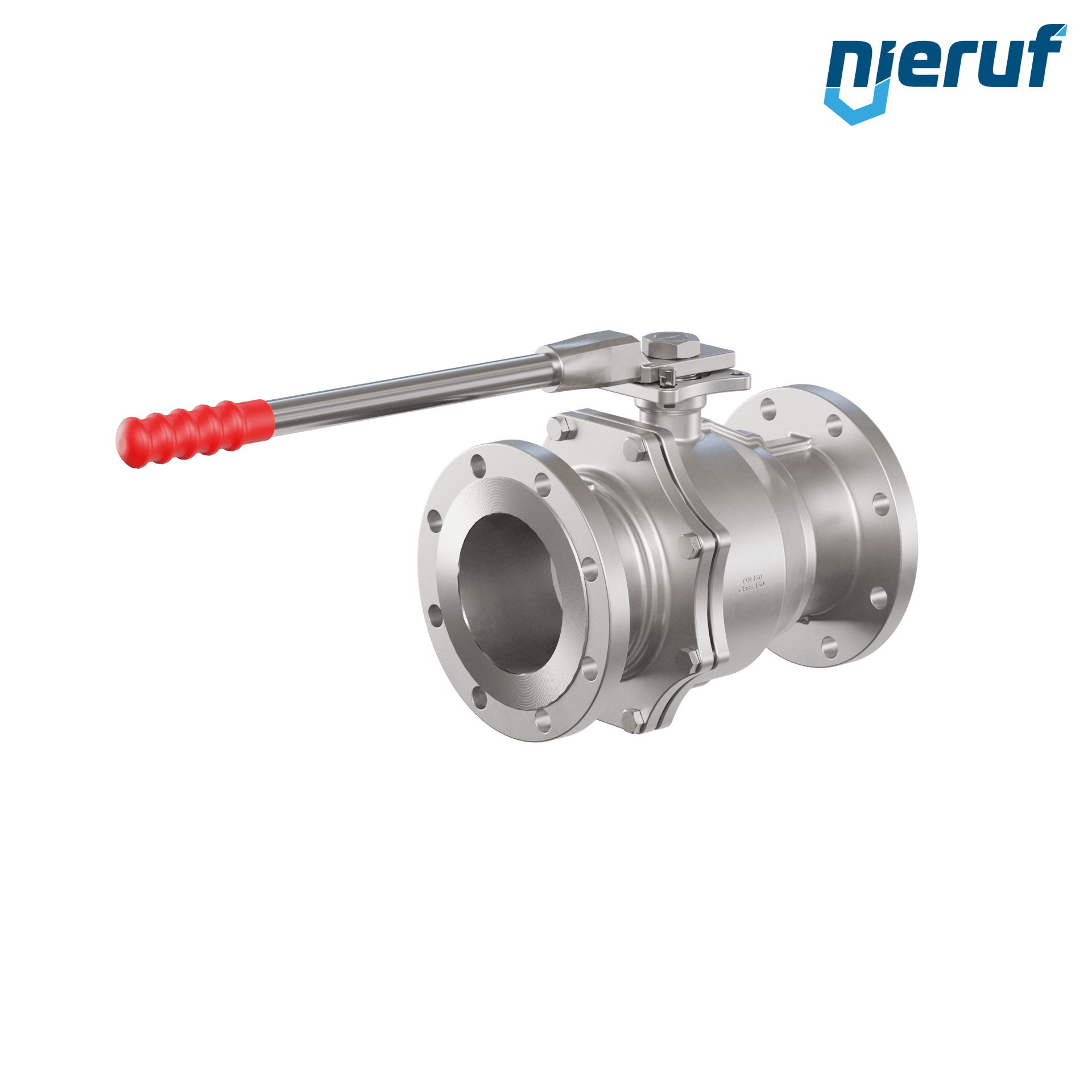

flange ball valve DN150 FK06 ANSI 150 stainless steel 1.4408

€2,582.10*

€3,072.70 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

flange ball valve DN150 FK06 ANSI 150 stainless steel 1.4408

flange ball valve DN150 ANSI 150 FK06 body stainless steel 1.4408 ball stainless steel 1.4401 seal PTFE for liquid and gaseous media

product	flange ball valve
type	FK06
manufacturer	NieRuf
diameter	DN150
connection	flange dimensions acc. to ASME B16.5 ANSI 150
Seal steam	O-ring FKM
ball seal	PTFE
media	liquid and gaseous media
temperature	-10°C up to +180°C - depending on working pressure and media
max. pressure	PN20
design	full port design
body material	stainless steel 1.4408 / CF8M
ball material	stainless steel 1.4401 / AISI 316
length	ASME B16.10
actuator	lever handle made of stainless steel with plastic cover
installation position	any position
product description	This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange ball valve DN150 FK06 ANSI 150 stainless steel 1.4408

Article no. : FK06010013
product: flange ball valve
type: FK06
manufacturer: NieRuf
diameter: DN150
connection: flange dimensions acc. to ASME B16.5 ANSI 150
Seal steam: O-ring FKM
ball seal: PTFE
media: liquid and gaseous media
temperature: -10°C up to +180°C - depending on working pressure and media
max. pressure: PN20
design: full port design
body material: stainless steel 1.4408 / CF8M
ball material: stainless steel 1.4401 / AISI 316
length: ASME B16.10
actuator: lever handle made of stainless steel with plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.
