PK07000013
automatic-flange stainless steel ball valve DN150 PK07 pneumatic actuator double acting
- Lead time
- 3 - 5 working days
Equipment
flange seal DN150 PN10/16 169x218x2 Klingersil C 4400
€9.28 VAT included.
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
€25.70 VAT included.
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
€54.98 VAT included.
Positioner PS01 for pneumatic actuators double acting air volume more than 5 l
€929.51 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

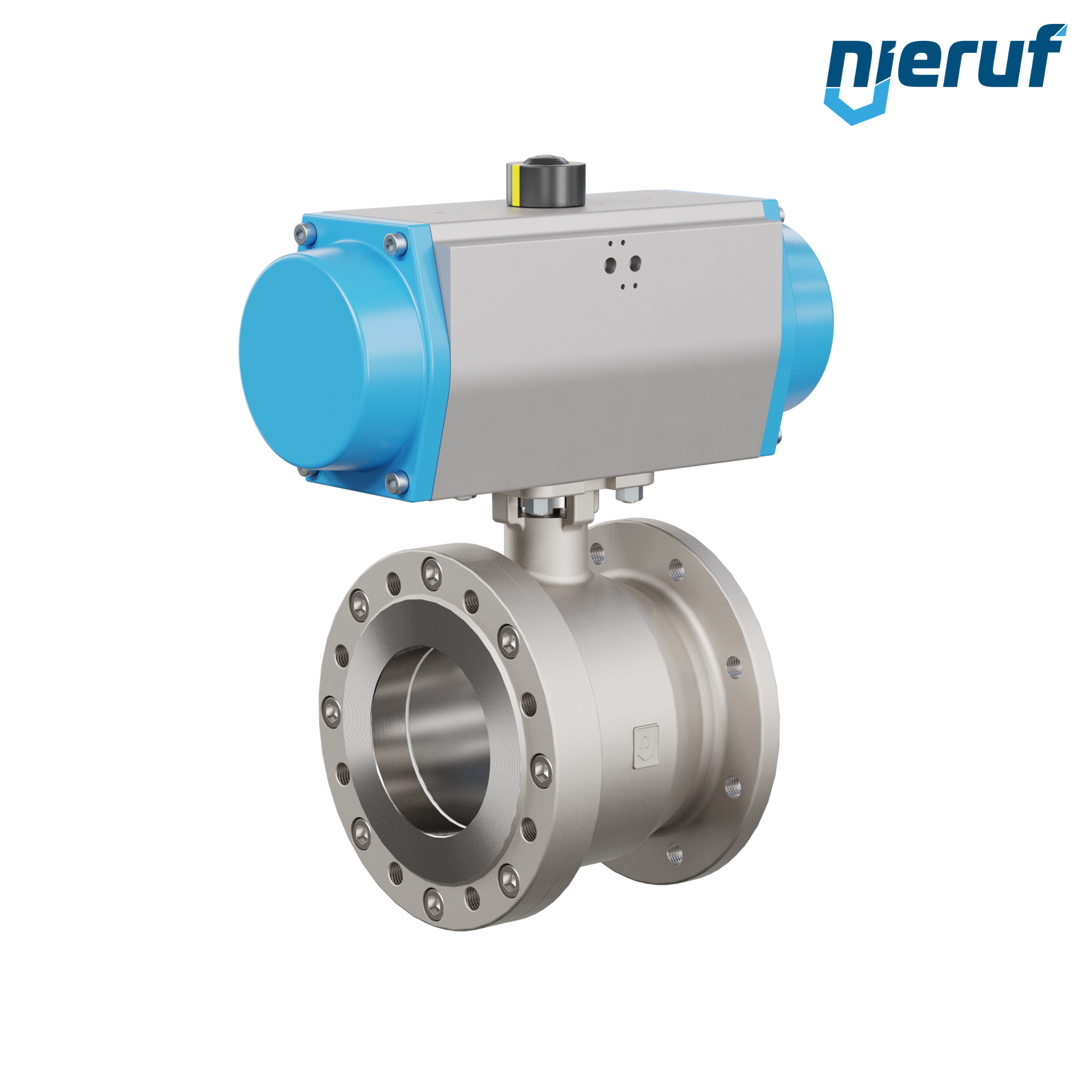

automatic-flange stainless steel ball valve DN150 PK07 pneumatic actuator double acting
automatic-flange stainless steel ball valve DN150 stainless steel 1.4408 PK07 pneumatic actuator GD143 made of aluminium (mode of function: GD = double acting)
| product | automatic-flange stainless steel ball valve |
|---|---|
| type | PK07 |
| manufacturer | NieRuf |
| diameter | DN150 - 6" inch |
| connection | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve: -29°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN16 |
| design | automatic-flange ball valve with pneumatic actuator (double acting) |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE + TFM |
| length | 225mm |
| actuator | pneumatic actuator GD160 made of aluminium (mode of function: GD = double acting) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for | TA Luft |
| product description | This high quality automatic-stainless steel ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange stainless steel ball valve DN150 PK07 pneumatic actuator double acting
Article no.
: PK07000013
product:
automatic-flange stainless steel ball valve
type:
PK07
manufacturer:
NieRuf
diameter:
DN150 - 6" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -29°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
design:
automatic-flange ball valve with pneumatic actuator (double acting)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE + TFM
length:
225mm
actuator:
pneumatic actuator GD160 made of aluminium (mode of function: GD = double acting)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-stainless steel ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible.
Equipment
flange seal DN150 PN10/16 169x218x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN150 PN10/16 EN1092-1 11 B1 1.4541
Lead time: in stock
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
Lead time: in stock
rotary elbow male adaptor parallel EF07 brass NBR G1/4" D6mm
Lead time: in stock
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Lead time: 3 - 5 working days
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
Lead time: 3 - 5 working days
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Lead time: in stock
Positioner PS01 for pneumatic actuators double acting with safety function air volume more than 5 l
Lead time: 2 - 3 weeks
