FK08010011

Three-way flange ball valve DN100 FK08 L Drilling carbon steel 1.0619

€2,976.90*

€3,542.51 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01010111

joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel

€13.60*

€16.18 VAT included.


FD01000111

flange seal DN100 PN10/16 115x162x2 Klingersil C 4400

€4.50*

€5.36 VAT included.


FL01020111

Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€34.20*

€40.70 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FK08010011

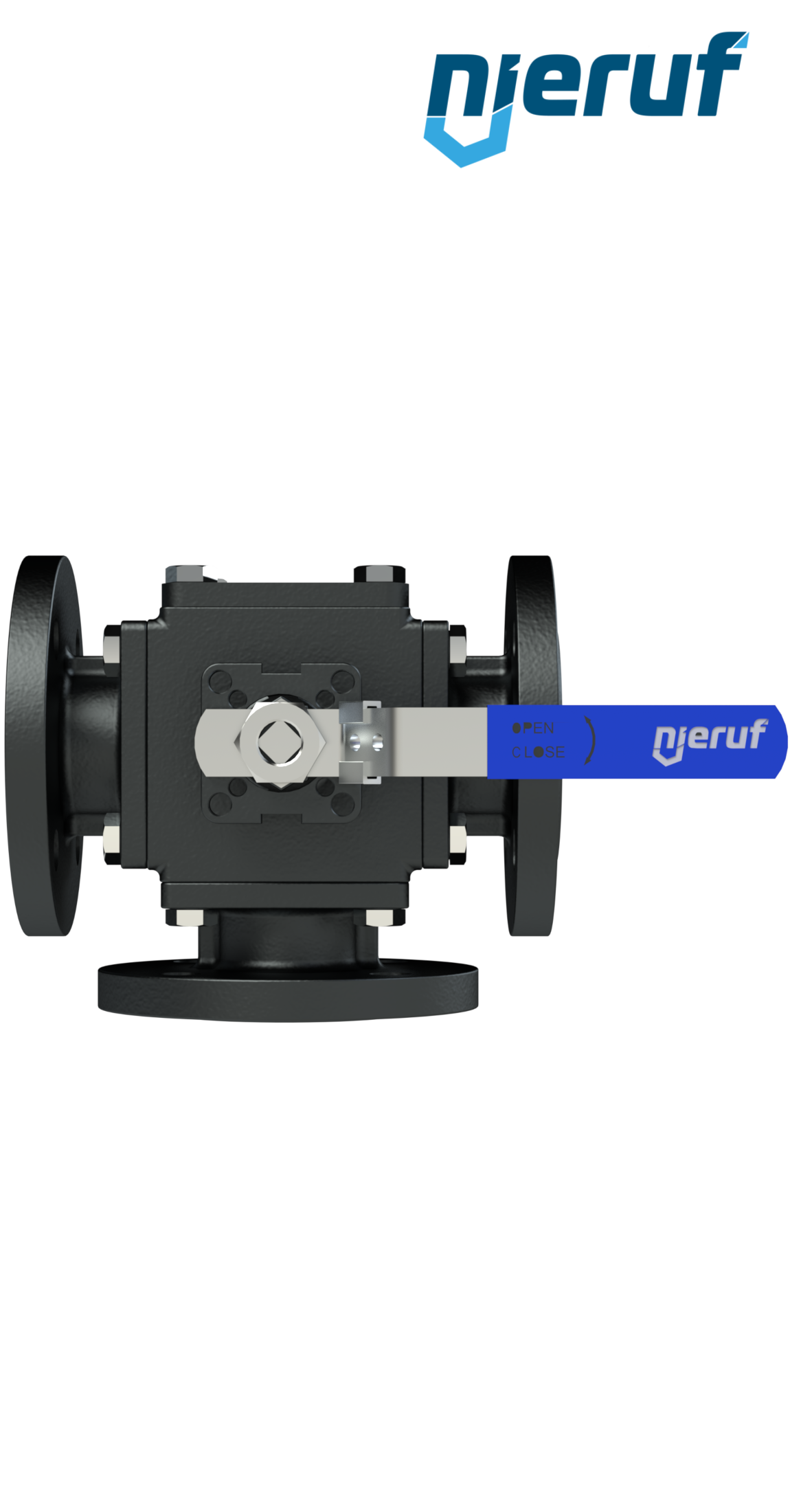

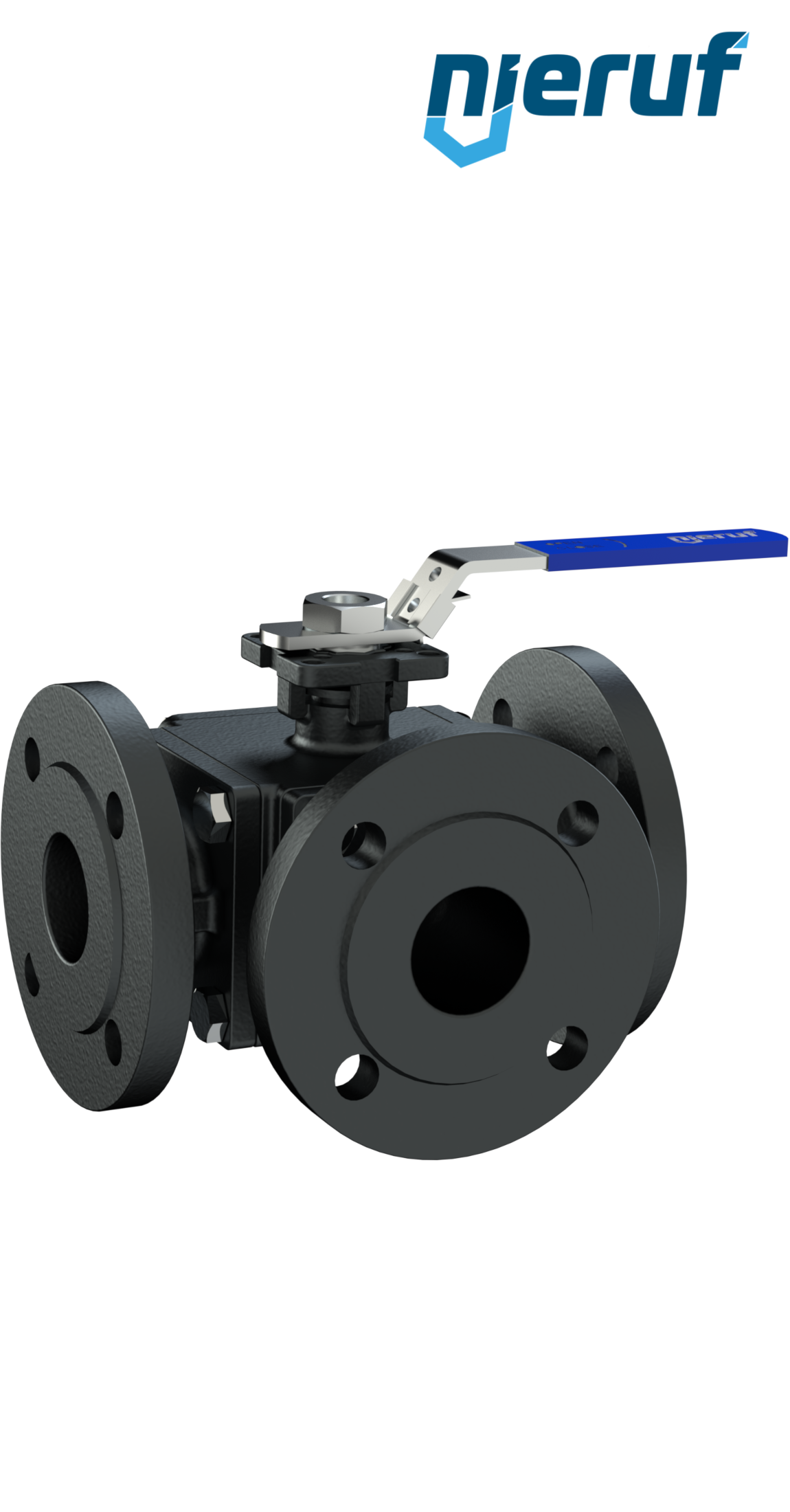

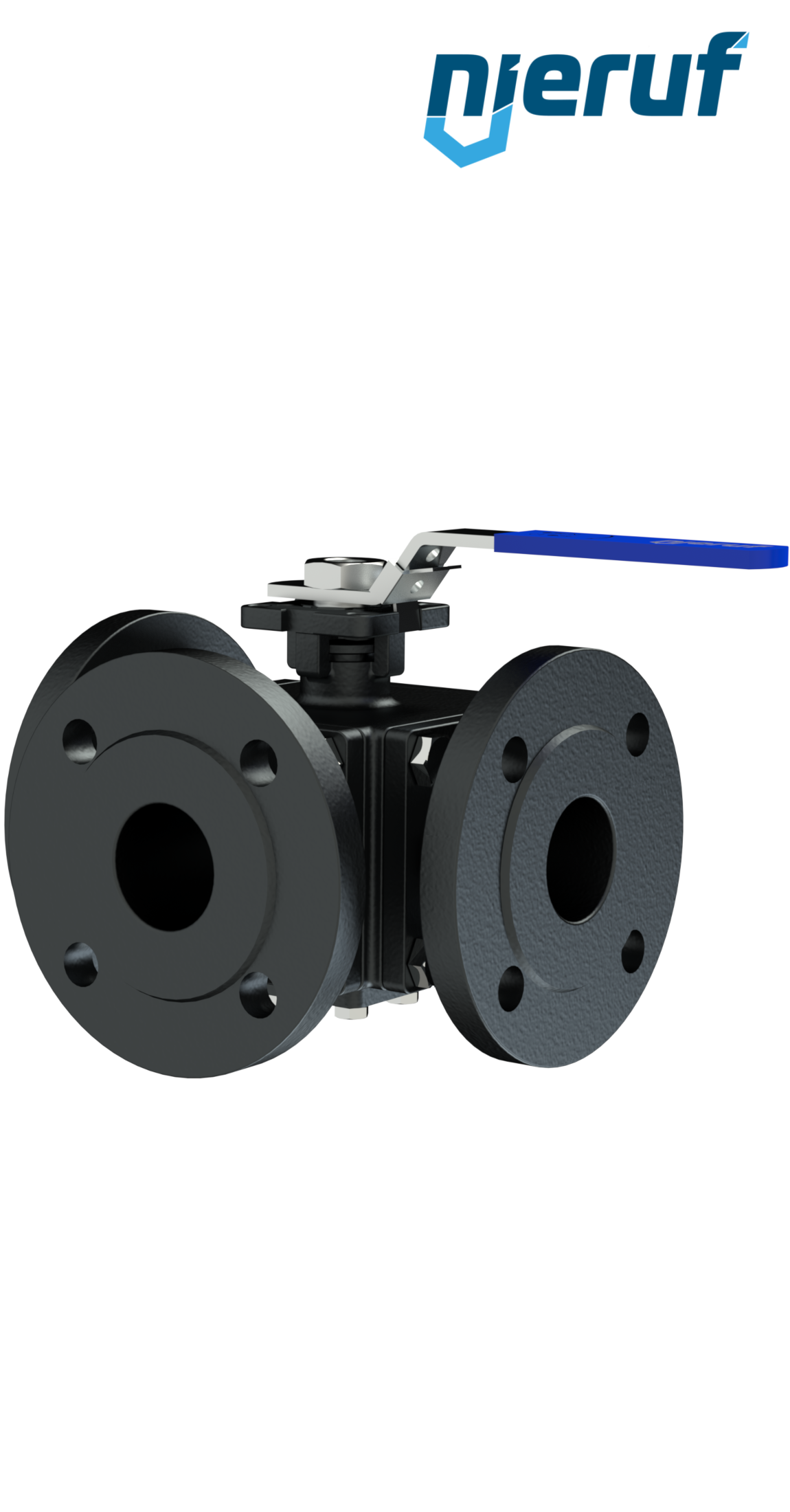

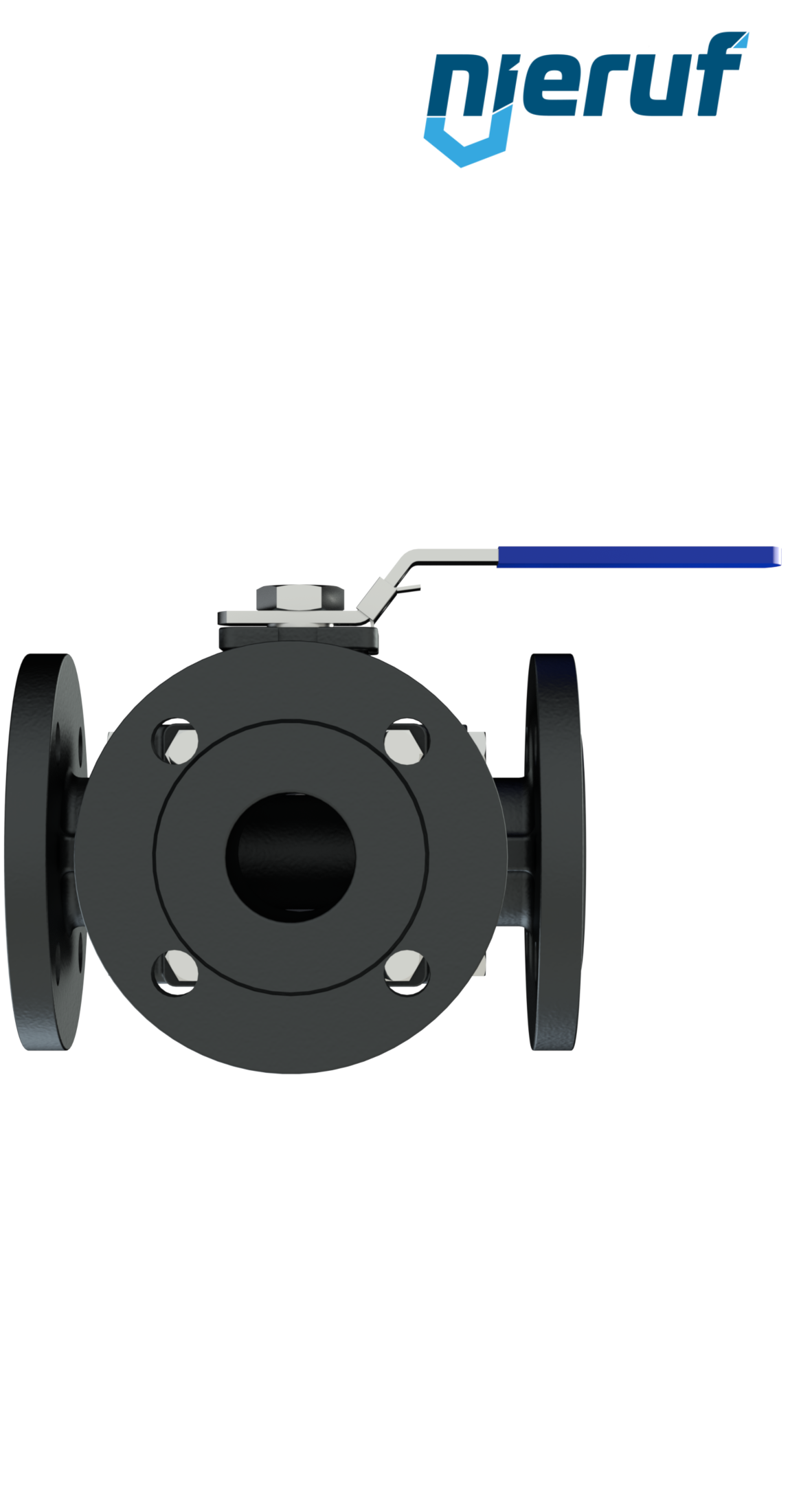

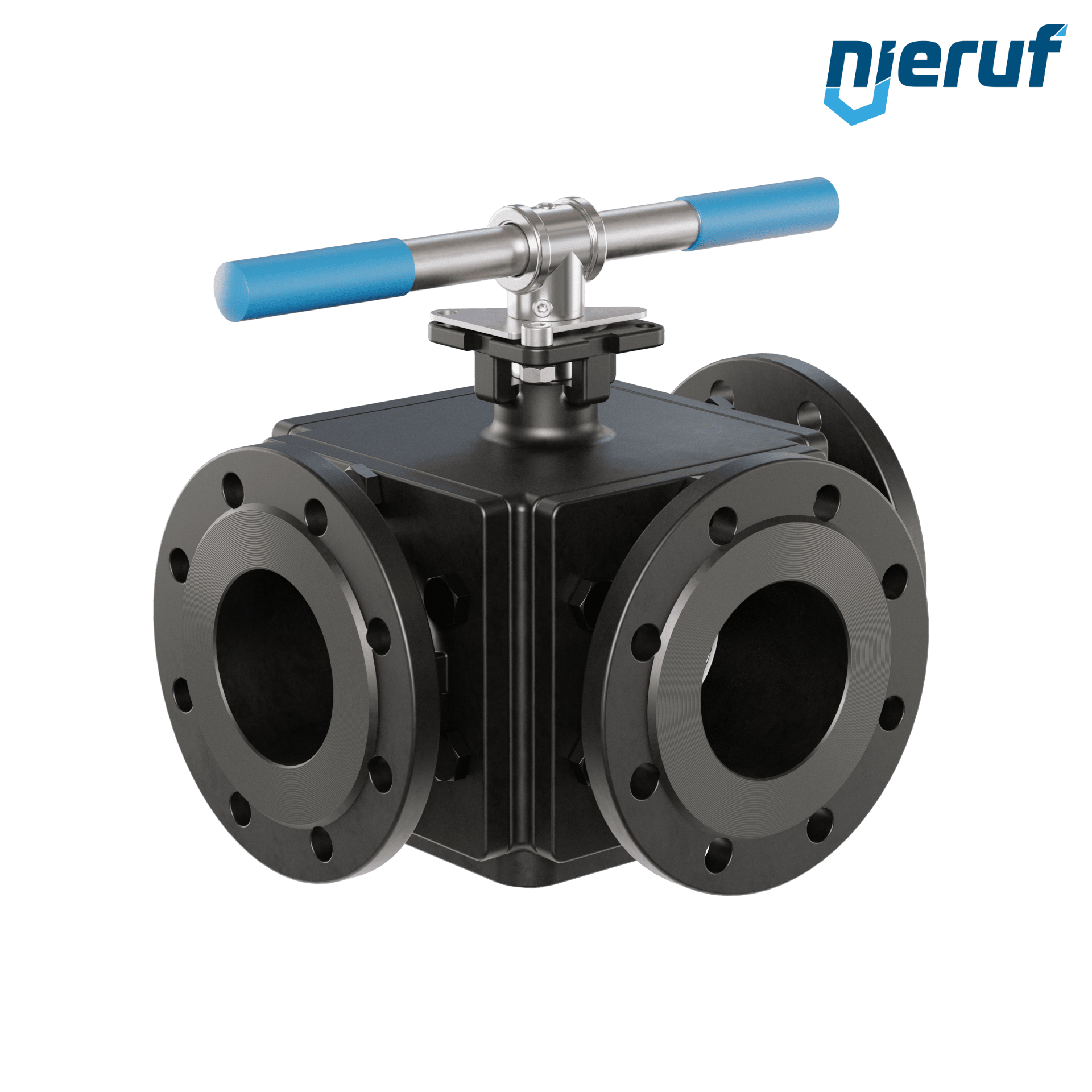

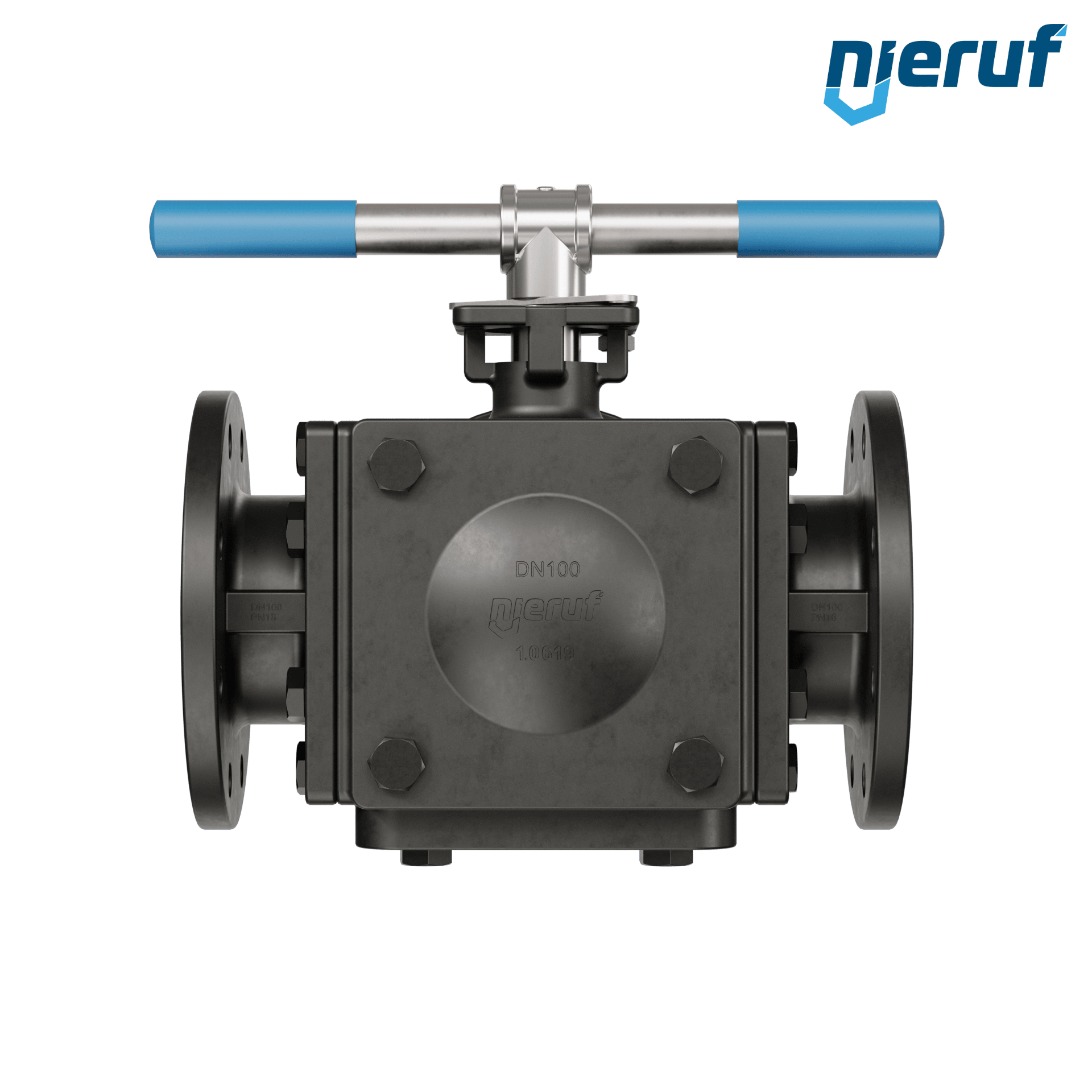

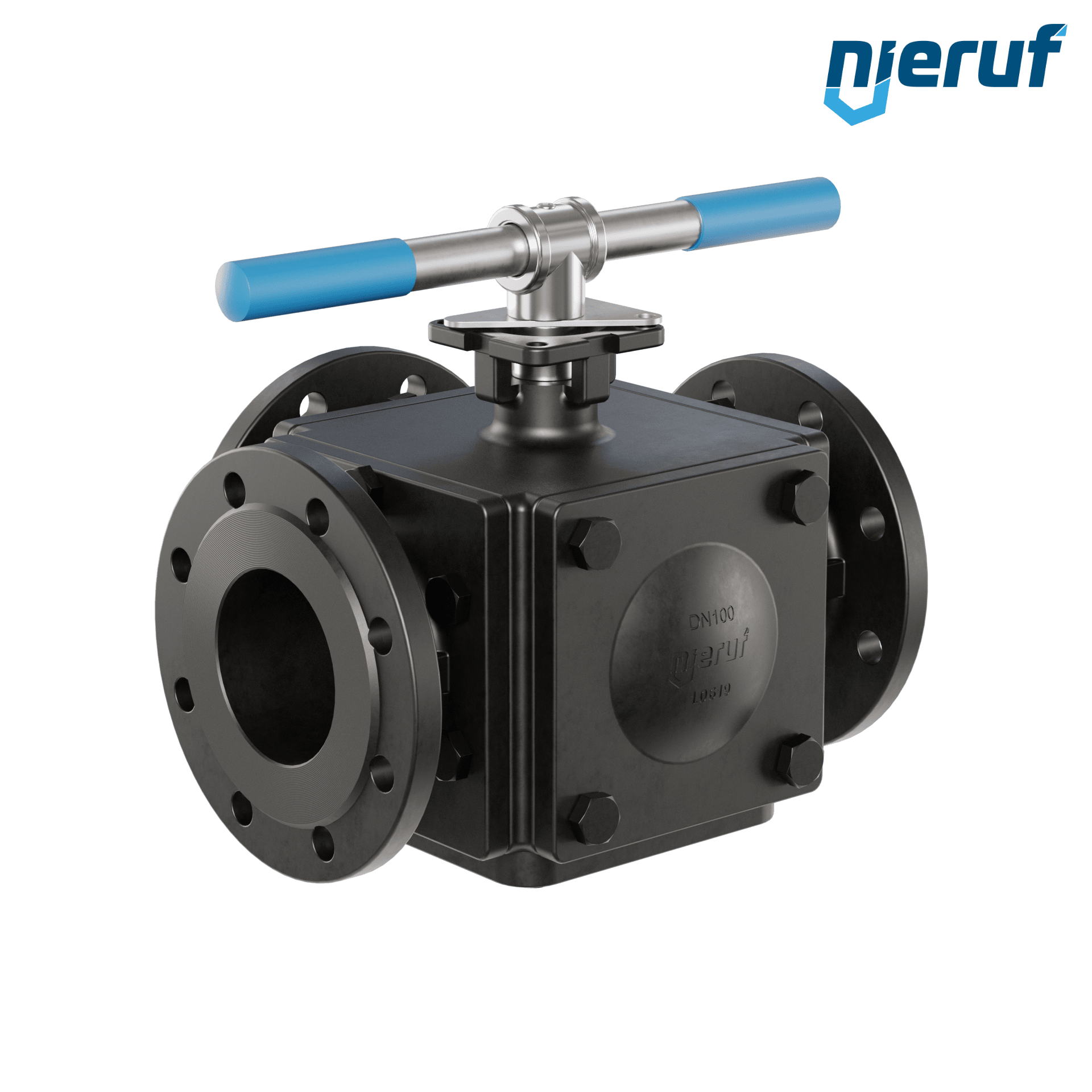

Three-way flange ball valve DN100 FK08 L Drilling carbon steel 1.0619

Three-way flange ball valve DN100 PN16 FK08 body carbon steel 1.0619 ball carbon steel 1.4308 seal TFM 1600 / PTFE L Drilling

product: Three-way flange ball valve
type: FK08
manufacturer: NieRuf
diameter: DN100
connection: flange dimensions acc. to DIN EN 1092-1
Seal steam: O-ring Viton
ball seal: TFM 1600 / PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: L Drilling
body material: carbon steel 1.0619
ball material: carbon steel 1.4308
length: 353mm
actuator: hand lever with blue plastic cover
installation position: any position
authorized for: TA Luft
product description: This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a L-drilling - basic postion L=1

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Three-way flange ball valve DN100 FK08 L Drilling carbon steel 1.0619

Article no. : FK08010011
product: Three-way flange ball valve
type: FK08
manufacturer: NieRuf
diameter: DN100
connection: flange dimensions acc. to DIN EN 1092-1
Seal steam: O-ring Viton
ball seal: TFM 1600 / PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: L Drilling
body material: carbon steel 1.0619
ball material: carbon steel 1.4308
length: 353mm
actuator: hand lever with blue plastic cover
installation position: any position
authorized for: TA Luft
product description: This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a L-drilling - basic postion L=1
