PF01010107.3
T-fitting reduced F x F Pressfitting DN40 x DN20 stainless steel
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads

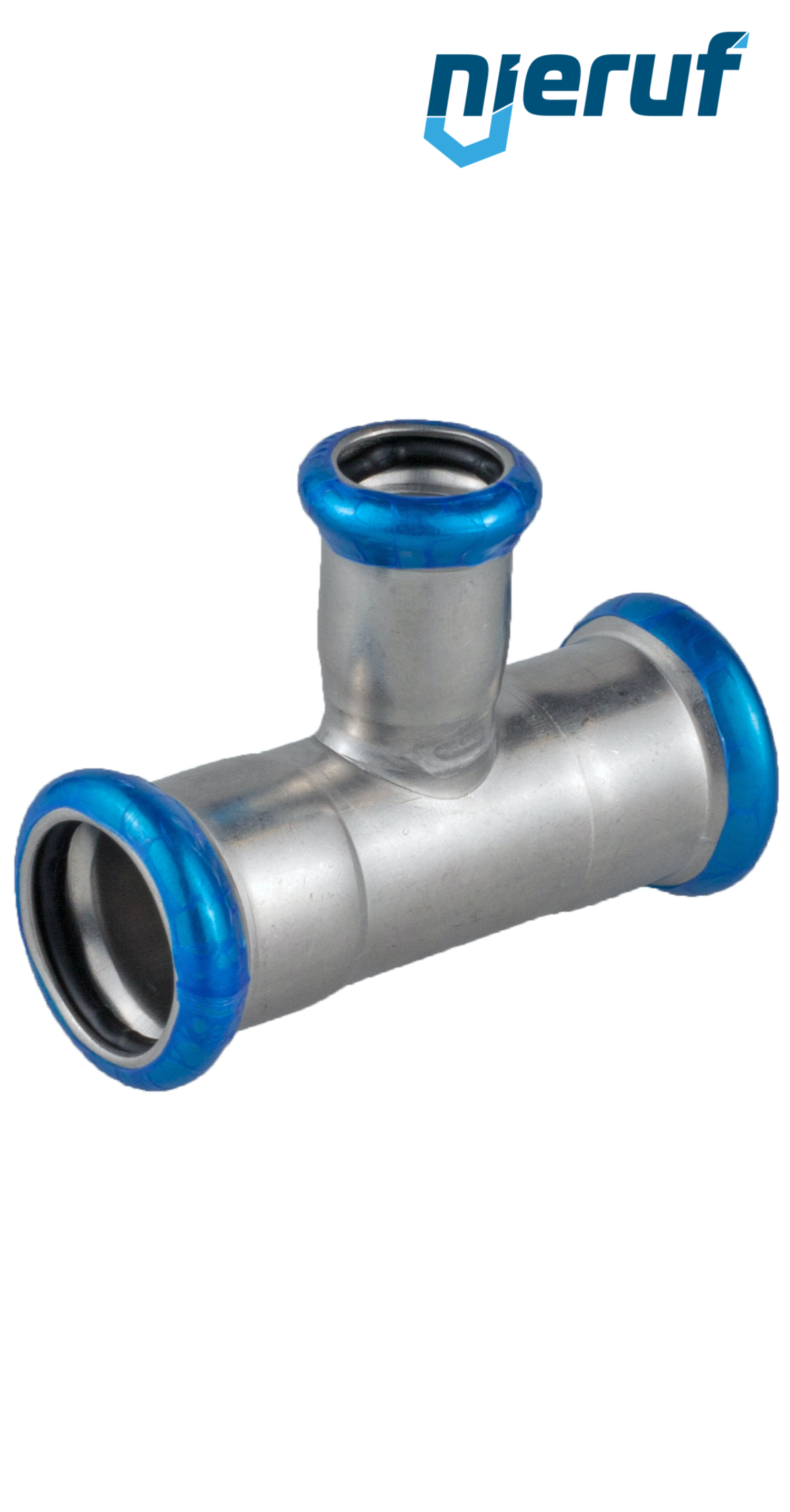

T-fitting reduced F x F Pressfitting DN40 x DN20 stainless steel
T-fitting reduced PF01-01 with press connection F x F DN40 x DN20 made of stainless steel for liquid and gaseous media
| product | T-fitting |
|---|---|
| type | PF01-01 |
| manufacturer | NieRuf |
| design | reduced |
| diameter 1 | DN40 - 42,0 mm |
| connection 1 | F x F |
| diameter 2 | DN20 - 22,0 mm |

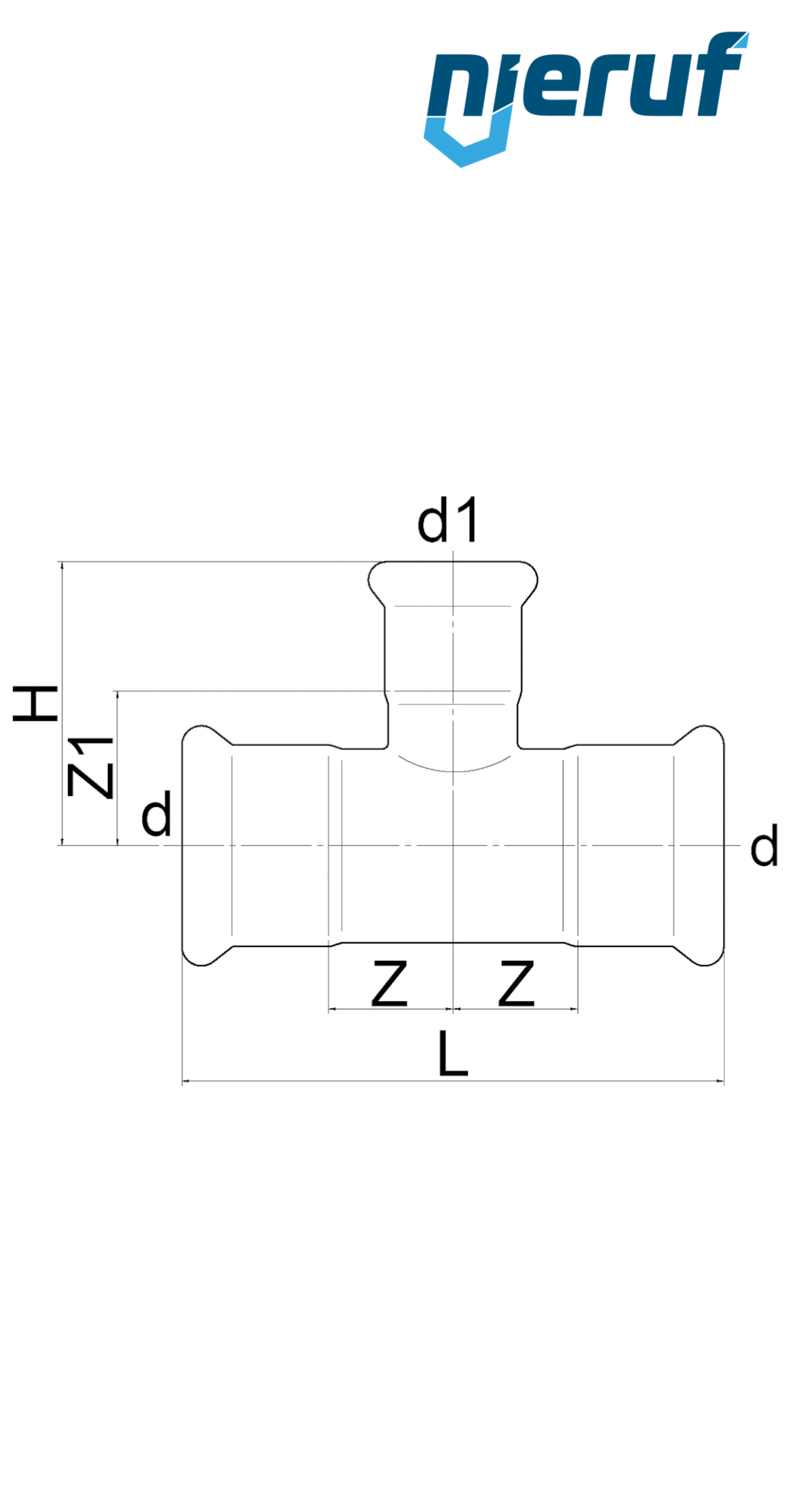

| Contour | M-Contour |
| d | 42,0 |
| d1 | 22,0 |
| L | 114,0 |
| Z | 27,0 |
| Z1 | 34,0 |
| H | 55,0 |
| max. working pressure | 16 bar at +20°C |
| material | stainless steel 316 L |
| certification | DVGW-drinking water |
| product feature 1 | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2 | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
T-fitting reduced F x F Pressfitting DN40 x DN20 stainless steel
Article no.
: PF01010107.3
product:
T-fitting
type:
PF01-01
manufacturer:
NieRuf
design:
reduced
diameter 1:
DN40 - 42,0 mm
connection 1:
F x F
diameter 2:
DN20 - 22,0 mm
Contour:
M-Contour
d:
42,0
d1:
22,0
L:
114,0
Z:
27,0
Z1:
34,0
H:
55,0
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
