PF01010309.2

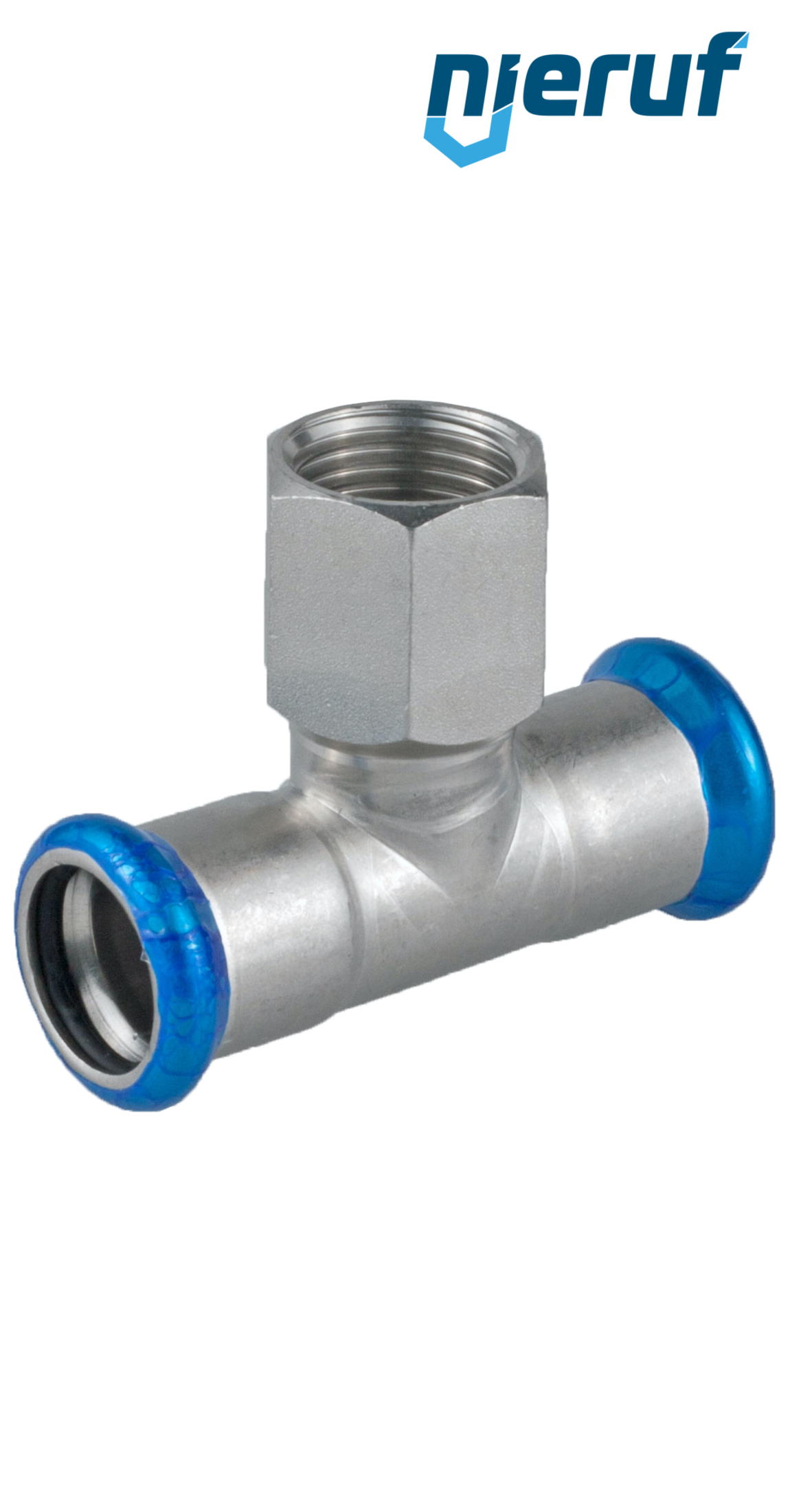

T-fitting Pressfitting F x F DN65 - 76,1 mm female thread 2" inch stainless steel
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
T-fitting Pressfitting F x F DN65 - 76,1 mm female thread 2" inch stainless steel
T-fitting PF01-01 with press connection F x F DN65 - 76,1 mm, female thread 2" inch made of stainless steel for liquid and gaseous media
| product | T-fitting |
|---|---|
| type | PF01-01 |
| manufacturer | NieRuf |
| diameter 1 | DN65 - 76,1 mm |
| connection 1 | F x F |
| diameter 2 | 2" inch |
| connection 2 | female thread |
| Contour | M-Contour |
| thread | acc. to DIN EN 10226-1 |

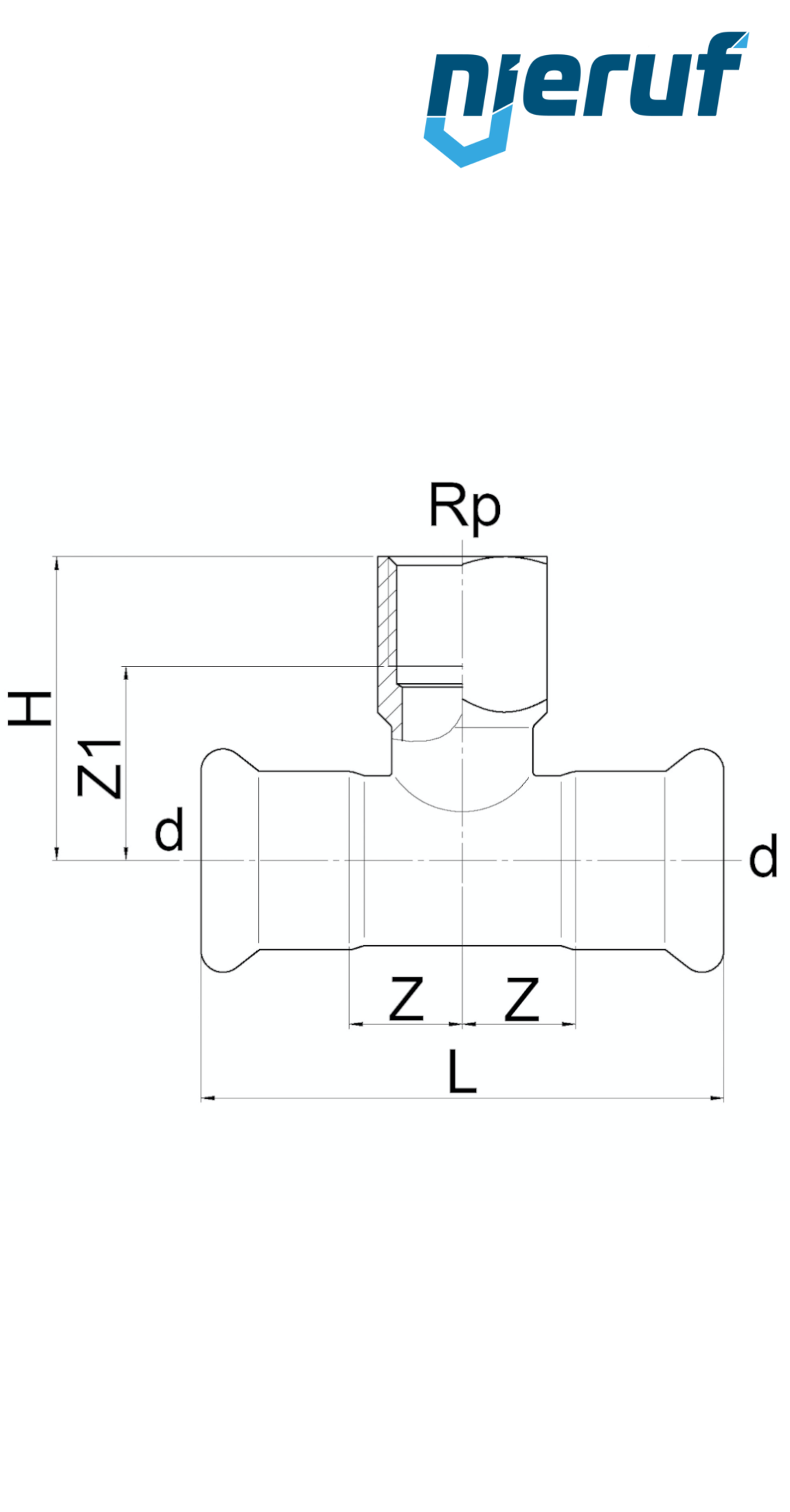

| d | 76,1 |
| L | 230,0 |
| Z | 62,0 |
| Z1 | 64,0 |
| H | 88,0 |
| Rp | 2" |
| max. working pressure | 16 bar at +20°C |
| material | stainless steel 316 L |
| certification | DVGW-drinking water |
| product feature 1 | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2 | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
T-fitting Pressfitting F x F DN65 - 76,1 mm female thread 2" inch stainless steel
Article no.
: PF01010309.2
product:
T-fitting
type:
PF01-01
manufacturer:
NieRuf
diameter 1:
DN65 - 76,1 mm
connection 1:
F x F
diameter 2:
2" inch
connection 2:
female thread
Contour:
M-Contour
thread:
acc. to DIN EN 10226-1
d:
76,1
L:
230,0
Z:
62,0
Z1:
64,0
H:
88,0
Rp:
2"
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
