PF01010305.2

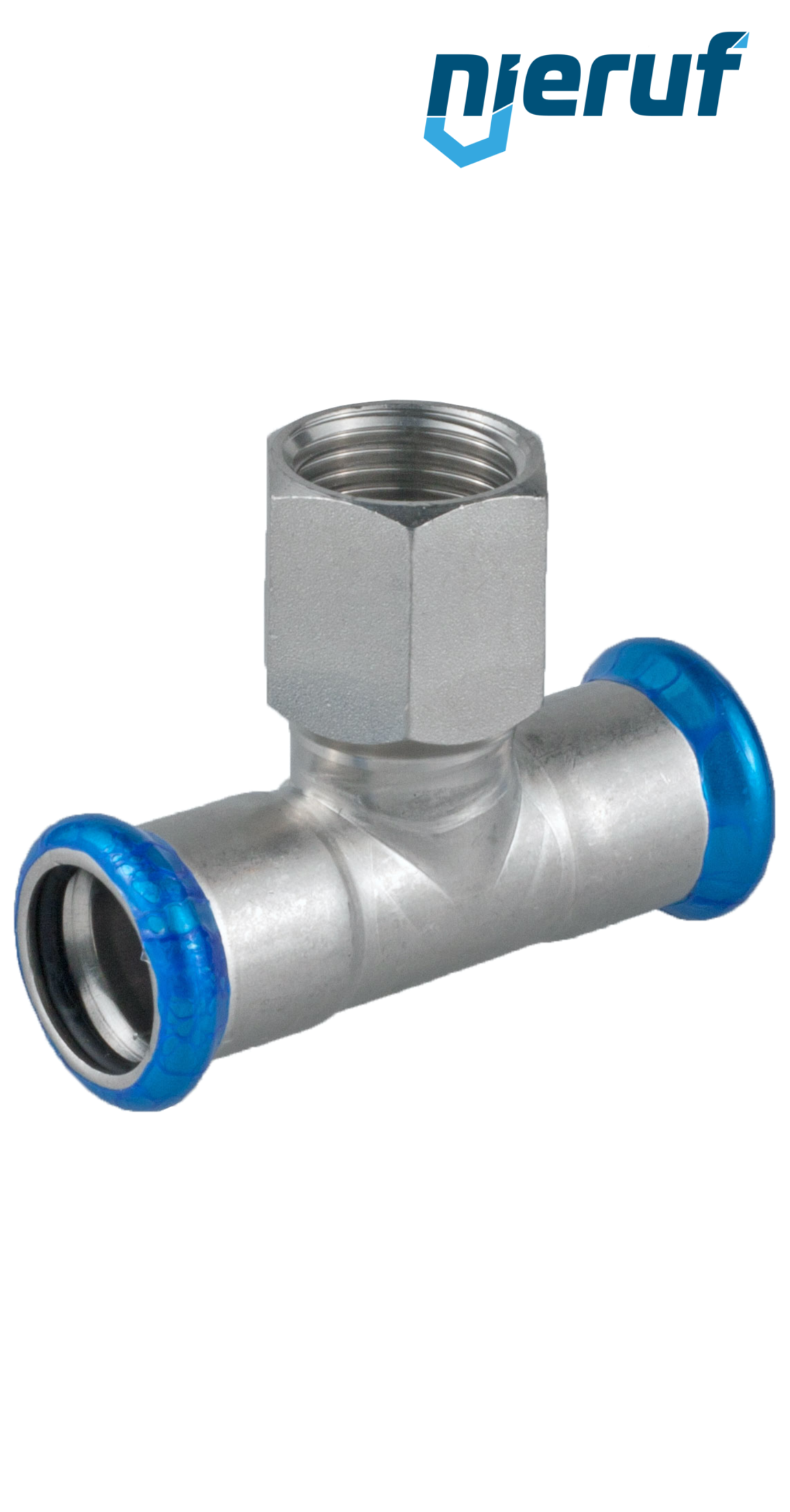

T-fitting Pressfitting F x F DN25 - 28,0 mm female thread 3/4" inch stainless steel
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
T-fitting Pressfitting F x F DN25 - 28,0 mm female thread 3/4" inch stainless steel
T-fitting PF01-01 with press connection F x F DN25 - 28,0 mm, female thread 3/4" inch made of stainless steel for liquid and gaseous media
| product | T-fitting |
|---|---|
| type | PF01-01 |
| manufacturer | NieRuf |
| diameter 1 | DN25 - 28,0 mm |
| connection 1 | F x F |
| diameter 2 | 3/4" inch |
| connection 2 | female thread |
| Contour | M-Contour |
| thread | acc. to DIN EN 10226-1 |

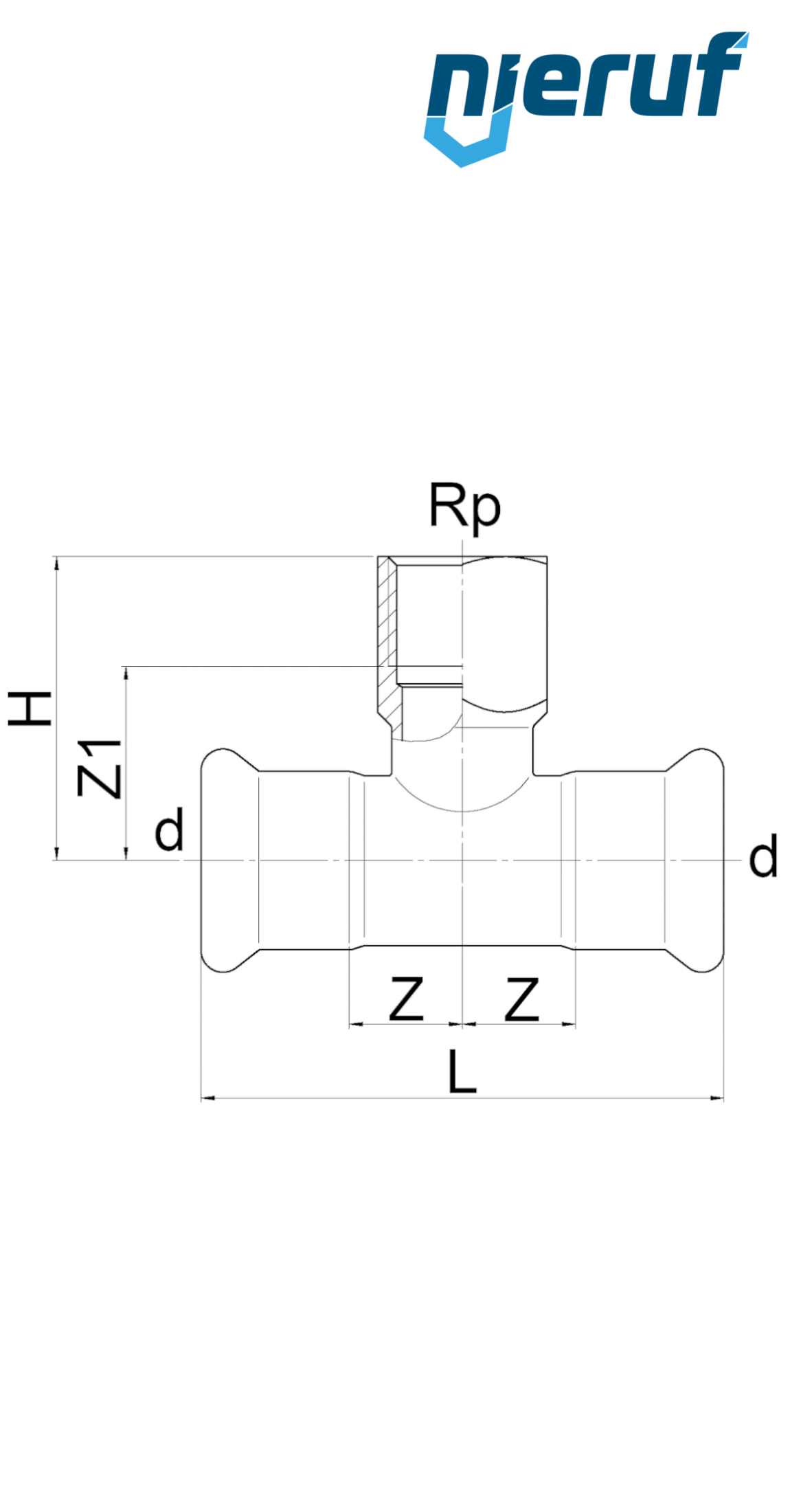

| d | 28,0 |
| L | 84,0 |
| Z | 19,0 |
| Z1 | 32,0 |
| H | 47,0 |
| Rp | 3/4" |
| max. working pressure | 16 bar at +20°C |
| material | stainless steel 316 L |
| certification | DVGW-drinking water |
| product feature 1 | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2 | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
T-fitting Pressfitting F x F DN25 - 28,0 mm female thread 3/4" inch stainless steel
Article no.
: PF01010305.2
product:
T-fitting
type:
PF01-01
manufacturer:
NieRuf
diameter 1:
DN25 - 28,0 mm
connection 1:
F x F
diameter 2:
3/4" inch
connection 2:
female thread
Contour:
M-Contour
thread:
acc. to DIN EN 10226-1
d:
28,0
L:
84,0
Z:
19,0
Z1:
32,0
H:
47,0
Rp:
3/4"
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
