ZR04000113

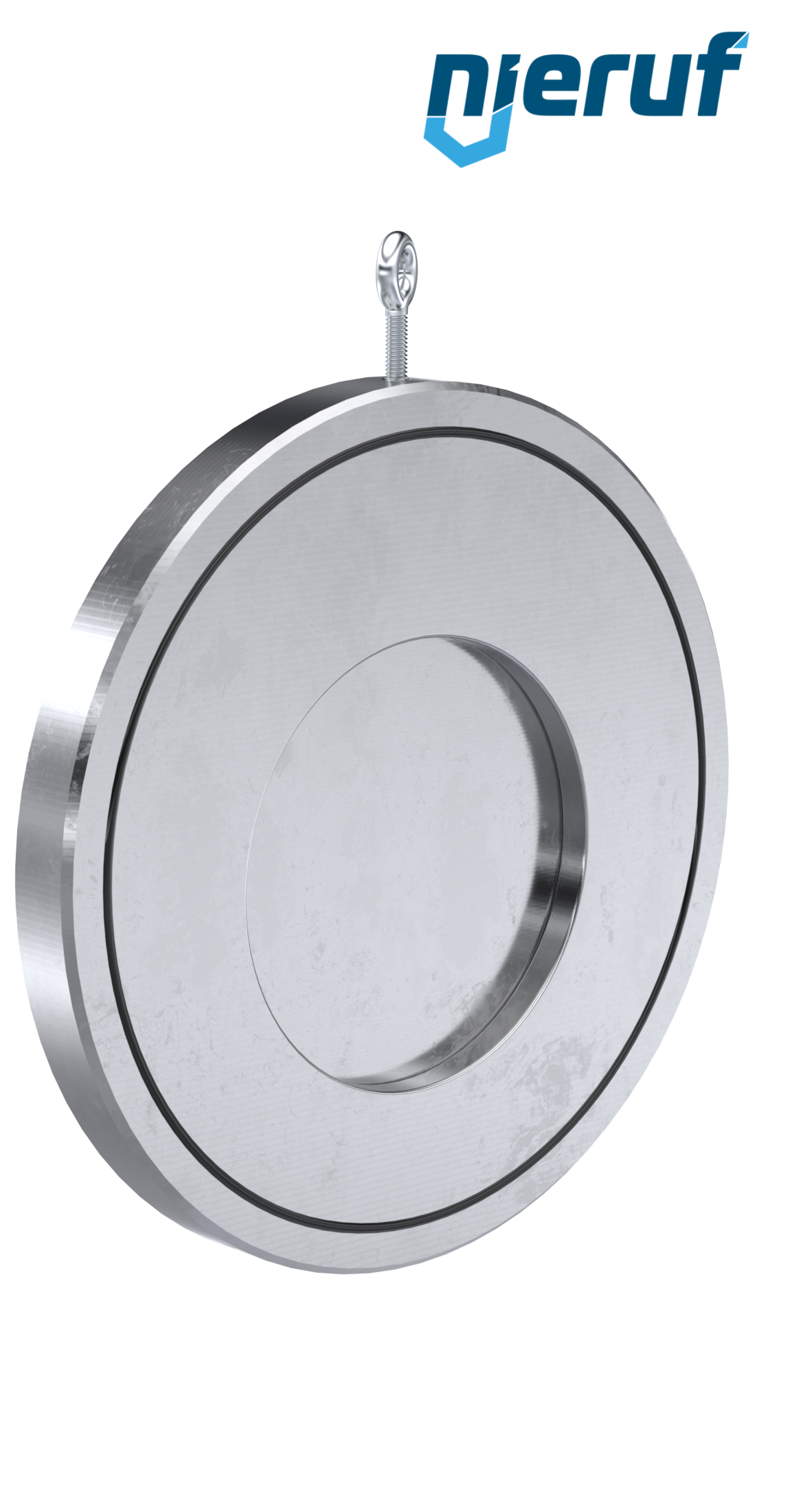

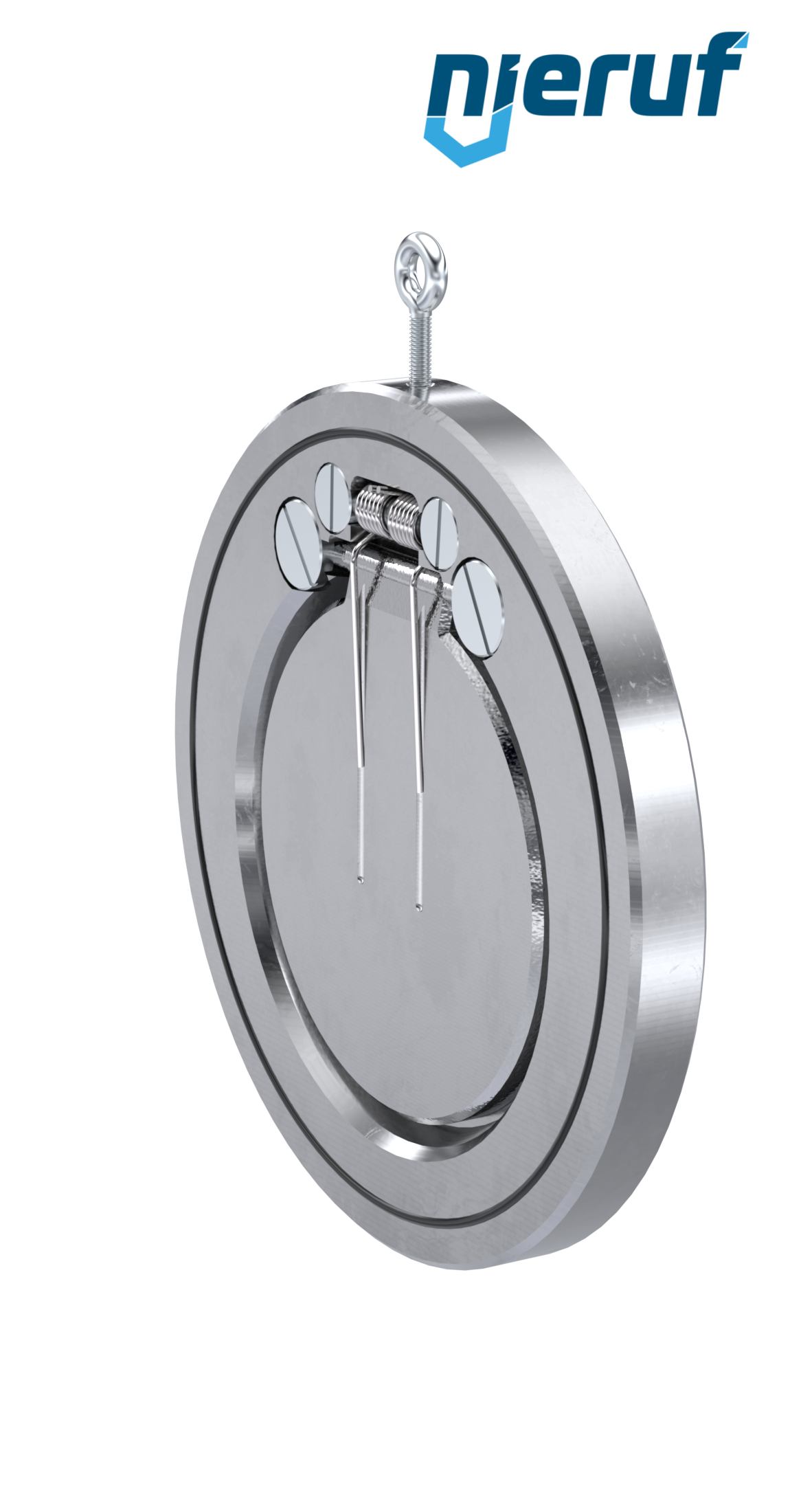

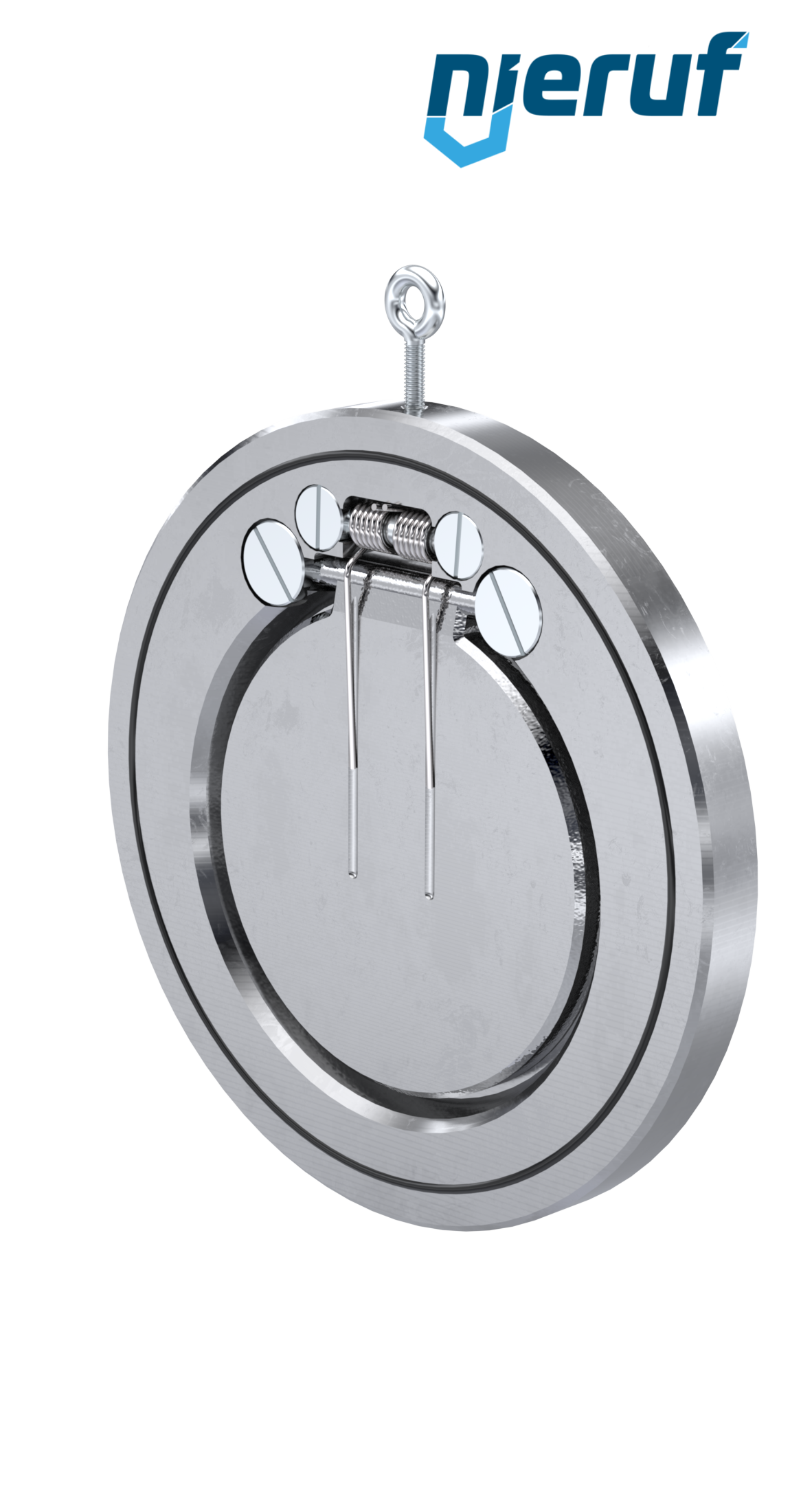

swing check valve with spring DN150 ZR04 stainless steel A351 CF8M EPDM
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Tuesday, 06. October
Guaranteed delivery until Wednesday, 07. October, 12 o'clock
Equipment
Welding neck flange DN150 PN10/16 EN1092-1 11 B1 1.4541
€137.92 VAT included.
joint set swing check valve/flange DN150 - 6" Inch for flange PN10/16 stainless steel
€28.56 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
swing check valve with spring DN150 ZR04 stainless steel A351 CF8M EPDM
swing check valve with spring DN150 PN 10/16 DIN EN 1092-1 Form B made of stainless steel A351 CF8M seal EPDM
| product | swing check valve with spring |
|---|---|
| type | ZR04 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN150 |
| body material | stainless steel A351 CF8M |
| disc material | stainless steel A351 CF8M |
| seal | EPDM |
| temperature | -65°C up to +150°C |
| connection | flange |
| flange | PN 10/16 DIN EN 1092-1 Form B |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve with spring DN150 ZR04 stainless steel A351 CF8M EPDM
Article no.
: ZR04000113
product:
swing check valve with spring
type:
ZR04
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN150
body material:
stainless steel A351 CF8M
disc material:
stainless steel A351 CF8M
seal:
EPDM
temperature:
-65°C up to +150°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
flange seal DN150 PN10/16 169x218x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN150 PN10/16 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set swing check valve/flange DN150 - 6" Inch for flange PN10/16 stainless steel
Lead time: 3 - 5 working days
