GK12000002

ball valve with spring reload DN10 - 3/8" inch GK12 female thread

€84.00*

€99.96 VAT included.

Delivery time: 1 - 2 working days

Delivery information

Equipment

ST01000002

hose nozzle 3/8" 11.0 mm stainless steel 1.4408 ST01

€1.50*

€1.79 VAT included.


GF01300002

double nipple 3/8" inch male stainless steel 316

€1.40*

€1.67 VAT included.


Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-04

E-Mail: beck@nieruf.com

Certified

Certified

Product number: GK12000002

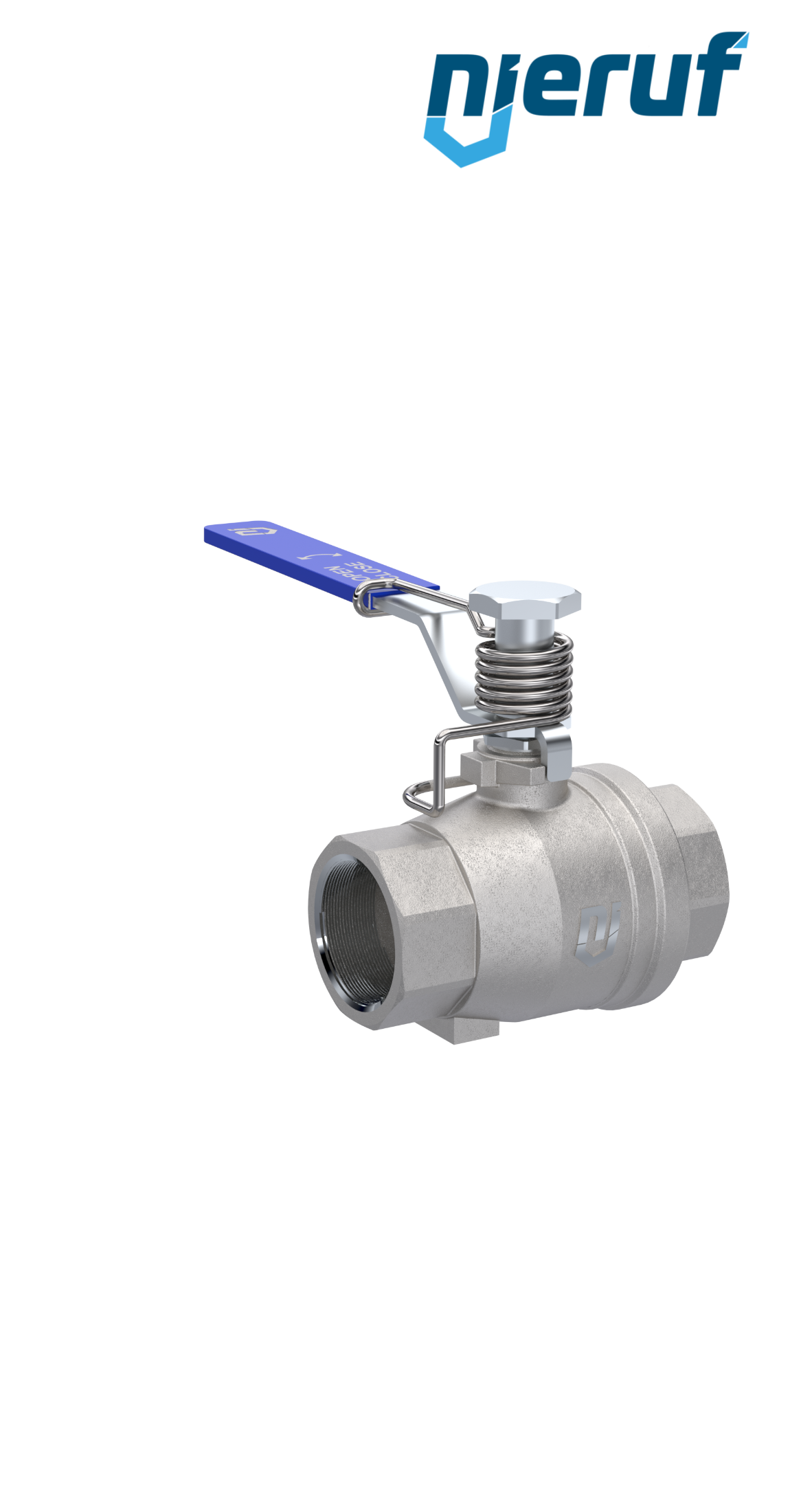

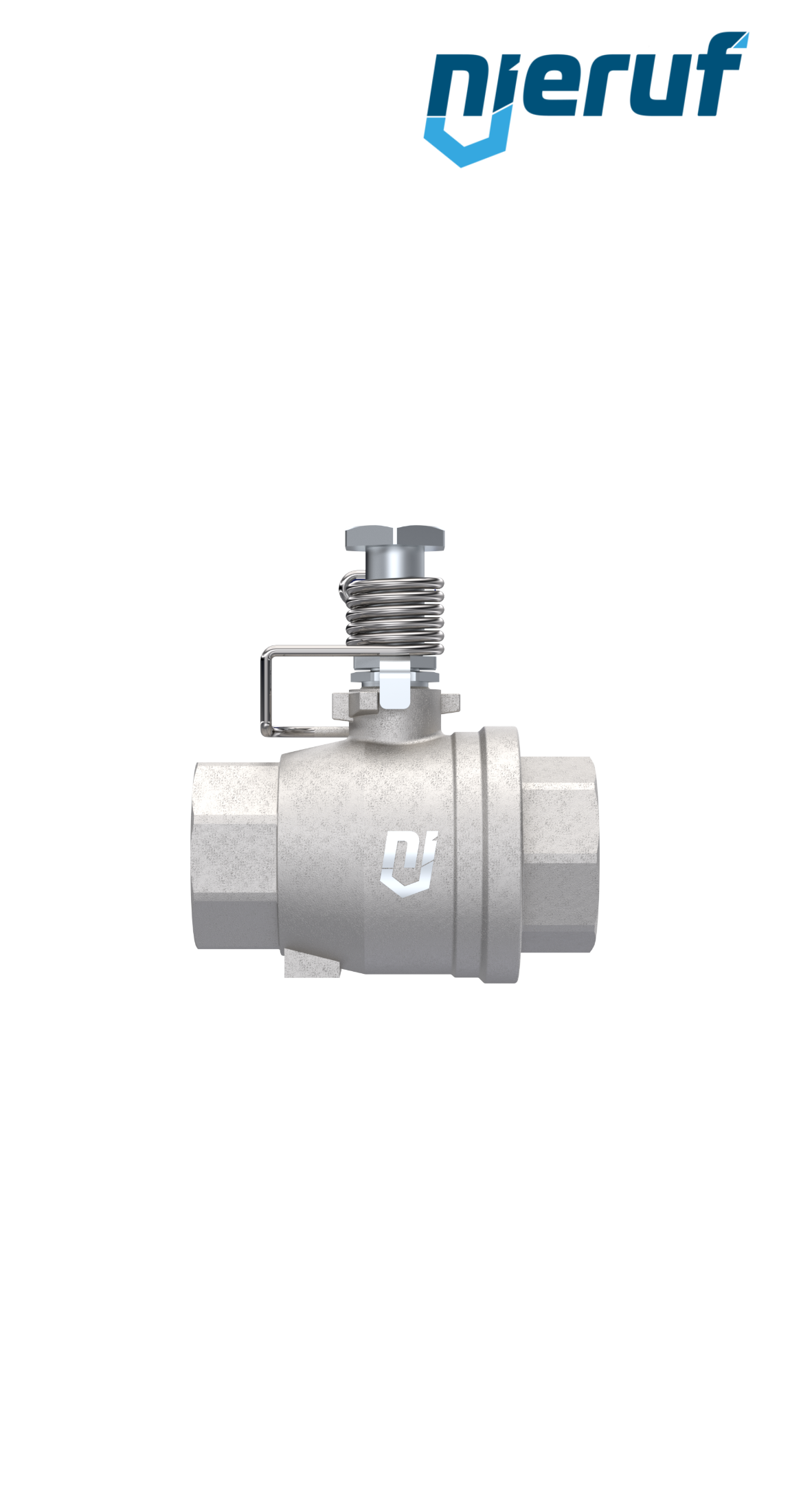

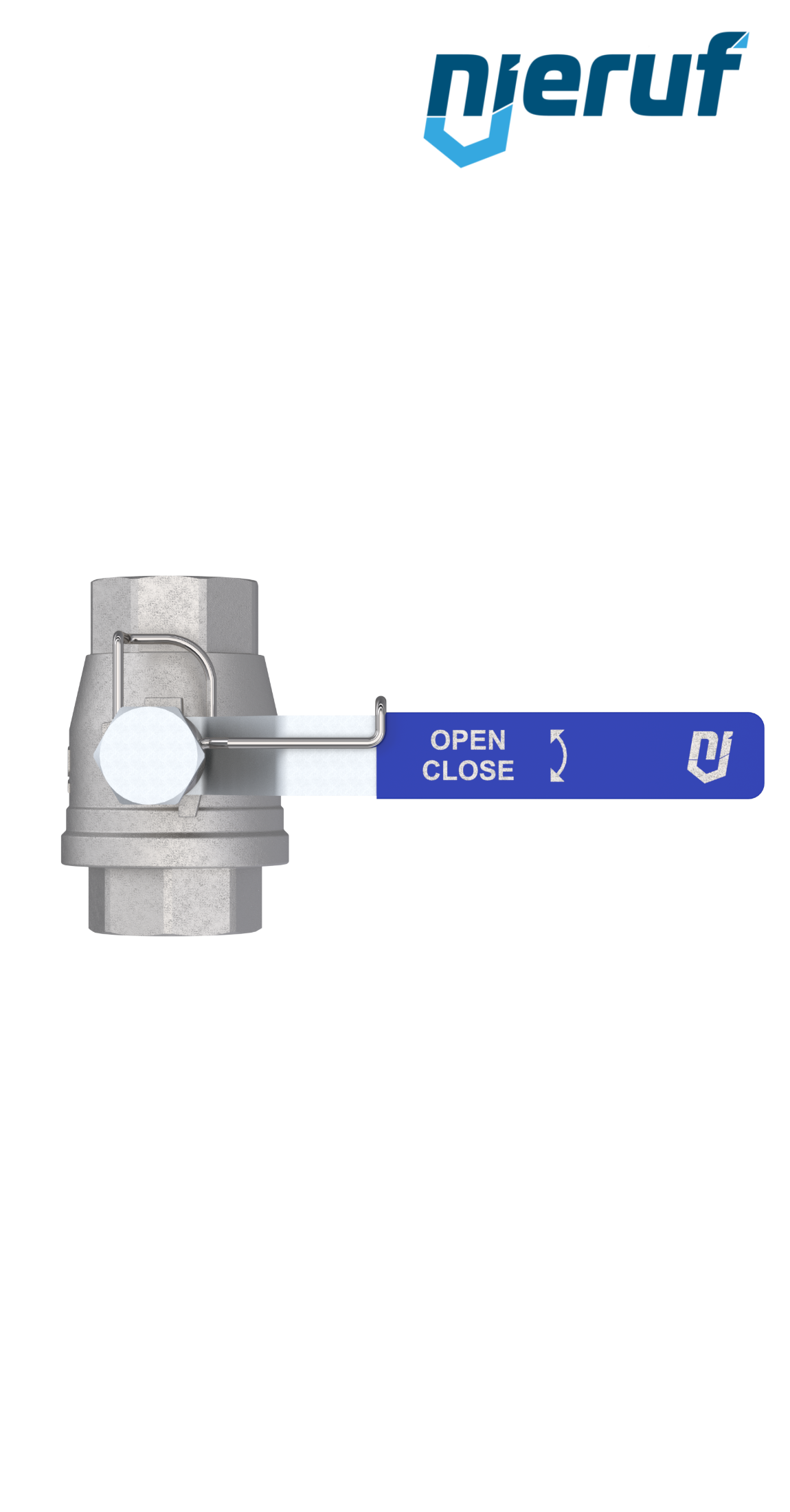

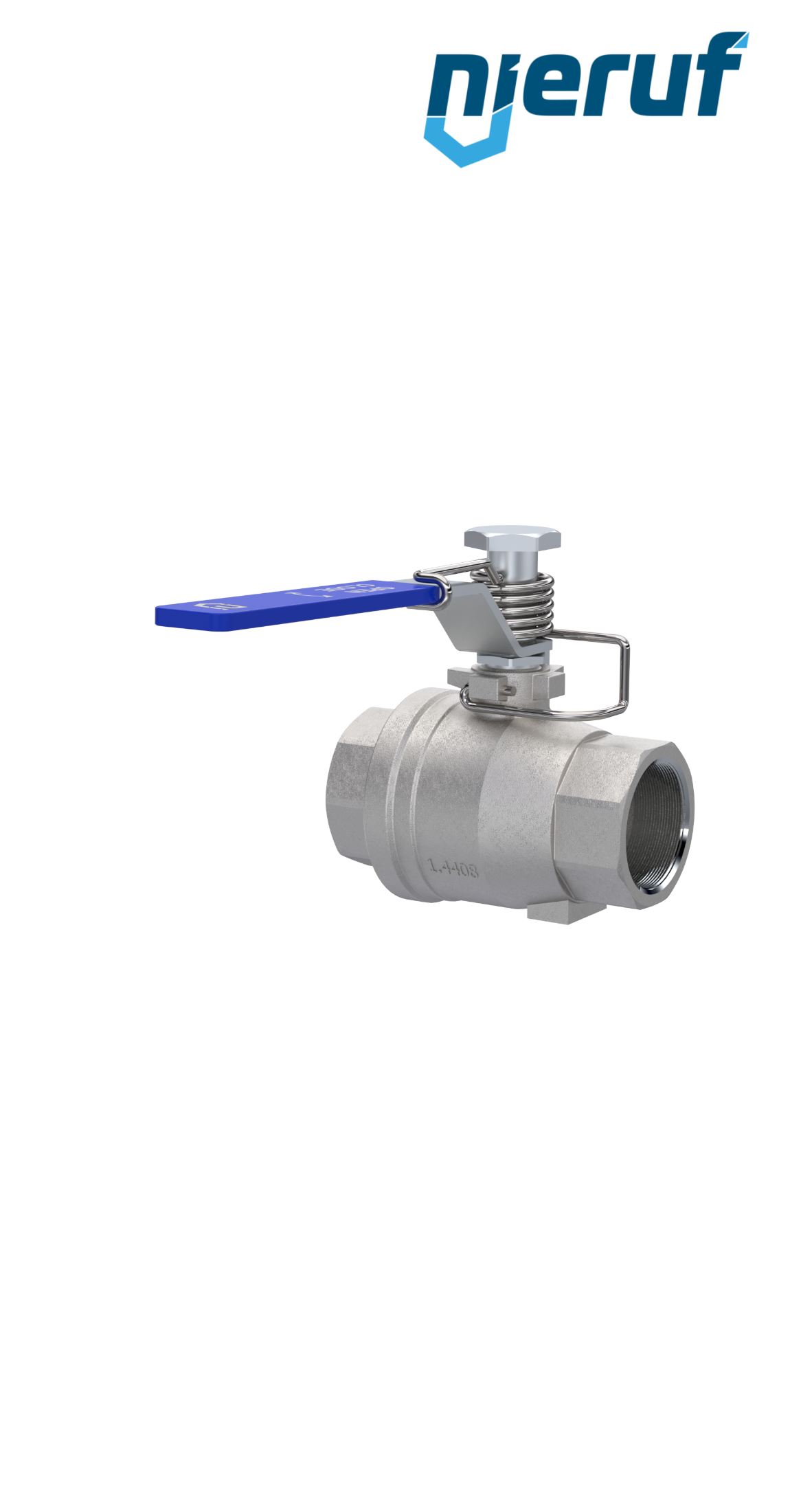

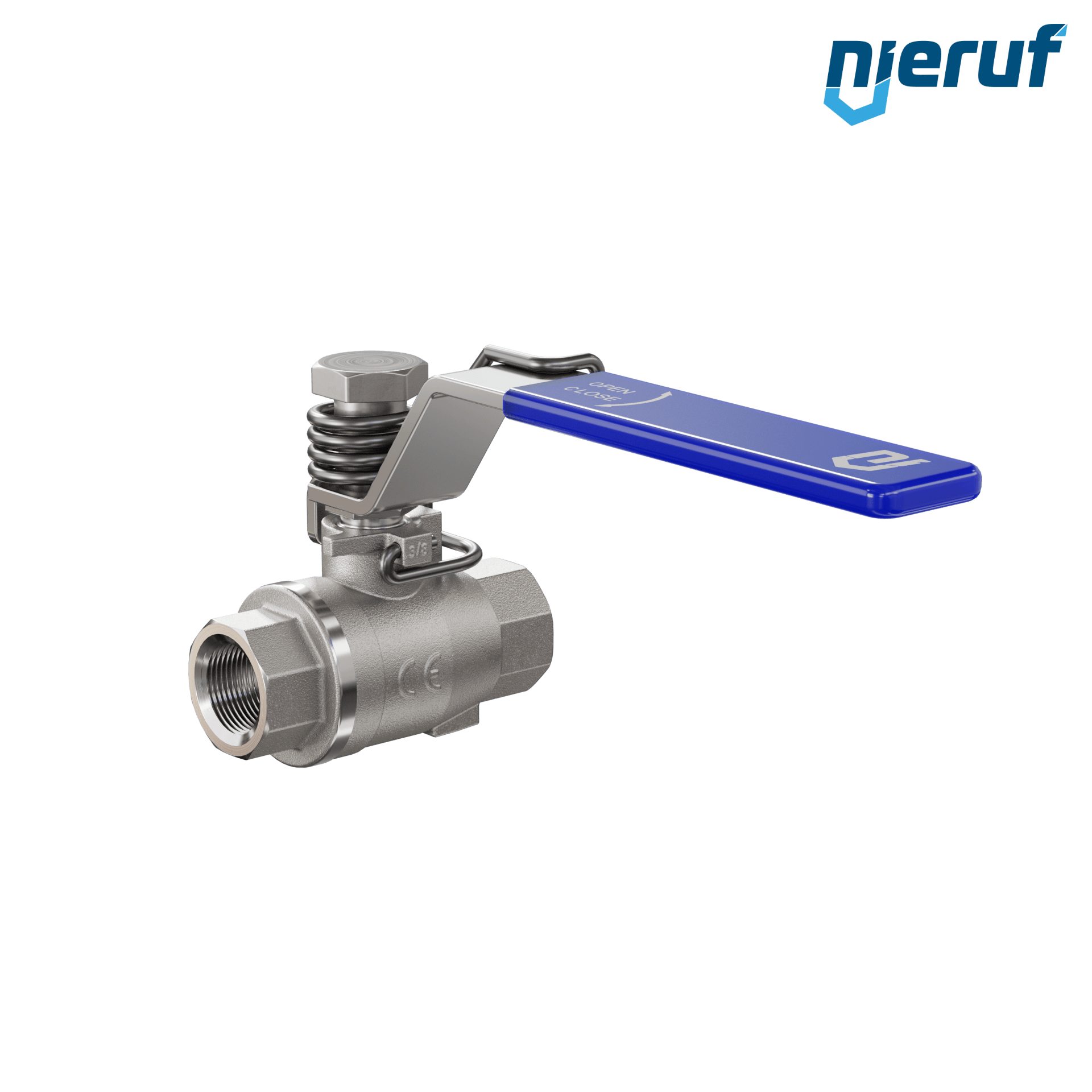

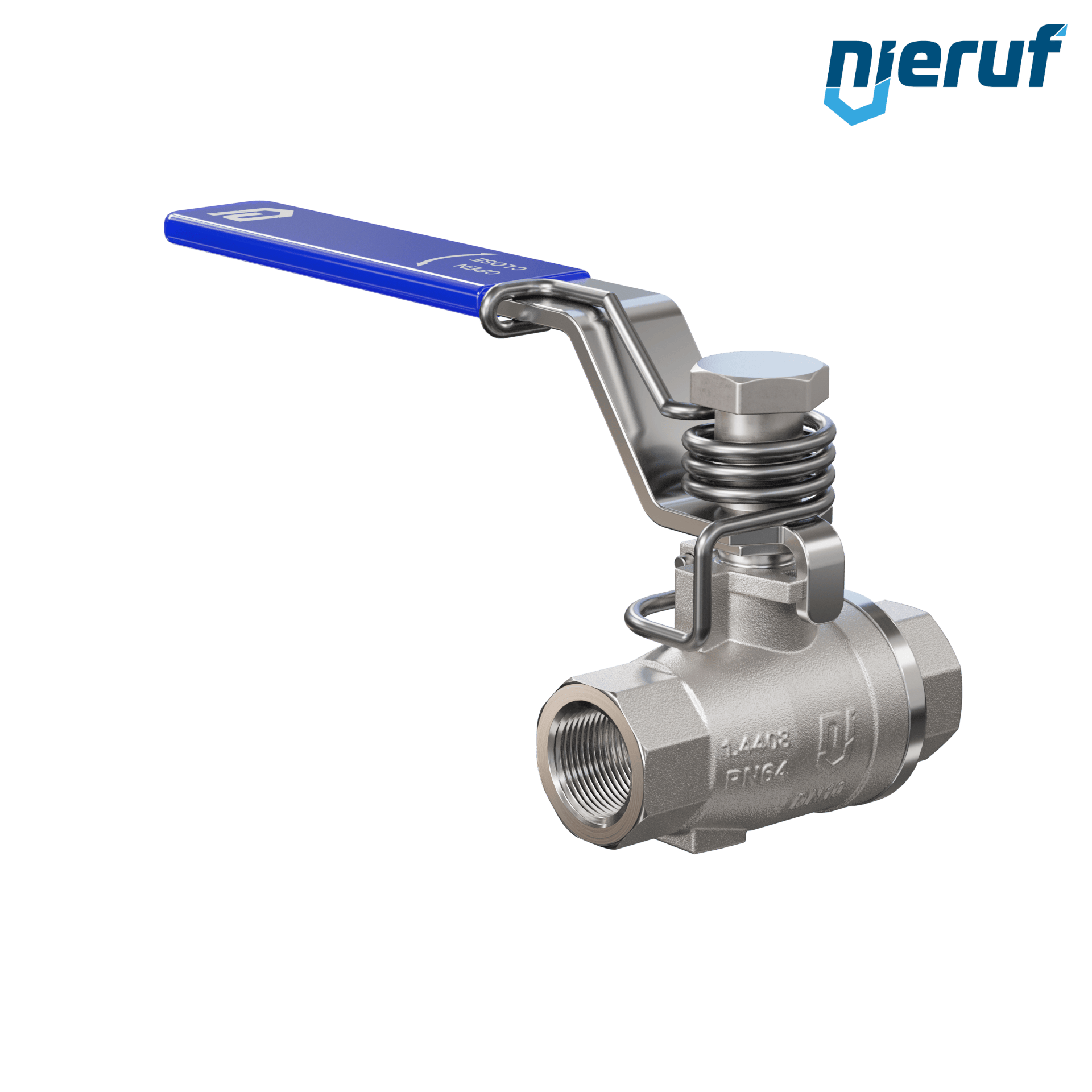

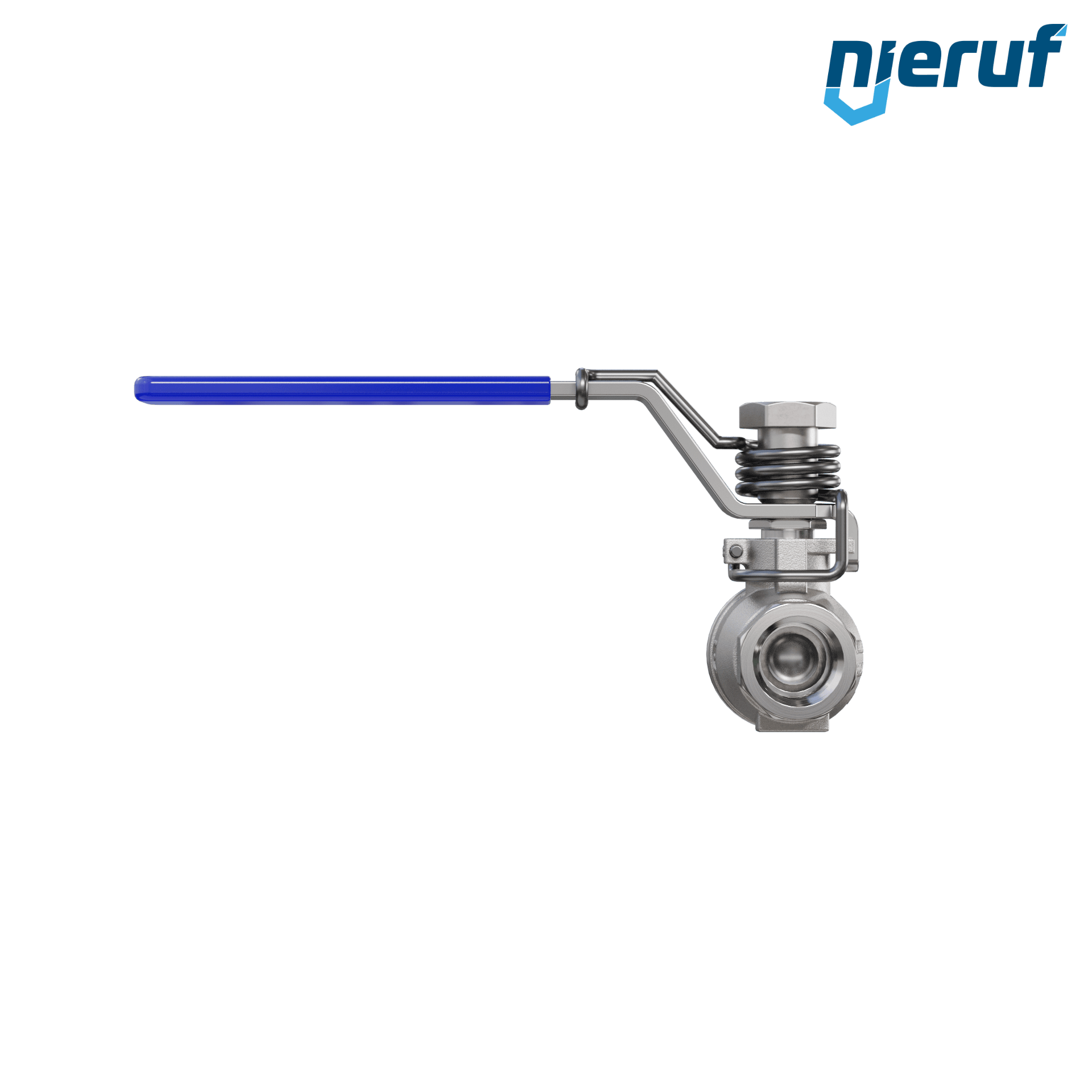

ball valve with spring reload DN10 - 3/8" inch GK12 female thread

ball valve with spring reload DN10 - 3/8" inch full port design seal made of PTFE for liquid and gaseous media

product: ball valve with spring reload
type: GK12
manufacturer: NieRuf
diameter: DN10 - 3/8" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 60mm
actuator: lever handle made of stainless steel with blue plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" with blow out proof stem design and adjustable stem packing

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

ball valve with spring reload DN10 - 3/8" inch GK12 female thread

Article no. : GK12000002
product: ball valve with spring reload
type: GK12
manufacturer: NieRuf
diameter: DN10 - 3/8" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 60mm
actuator: lever handle made of stainless steel with blue plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" with blow out proof stem design and adjustable stem packing
