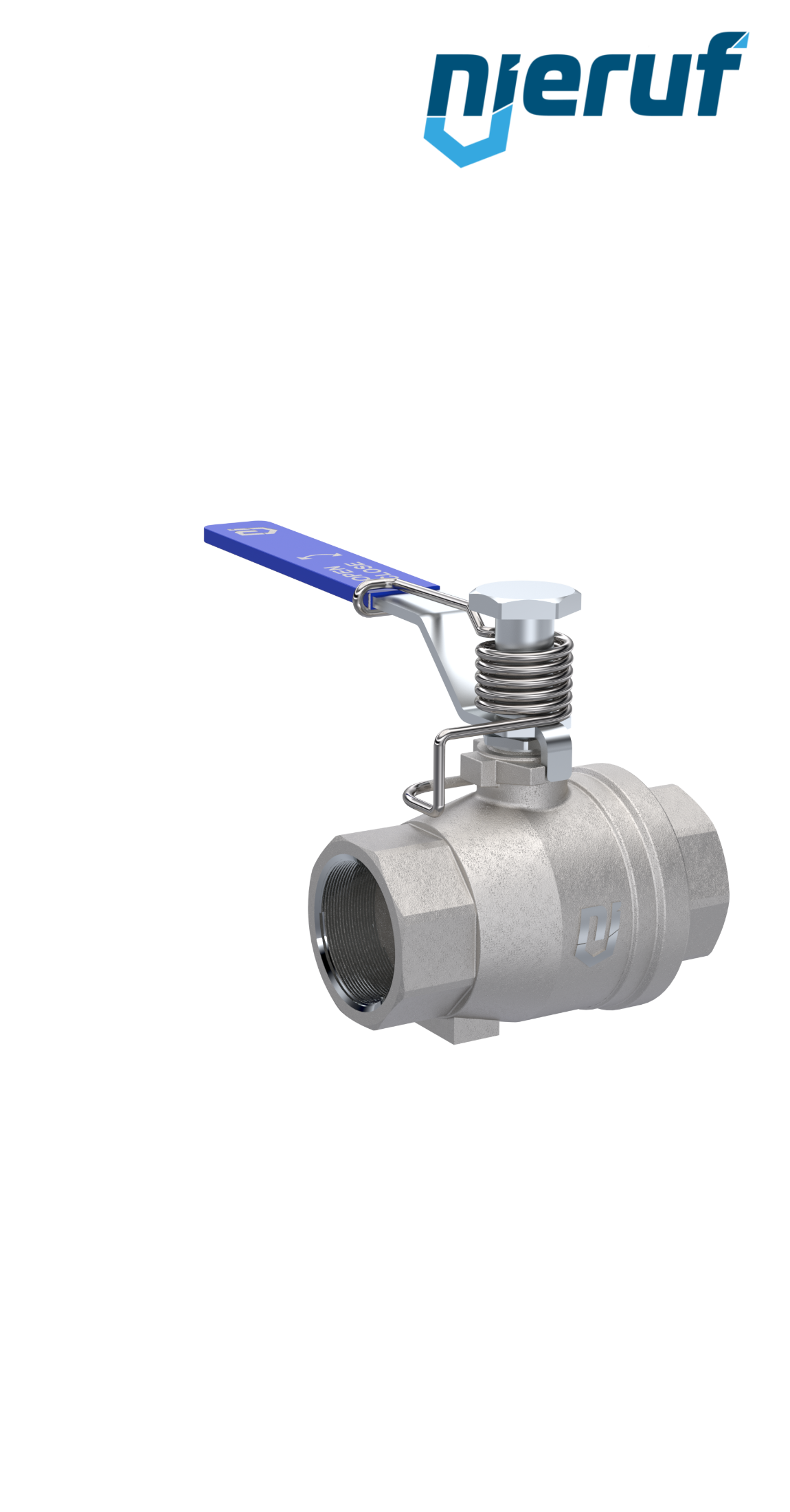

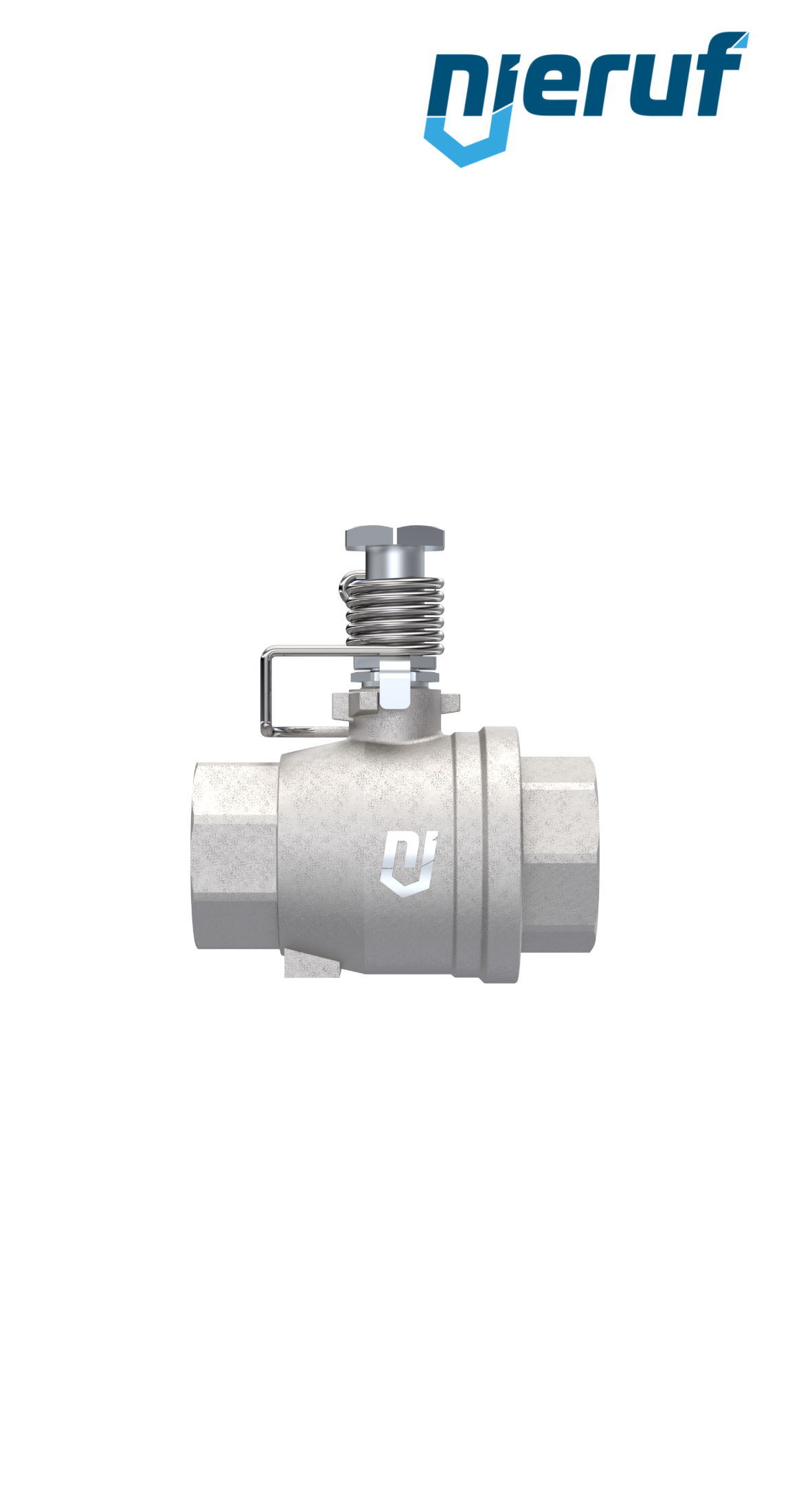

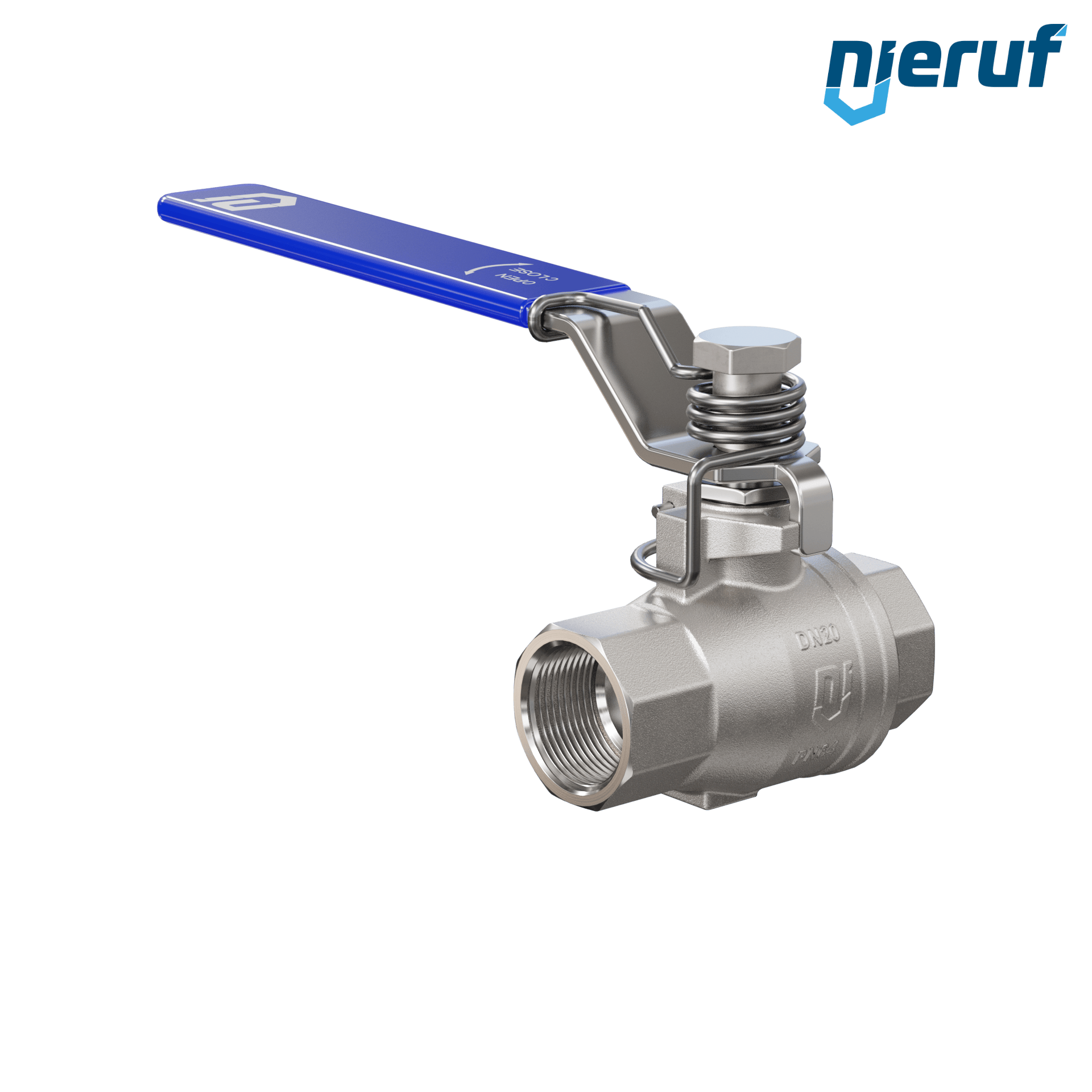

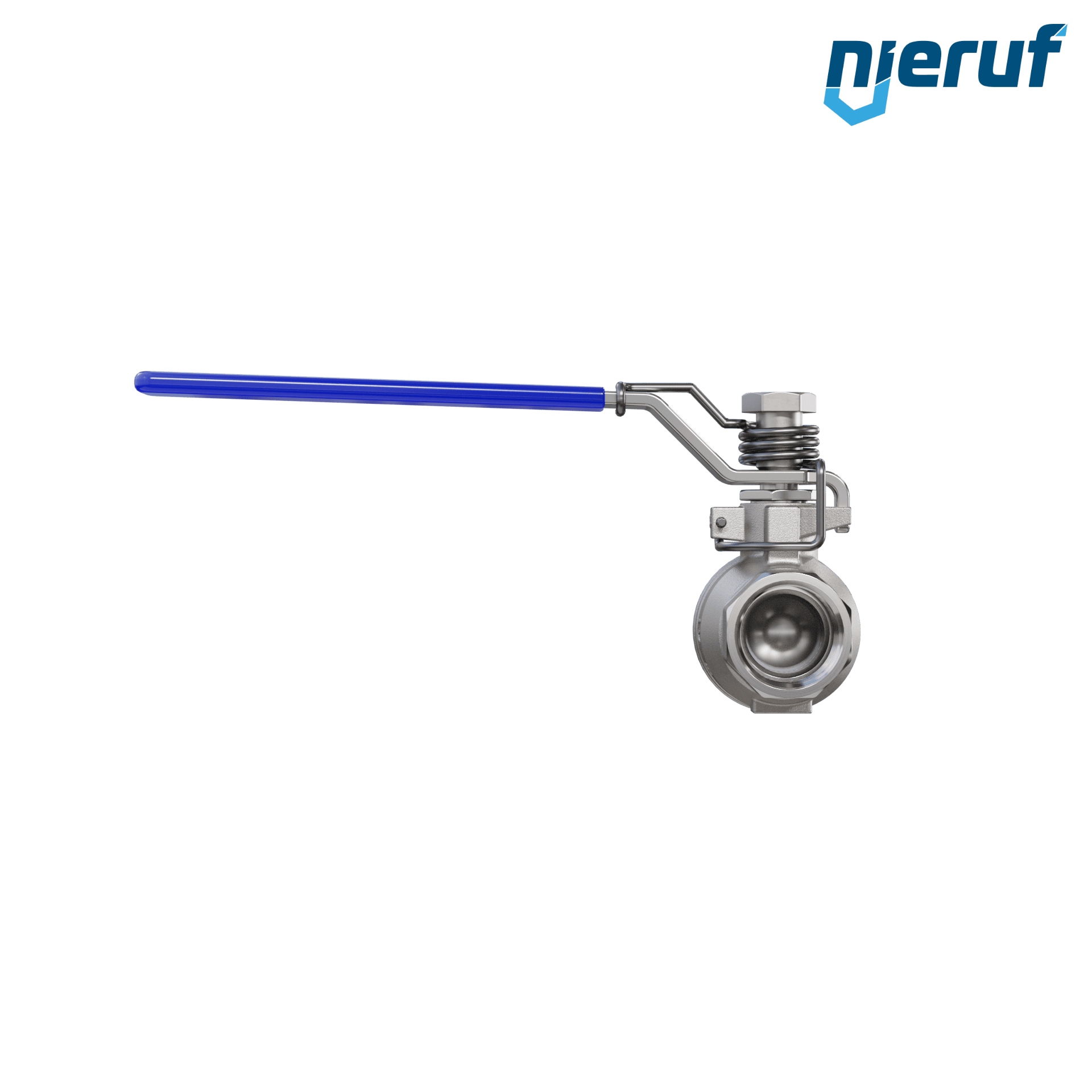

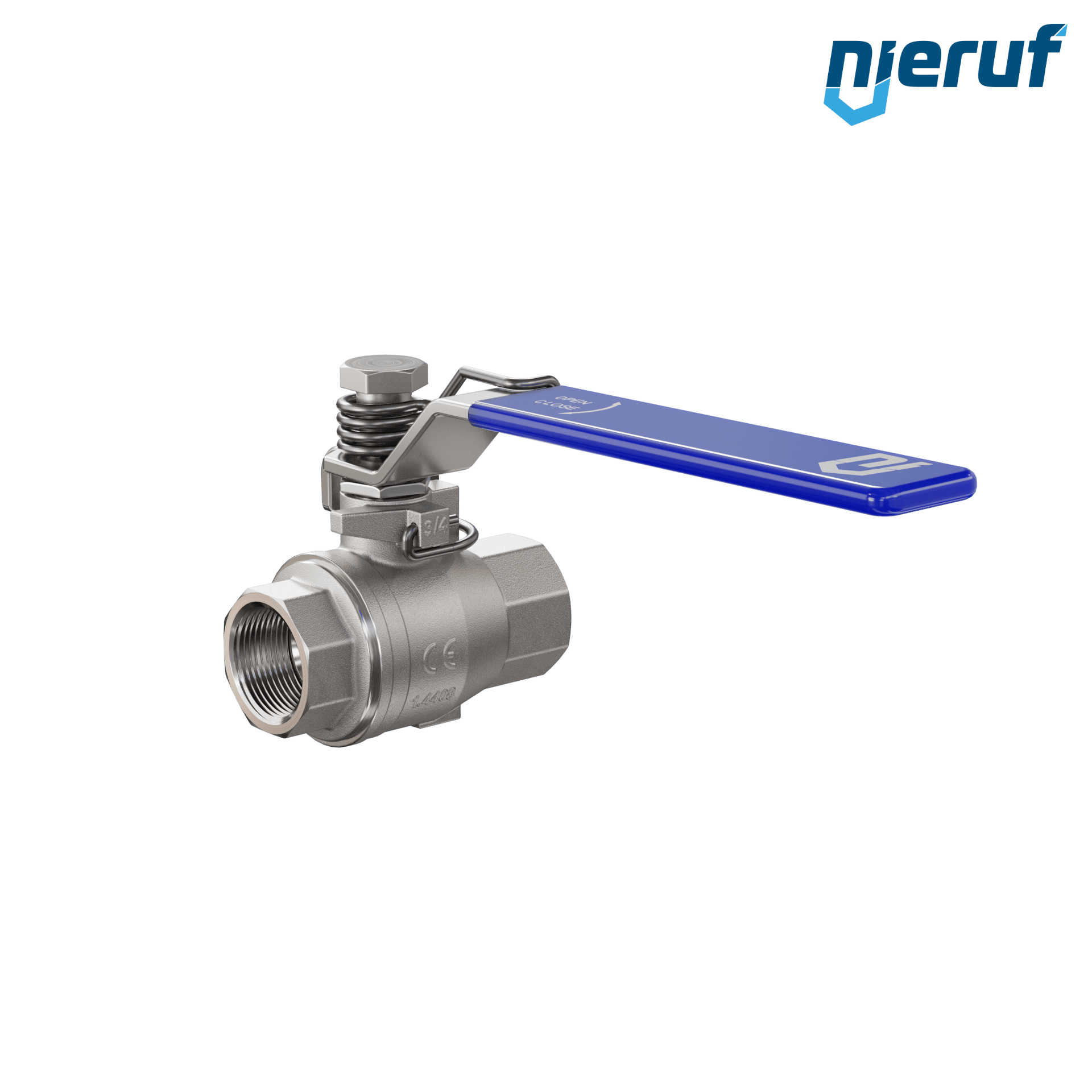

ball valve with spring reload DN20 - 3/4" inch GK12 female thread

GK12000004
quantity (pcs.):
81.10€ * 94.08€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
ball valve with spring reload DN20 - 3/4" inch GK12 female thread
ball valve with spring reload DN20 - 3/4" inch full port design seal made of PTFE for liquid and gaseous media
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN64
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 80mm
actuator: lever handle made of stainless steel with blue plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" with blow out proof stem design and adjustable stem packing
ball valve with spring reload DN20 - 3/4" inch GK12 female thread

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

ball valve with spring reload DN20 - 3/4" inch GK12 female thread
