GK12000003
ball valve with spring reload DN15 - 1/2" inch GK12 female thread
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 04. October
Guaranteed delivery until Tuesday, 05. October, 12 o'clock
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
€3.45 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

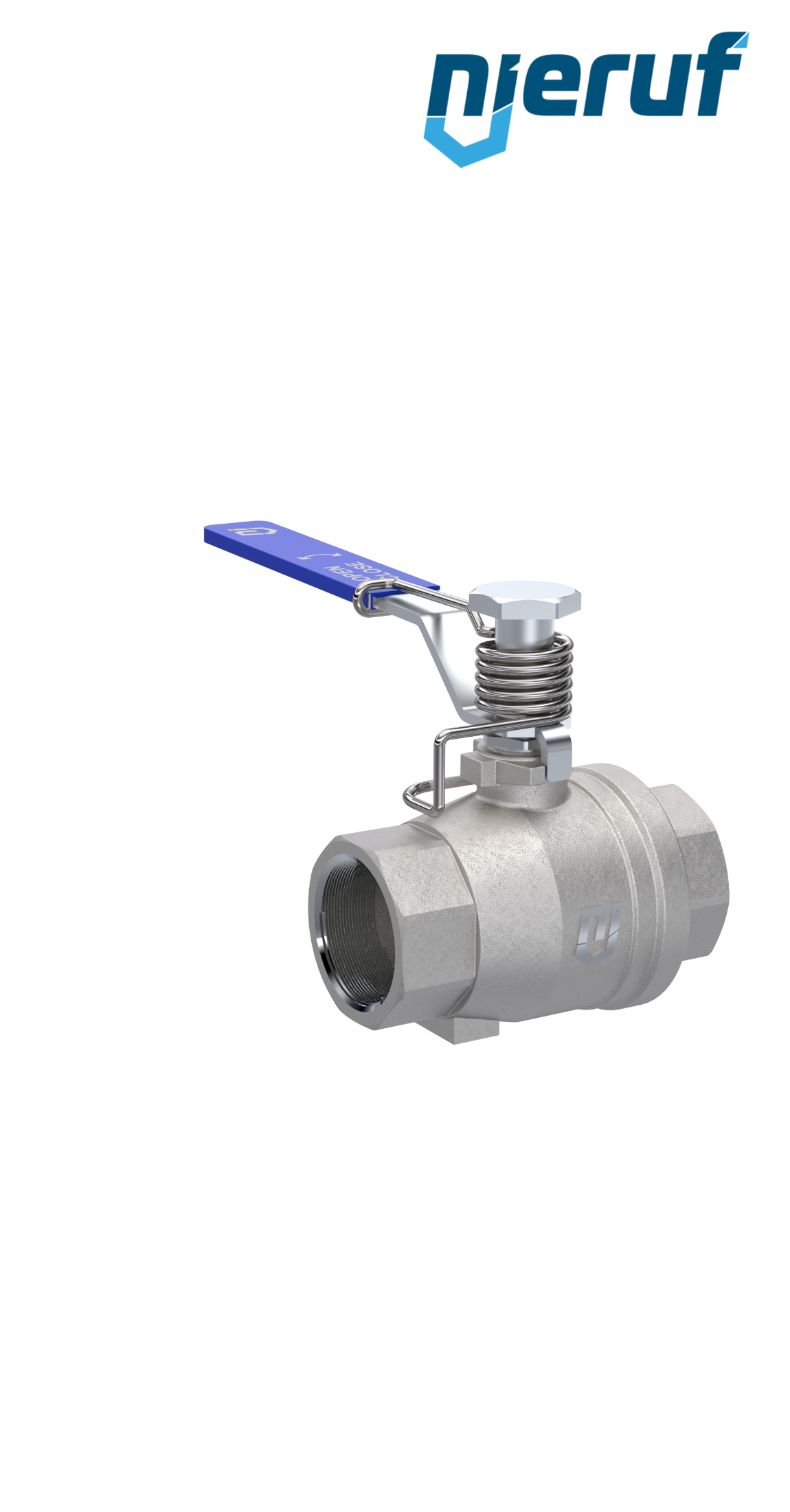

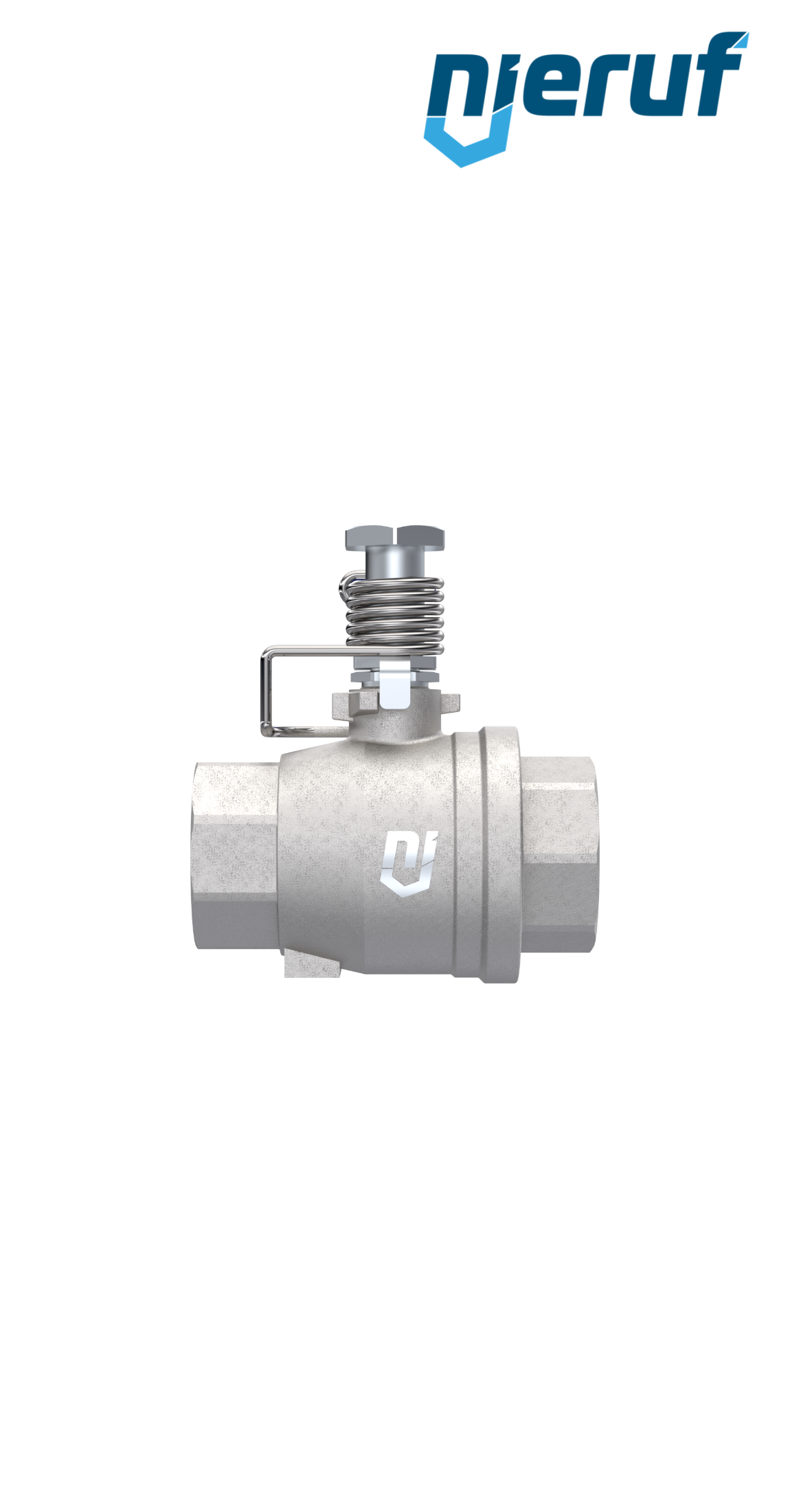

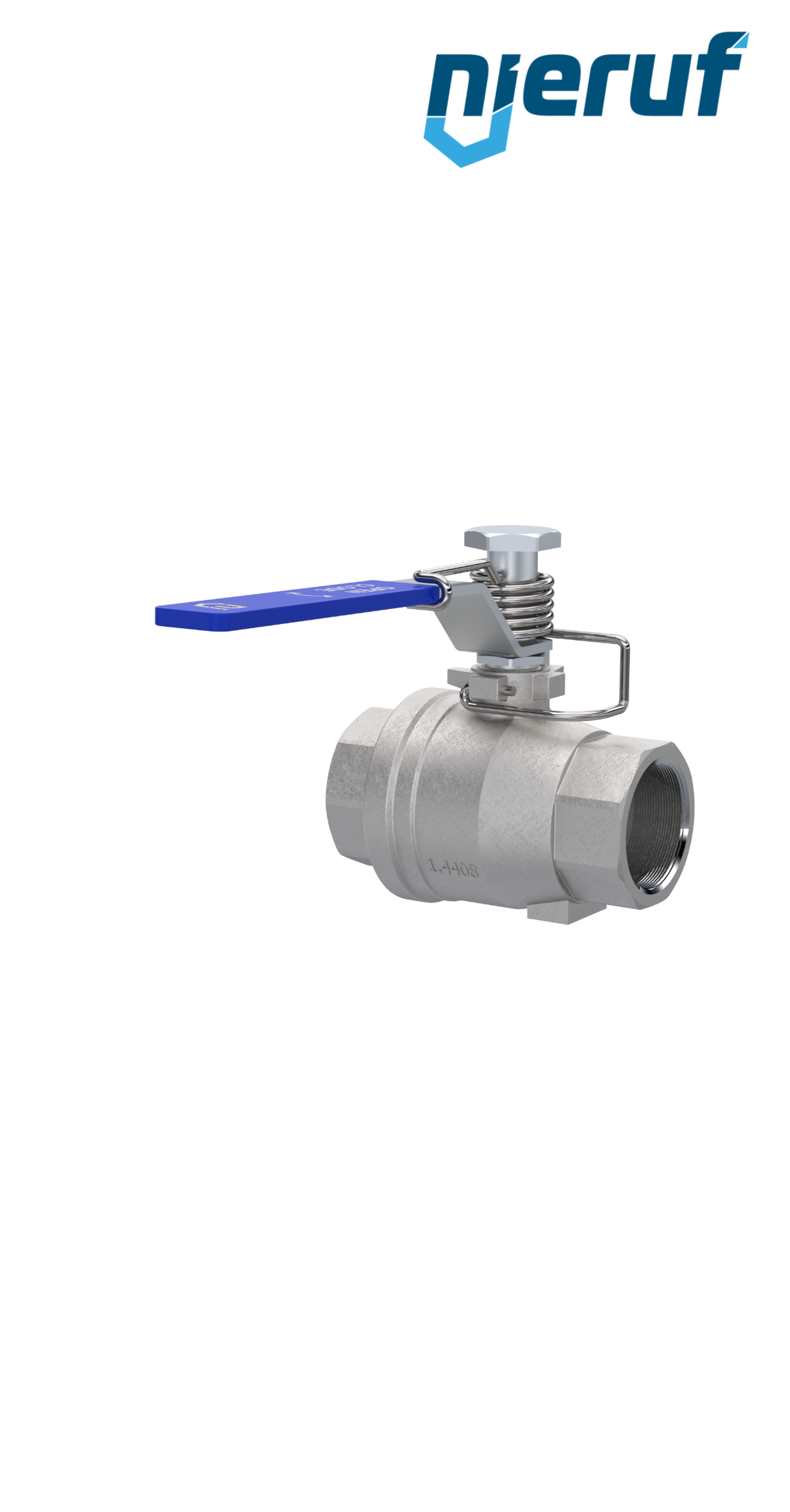

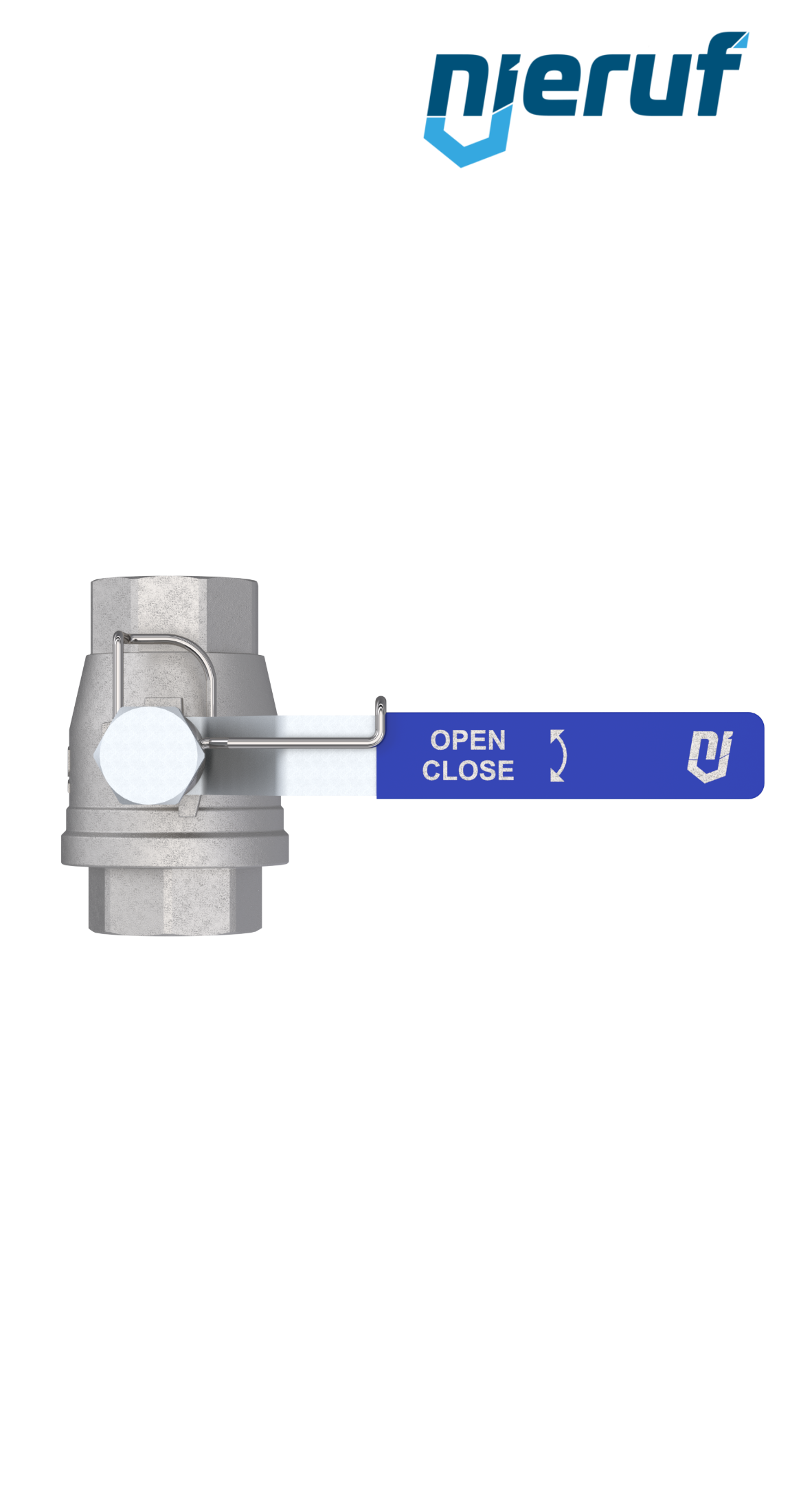

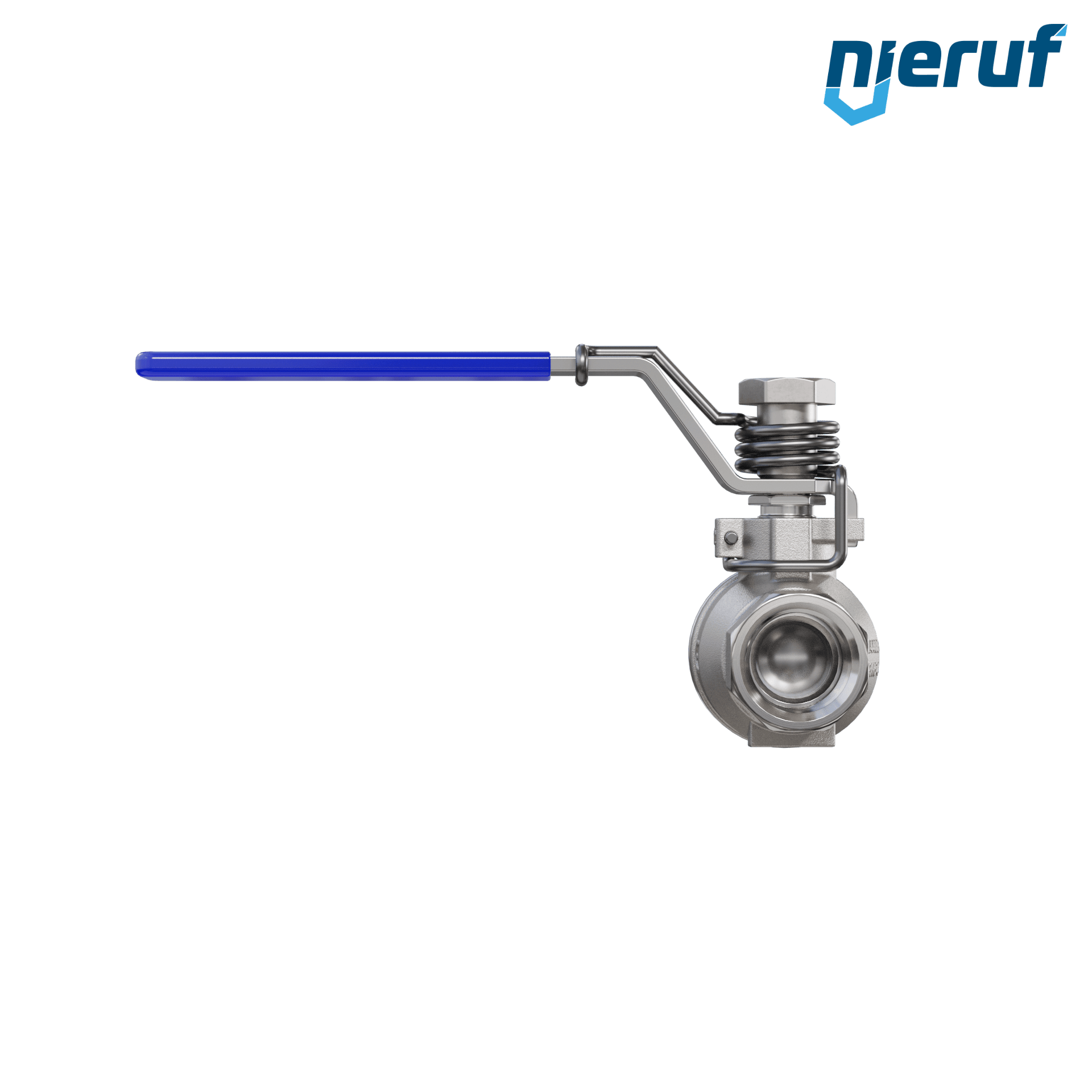

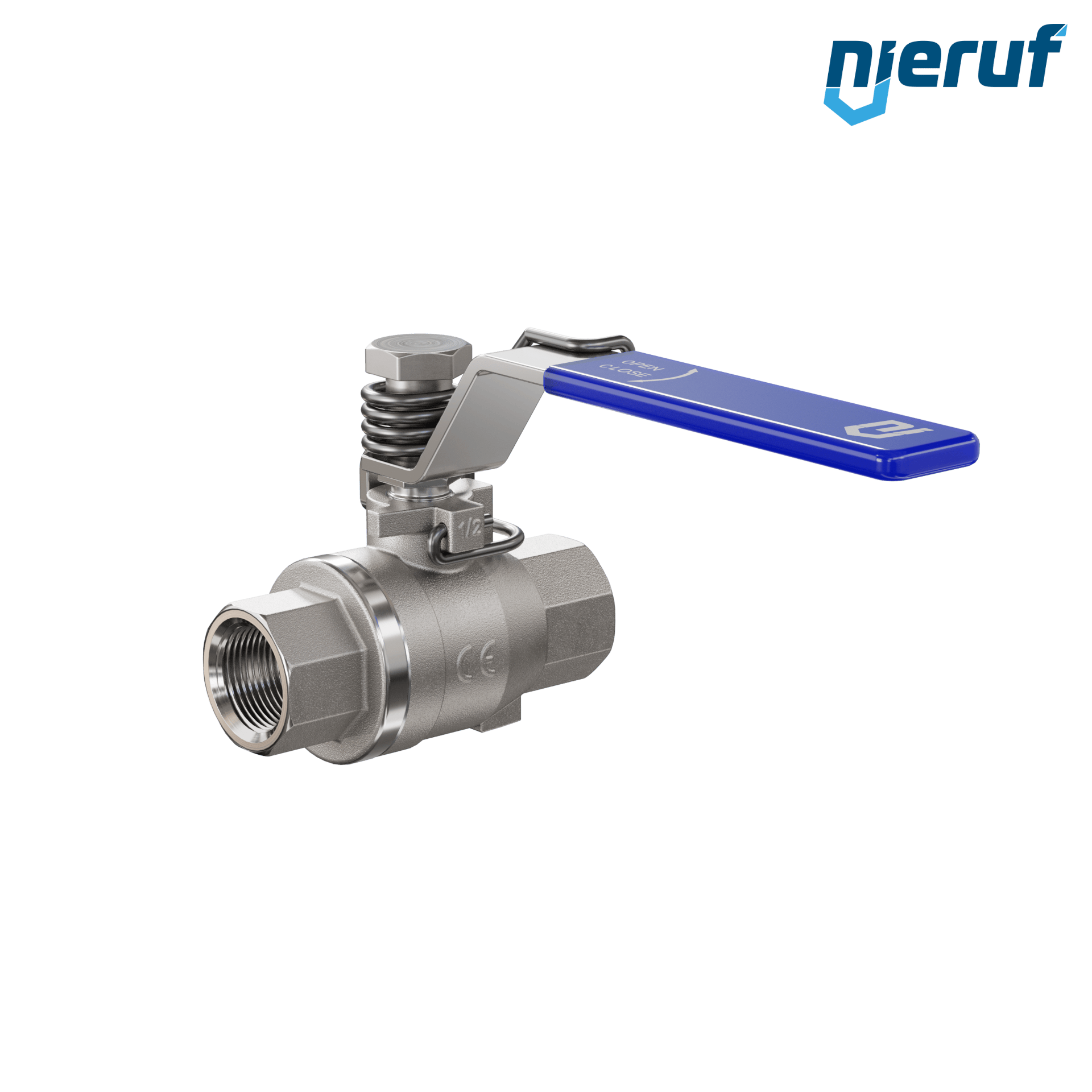

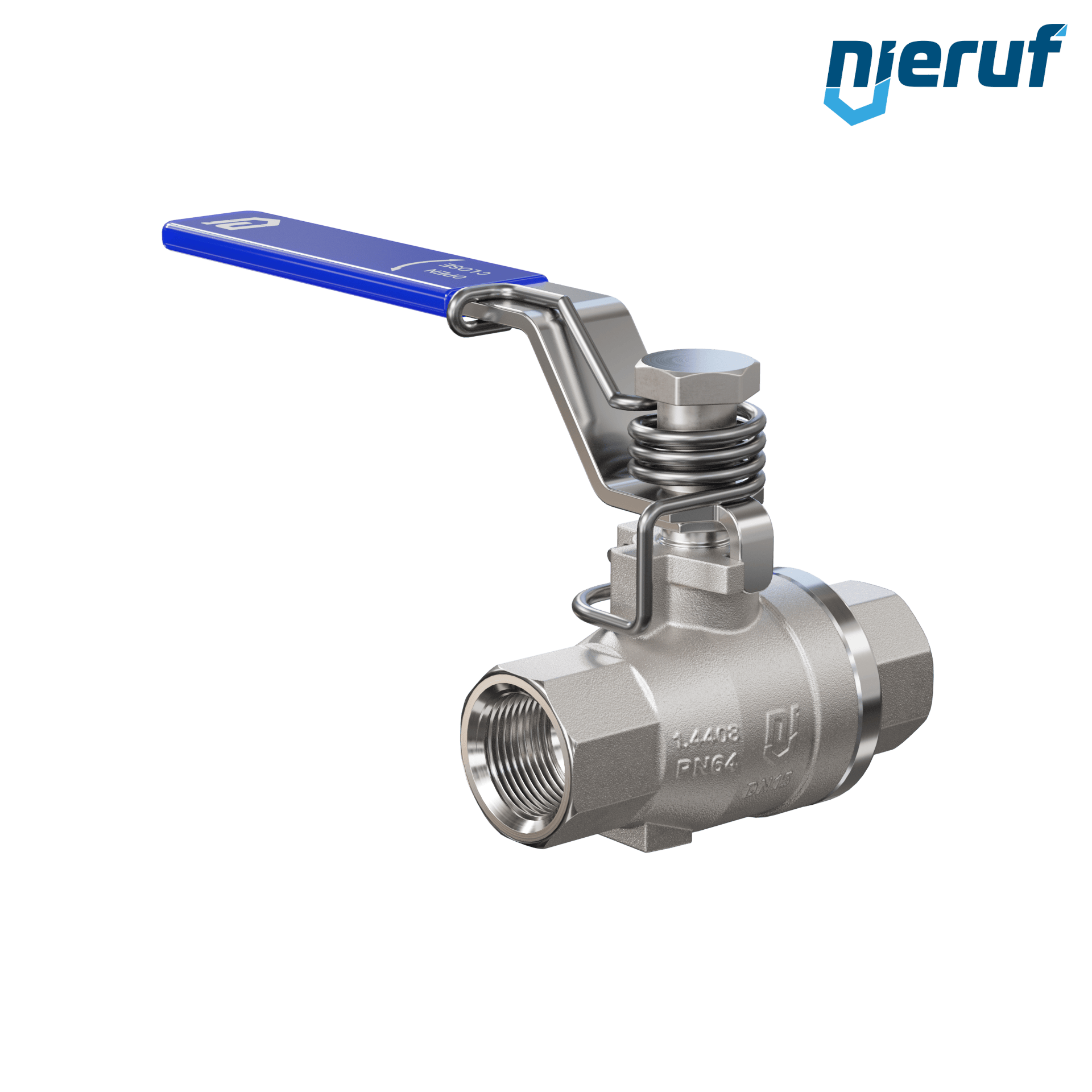

ball valve with spring reload DN15 - 1/2" inch GK12 female thread
ball valve with spring reload DN15 - 1/2" inch full port design seal made of PTFE for liquid and gaseous media
| product | ball valve with spring reload |
|---|---|
| type | GK12 |
| manufacturer | NieRuf |
| diameter | DN15 - 1/2" inch |
| connection | female thread |
| Seal steam | PTFE |
| ball seal | PTFE |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | 16 bar |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4408 / CF8M |
| length | 75mm |
| actuator | lever handle made of stainless steel with blue plastic cover |
| installation position | any position |
| product description | This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" with blow out proof stem design and adjustable stem packing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve with spring reload DN15 - 1/2" inch GK12 female thread
Article no.
: GK12000003
product:
ball valve with spring reload
type:
GK12
manufacturer:
NieRuf
diameter:
DN15 - 1/2" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
16 bar
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4408 / CF8M
length:
75mm
actuator:
lever handle made of stainless steel with blue plastic cover
installation position:
any position
product description:
This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" with blow out proof stem design and adjustable stem packing
Equipment
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
Lead time: in stock
