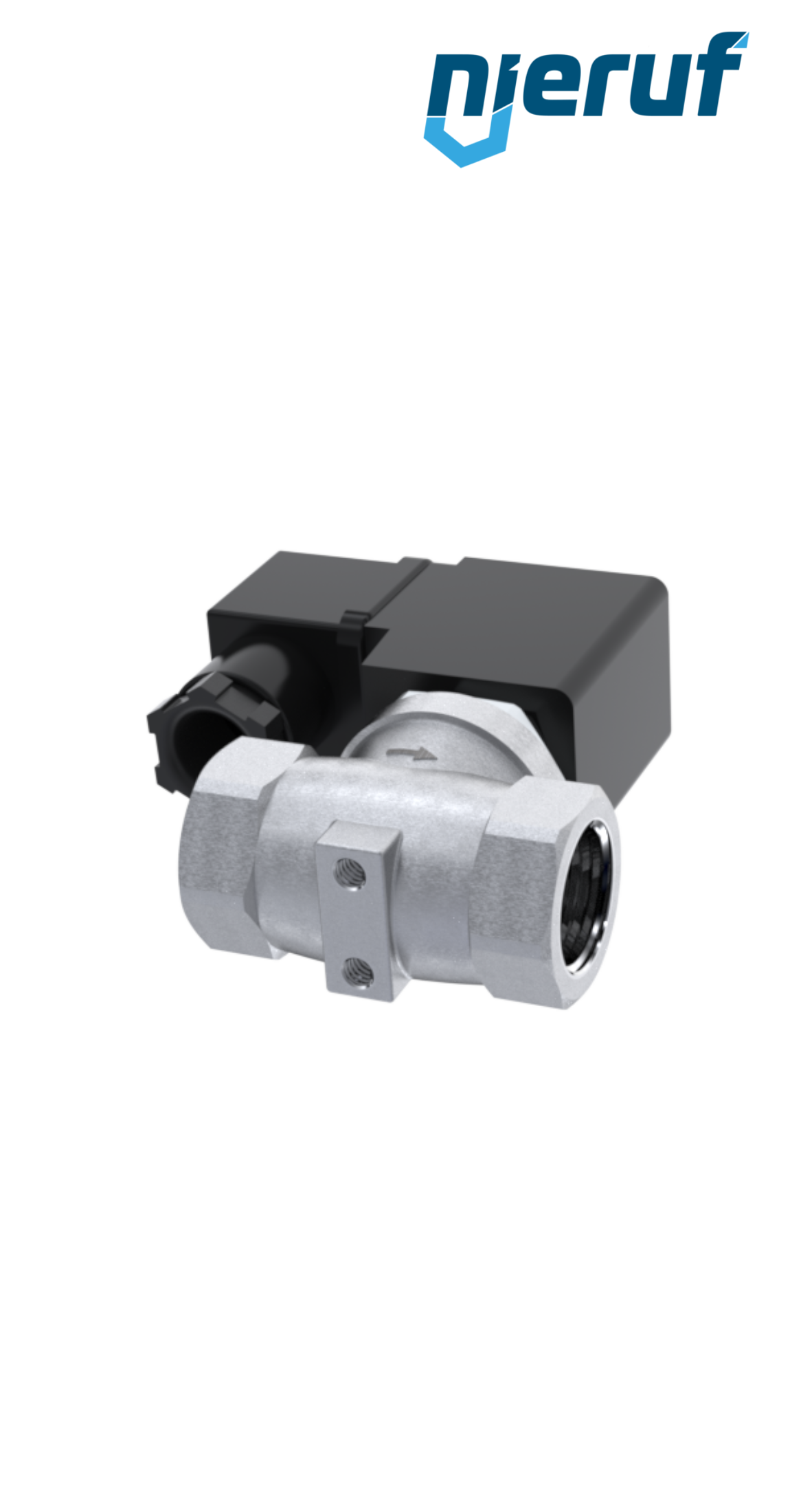

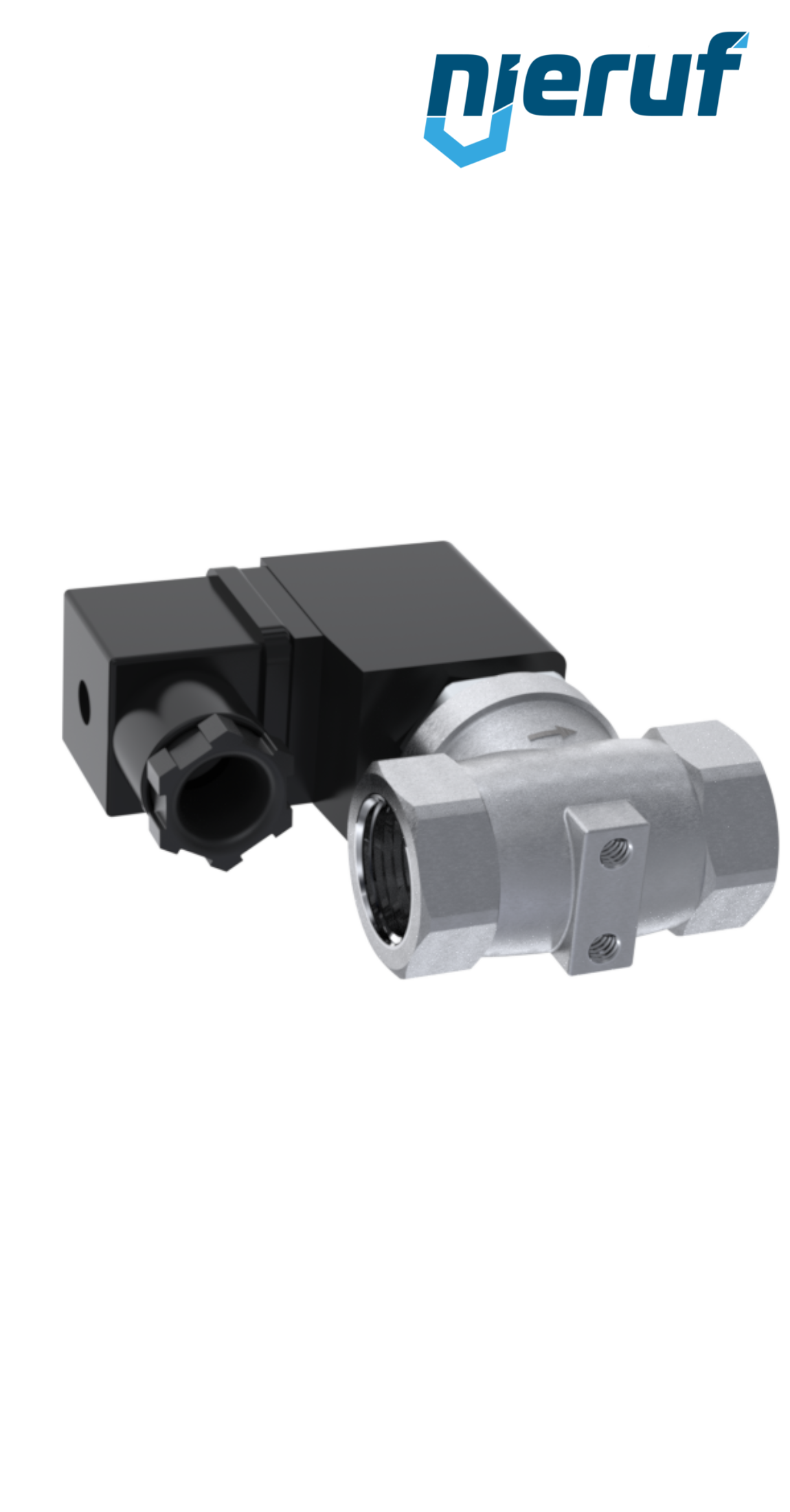

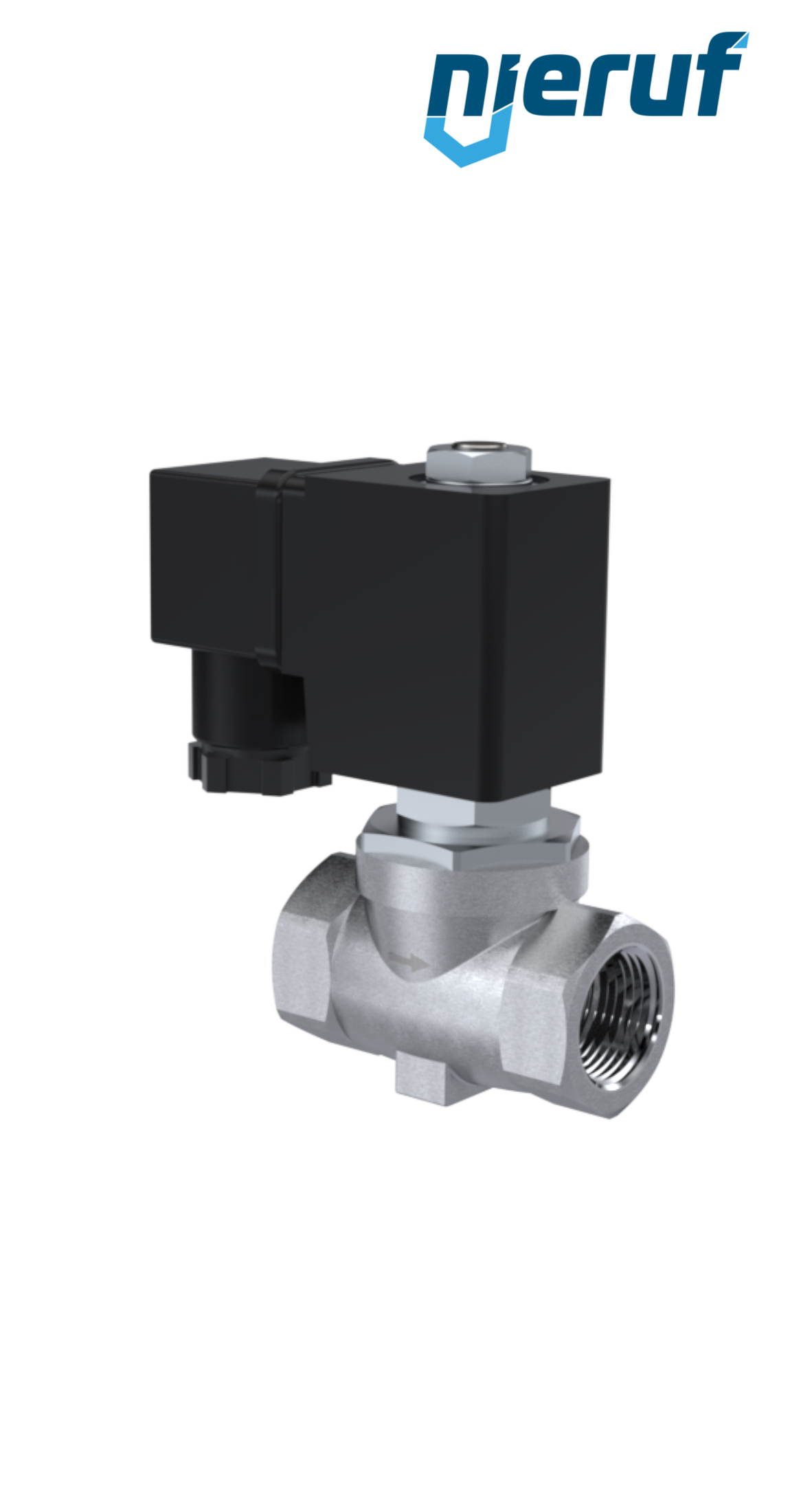

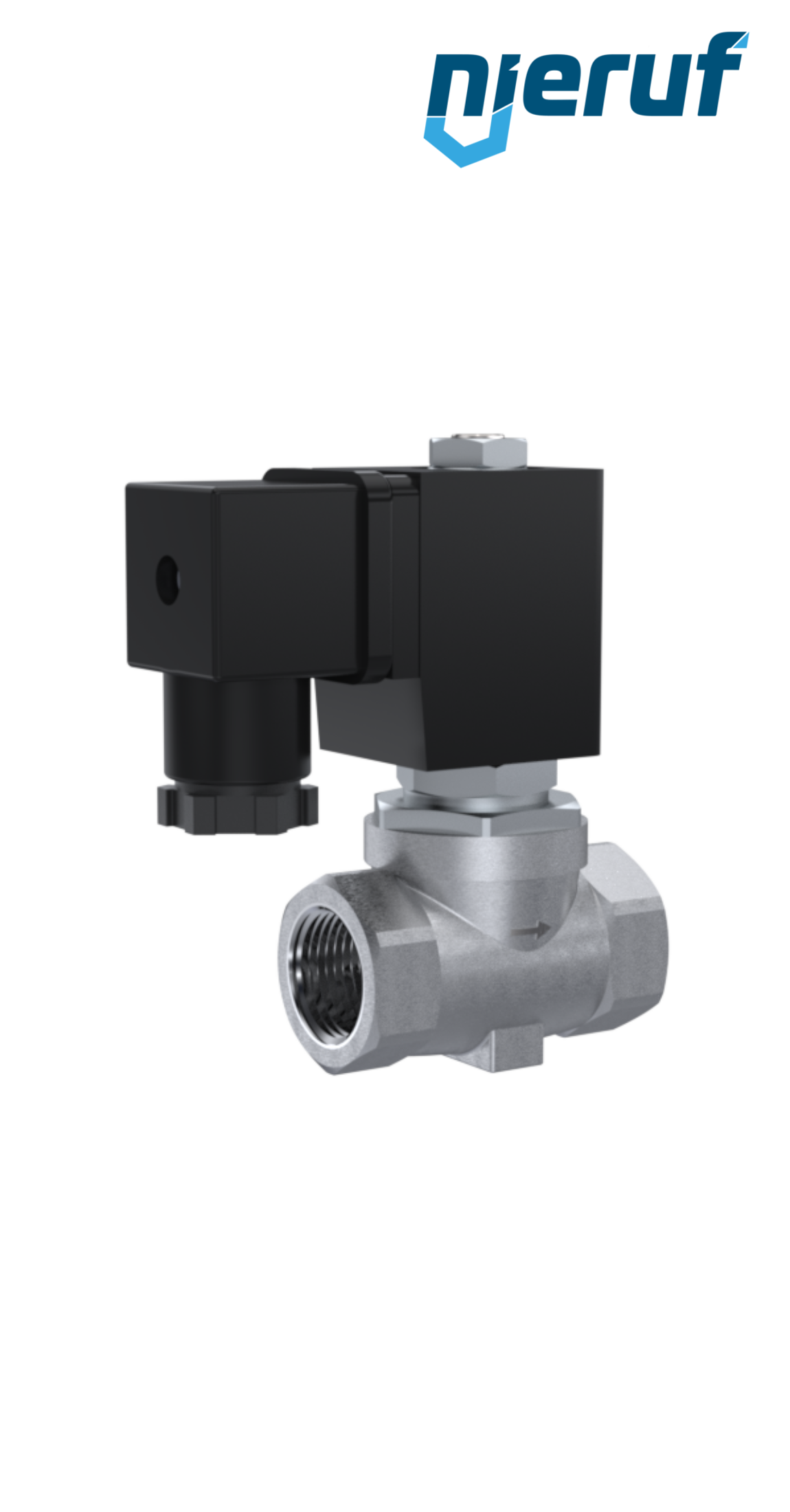

Solenoid valve G 3/8" Inch stainless steel EV04 EPDM 24V DC
Solenoid valve G 3/8" Inch DN 8.0 made of stainless steel 1.4408 seal EPDM servo controlled nominal voltage 24V DC pressure 0.1 - 10 bar
| product | Solenoid valve |
|---|---|
| type | EV04 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN 8.0 |
| connection | G 3/8" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 1.03 m³/h |
| function | NC - normally closed |
| control | servo controlled |
| material | stainless steel 1.4408 |
| seal | EPDM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 13 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +130°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.1 - 10 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 3/8" Inch stainless steel EV04 EPDM 24V DC
Article no.
: EV04210002
product:
Solenoid valve
type:
EV04
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN 8.0
connection:
G 3/8" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
1.03 m³/h
function:
NC - normally closed
control:
servo controlled
material:
stainless steel 1.4408
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
13 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0.1 - 10 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
