Solenoid valve DN 1.0 stainless steel EV01 FKM 24V DC

EV01220010
quantity (pcs.):
55.10€ * 63.92€ incl. VAT
*Price plus VAT and shipping costs

Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months

Delivery time: 3-5 working days

datasheet 3D model manual
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

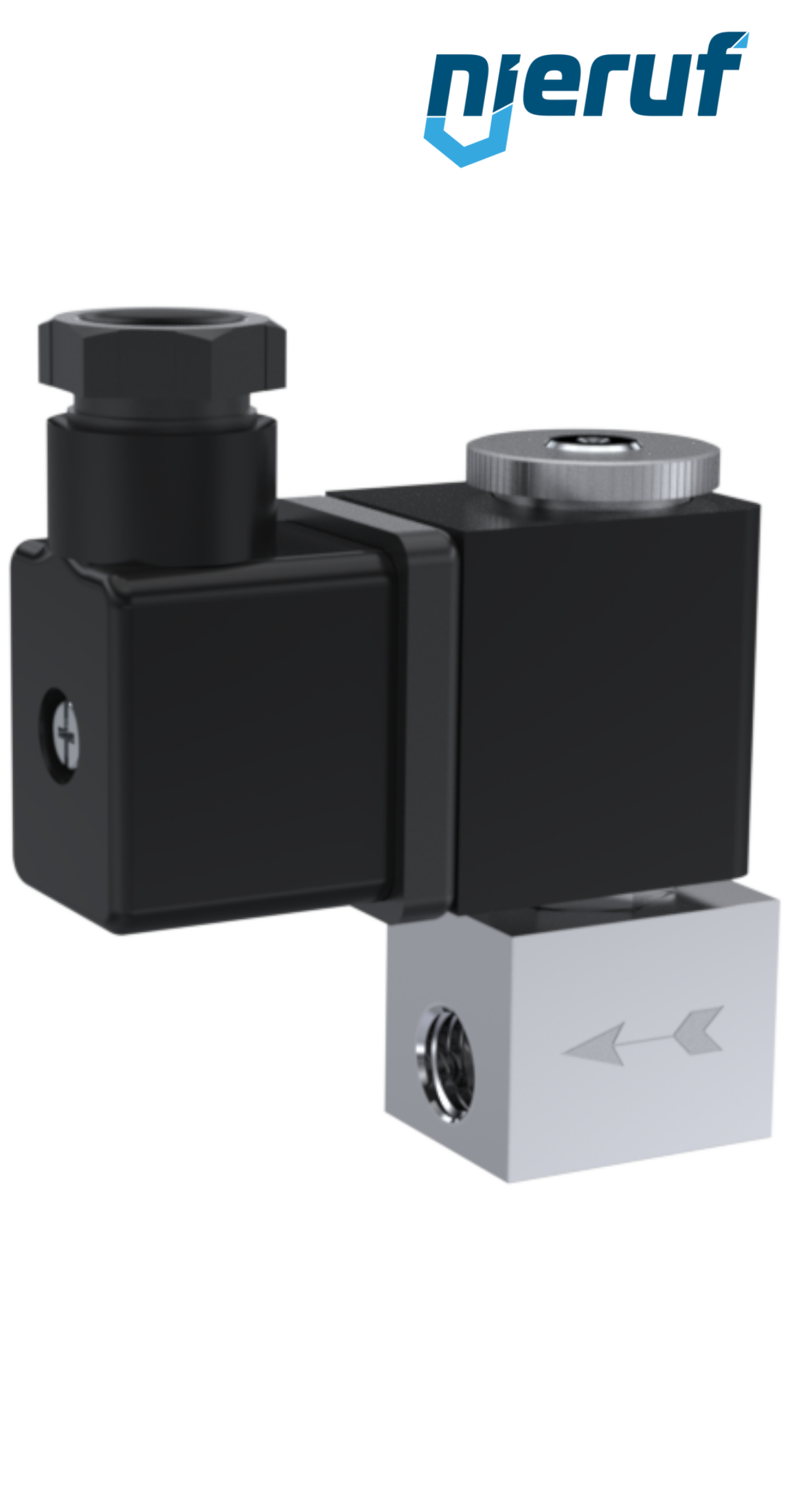

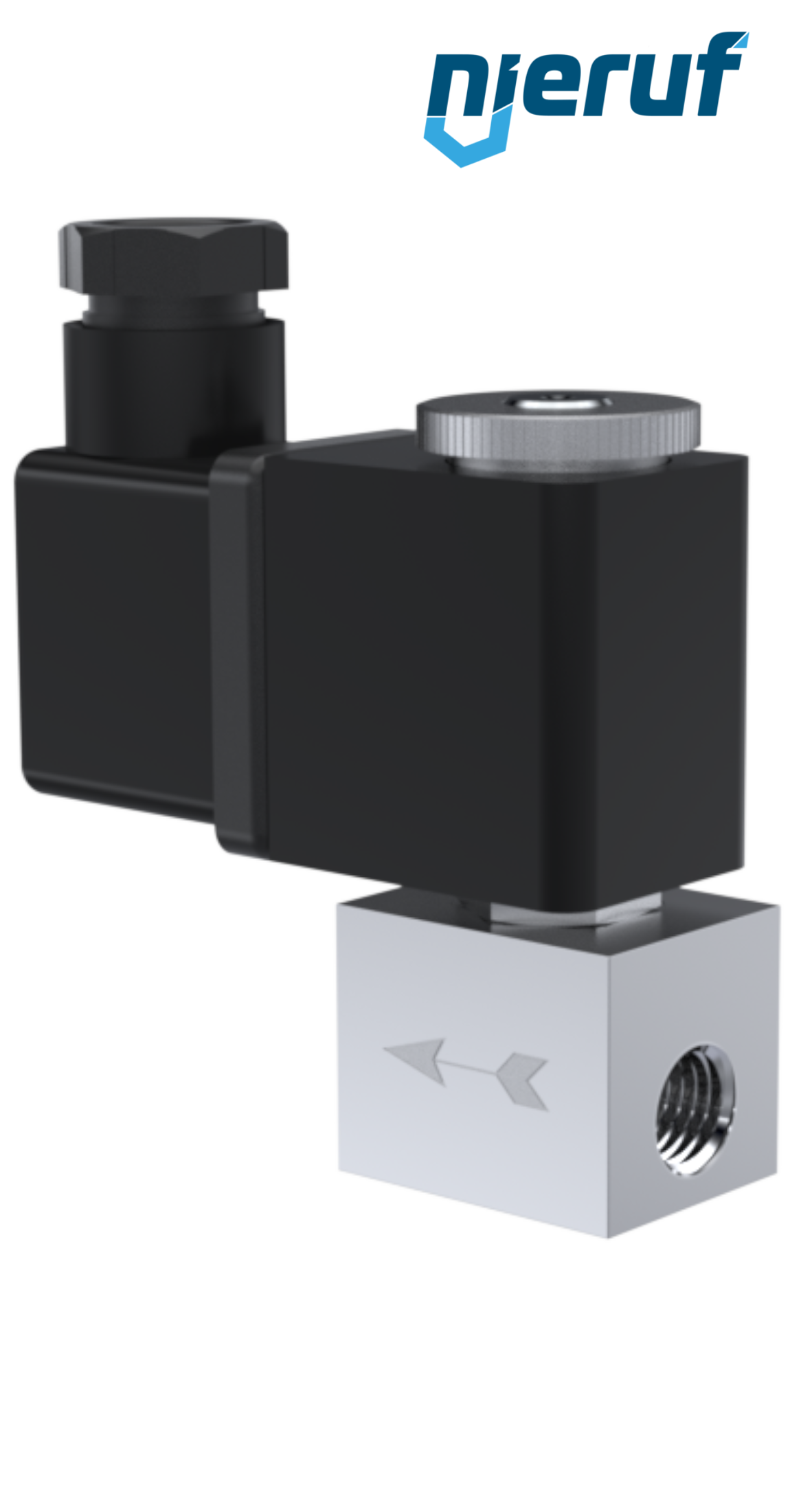

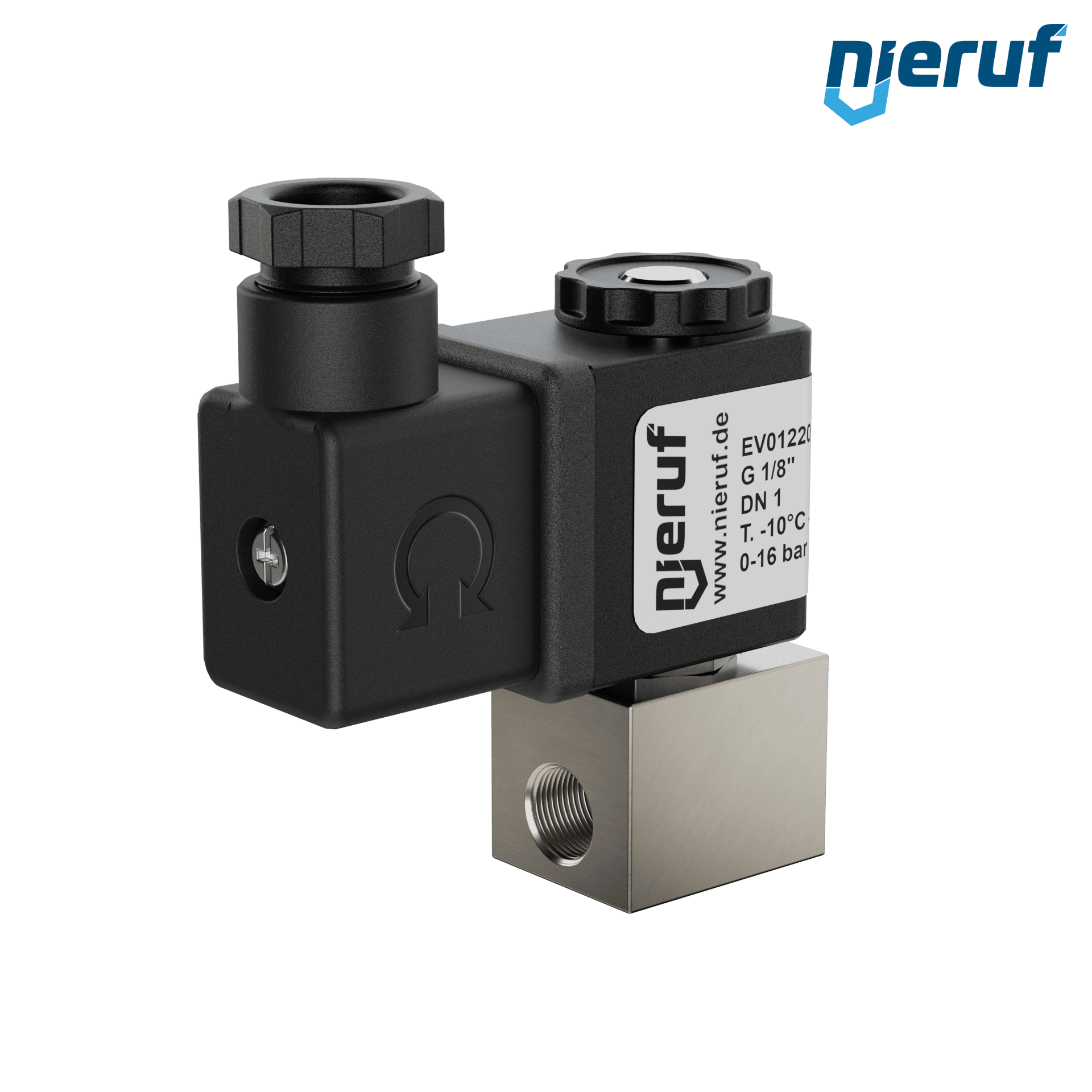

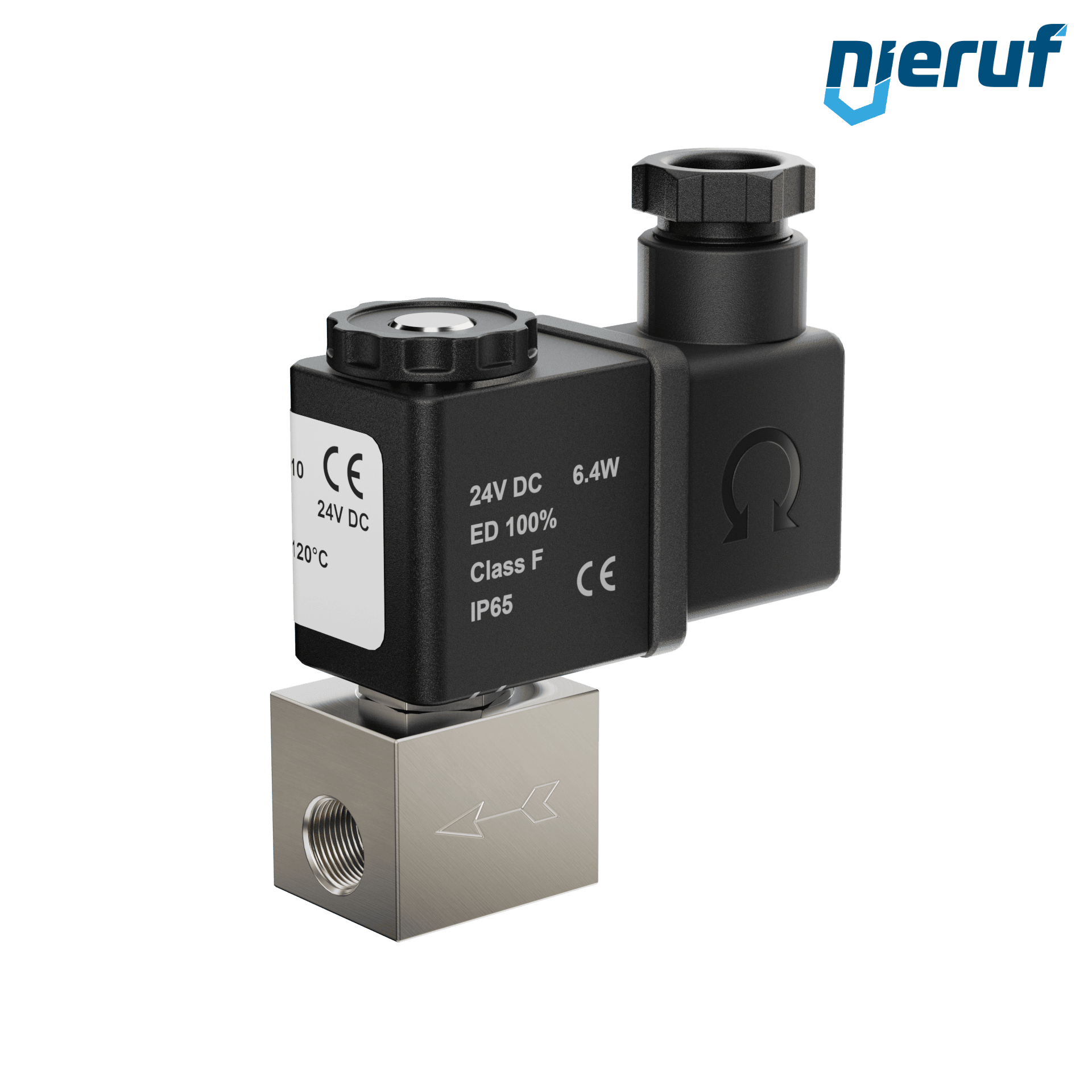

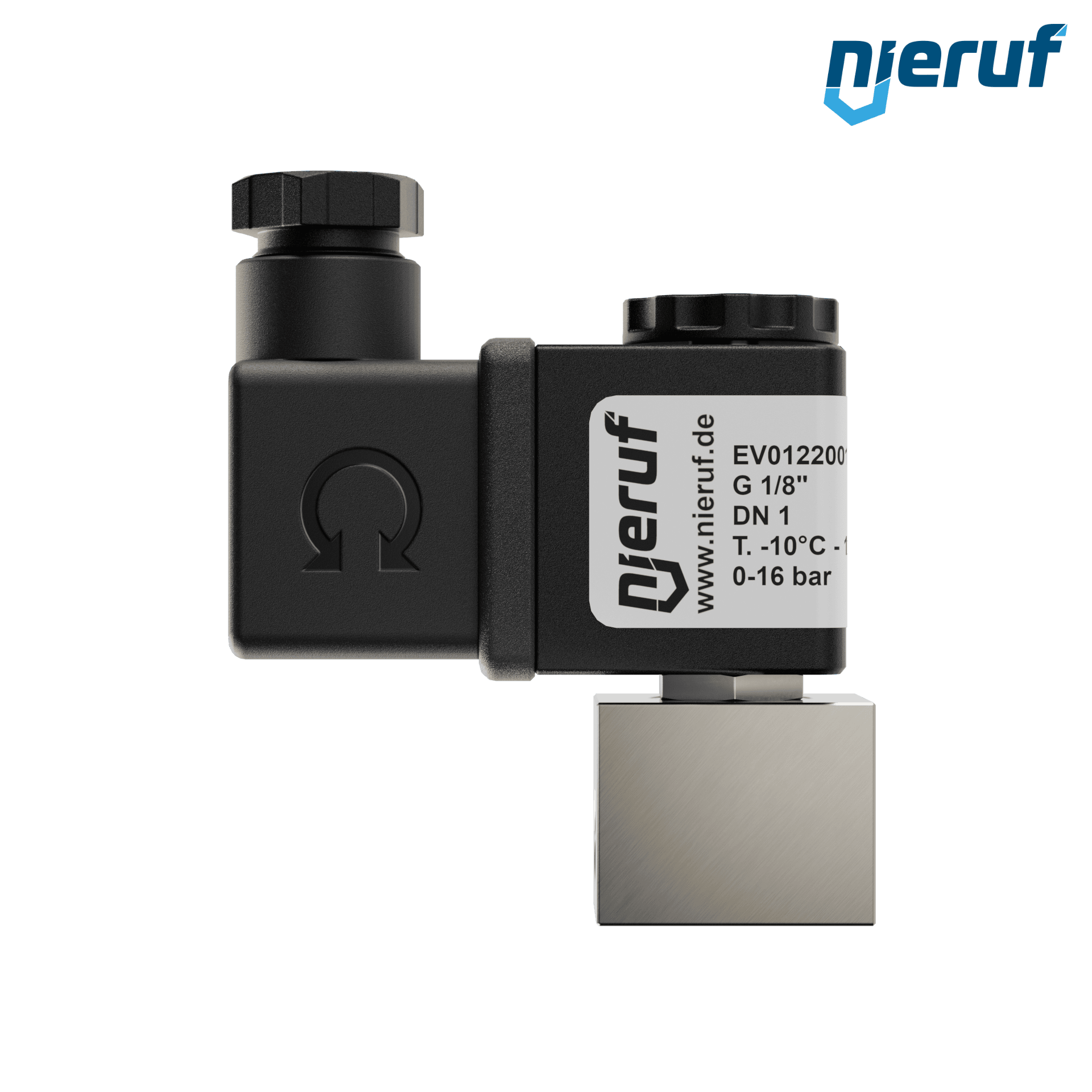

Solenoid valve DN 1.0 stainless steel EV01 FKM 24V DC
2/2 Ways Solenoid valve G 1/8" inch DN 1.0 made of stainless steel 1.4305 seal FKM direct acting nominal voltage 24V DC pressure 0 - 16 bar
design: seat valve
diameter: DN 1.0
connection: G 1/8" inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 0.5 l/min
function: NC - normally closed
control: direct acting
material: stainless steel 1.4305
seal: FKM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 6 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -10°C up to +130°C
temperature ambiente: max up to +50°C
max. pressure: 0 - 16 bar
installation position: any position, solenoid preferably standing
Solenoid valve DN 1.0 stainless steel EV01 FKM 24V DC

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Solenoid valve DN 1.0 stainless steel EV01 FKM 24V DC
