EV04110001

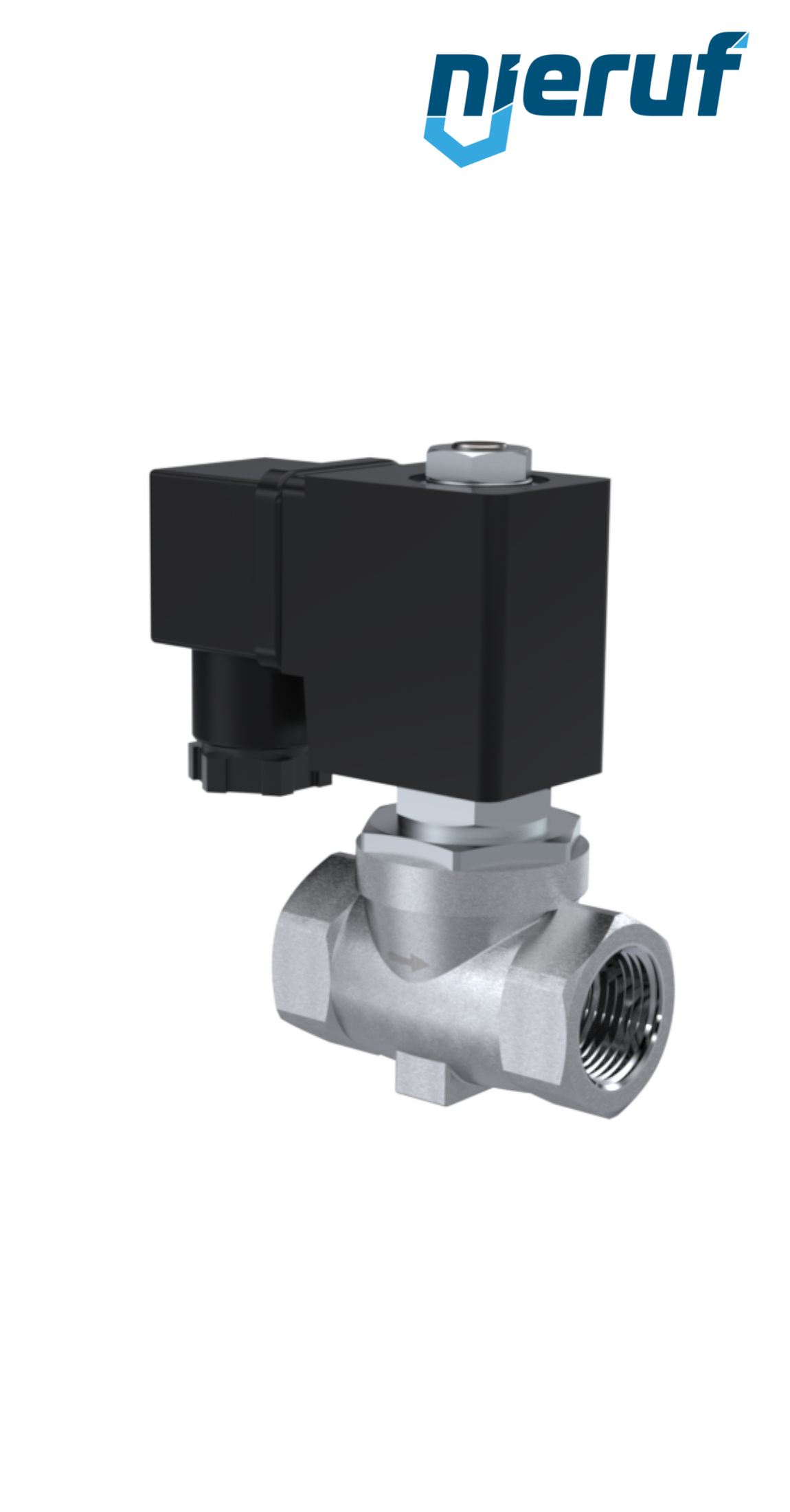

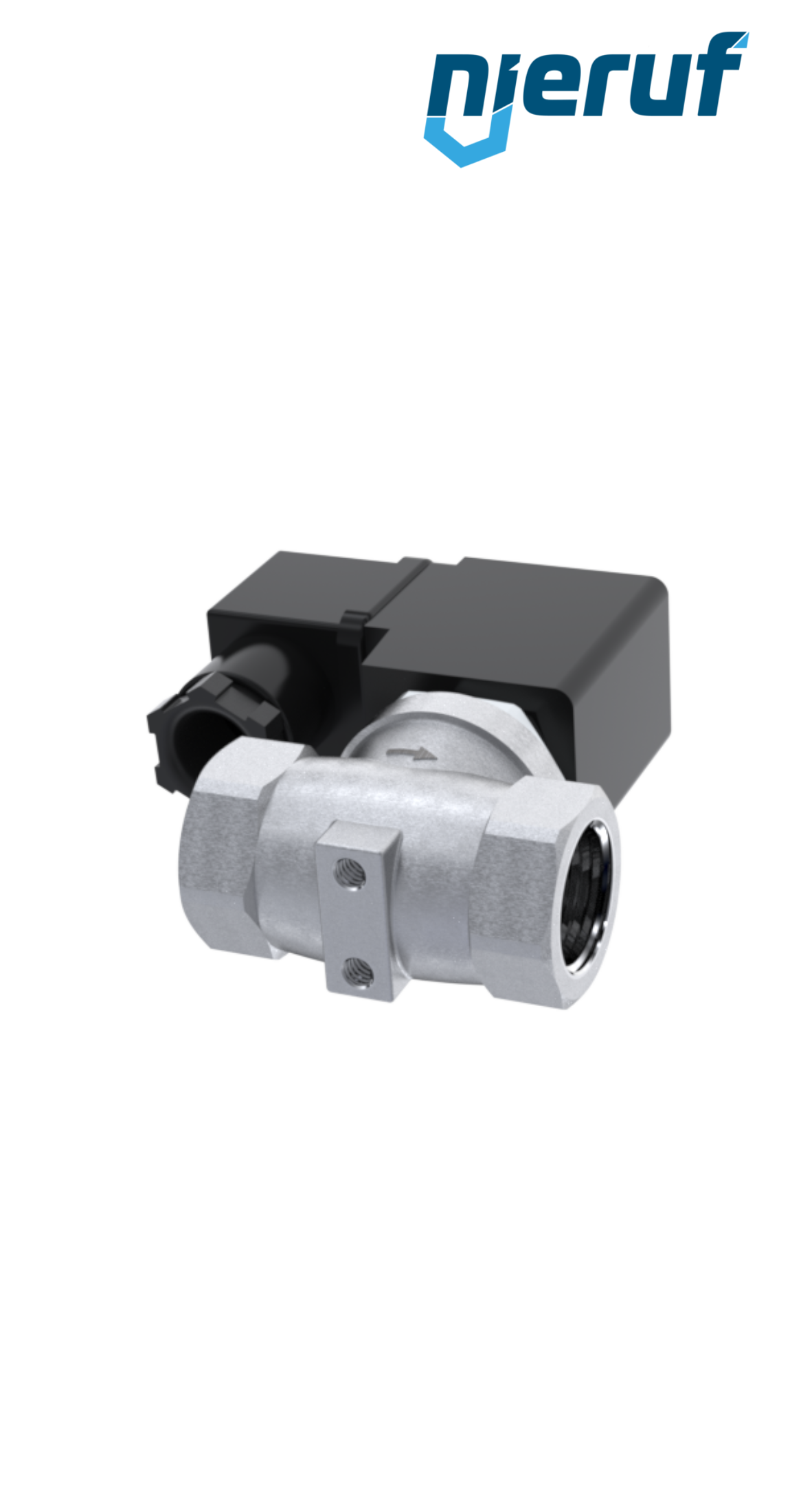

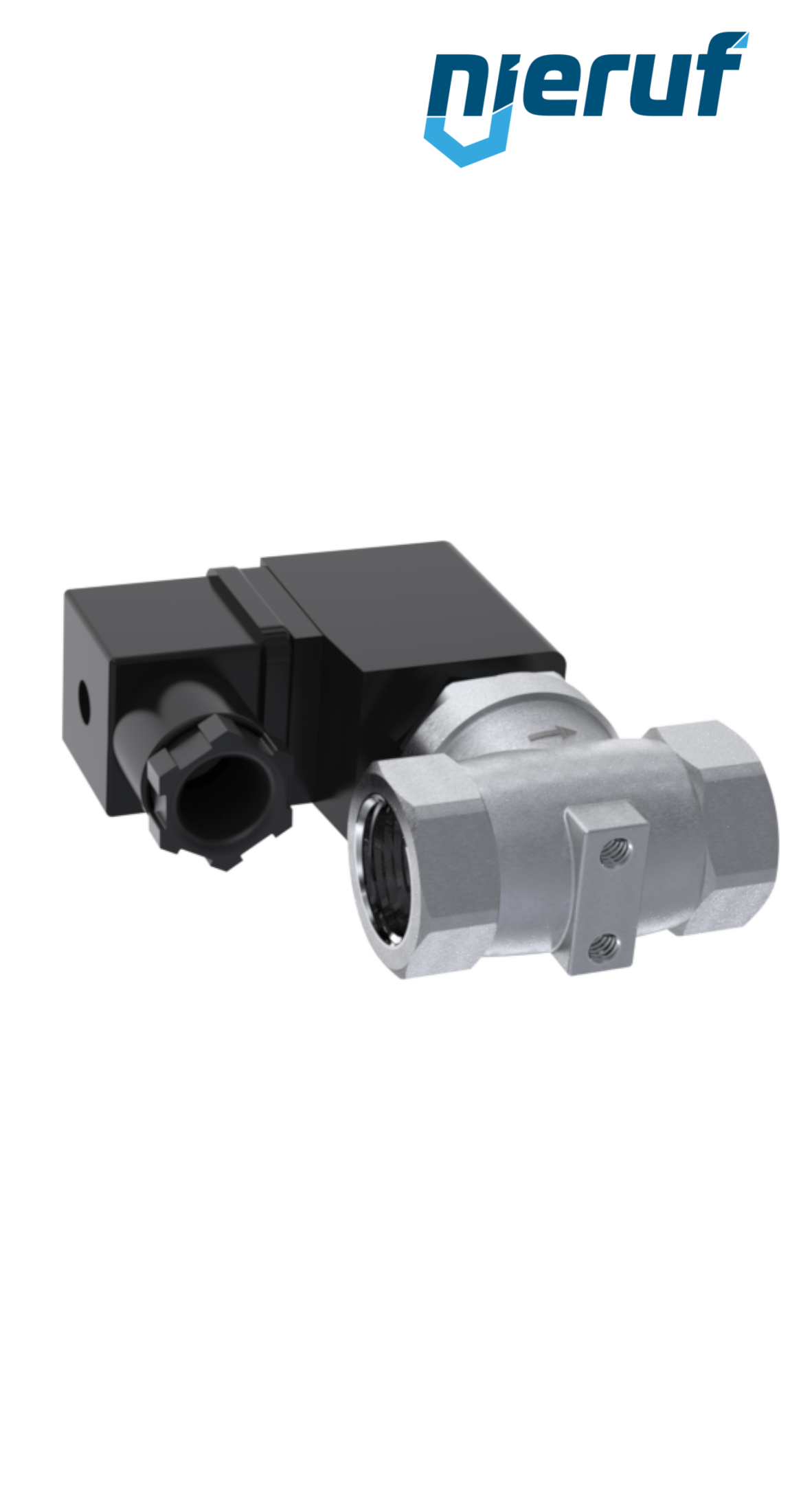

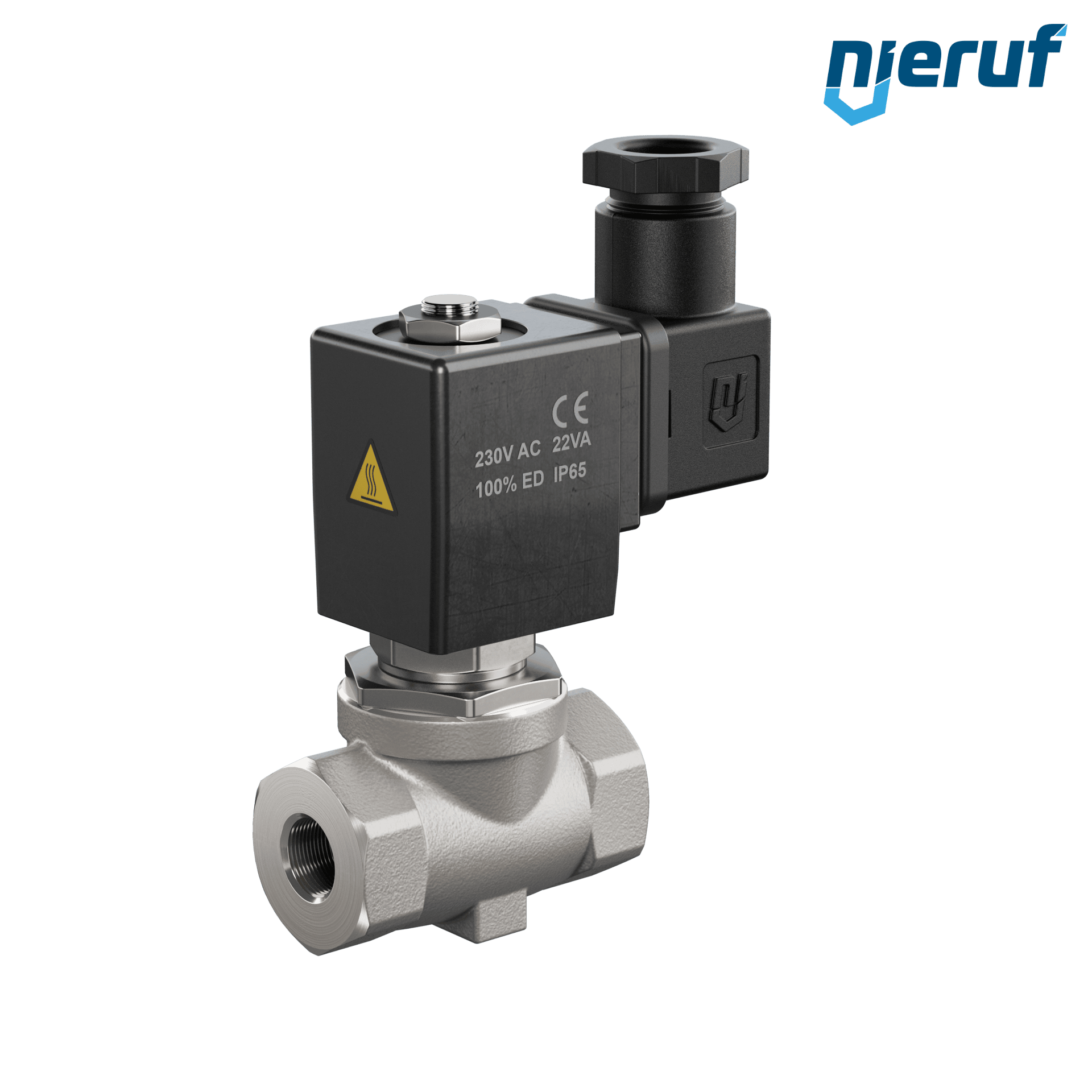

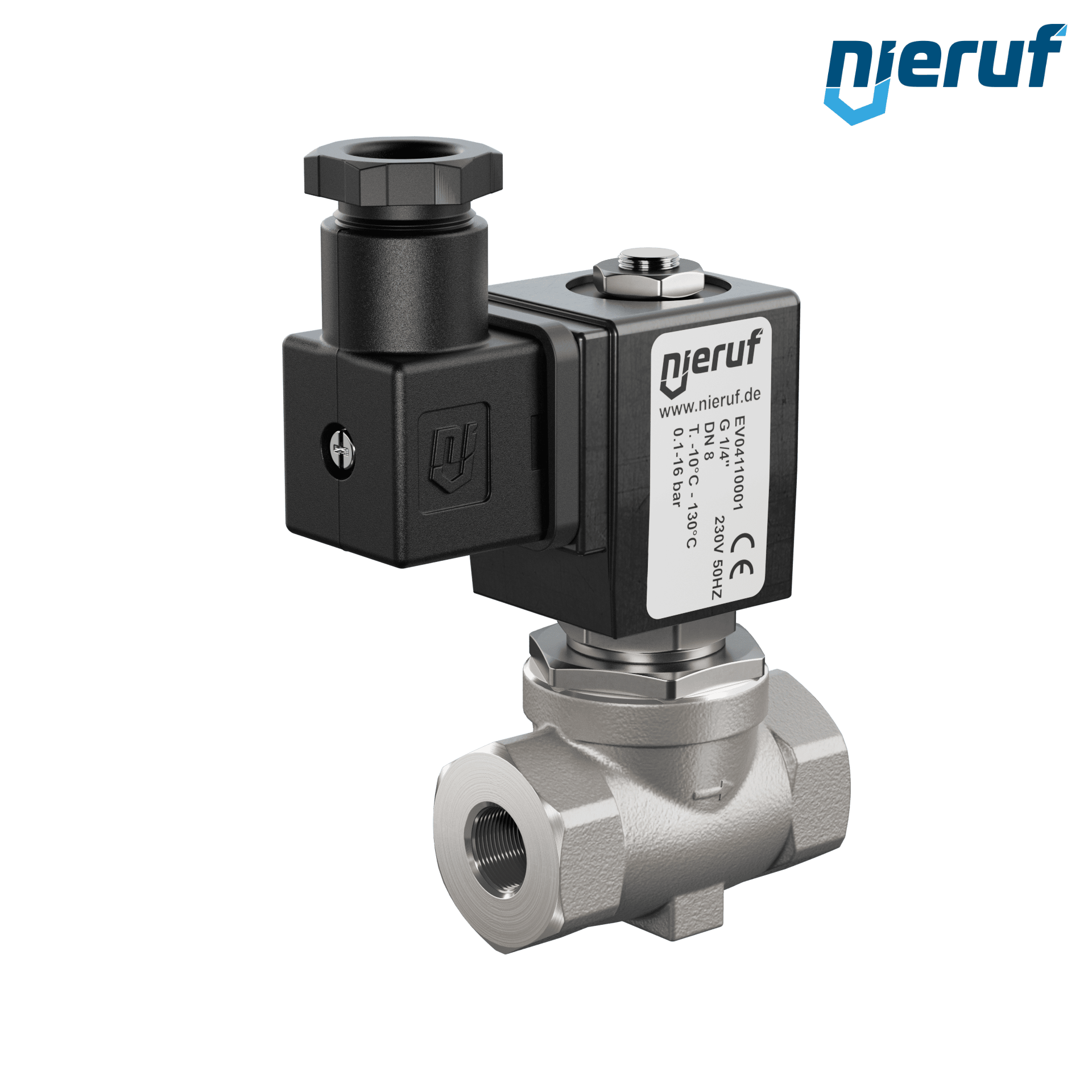

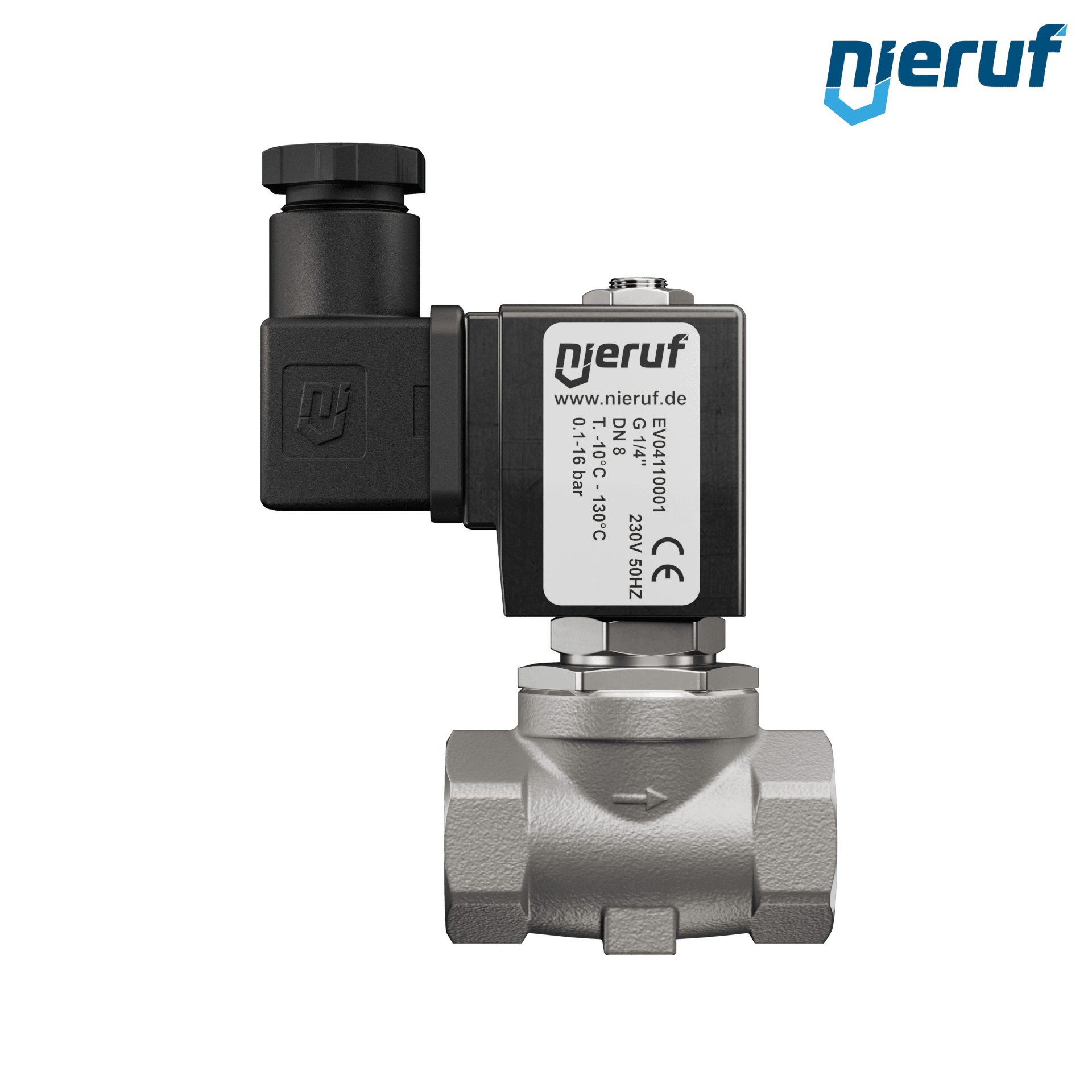

Solenoid valve G 1/4" Inch stainless steel EV04 EPDM 230V 50Hz

€62.90*

€74.85 VAT included.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Thursday, 07. November

Guaranteed delivery until Friday, 08. November, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

SZ01000001

strainer 1/4" inch stainless steel type SZ01

€12.20*

€14.52 VAT included.


ST01000001

hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01

€1.80*

€2.14 VAT included.


GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: EV04110001
Solenoid valve G 1/4" Inch stainless steel EV04 EPDM 230V 50Hz

Solenoid valve G 1/4" Inch DN 8.0 made of stainless steel 1.4408 seal EPDM servo controlled nominal voltage 230V 50Hz pressure 0.1 - 16 bar

product: Solenoid valve
type: EV04
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN 8.0
connection: G 1/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 1.03 m³/h
function: NC - normally closed
control: servo controlled
material: stainless steel 1.4408
seal: EPDM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 22 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -10°C up to +120°C
temperature ambiente: max up to +50°C
max. pressure: 0.1 - 16 bar
installation position: any position, solenoid preferably standing

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve G 1/4" Inch stainless steel EV04 EPDM 230V 50Hz

Article no. : EV04110001
product: Solenoid valve
type: EV04
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN 8.0
connection: G 1/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 1.03 m³/h
function: NC - normally closed
control: servo controlled
material: stainless steel 1.4408
seal: EPDM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 22 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -10°C up to +120°C
temperature ambiente: max up to +50°C
max. pressure: 0.1 - 16 bar
installation position: any position, solenoid preferably standing
