EV03110040

Solenoid valve DN 4.0 stainless steel EV03 EPDM 230V 50Hz

€82.30*

€97.94 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

SZ01000001

strainer 1/4" inch stainless steel type SZ01

€13.00*

€15.47 VAT included.


ST01000001

hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01

€1.80*

€2.14 VAT included.


GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: EV03110040

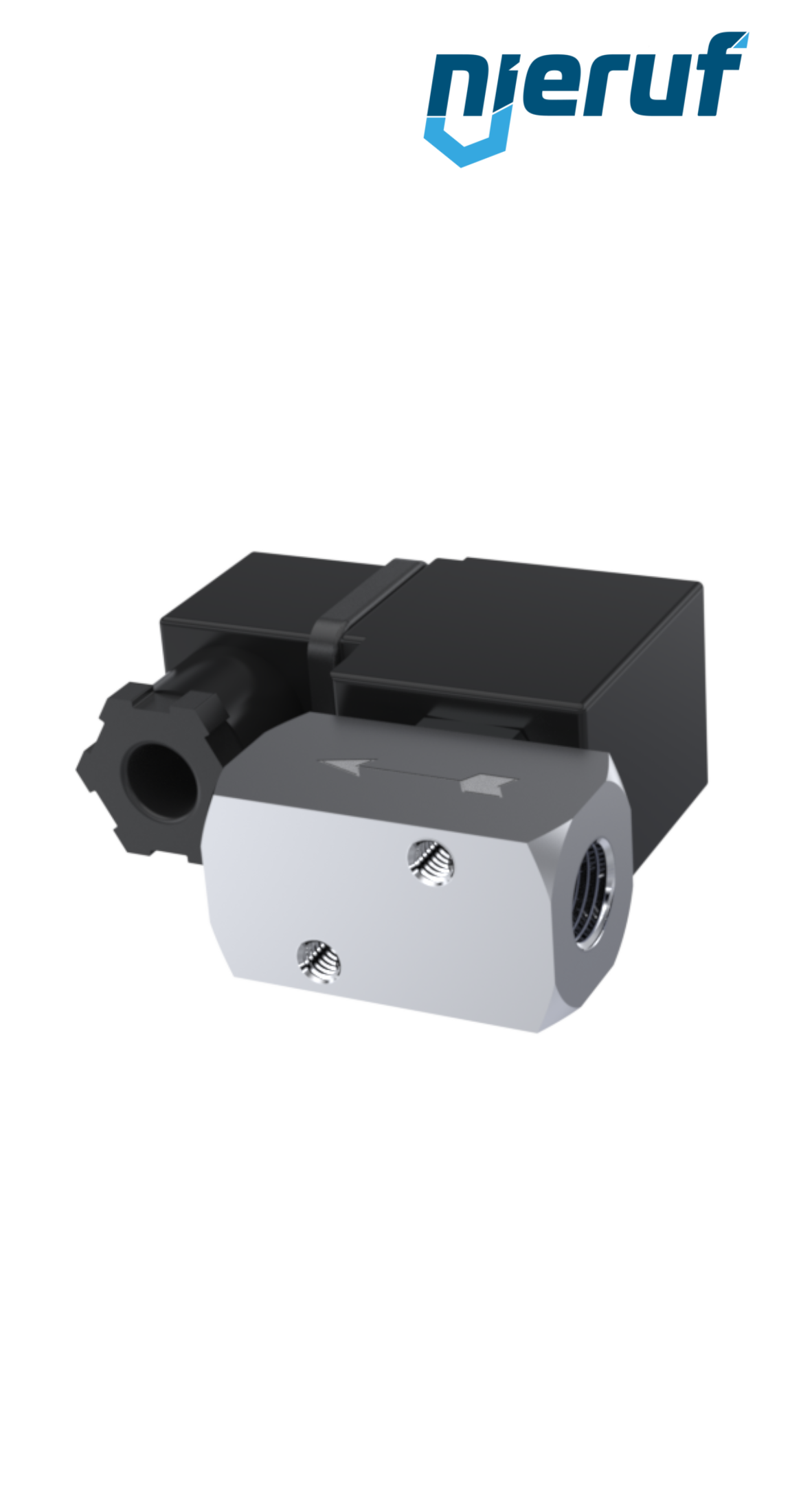

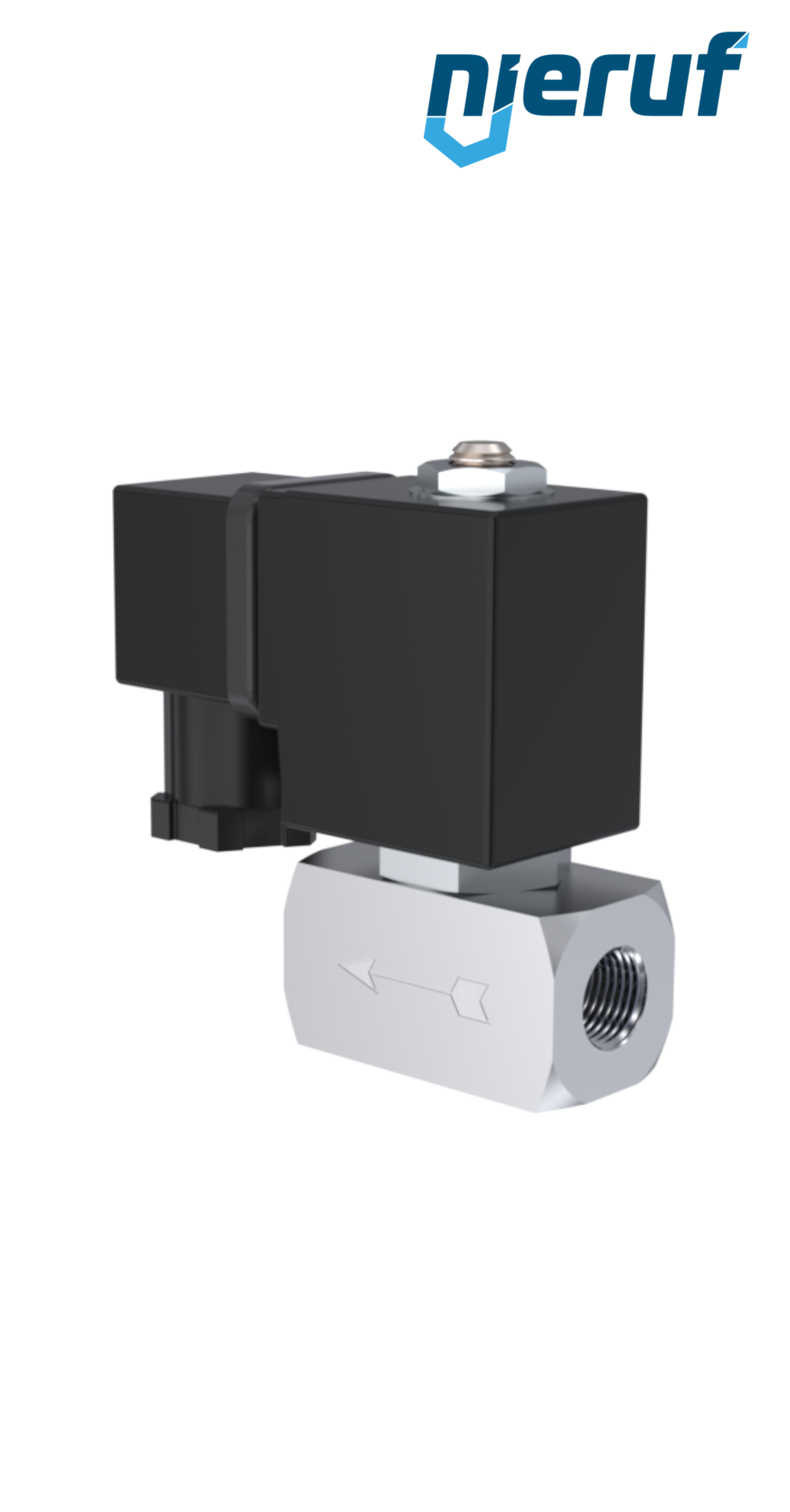

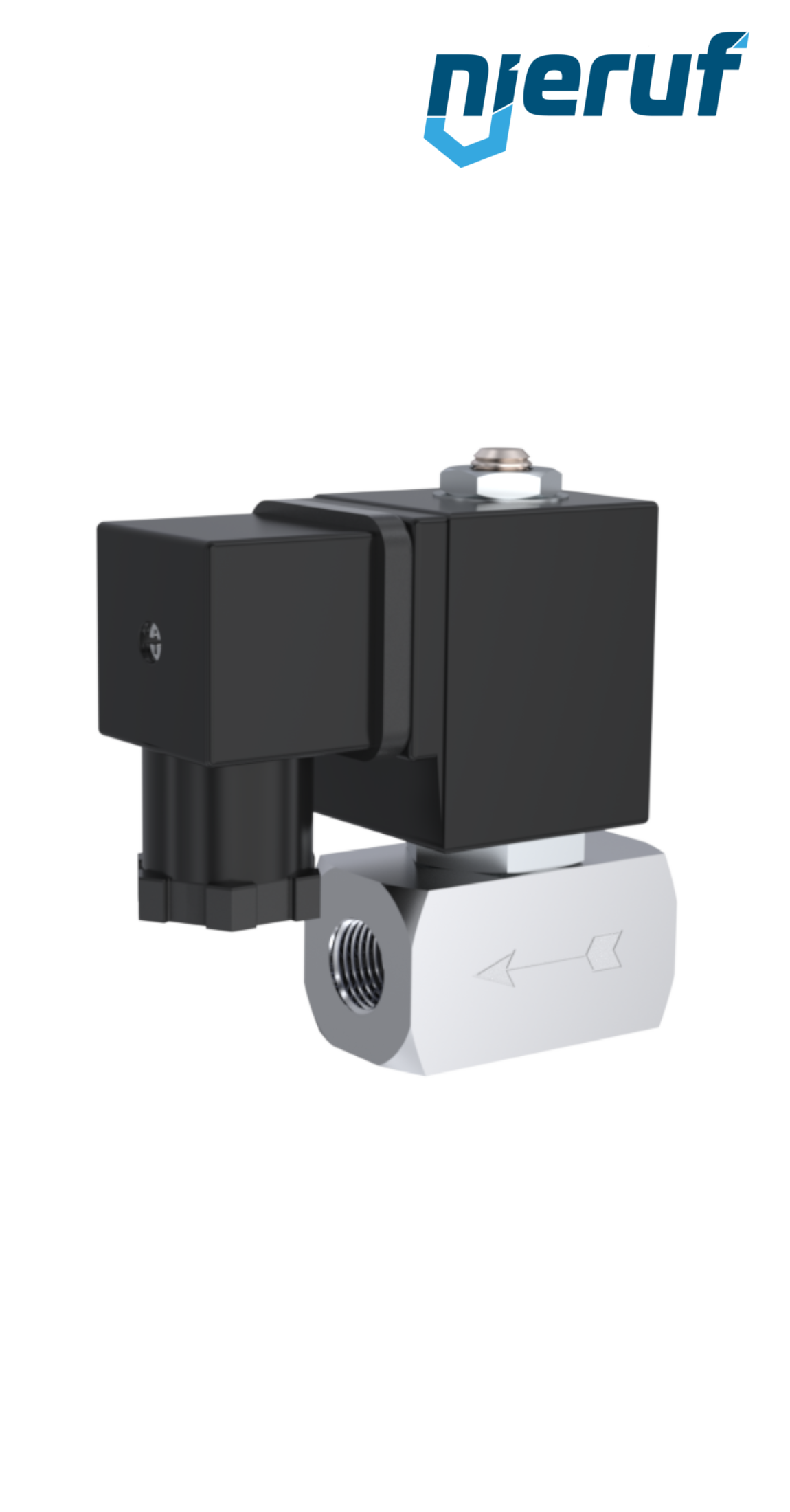

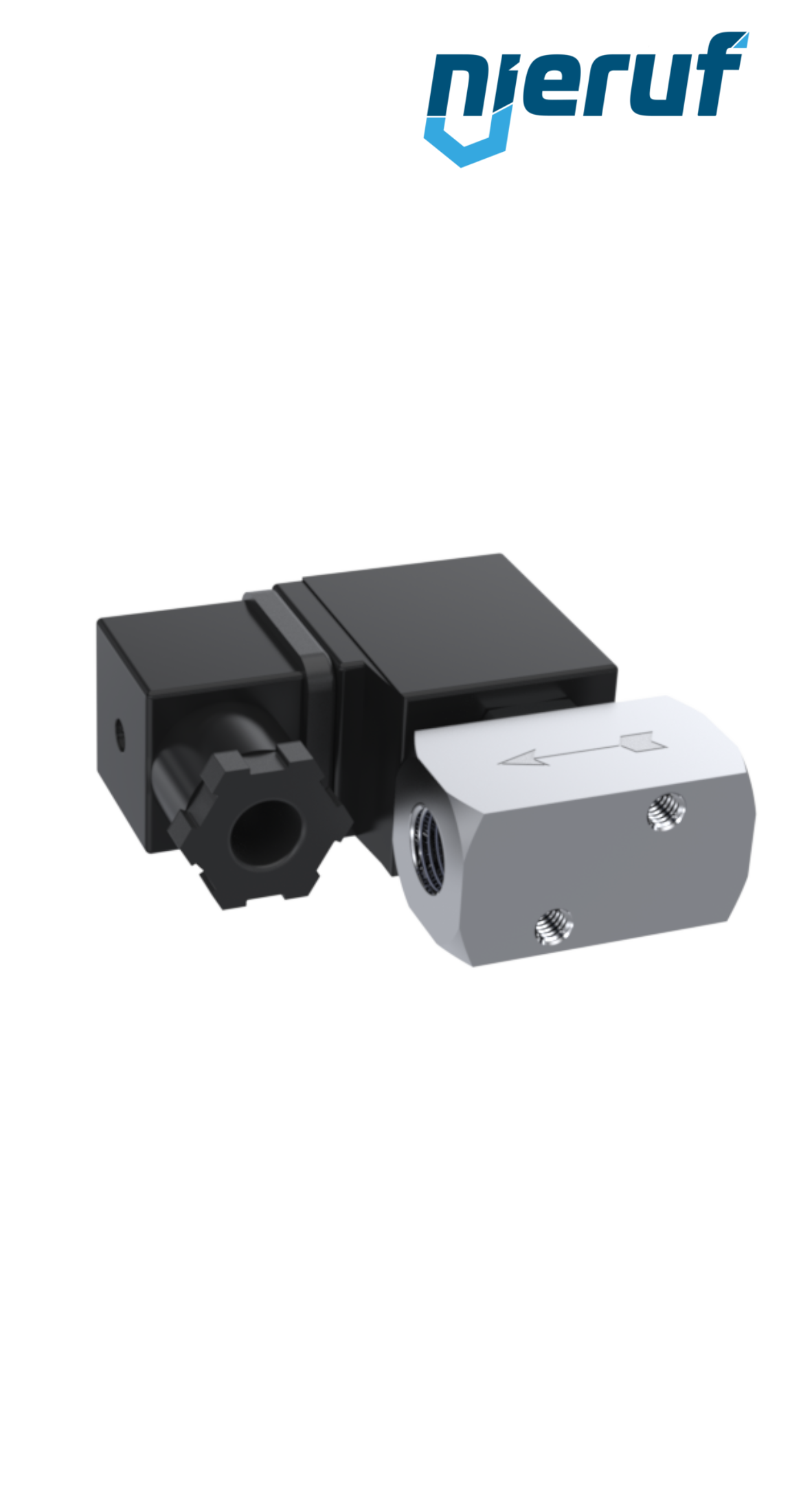

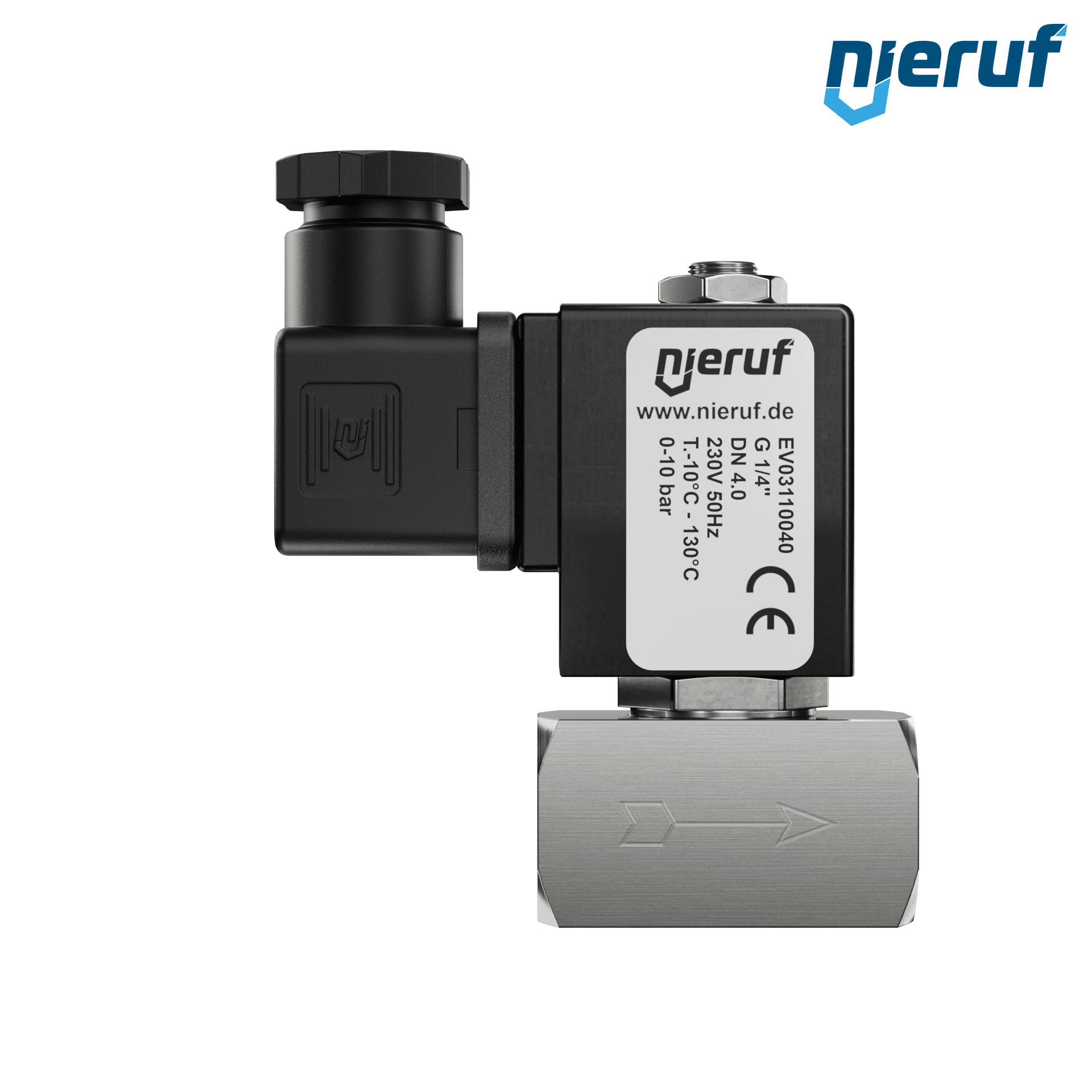

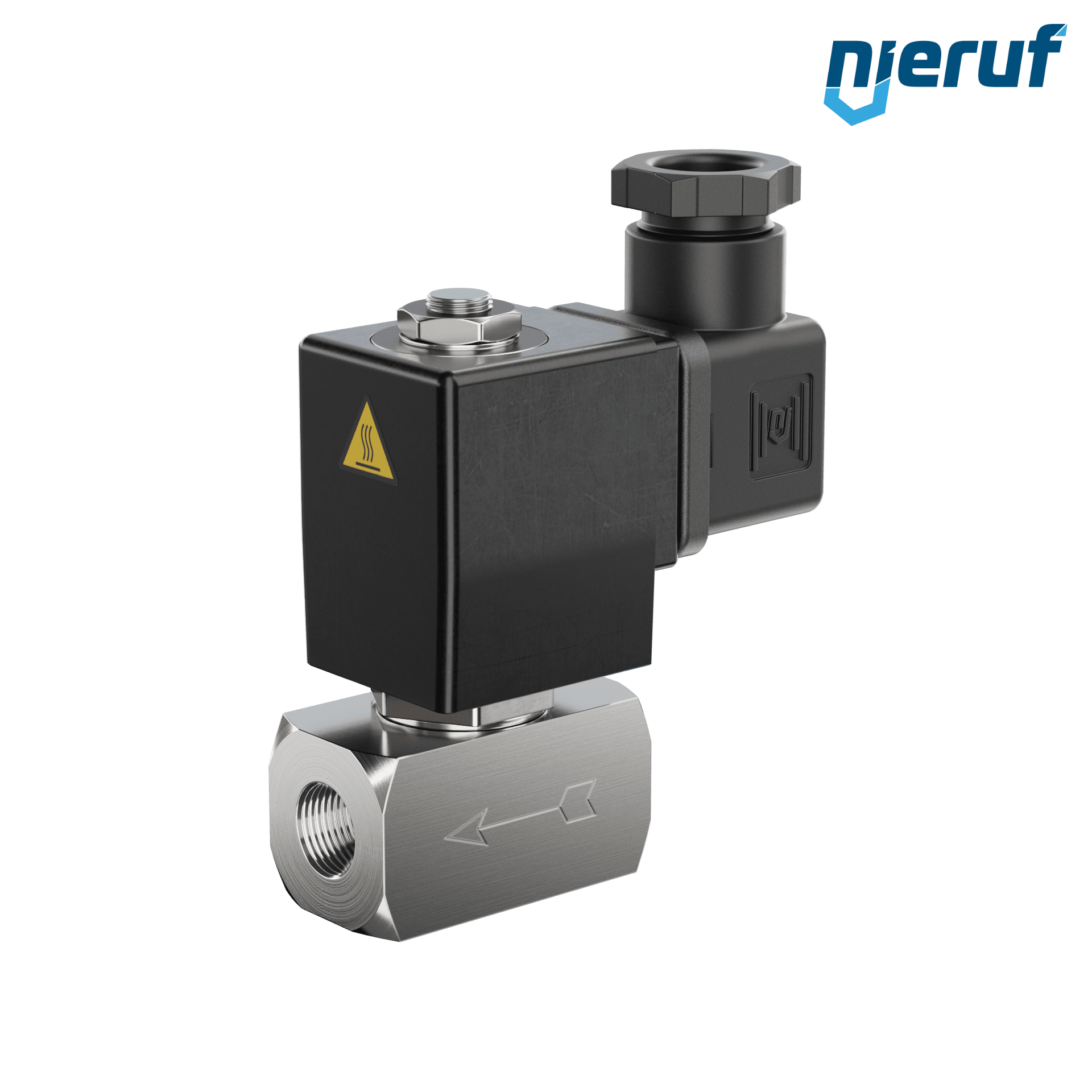

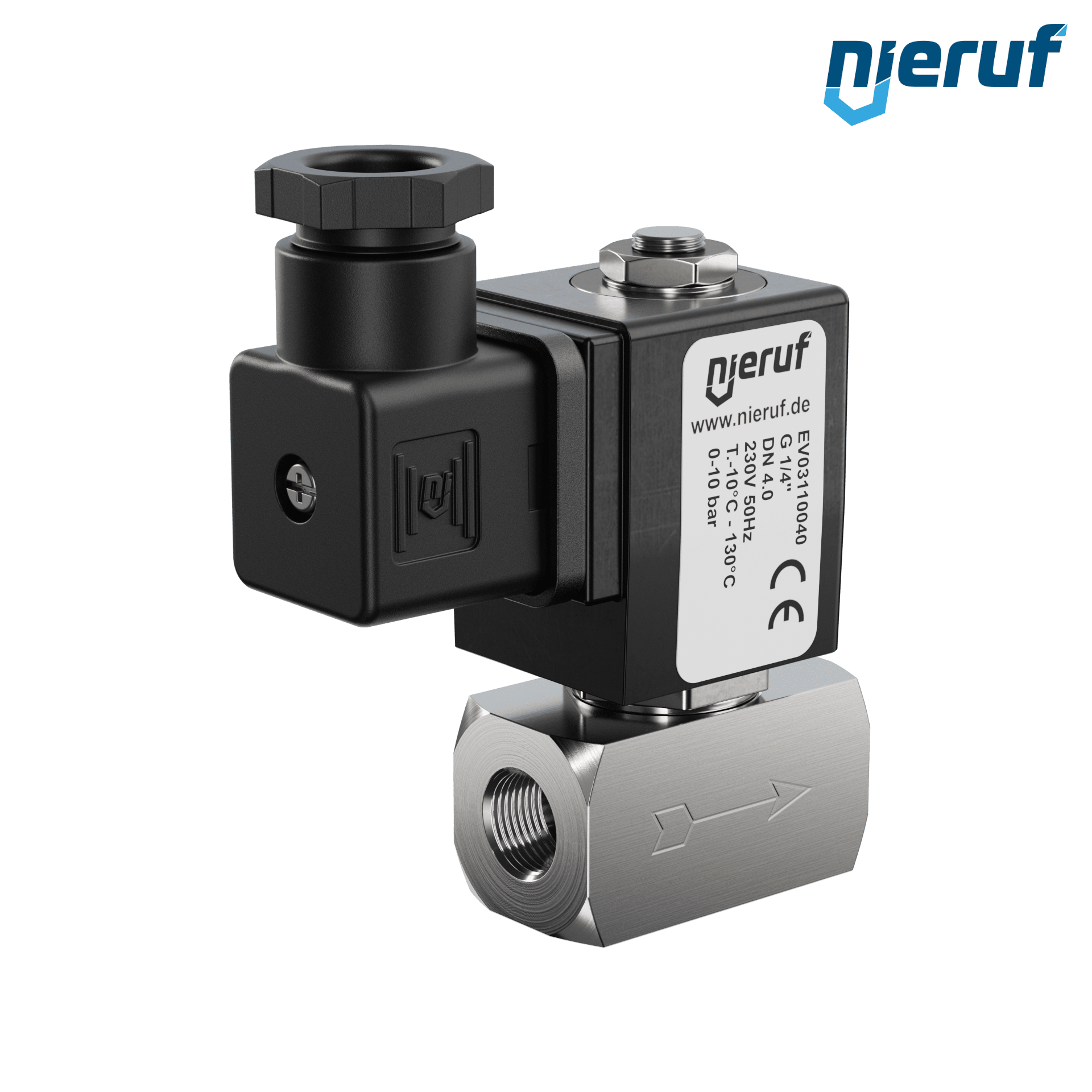

Solenoid valve DN 4.0 stainless steel EV03 EPDM 230V 50Hz

2/2 Ways Solenoid valve G 1/4" Inch DN 4.0 made of stainless steel 1.4305 seal EPDM direct acting nominal voltage 230V 50Hz pressure 0 - 10 bar

product: Solenoid valve
type: EV03
manufacturer: NieRuf
design: seat valve
diameter: DN 4.0
connection: G 1/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 6.5 l/min
function: NC - normally closed
control: direct acting
material: stainless steel 1.4305
seal: EPDM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 15 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -10°C up to +120°C
temperature ambiente: max up to +50°C
max. pressure: 0 - 10 bar
installation position: any position, solenoid preferably standing

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve DN 4.0 stainless steel EV03 EPDM 230V 50Hz

Article no. : EV03110040
product: Solenoid valve
type: EV03
manufacturer: NieRuf
design: seat valve
diameter: DN 4.0
connection: G 1/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 6.5 l/min
function: NC - normally closed
control: direct acting
material: stainless steel 1.4305
seal: EPDM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 15 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -10°C up to +120°C
temperature ambiente: max up to +50°C
max. pressure: 0 - 10 bar
installation position: any position, solenoid preferably standing
