EV03110020

Solenoid valve DN 2.0 stainless steel EV03 EPDM 230V 50Hz

€82.30*

€97.94 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

ST01000001

hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01

€1.50*

€1.79 VAT included.

SZ01000001

strainer 1/4" inch stainless steel type SZ01

€11.90*

€14.16 VAT included.

GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.30*

€1.55 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

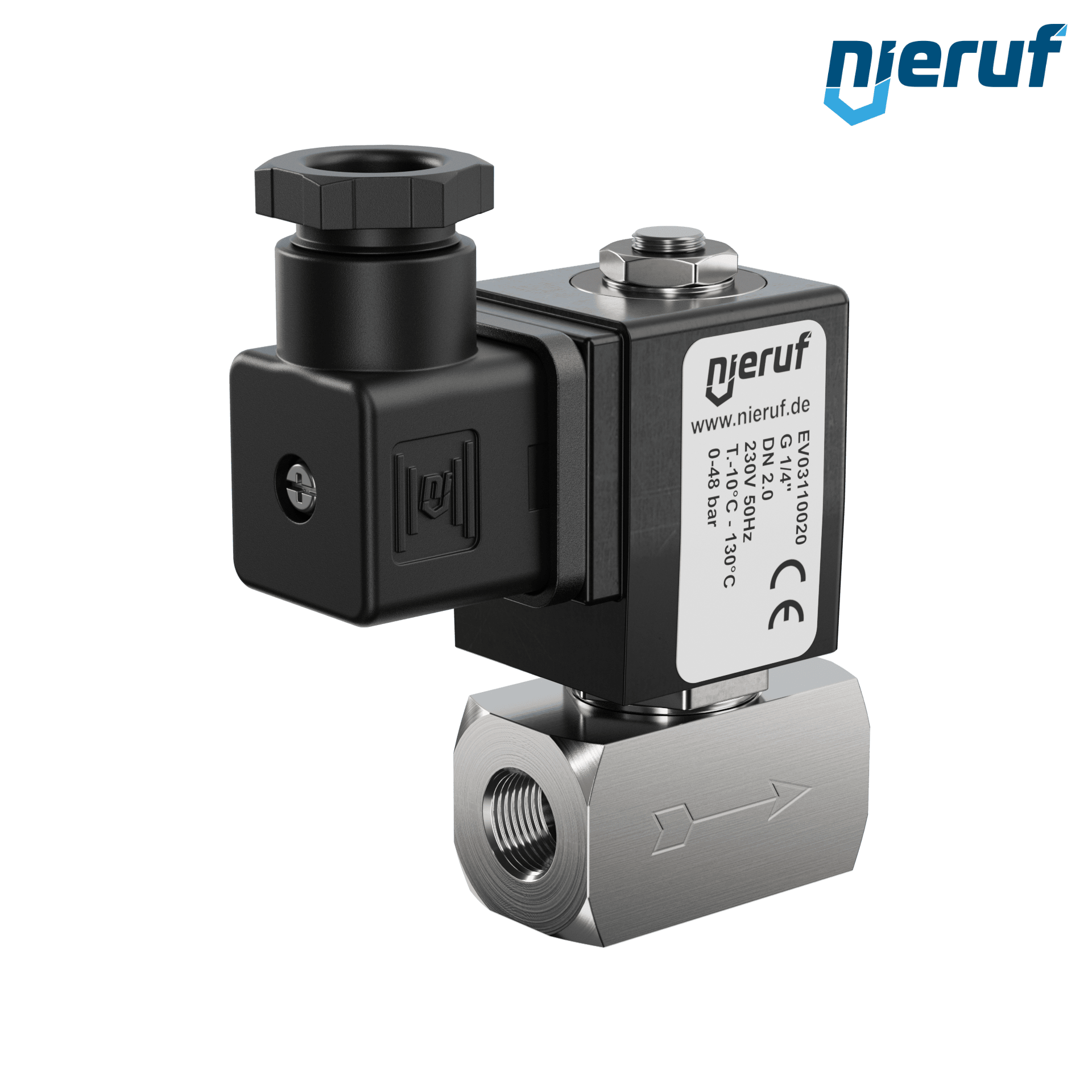

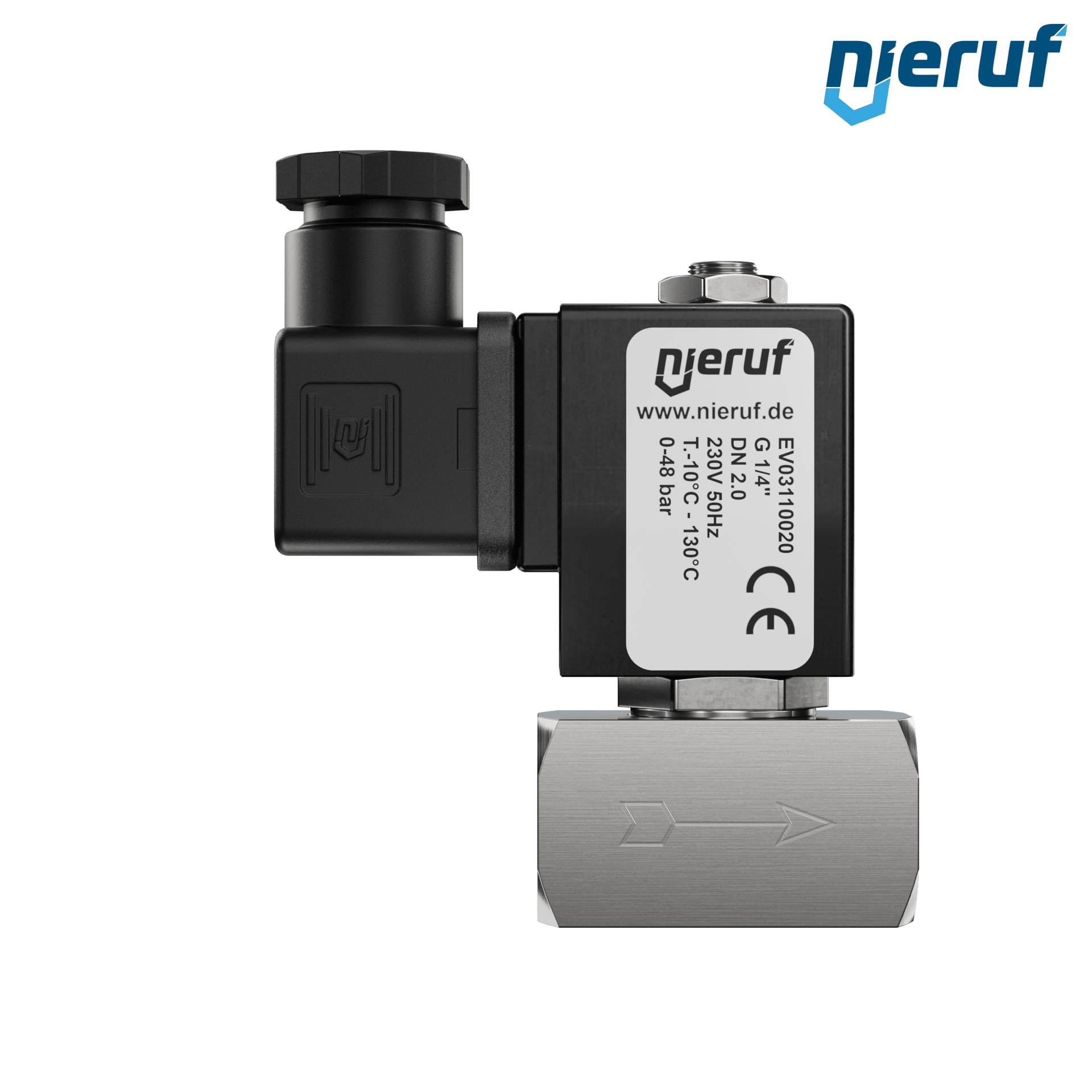

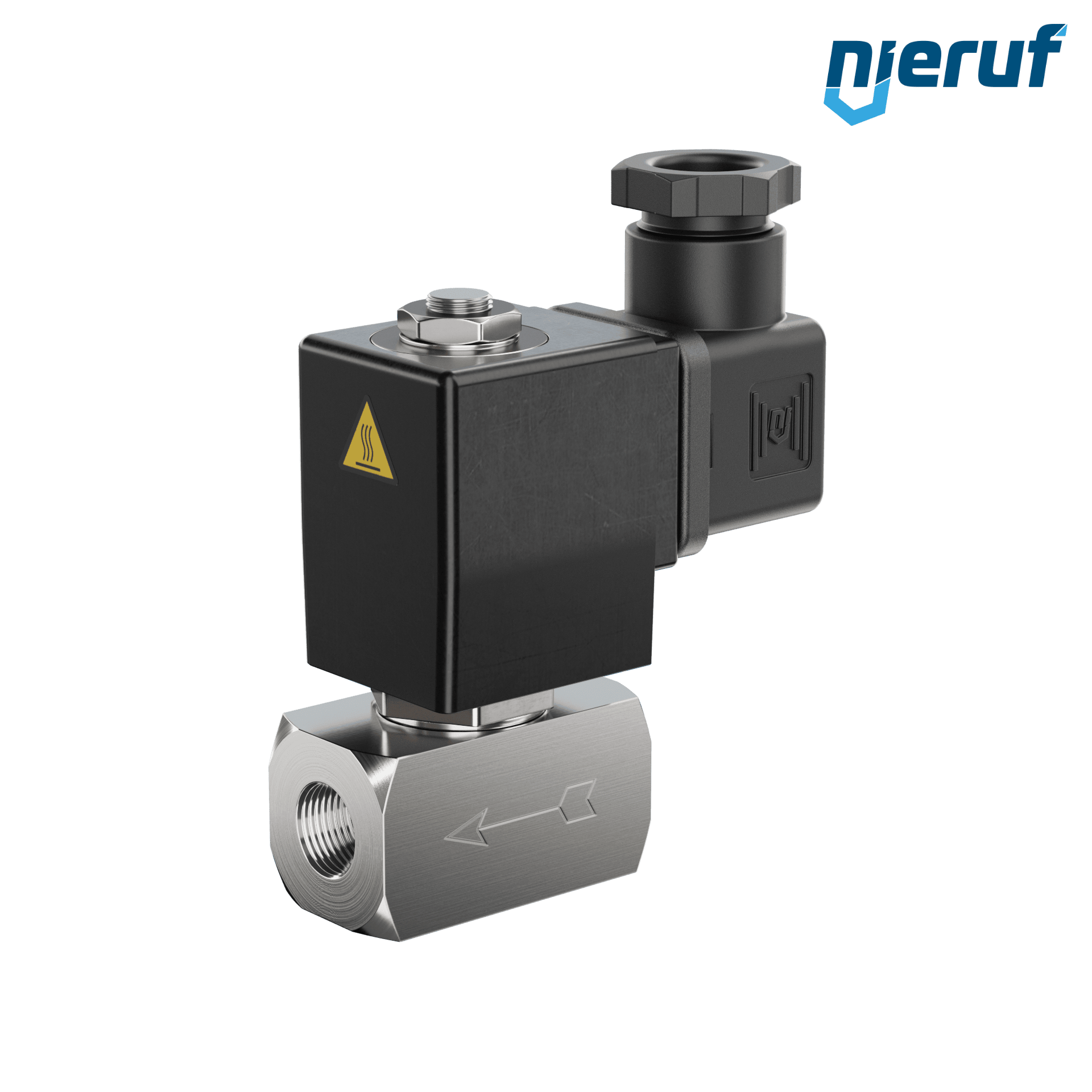

Solenoid valve DN 2.0 stainless steel EV03 EPDM 230V 50Hz

2/2 Ways Solenoid valve G 1/4" Inch DN 2.0 made of stainless steel 1.4305 seal EPDM direct acting nominal voltage 230V 50Hz pressure 0 - 48 bar

product	Solenoid valve
type	EV03
manufacturer	NieRuf
design	seat valve
diameter	DN 2.0
connection	G 1/4" Inch
type of connection	female thread
Type of design	2/2 Ways
flow rate	2.3 l/min
function	NC - normally closed
control	direct acting
material	stainless steel 1.4305
seal	EPDM
voltage	230V 50Hz
voltage tolerance	+/- 10% acc. VDE 0580
power consumption	15 VA
duty	100% ED
plug socket	IP65 with plug socket mounted
media	non-flammable, neutral gases and liquids
temperature media	-10°C up to +130°C
temperature ambiente	max up to +50°C
max. pressure	0 - 48 bar
Outlet pressure	0 bar (no counter pressure)
installation position	any position, solenoid preferably standing

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve DN 2.0 stainless steel EV03 EPDM 230V 50Hz

Article no. : EV03110020
product: Solenoid valve
type: EV03
manufacturer: NieRuf
design: seat valve
diameter: DN 2.0
connection: G 1/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 2.3 l/min
function: NC - normally closed
control: direct acting
material: stainless steel 1.4305
seal: EPDM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 15 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: non-flammable, neutral gases and liquids
temperature media: -10°C up to +130°C
temperature ambiente: max up to +50°C
max. pressure: 0 - 48 bar
Outlet pressure: 0 bar (no counter pressure)
installation position: any position, solenoid preferably standing
