GS03020104

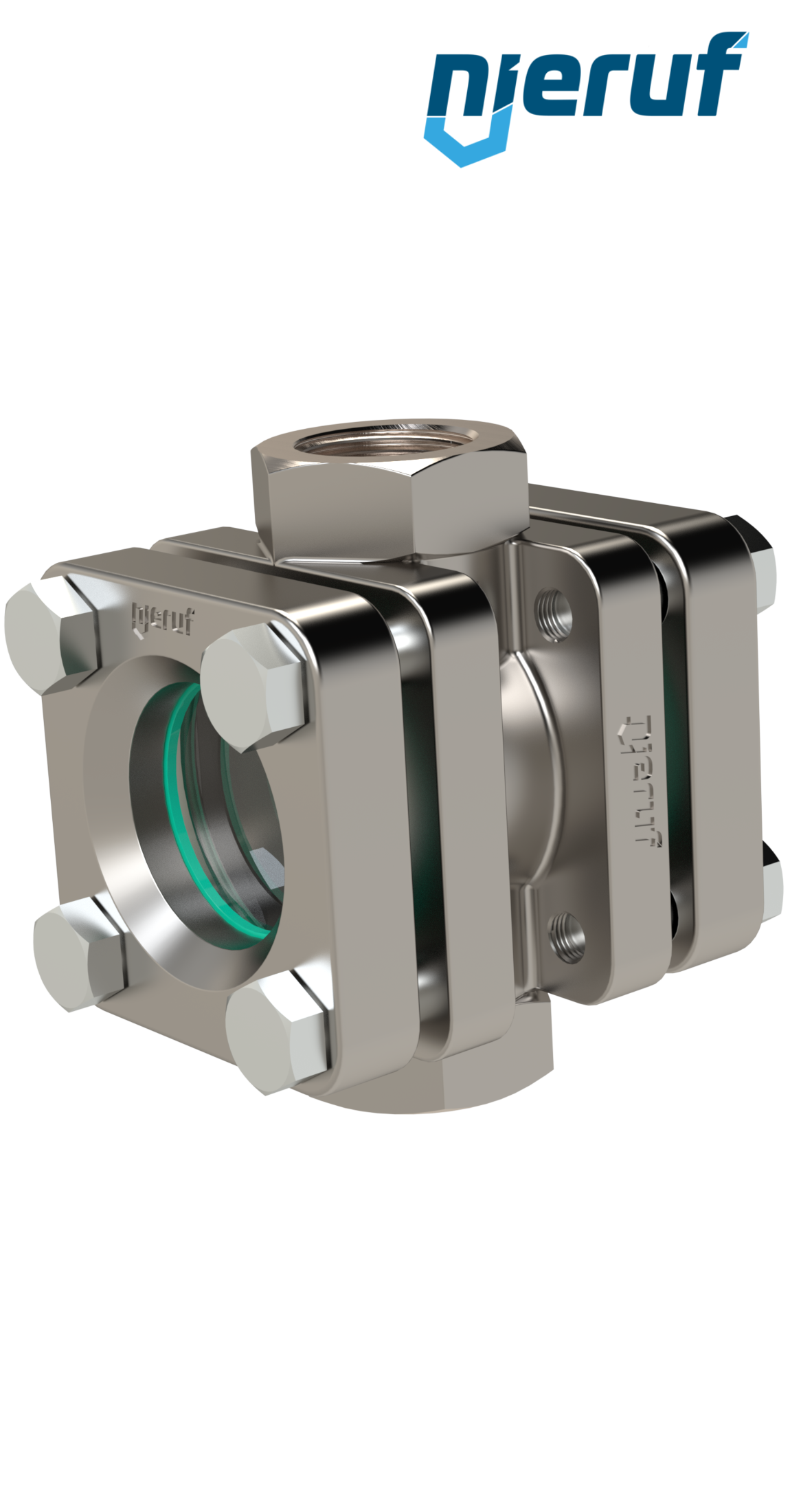

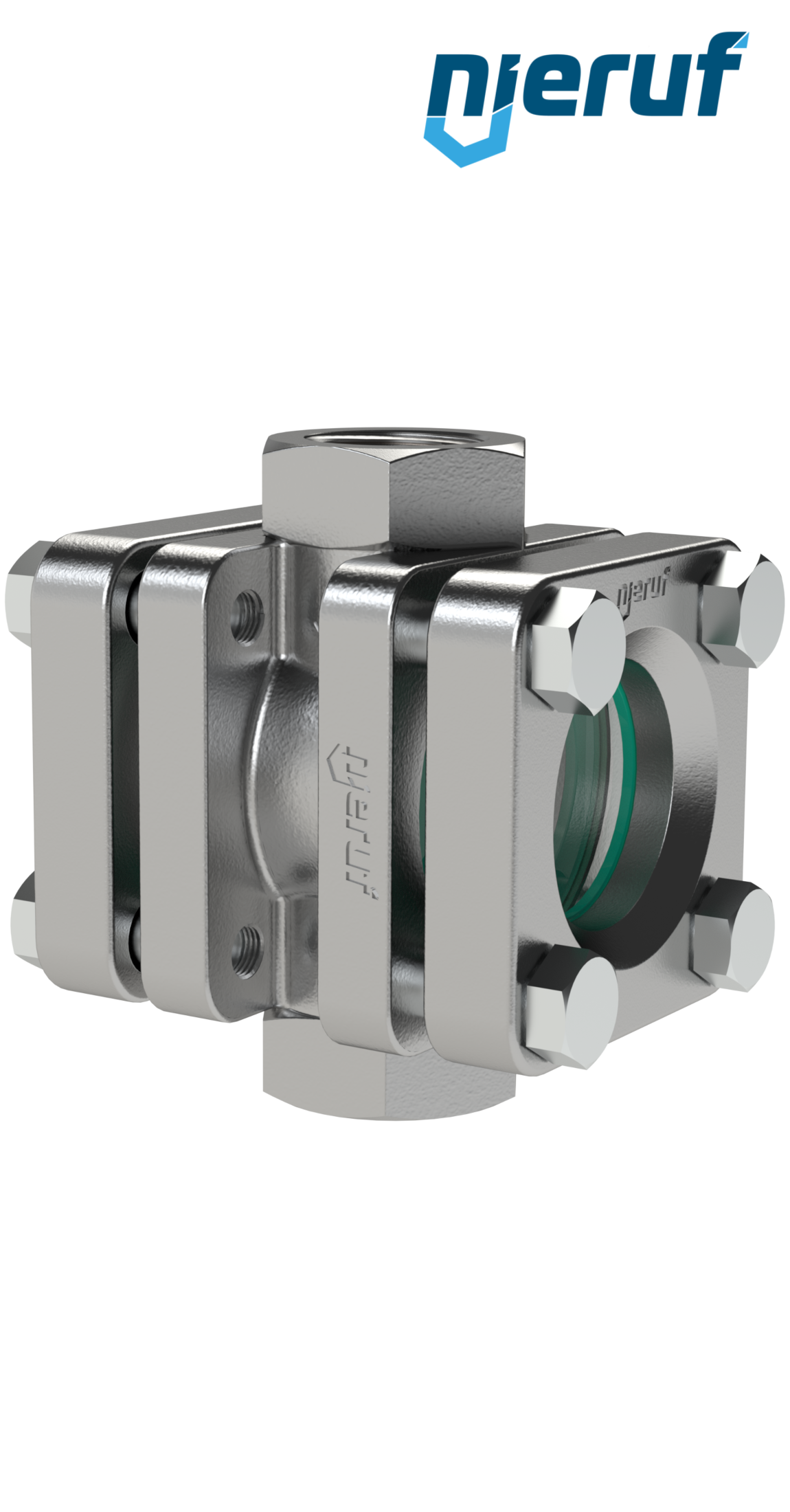

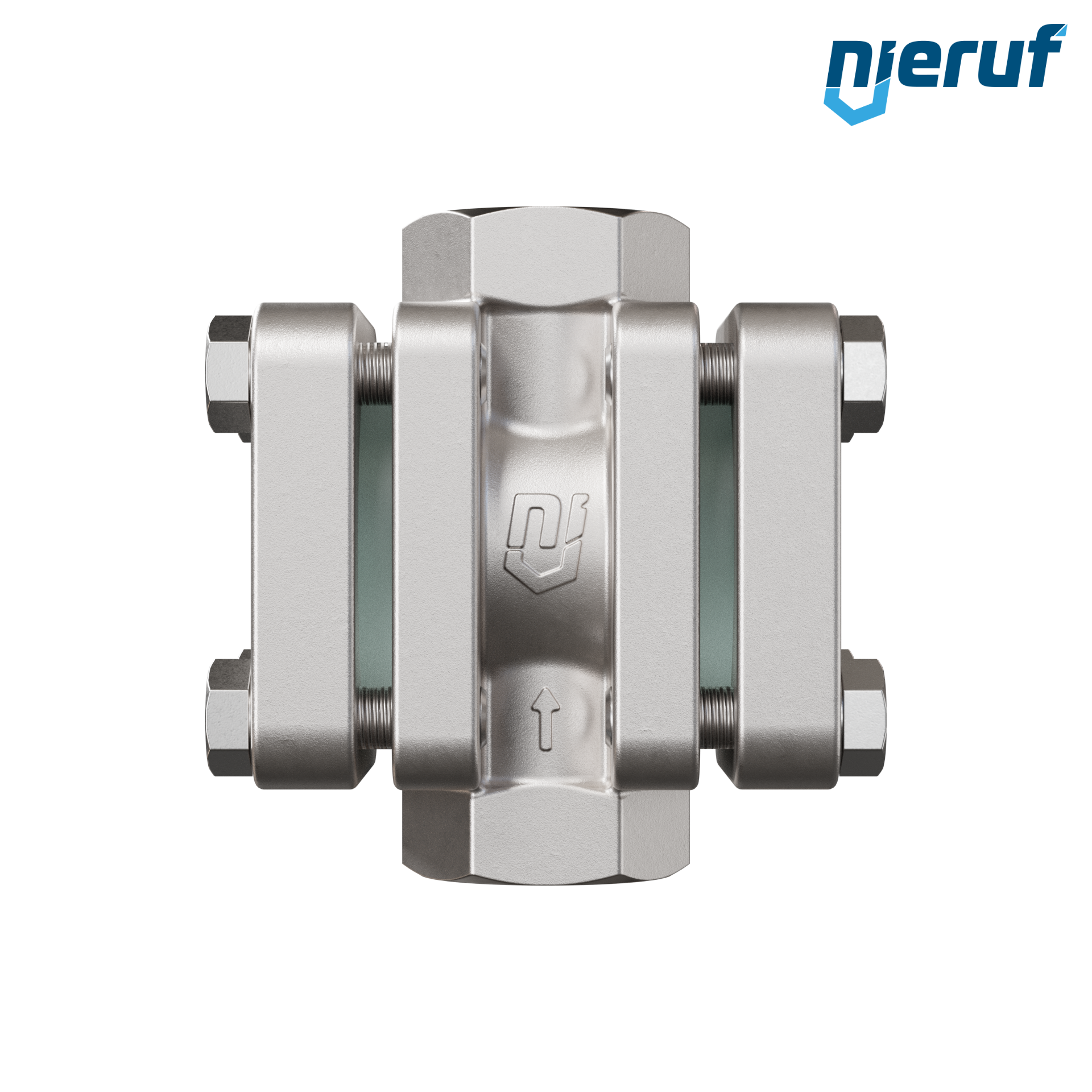

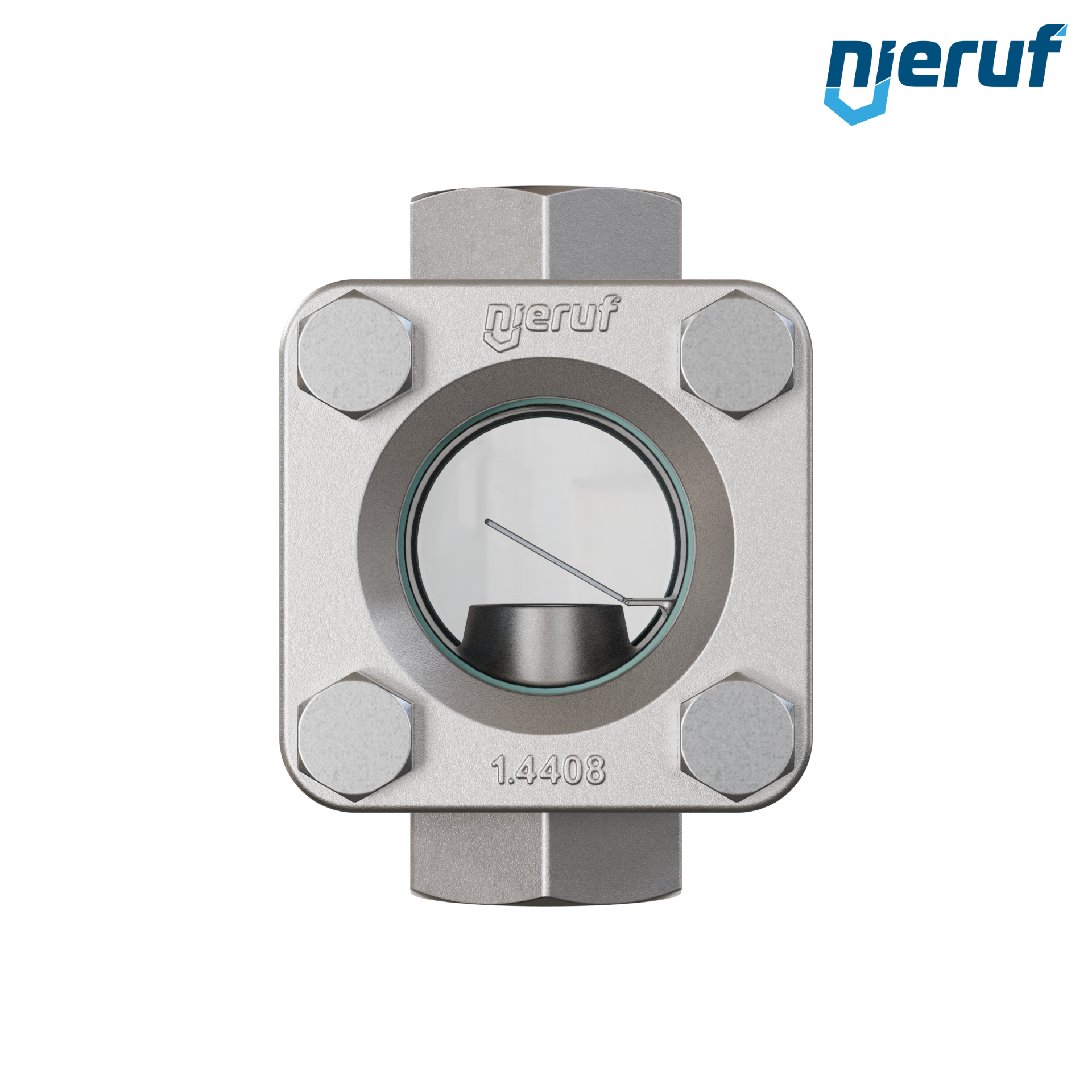

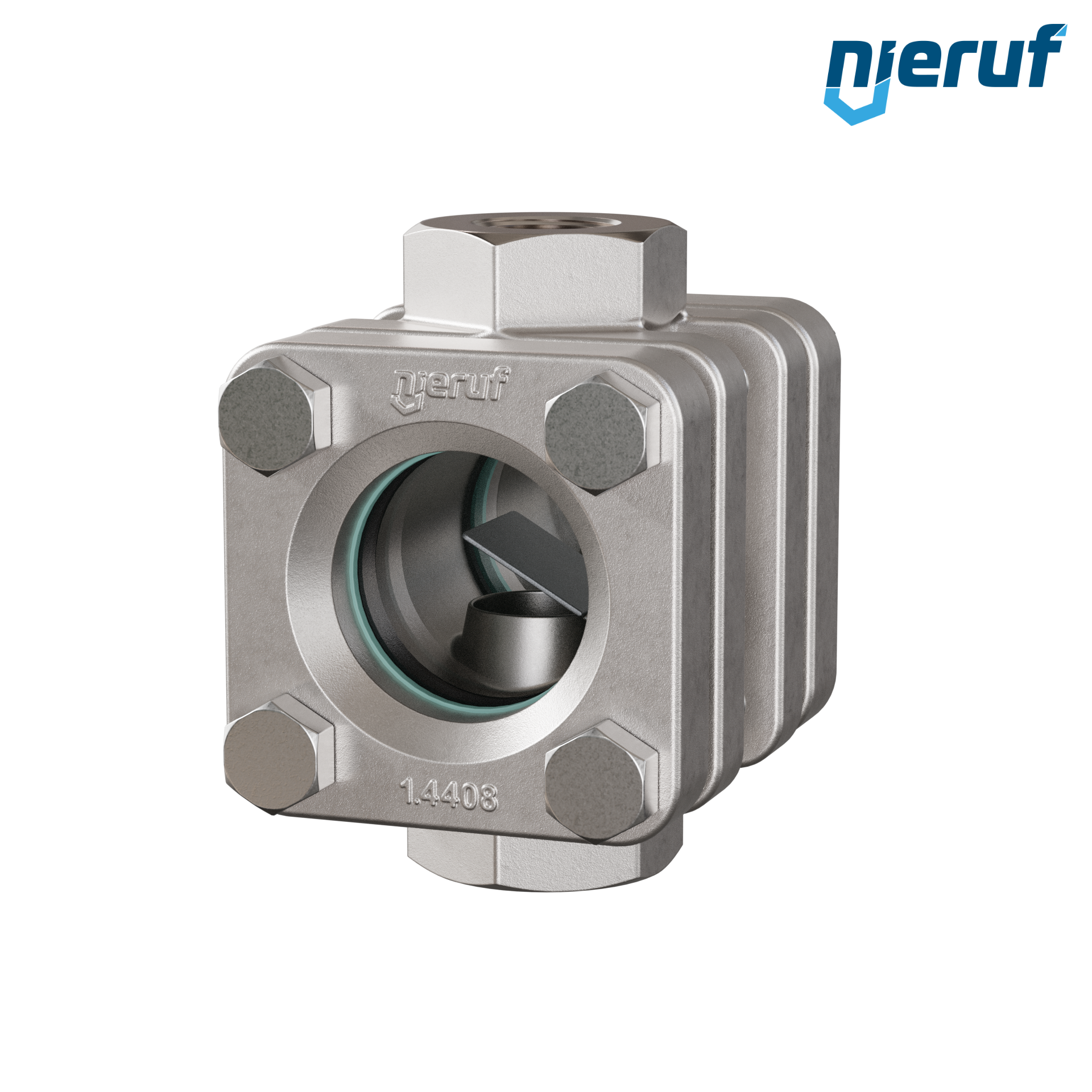

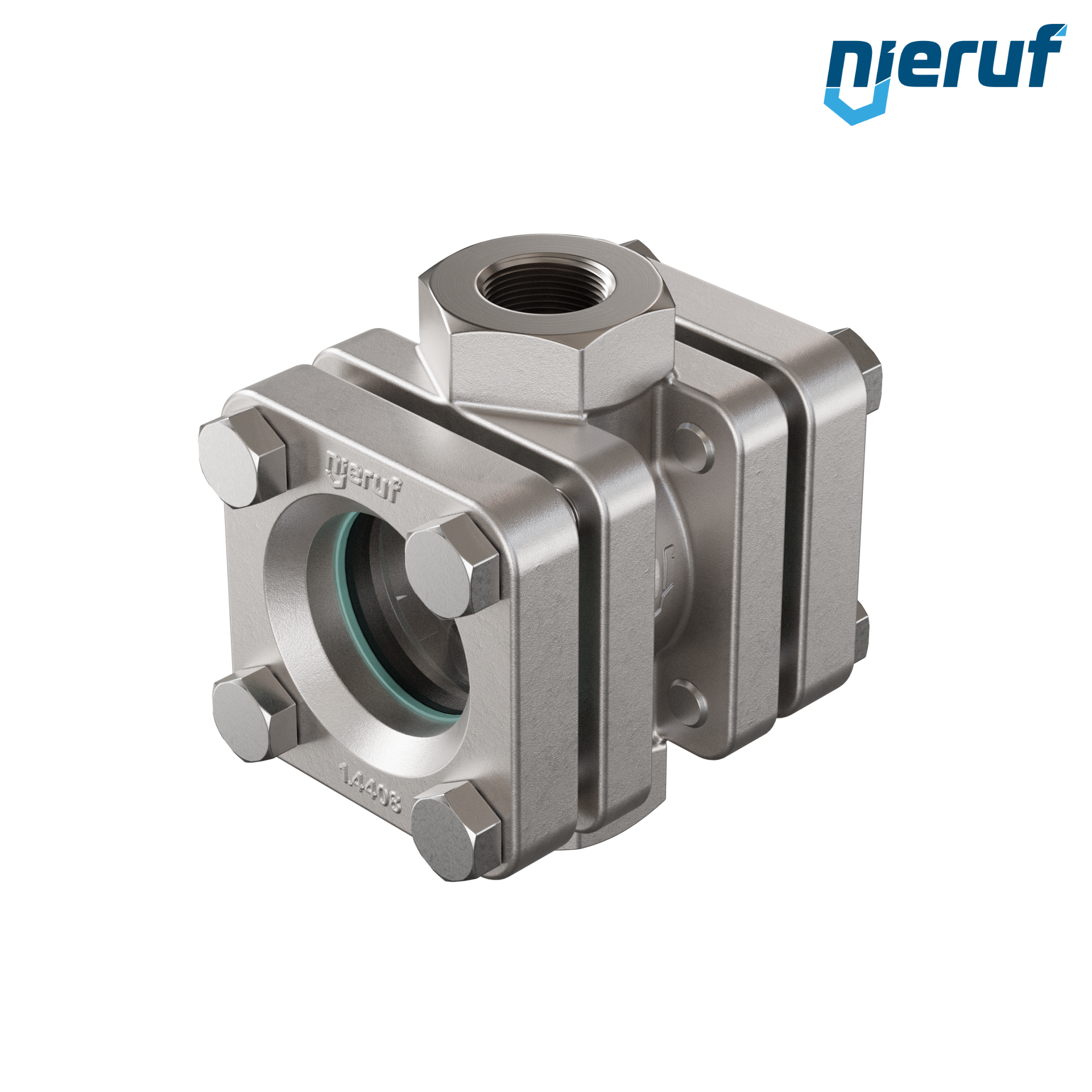

flow-through sight flow indicator G 3/4" Inch stainless steel borosilicate glass version with flap

€414.40*

€493.14 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 4 weeks

Equipment

SG01006310

sight glass round SG01 Ø 63 x 10 mm round DIN 7080 - 16

€14.90*

€17.73 VAT included.

GF01300004

hexagon nipple 3/4" inch male stainless steel 316

€3.20*

€3.81 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

flow-through sight flow indicator G 3/4" Inch stainless steel borosilicate glass version with flap

flow-through sight flow indicator 3/4" version with flap Typ GS03 borosilicate glass graphit max 16 bar

product	flow-through sight flow indicator
type	GS03
manufacturer	NieRuf
design	straightway form
diameter	G 3/4" Inch
connection	female thread BSP
body material	stainless steel 1.4408 / CF8M
cover material	stainless steel 1.4408 / CF8M
glass	borosilicate glass
seal	graphit
media	liquid and gaseous media
temperature	-60°C up to + 280°C
max. working pressure	16 bar
installation position	horizontal or vertical with direction of flow from the bottom up
product feature	version with flap

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flow-through sight flow indicator G 3/4" Inch stainless steel borosilicate glass version with flap

Article no. : GS03020104
product: flow-through sight flow indicator
type: GS03
manufacturer: NieRuf
design: straightway form
diameter: G 3/4" Inch
connection: female thread BSP
body material: stainless steel 1.4408 / CF8M
cover material: stainless steel 1.4408 / CF8M
glass: borosilicate glass
seal: graphit
media: liquid and gaseous media
temperature: -60°C up to + 280°C
max. working pressure: 16 bar
installation position: horizontal or vertical with direction of flow from the bottom up
product feature: version with flap
