GS02010108

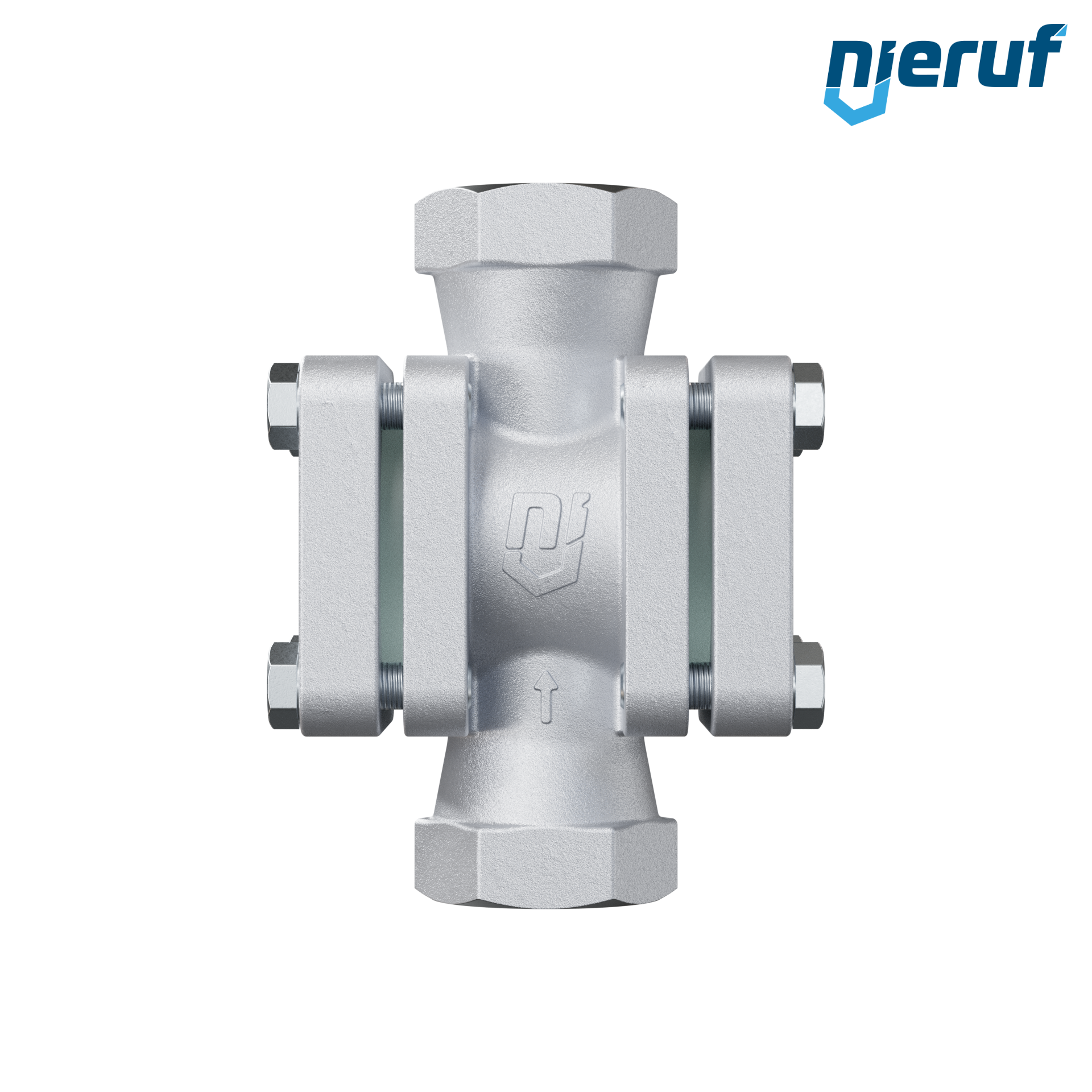

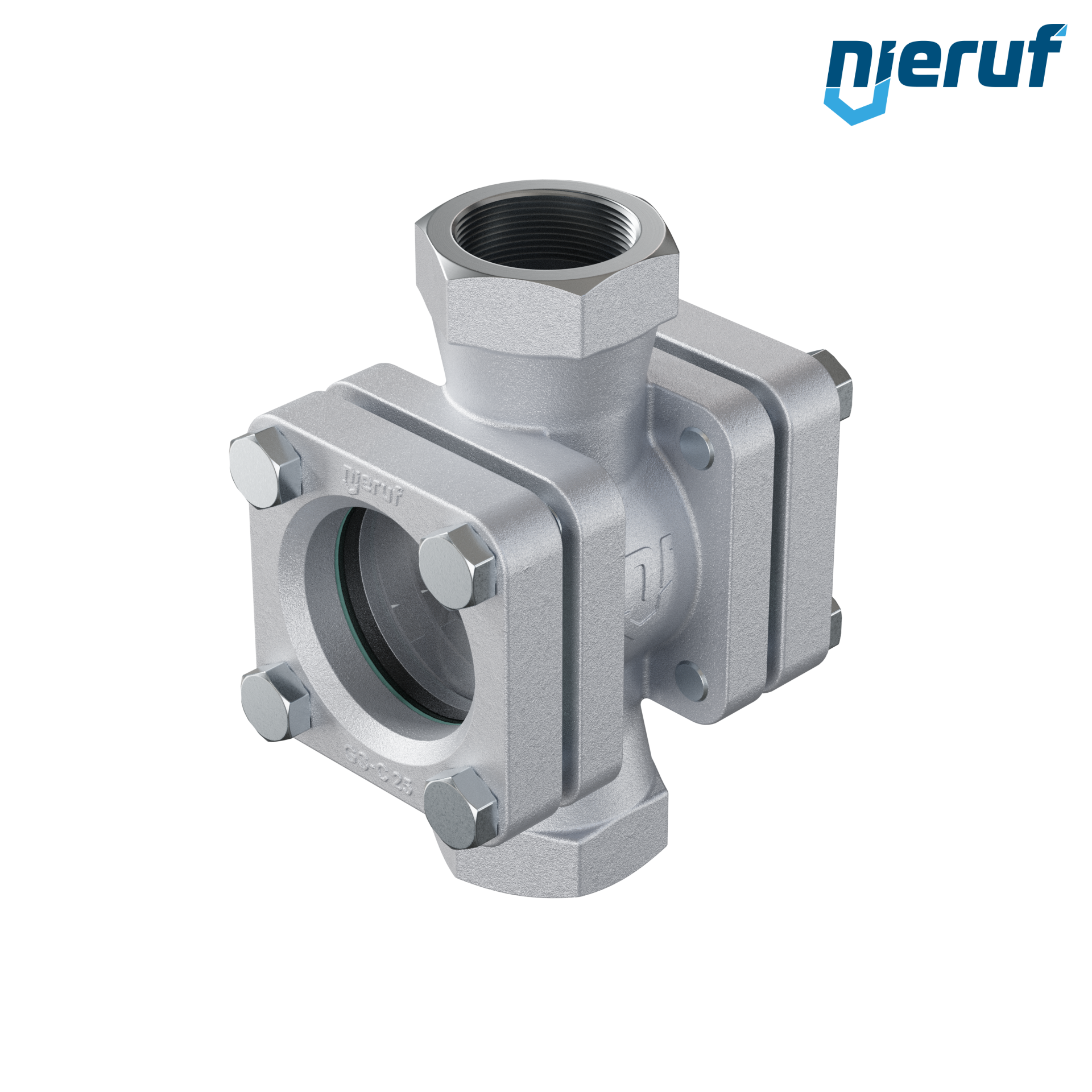

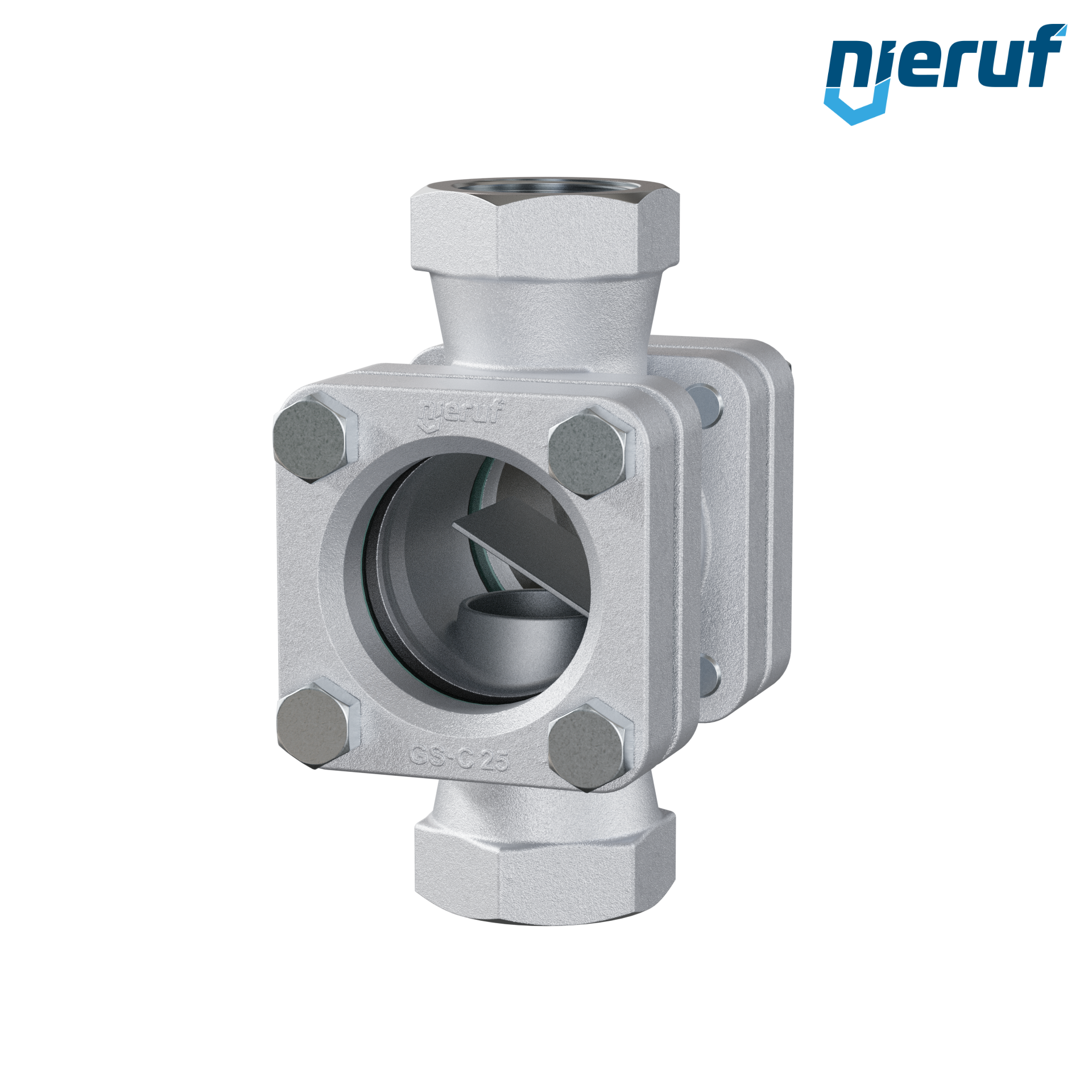

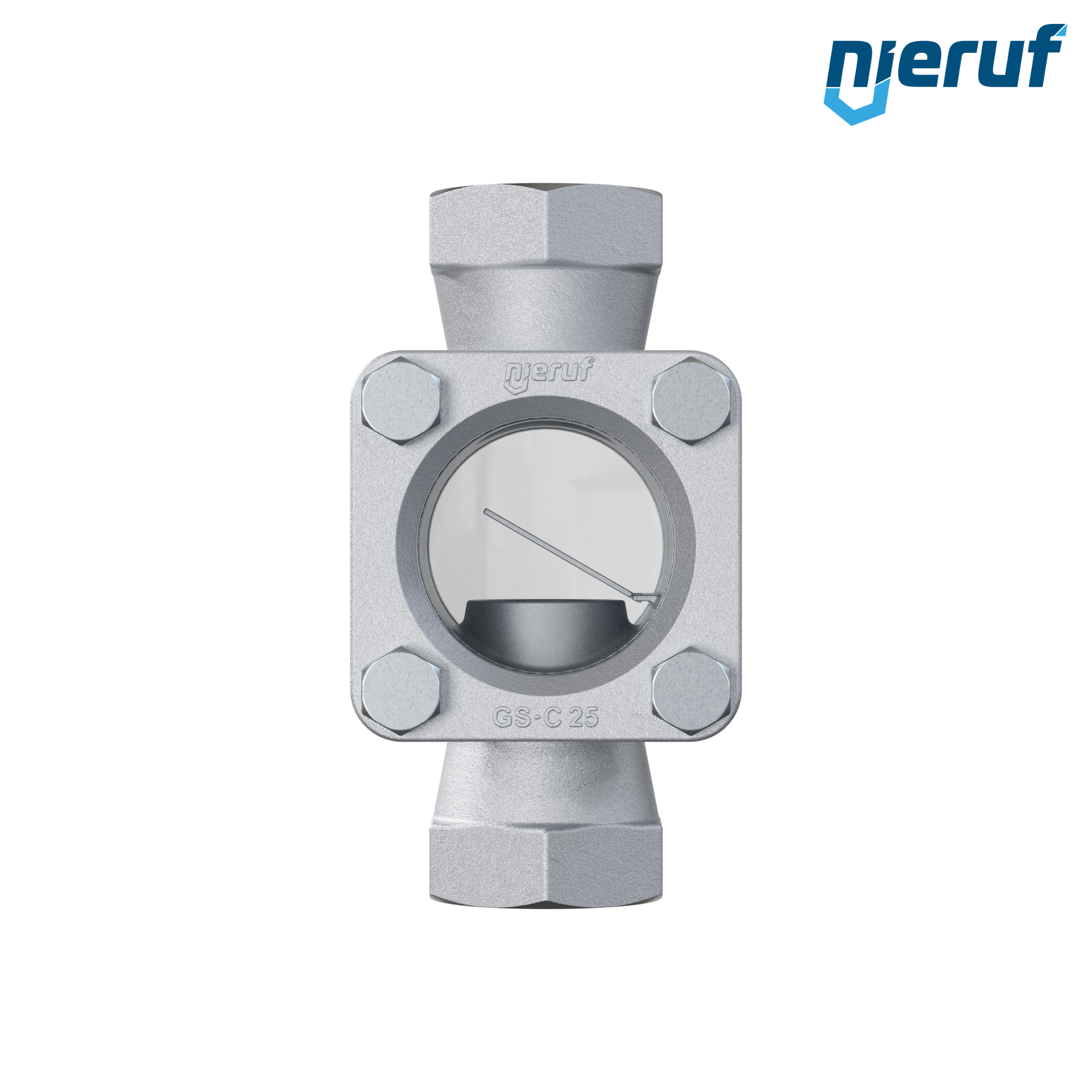

sight flow indicator G 2" Inch GS - C25 soda lime glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
sight glass round SG01 Ø 100 x 15 mm round DIN 7080 - 16
€38.20 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
sight flow indicator G 2" Inch GS - C25 soda lime glass version with flap
sight flow indicator DN50 - 2" Inch GS - C25 Typ GS02 soda lime glass graphit max 16 bar version with flap
| product | sight flow indicator |
|---|---|
| type | GS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 2" Inch |
| connection | female thread BSP |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
sight flow indicator G 2" Inch GS - C25 soda lime glass version with flap
Article no.
: GS02010108
product:
sight flow indicator
type:
GS02
manufacturer:
NieRuf
design:
straightway form
diameter:
G 2" Inch
connection:
female thread BSP
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
