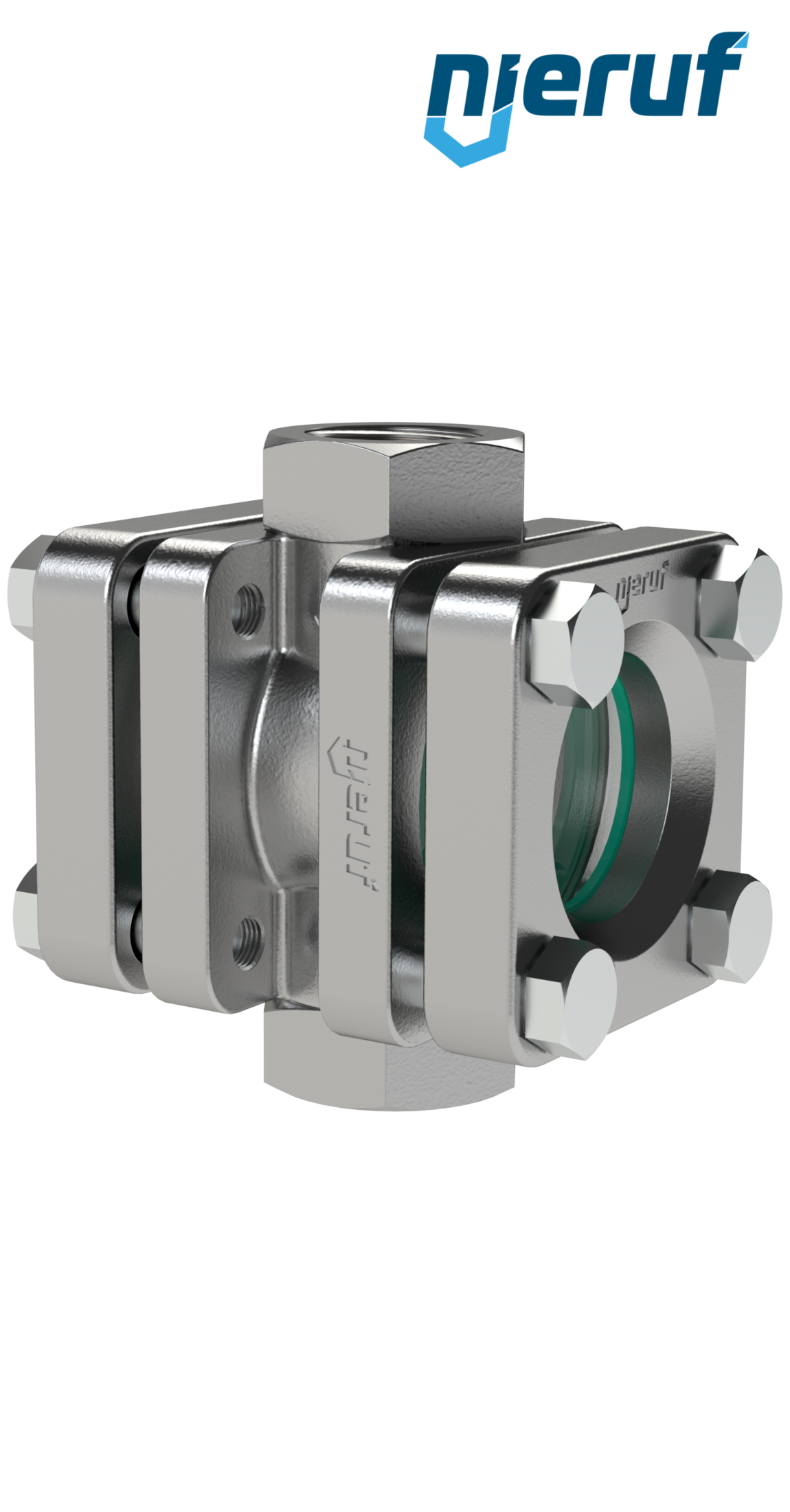

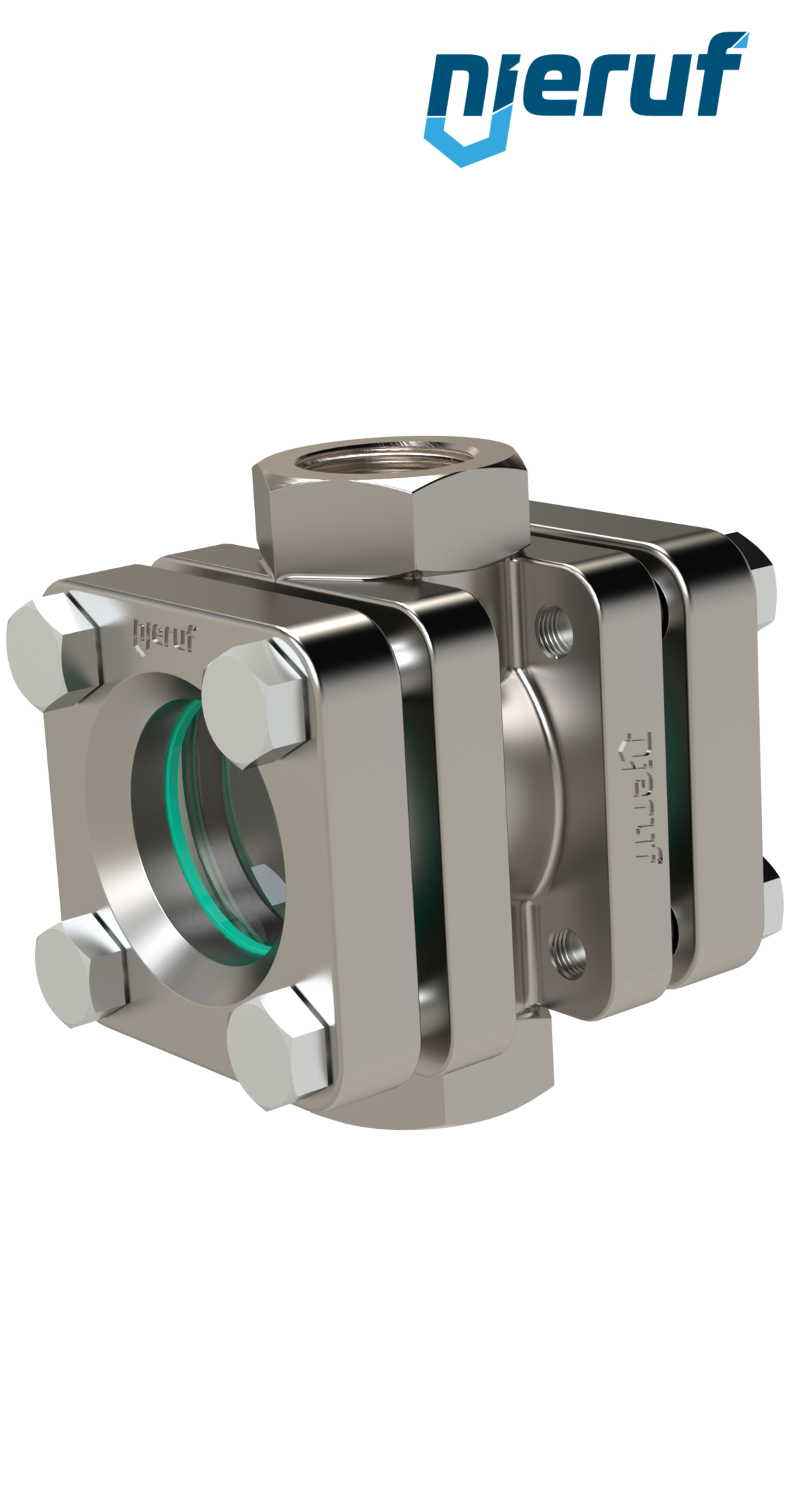

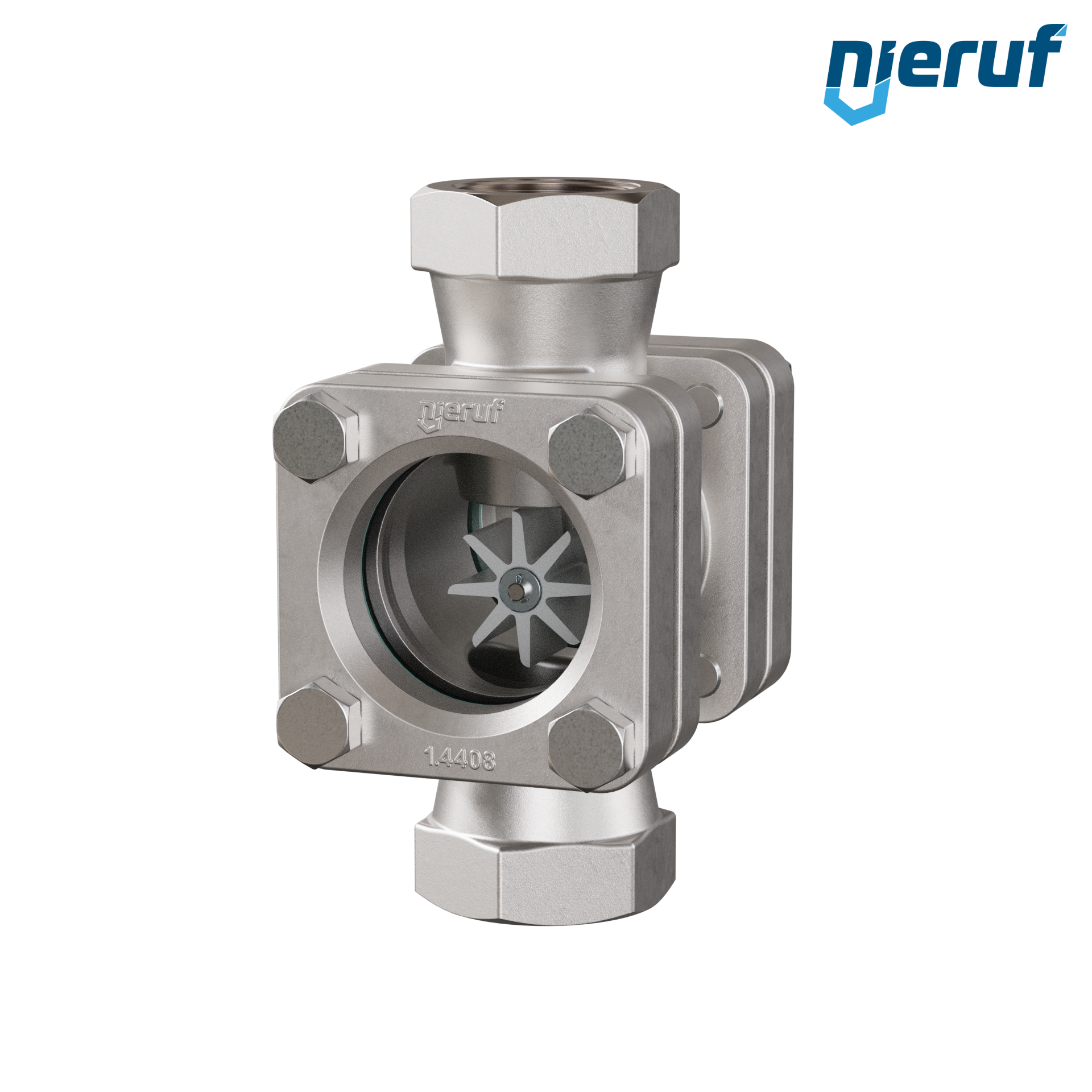

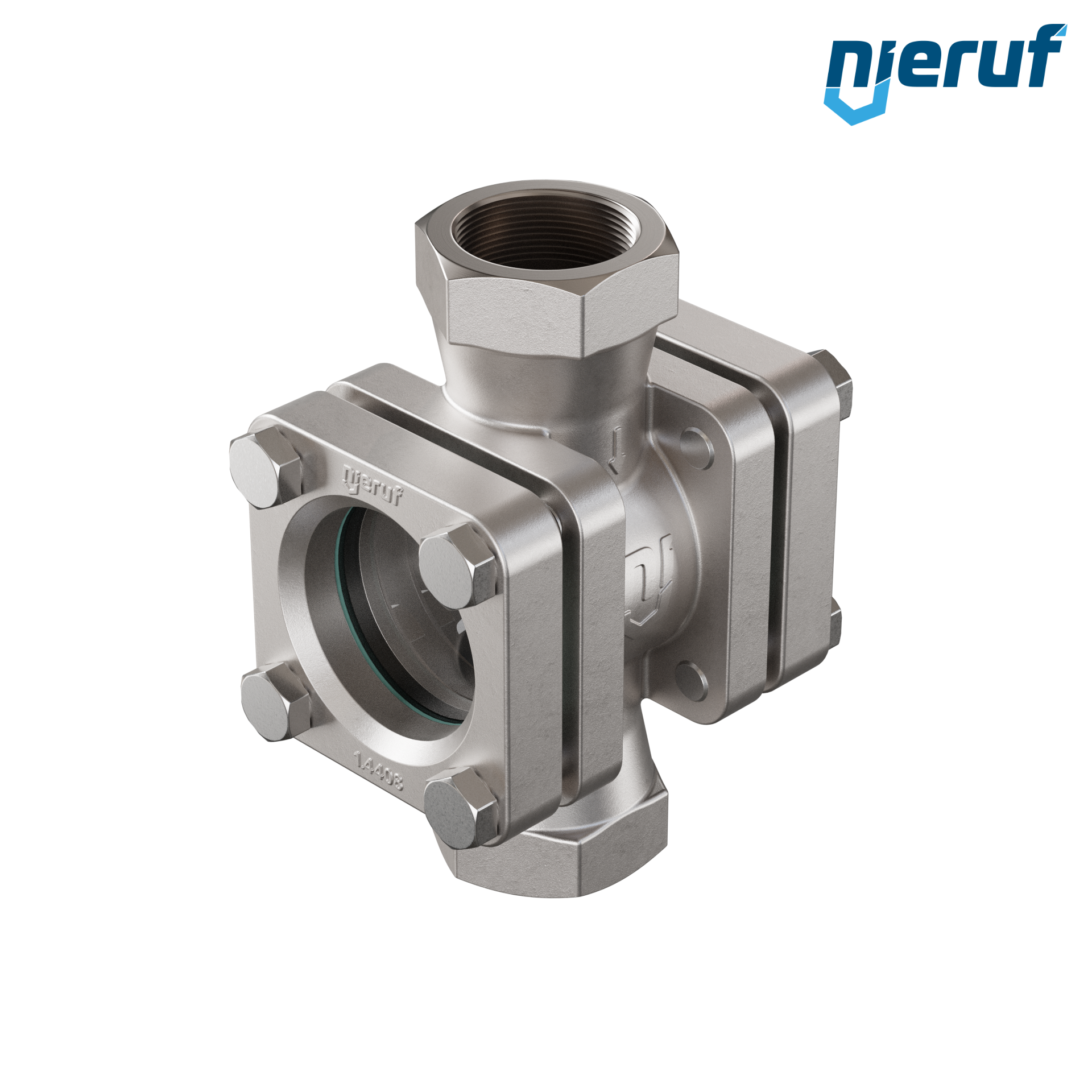

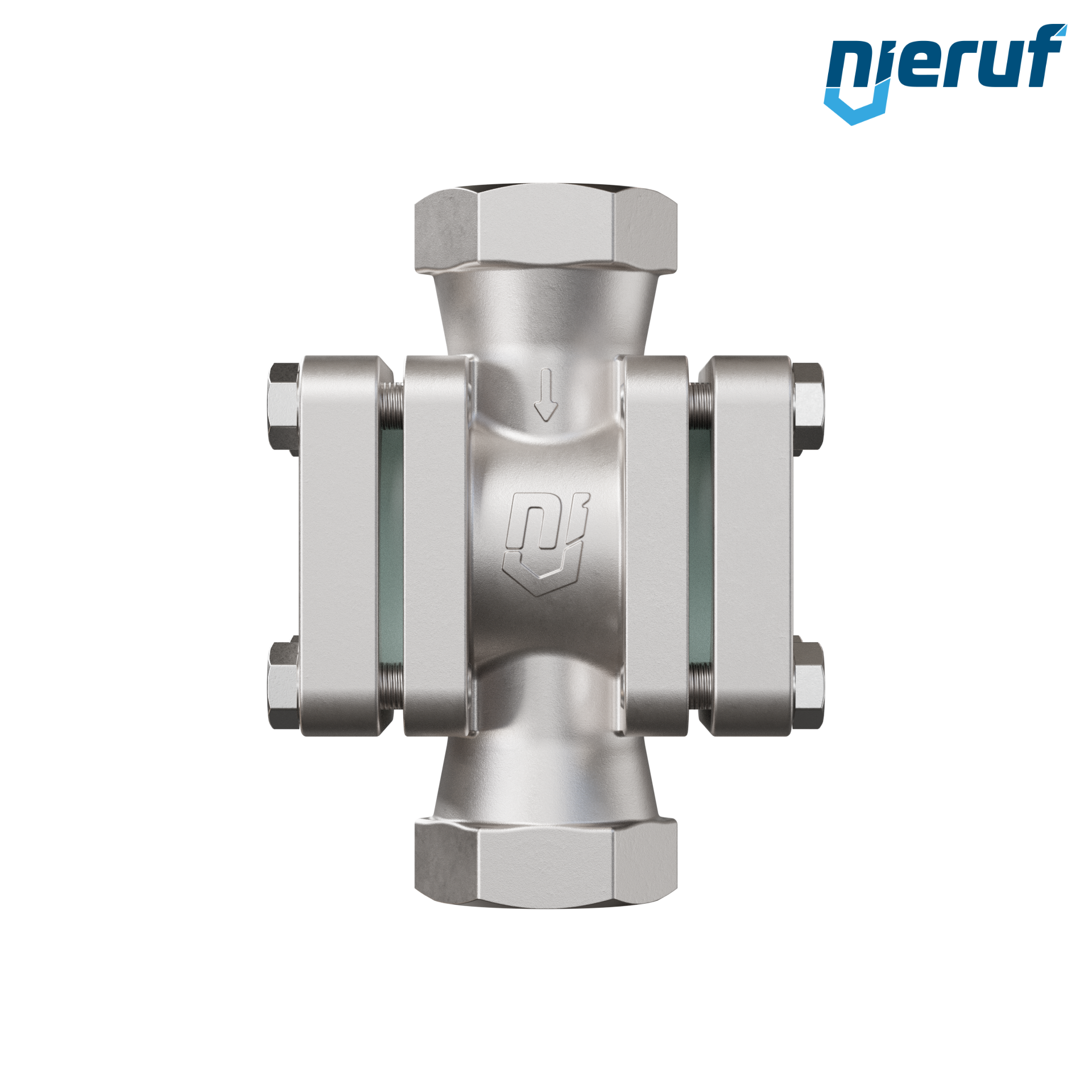

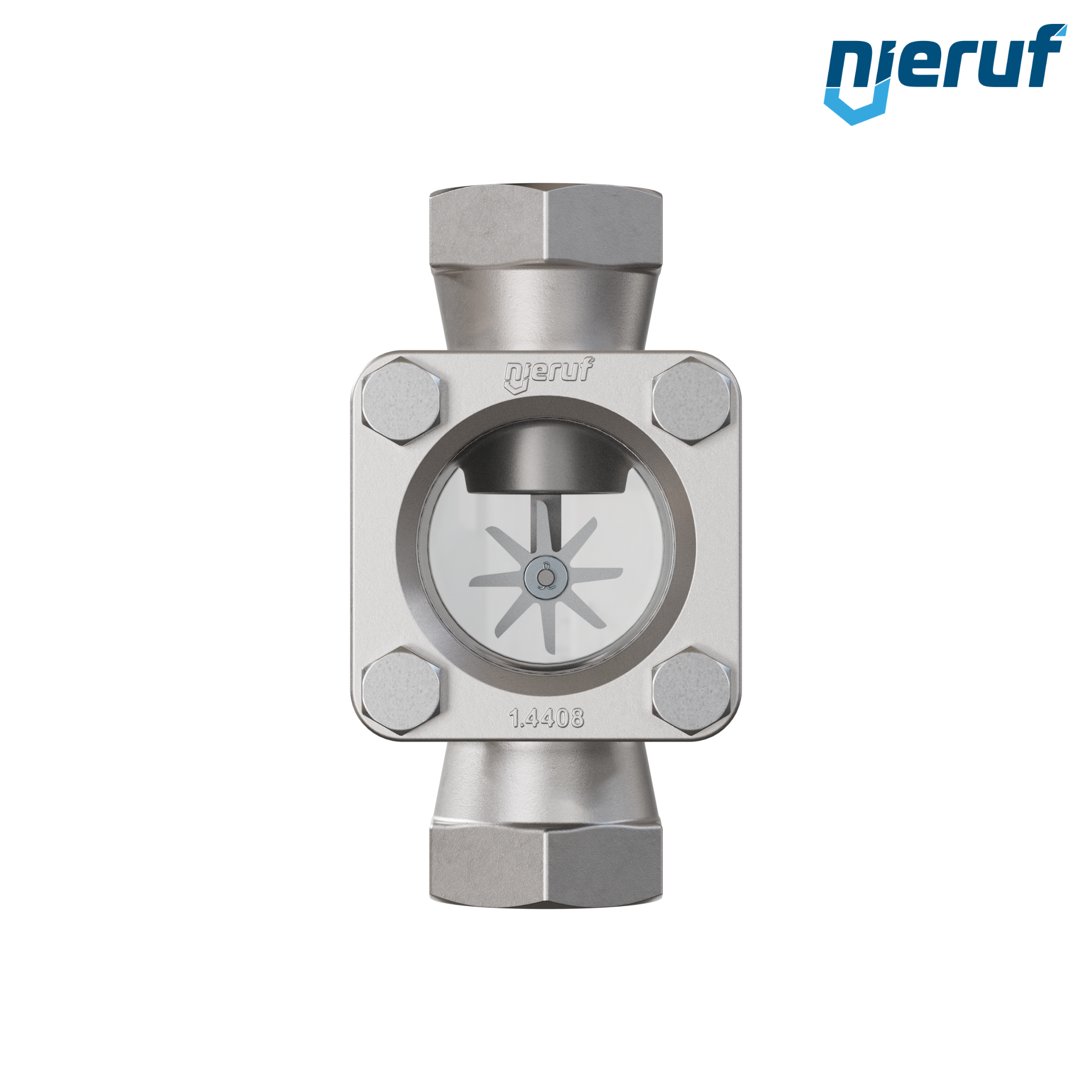

flow-through sight flow indicator DN50 - 2" Inch stainless steel borosilicate glass design with PTFE-spinner

GS03020208
quantity (pcs.):
1,018.90€ * 1,212.49€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
flow-through sight flow indicator DN50 - 2" Inch stainless steel borosilicate glass design with PTFE-spinner
flow-through sight flow indicator 2" design with PTFE-spinner Typ GS03 borosilicate glass graphit max 16 bar
design: straightway form
diameter: DN50 - 2" Inch
connection: female thread
body material: stainless steel
cover material: stainless steel
glass: borosilicate glass
seal: graphit
media: liquid media
temperature: min -60°C up to max + 280°C
max. working pressure: max 16 bar
installation position: any position
product feature: design with PTFE-spinner
flow-through sight flow indicator DN50 - 2" Inch stainless steel borosilicate glass design with PTFE-spinner

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

flow-through sight flow indicator DN50 - 2" Inch stainless steel borosilicate glass design with PTFE-spinner
