GS03020206
flow-through sight flow indicator G 1 1/4" inch stainless steel borosilicate glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
hexagon nipple 1 1/4" inch male stainless steel 316
€7.97 VAT included.
sight glass round SG01 Ø 80 x 12 mm round DIN 7080 - 16
€23.56 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

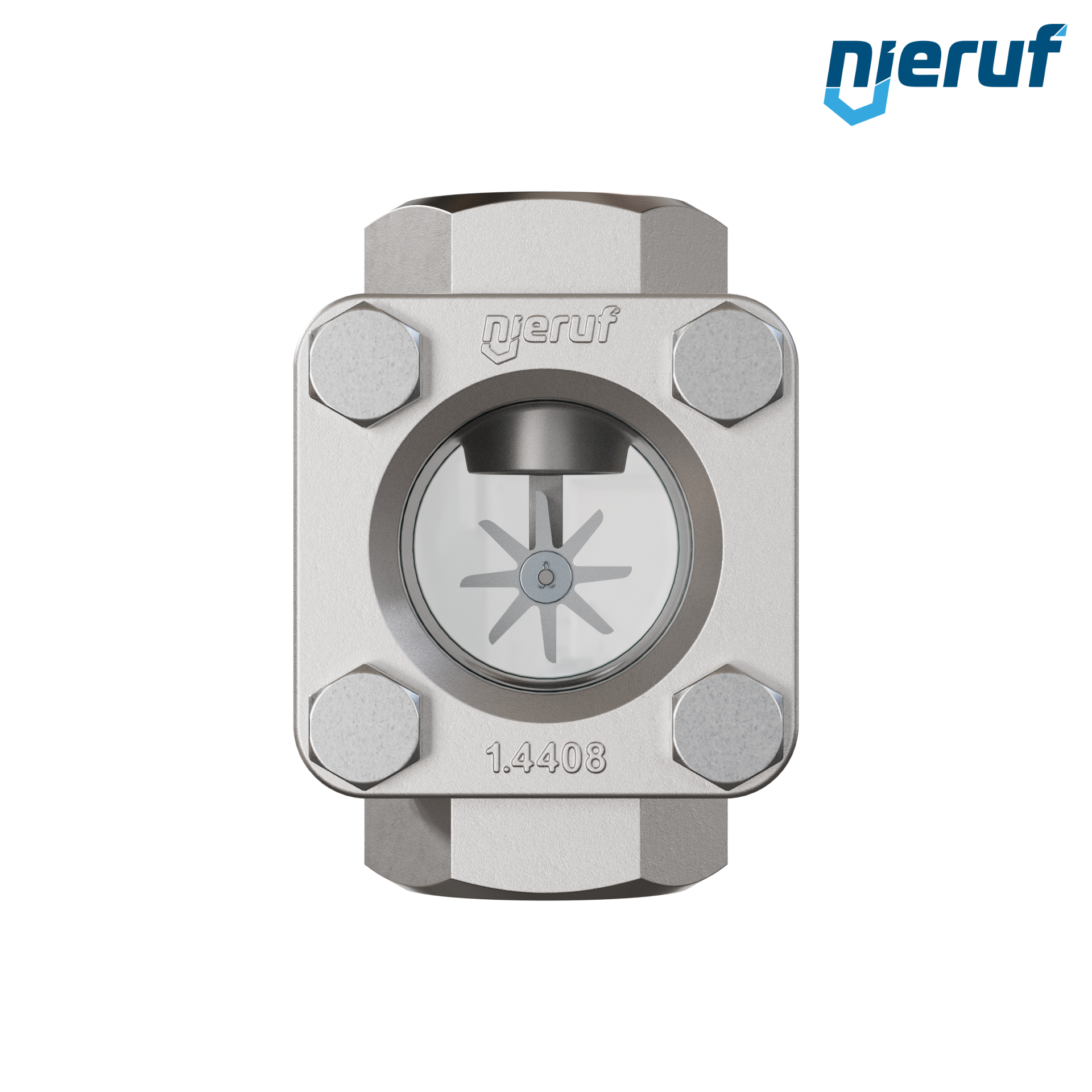

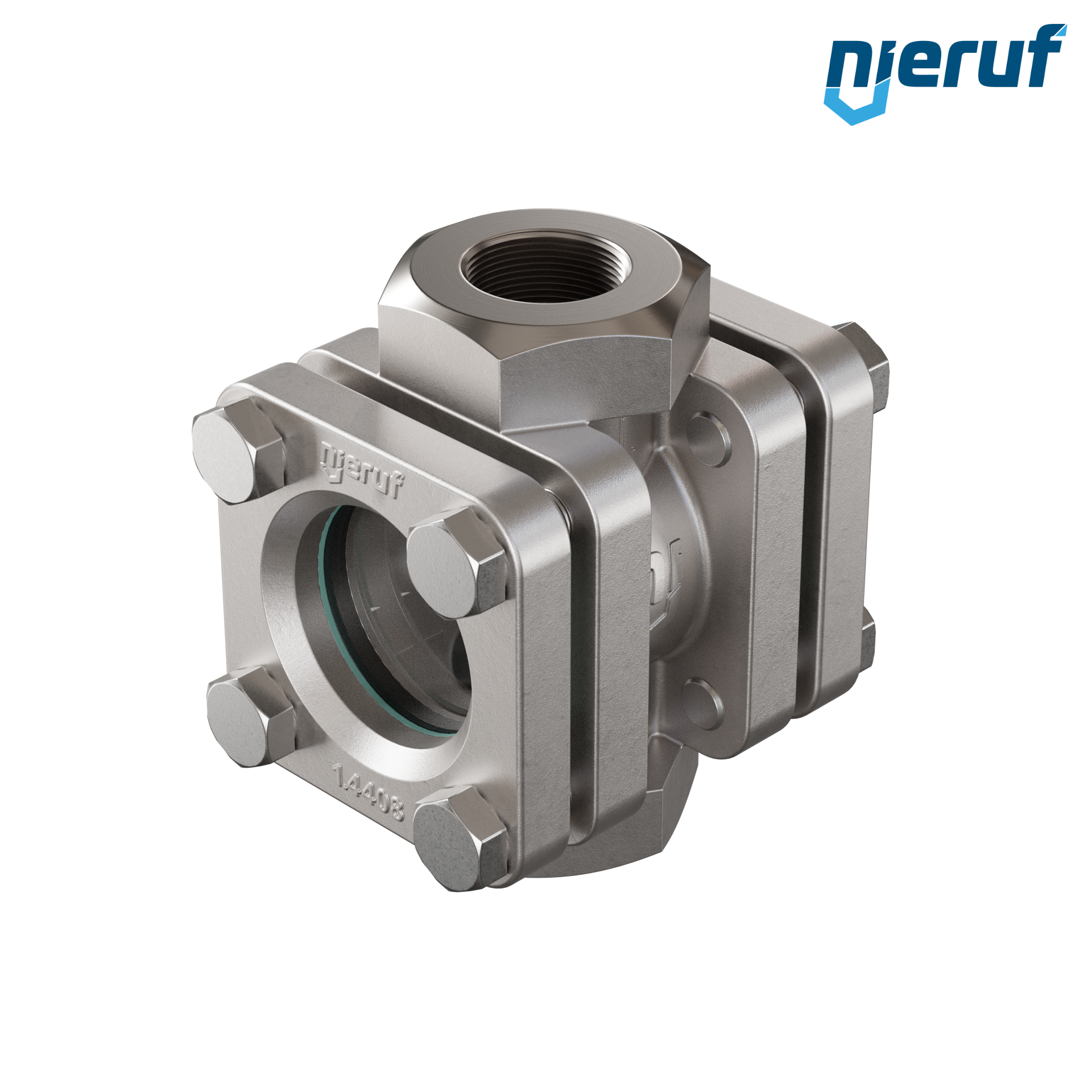

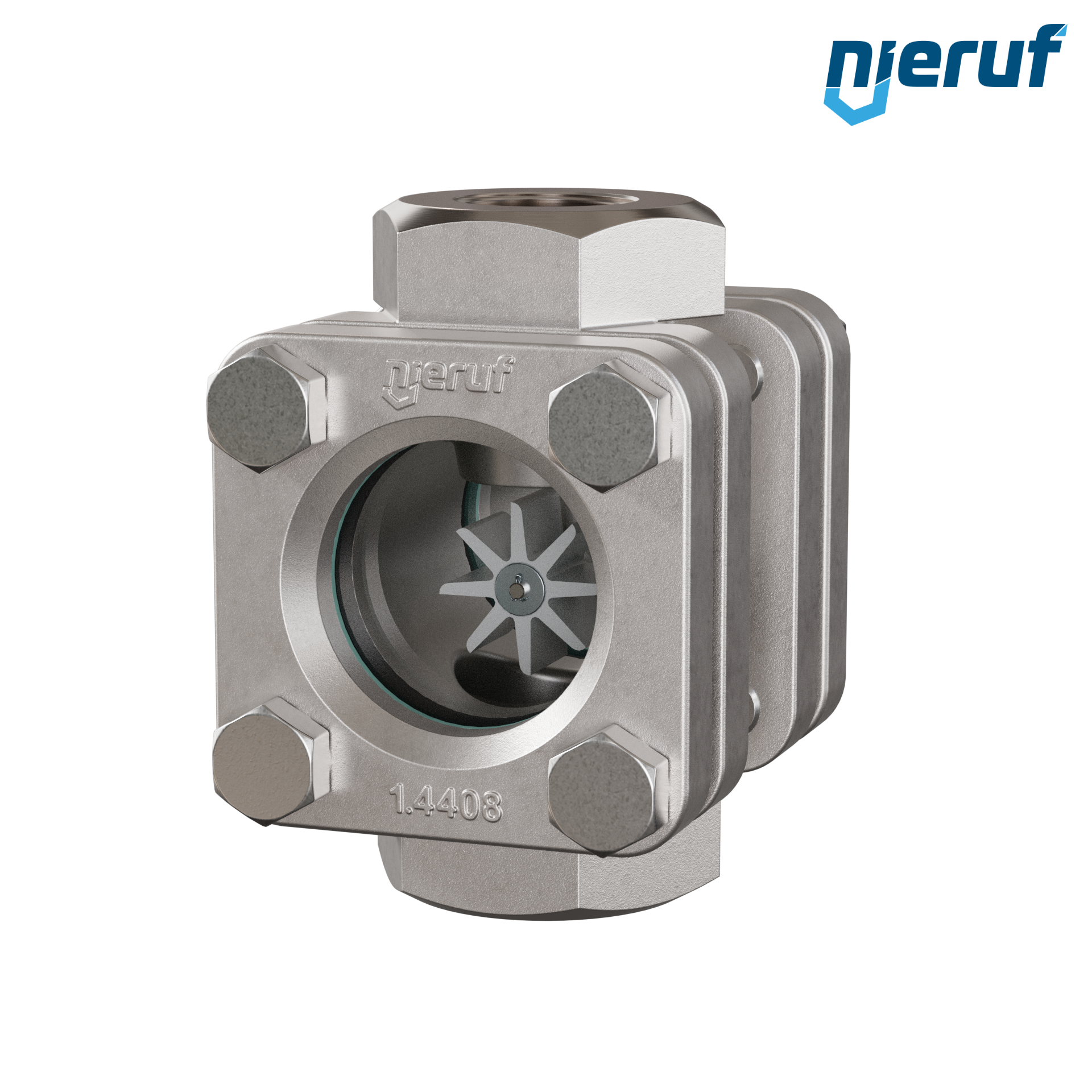

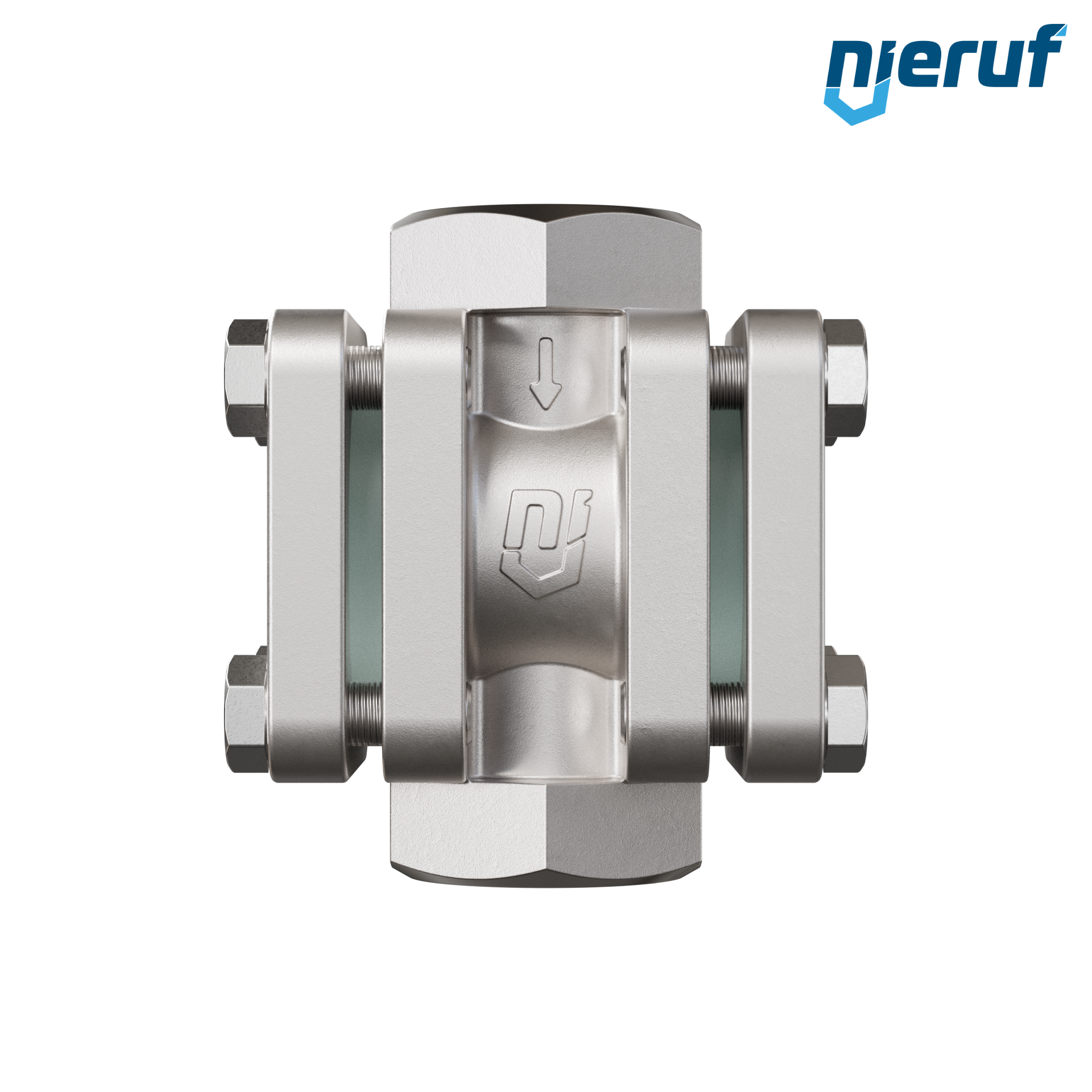

flow-through sight flow indicator G 1 1/4" inch stainless steel borosilicate glass version with PTFE-spinner
flow-through sight flow indicator 1 1/4" version with PTFE-spinner Typ GS03 borosilicate glass graphit max 16 bar
| product | flow-through sight flow indicator |
|---|---|
| type | GS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 1 1/4" inch |
| connection | female thread BSP |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid media |
| temperature | -60°C up to + 280°C |
| max. working pressure | 16 bar |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flow-through sight flow indicator G 1 1/4" inch stainless steel borosilicate glass version with PTFE-spinner
Article no.
: GS03020206
product:
flow-through sight flow indicator
type:
GS03
manufacturer:
NieRuf
design:
straightway form
diameter:
G 1 1/4" inch
connection:
female thread BSP
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
borosilicate glass
seal:
graphit
media:
liquid media
temperature:
-60°C up to + 280°C
max. working pressure:
16 bar
installation position:
any position
product feature:
version with PTFE-spinner
