GS02020208

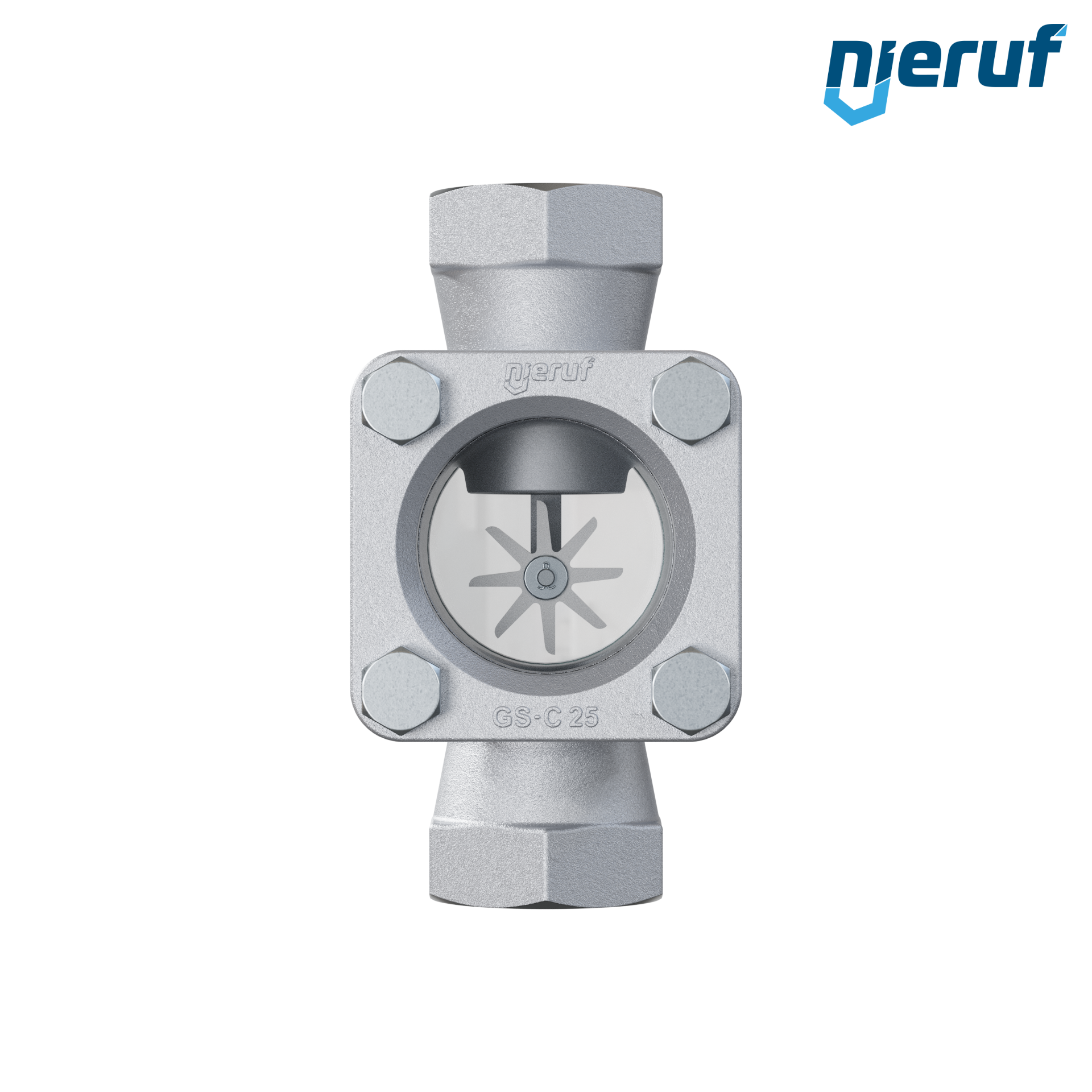

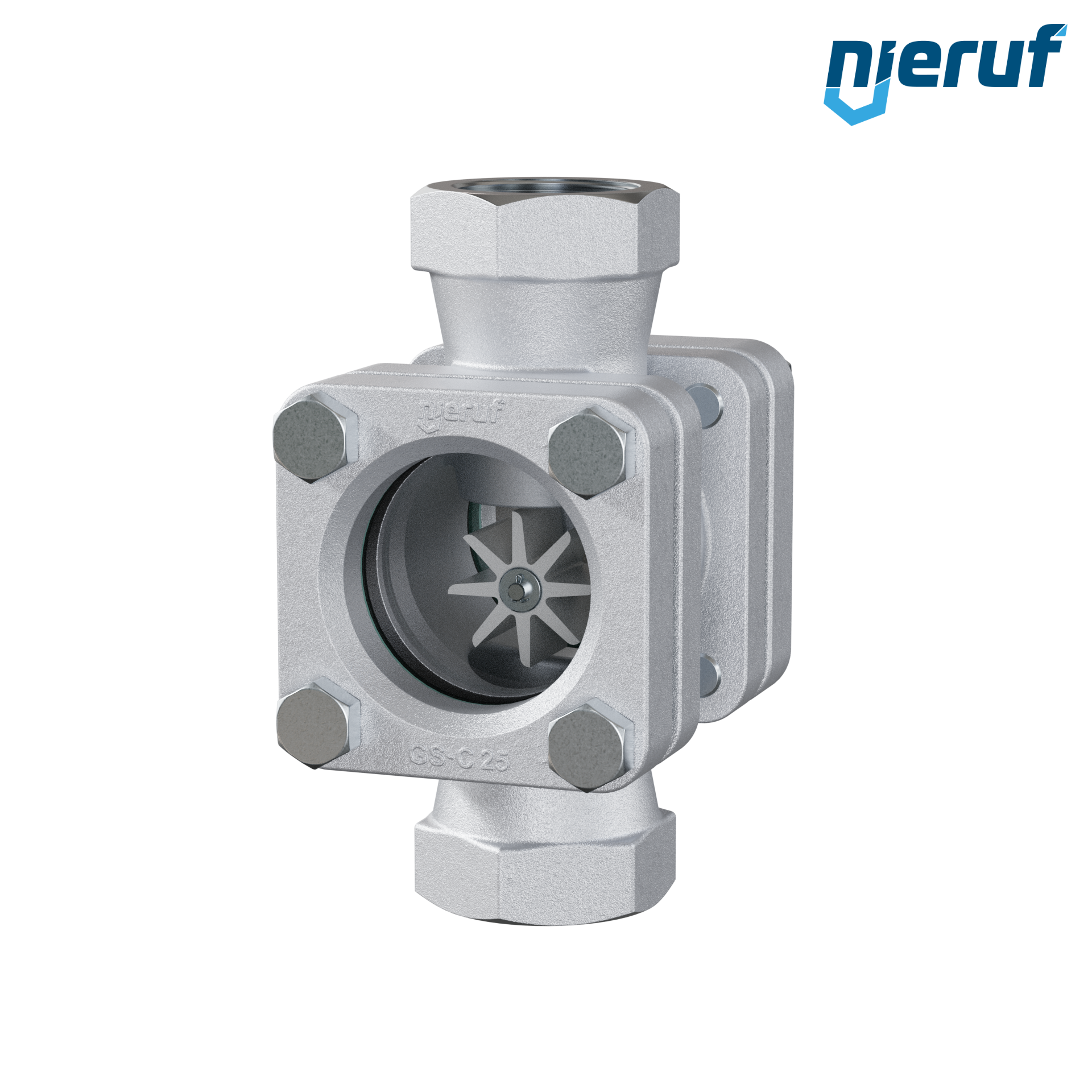

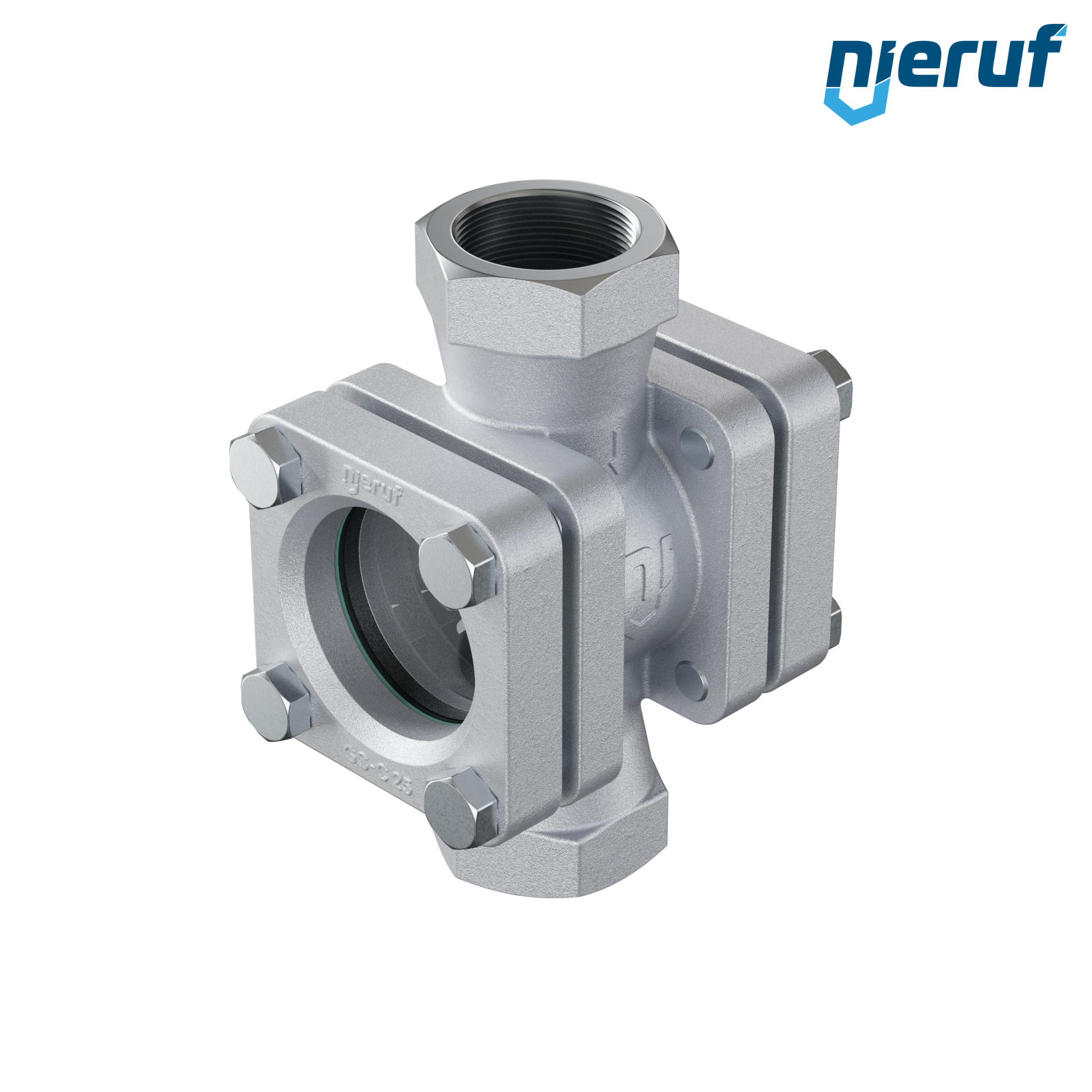

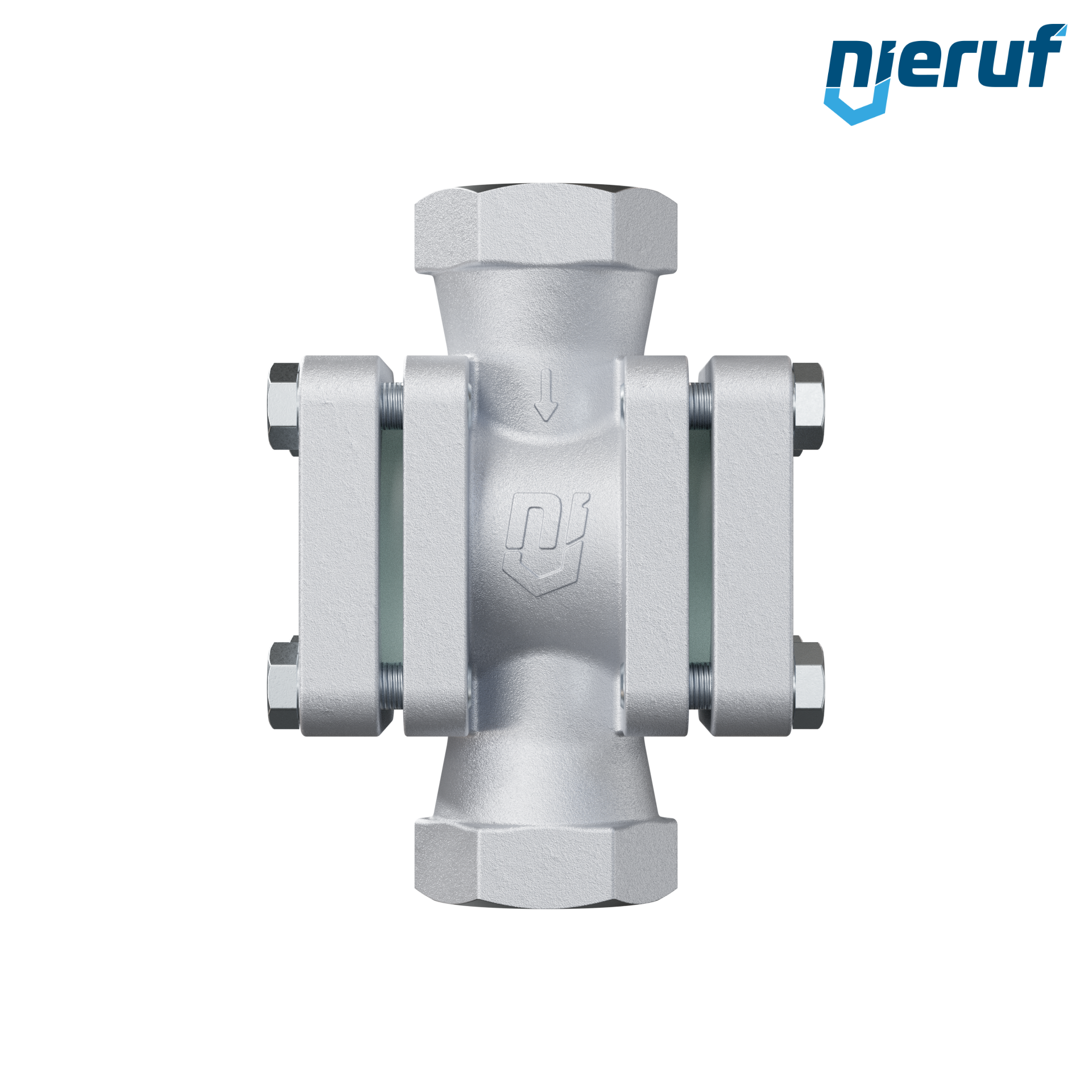

sight flow indicator G 2" Inch GS - C25 borosilicate glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
sight glass round SG01 Ø 100 x 15 mm round DIN 7080 - 16
€38.20 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
sight flow indicator G 2" Inch GS - C25 borosilicate glass version with PTFE-spinner
sight flow indicator DN50 - 2" Inch borosilicate glass Typ GS02 borosilicate glass graphit max 16 bar
| product | sight flow indicator |
|---|---|
| type | GS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 2" Inch |
| connection | female thread BSP |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 16 bar |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
sight flow indicator G 2" Inch GS - C25 borosilicate glass version with PTFE-spinner
Article no.
: GS02020208
product:
sight flow indicator
type:
GS02
manufacturer:
NieRuf
design:
straightway form
diameter:
G 2" Inch
connection:
female thread BSP
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
borosilicate glass
seal:
graphit
media:
liquid media
temperature:
-10°C up to + 280°C
max. working pressure:
16 bar
installation position:
any position
product feature:
version with PTFE-spinner
