GS02010202
sight flow indicator G 3/8" Inch GS - C25 soda lime glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
sight glass round SG01 Ø 45 x 10 mm round DIN 7080 - 40
€19.52 VAT included.
hexagon nipple 3/8" inch male stainless steel 316
€1.90 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

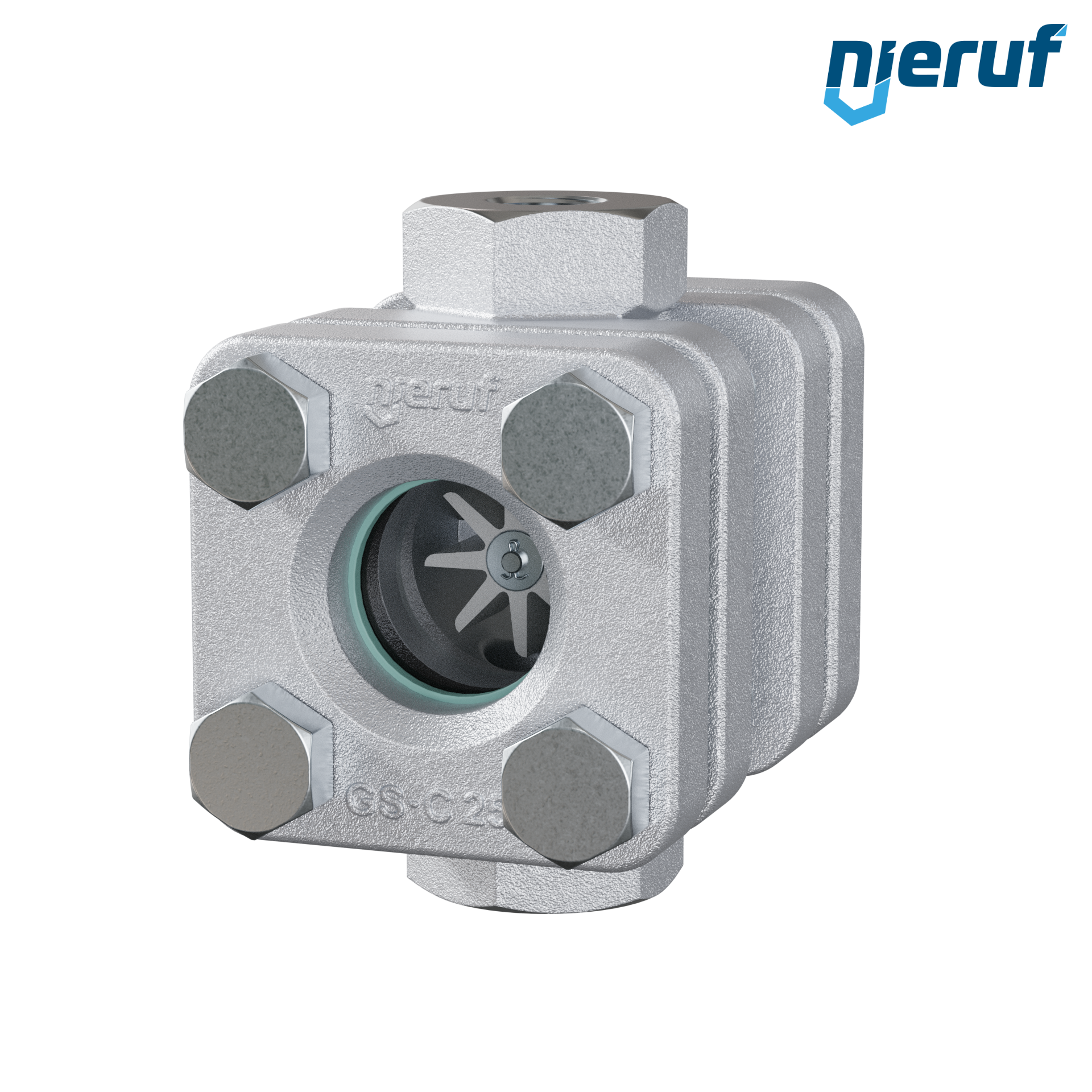

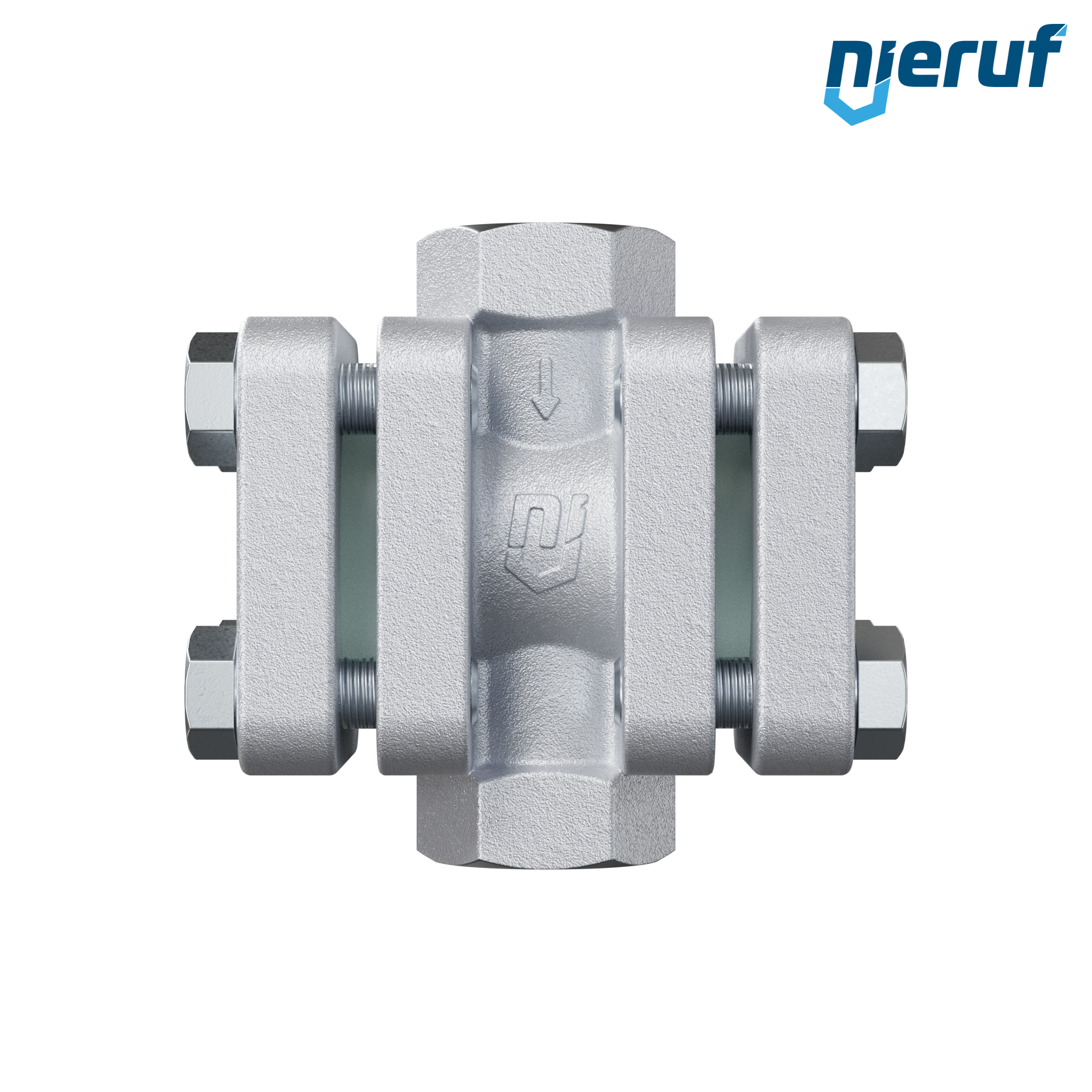

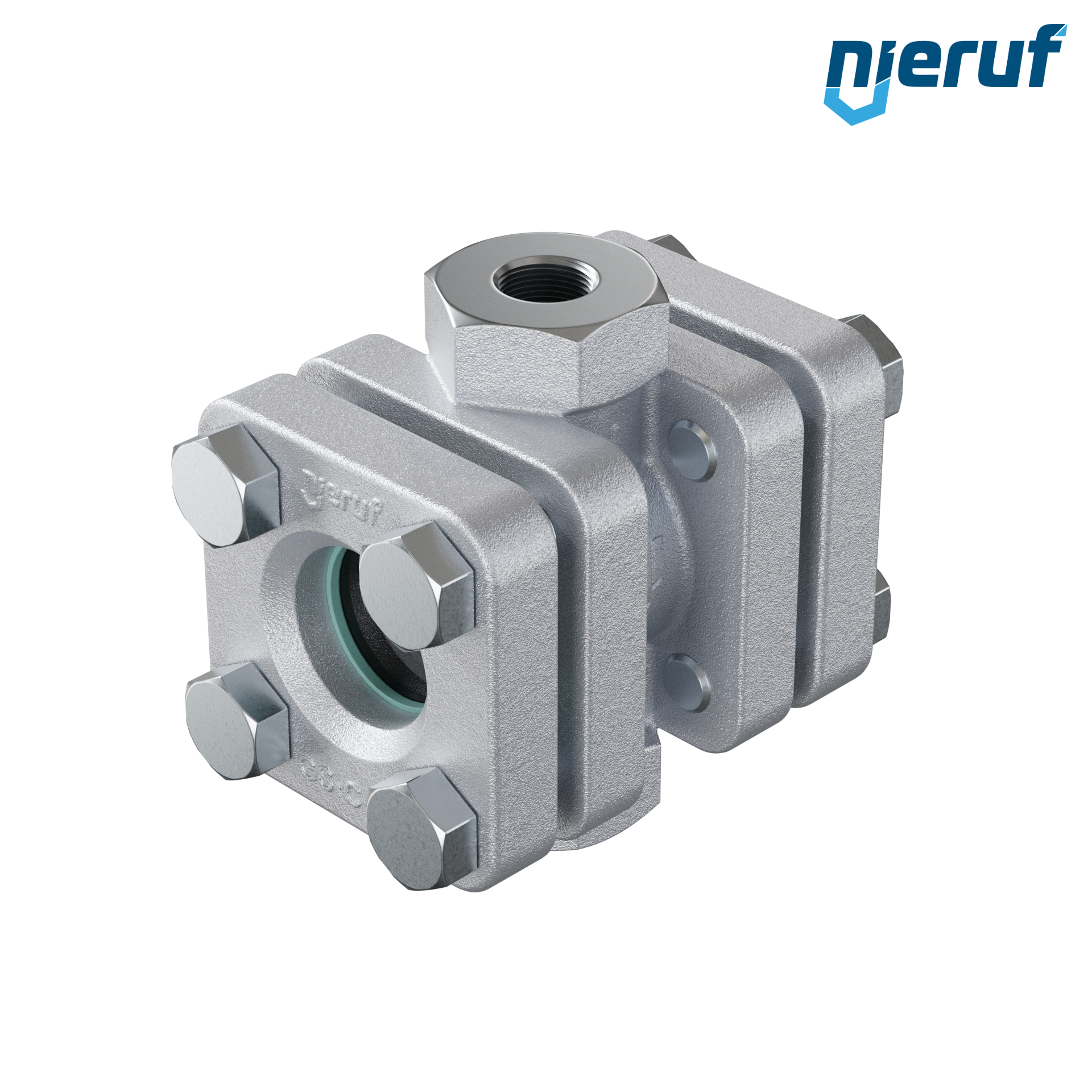

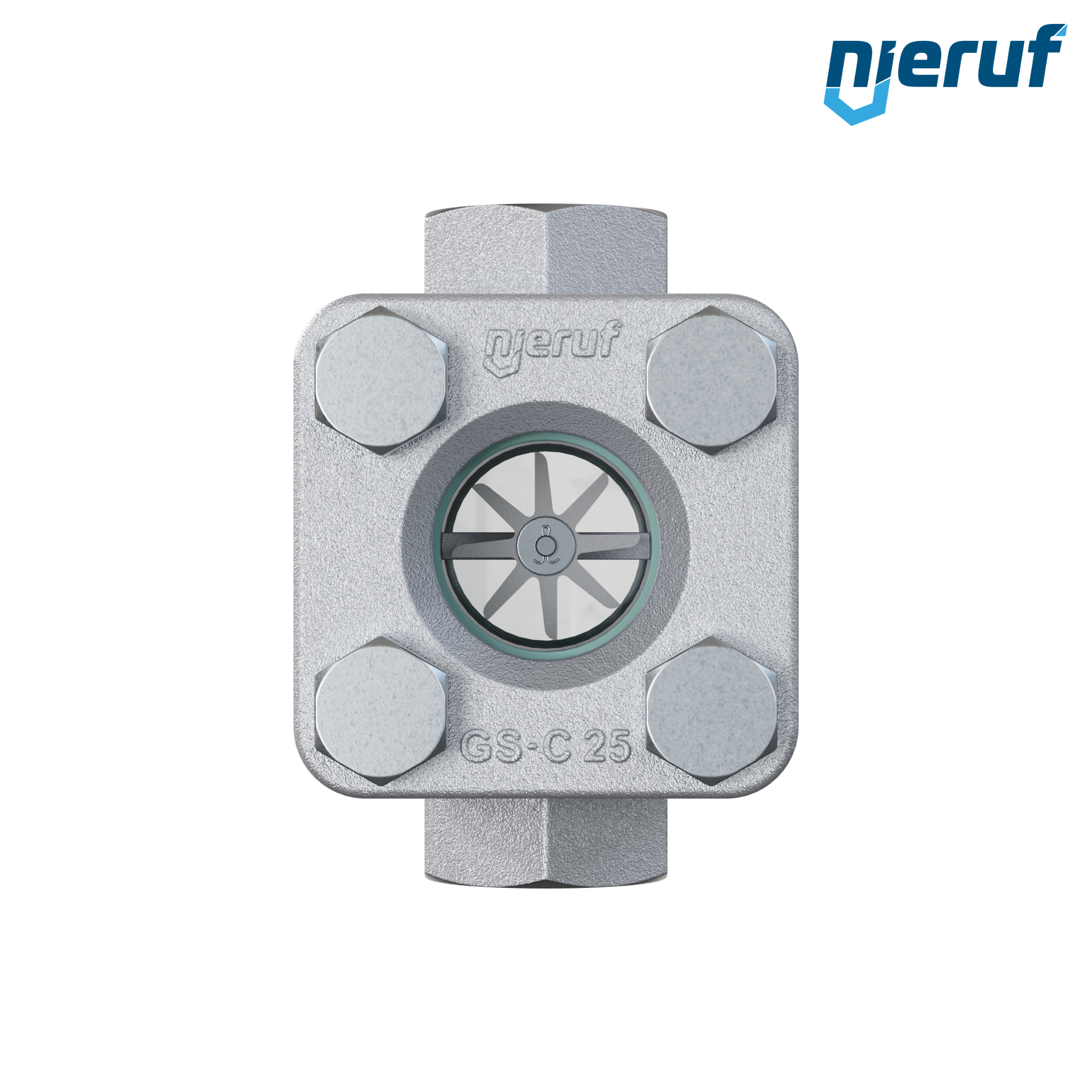

sight flow indicator G 3/8" Inch GS - C25 soda lime glass version with PTFE-spinner
sight flow indicator 3/8" version with PTFE-spinner Typ GS02 soda lime glass max 40 bar version with PTFE-spinner
| product | sight flow indicator |
|---|---|
| type | GS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 3/8" Inch |
| connection | female thread BSP |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | soda lime glass |
| seal | graphit |
| media | liquid media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 40 bar |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
sight flow indicator G 3/8" Inch GS - C25 soda lime glass version with PTFE-spinner
Article no.
: GS02010202
product:
sight flow indicator
type:
GS02
manufacturer:
NieRuf
design:
straightway form
diameter:
G 3/8" Inch
connection:
female thread BSP
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
soda lime glass
seal:
graphit
media:
liquid media
temperature:
-10°C up to + 150°C
max. working pressure:
40 bar
installation position:
any position
product feature:
version with PTFE-spinner
