GS03010201

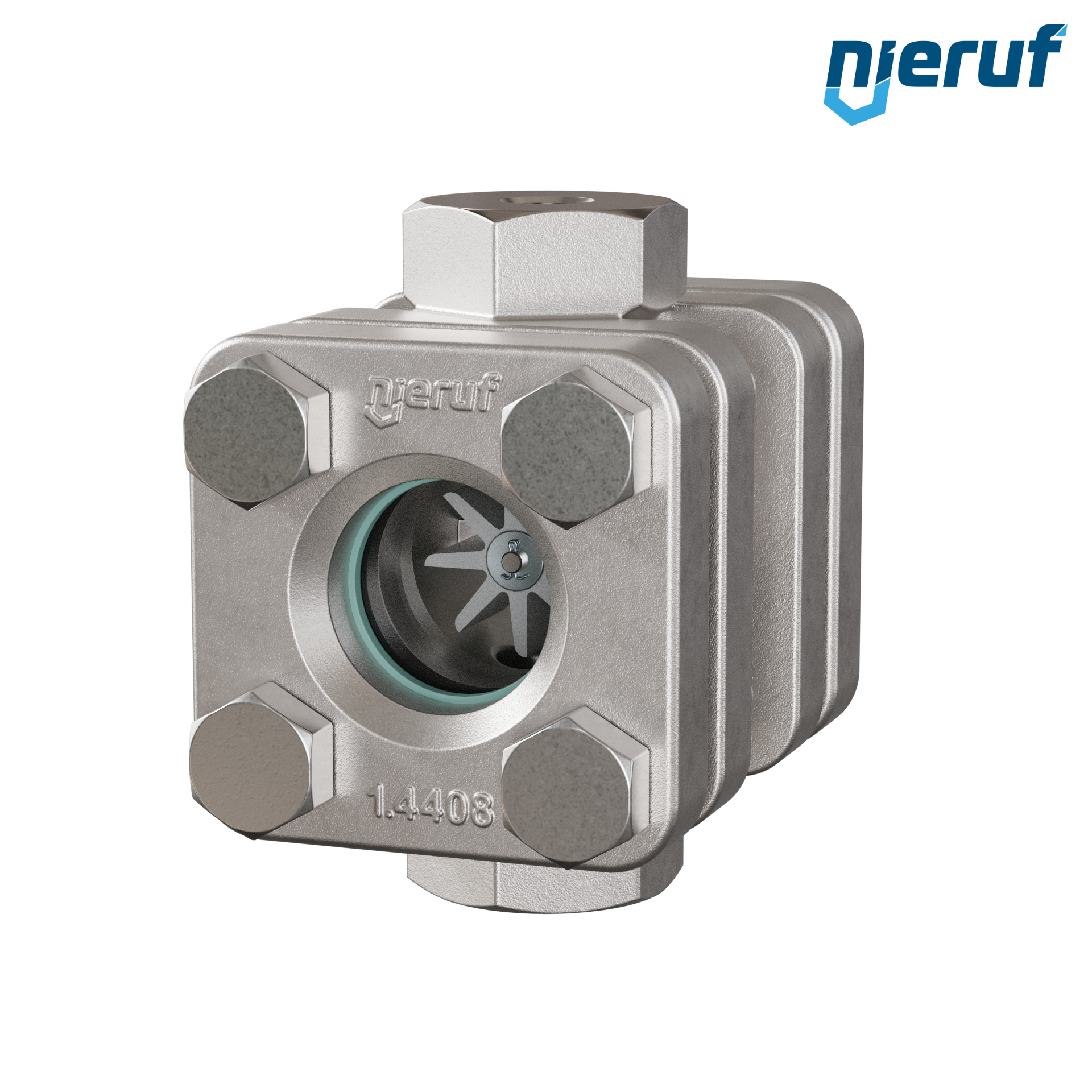

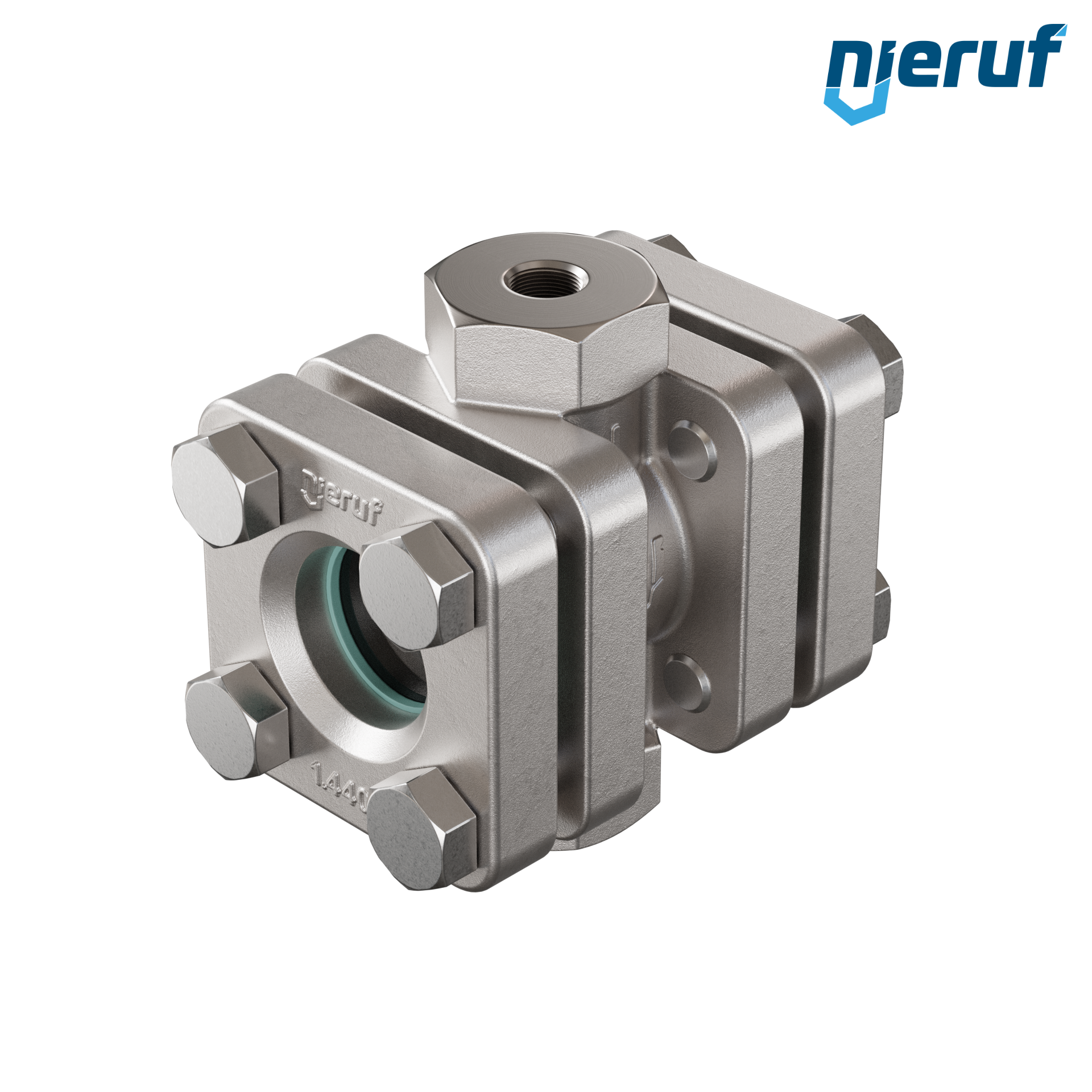

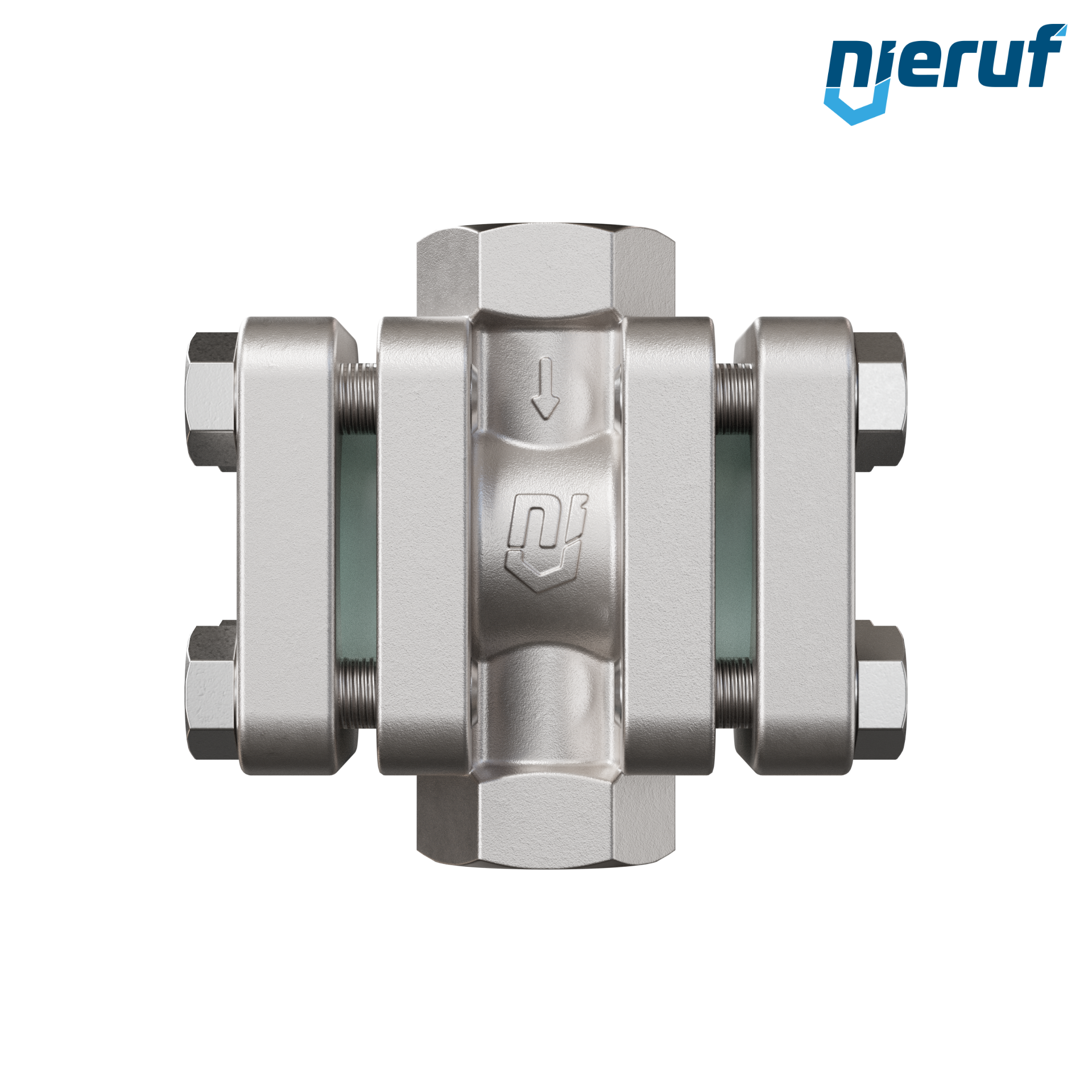

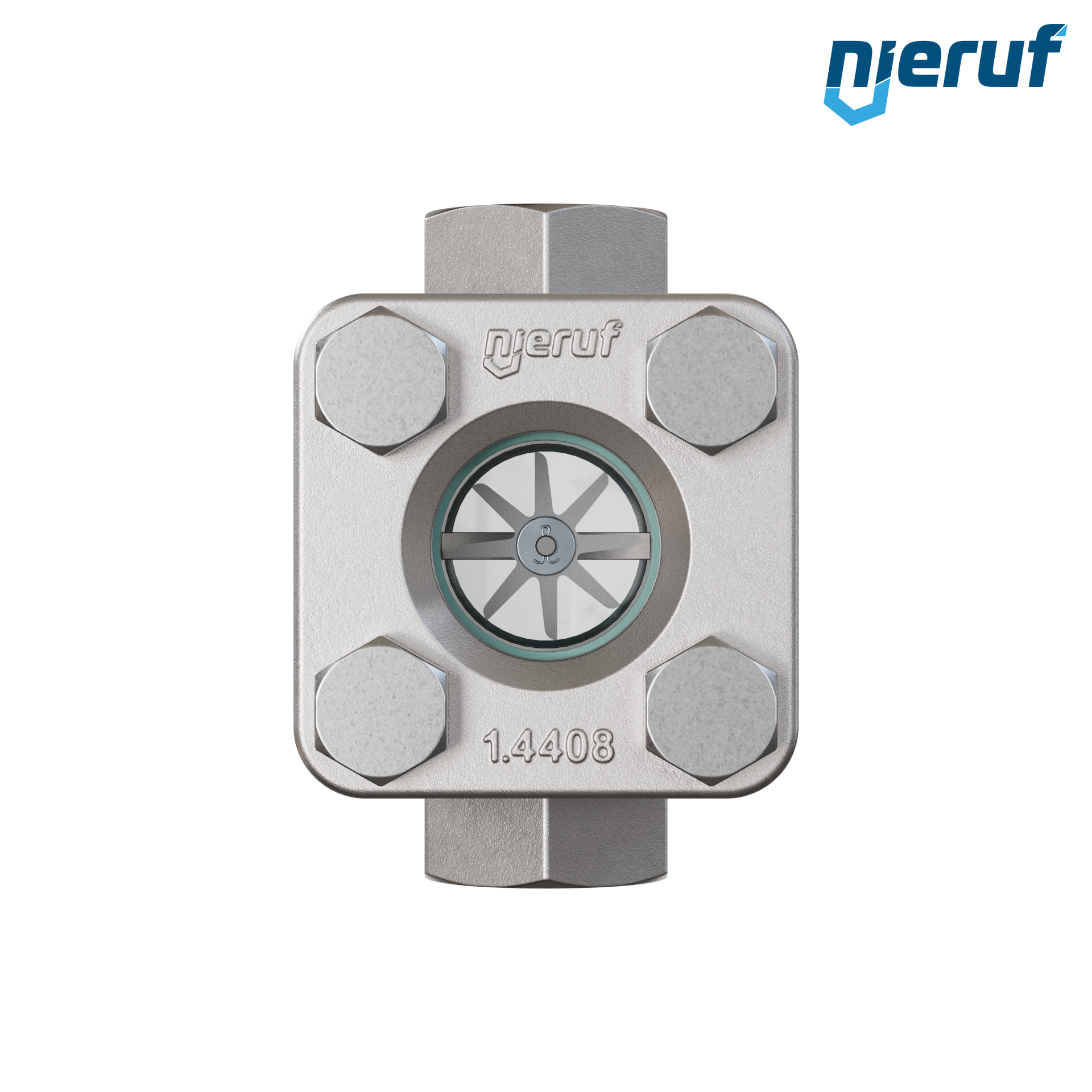

flow-through sight flow indicator G 1/4" Inch stainless steel soda lime glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
sight glass round SG01 Ø 45 x 10 mm round DIN 7080 - 40
€19.52 VAT included.
hexagon nipple 1/4" inch male stainless steel 316
€1.55 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
flow-through sight flow indicator G 1/4" Inch stainless steel soda lime glass version with PTFE-spinner
flow-through sight flow indicator 1/4" soda lime glass Typ GS03 graphit max 40 bar version with PTFE-spinner
| product | flow-through sight flow indicator |
|---|---|
| type | GS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 1/4" Inch |
| connection | female thread BSP |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | soda lime glass |
| seal | graphit |
| media | liquid media |
| temperature | -60°C up to + 150°C |
| max. working pressure | 40 bar |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flow-through sight flow indicator G 1/4" Inch stainless steel soda lime glass version with PTFE-spinner
Article no.
: GS03010201
product:
flow-through sight flow indicator
type:
GS03
manufacturer:
NieRuf
design:
straightway form
diameter:
G 1/4" Inch
connection:
female thread BSP
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
soda lime glass
seal:
graphit
media:
liquid media
temperature:
-60°C up to + 150°C
max. working pressure:
40 bar
installation position:
any position
product feature:
version with PTFE-spinner
