GS03010207

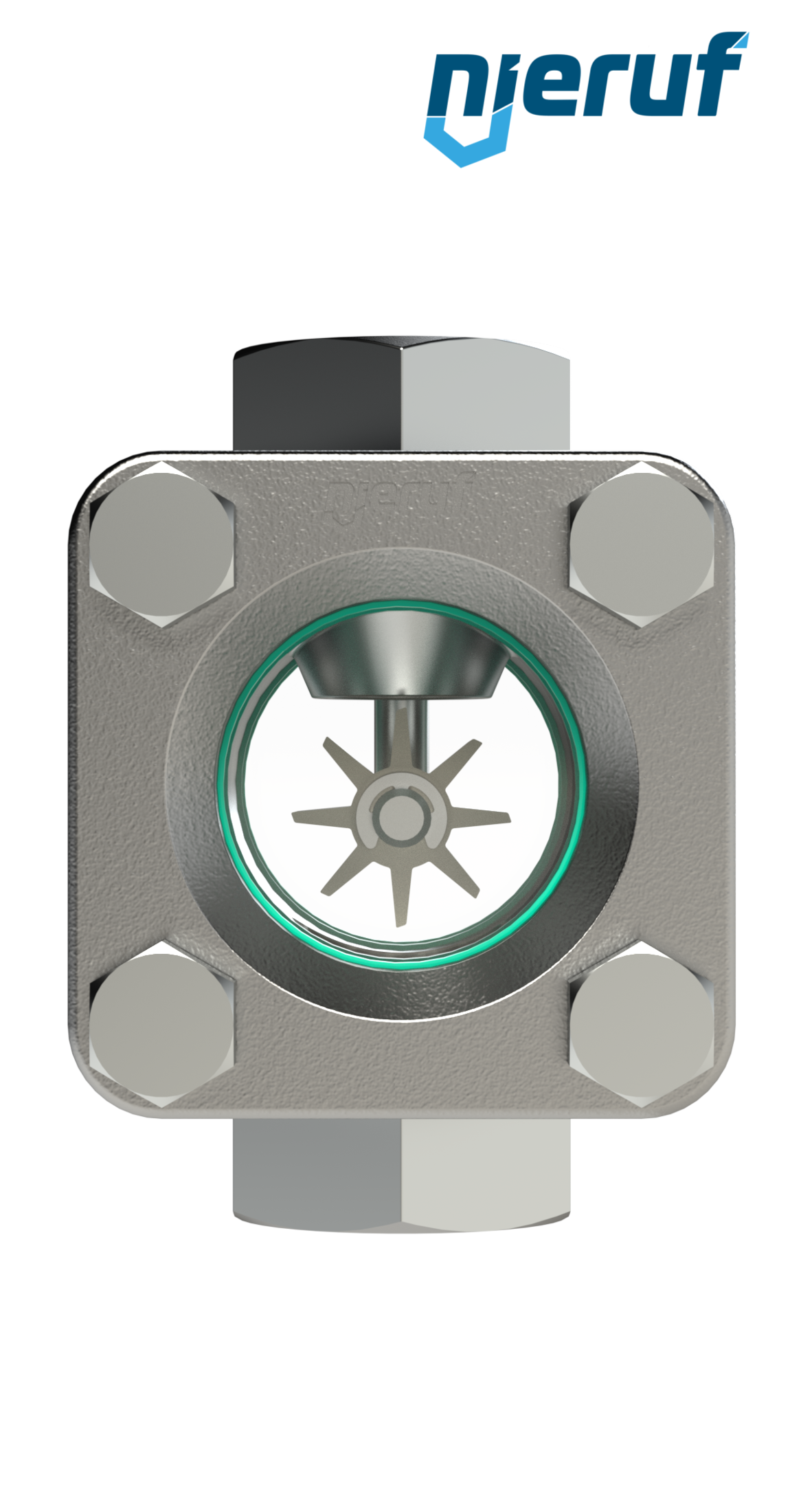

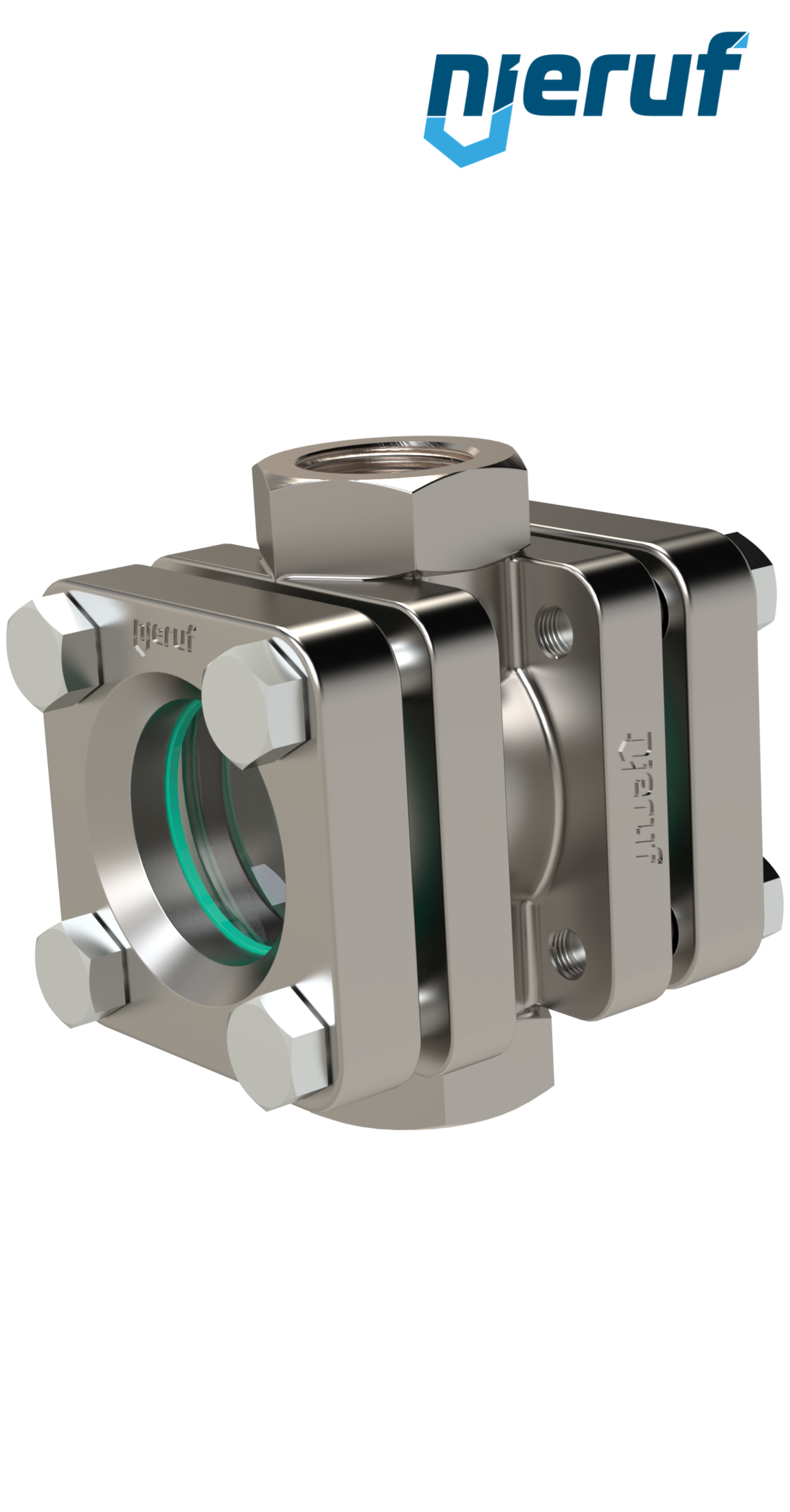

flow-through sight flow indicator G 1 1/2" Inch stainless steel soda lime glass version with PTFE-spinner

€713.60*

€849.18 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 4 weeks

Equipment

GF01300007

hexagon nipple 1 1/2" inch male stainless steel 316

€7.60*

€9.04 VAT included.

SG01008012

sight glass round SG01 Ø 80 x 12 mm round DIN 7080 - 16

€19.80*

€23.56 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

flow-through sight flow indicator G 1 1/2" Inch stainless steel soda lime glass version with PTFE-spinner

flow-through sight flow indicator 1 1/2" soda lime glass Typ GS03 graphit max 16 bar version with PTFE-spinner

product	flow-through sight flow indicator
type	GS03
manufacturer	NieRuf
design	straightway form
diameter	G 1 1/2" Inch
connection	female thread BSP
body material	stainless steel 1.4408 / CF8M
cover material	stainless steel 1.4408 / CF8M
glass	soda lime glass
seal	graphit
media	liquid media
temperature	-60°C up to + 150°C
max. working pressure	16 bar
installation position	any position
product feature	version with PTFE-spinner

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flow-through sight flow indicator G 1 1/2" Inch stainless steel soda lime glass version with PTFE-spinner

Article no. : GS03010207
product: flow-through sight flow indicator
type: GS03
manufacturer: NieRuf
design: straightway form
diameter: G 1 1/2" Inch
connection: female thread BSP
body material: stainless steel 1.4408 / CF8M
cover material: stainless steel 1.4408 / CF8M
glass: soda lime glass
seal: graphit
media: liquid media
temperature: -60°C up to + 150°C
max. working pressure: 16 bar
installation position: any position
product feature: version with PTFE-spinner
