GS02021004

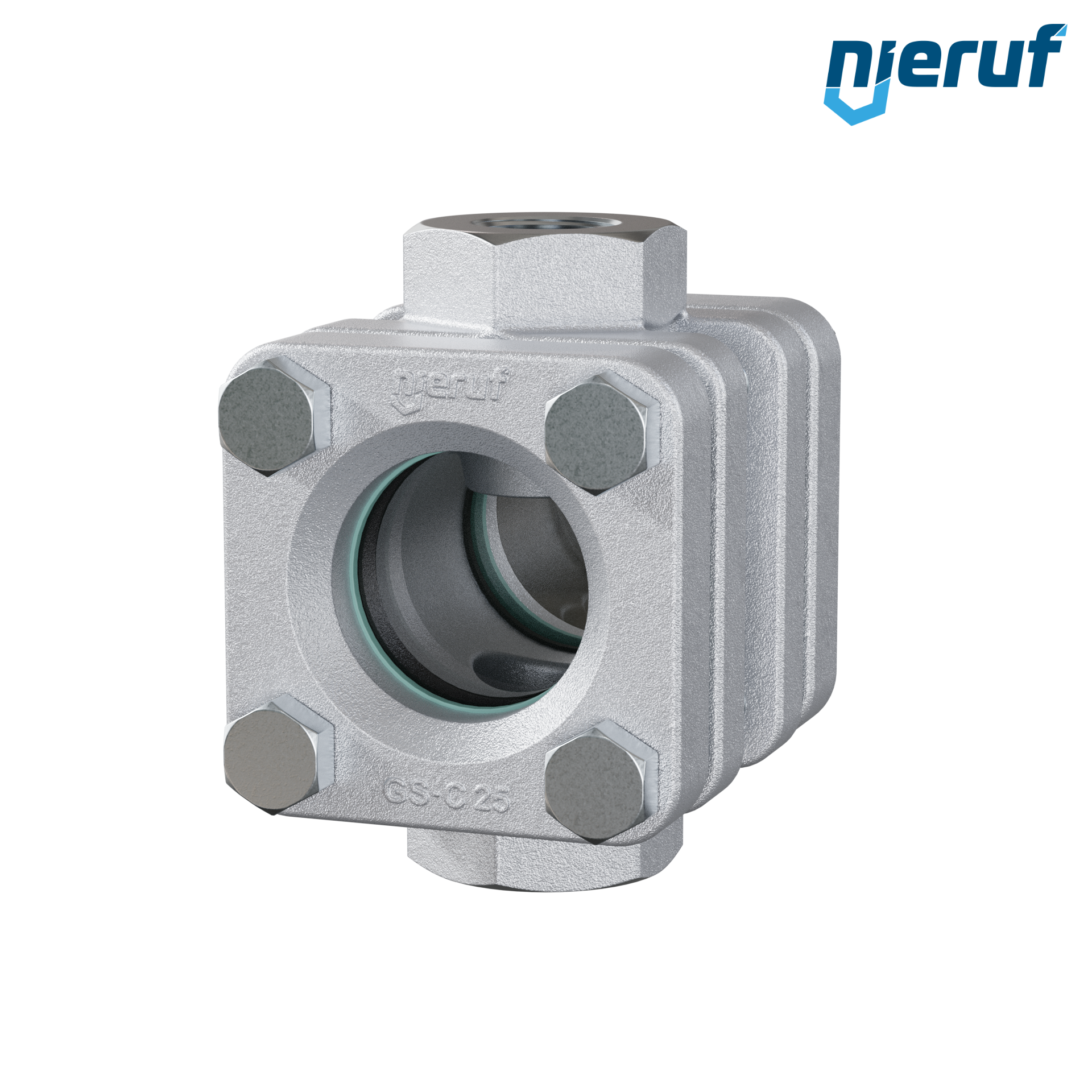

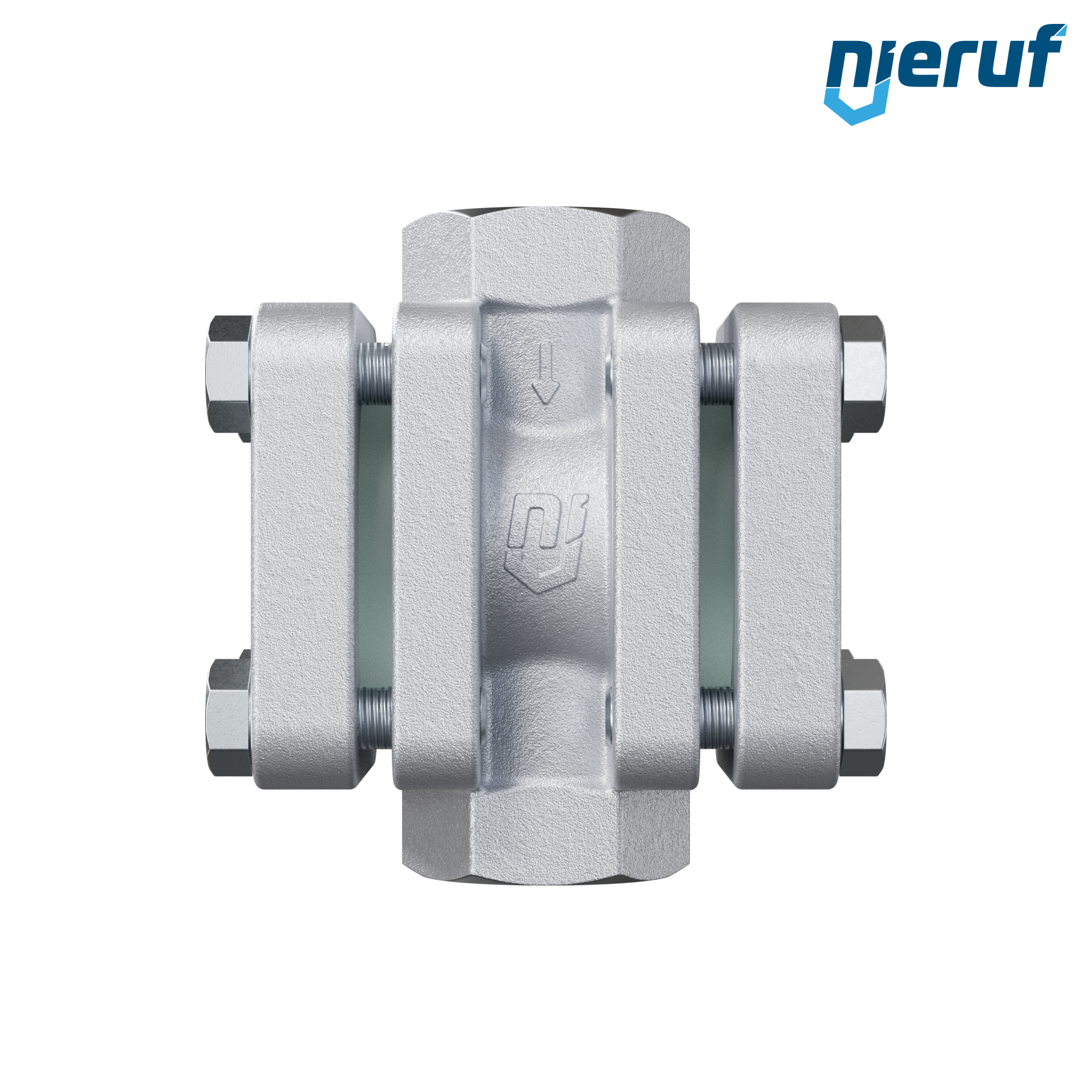

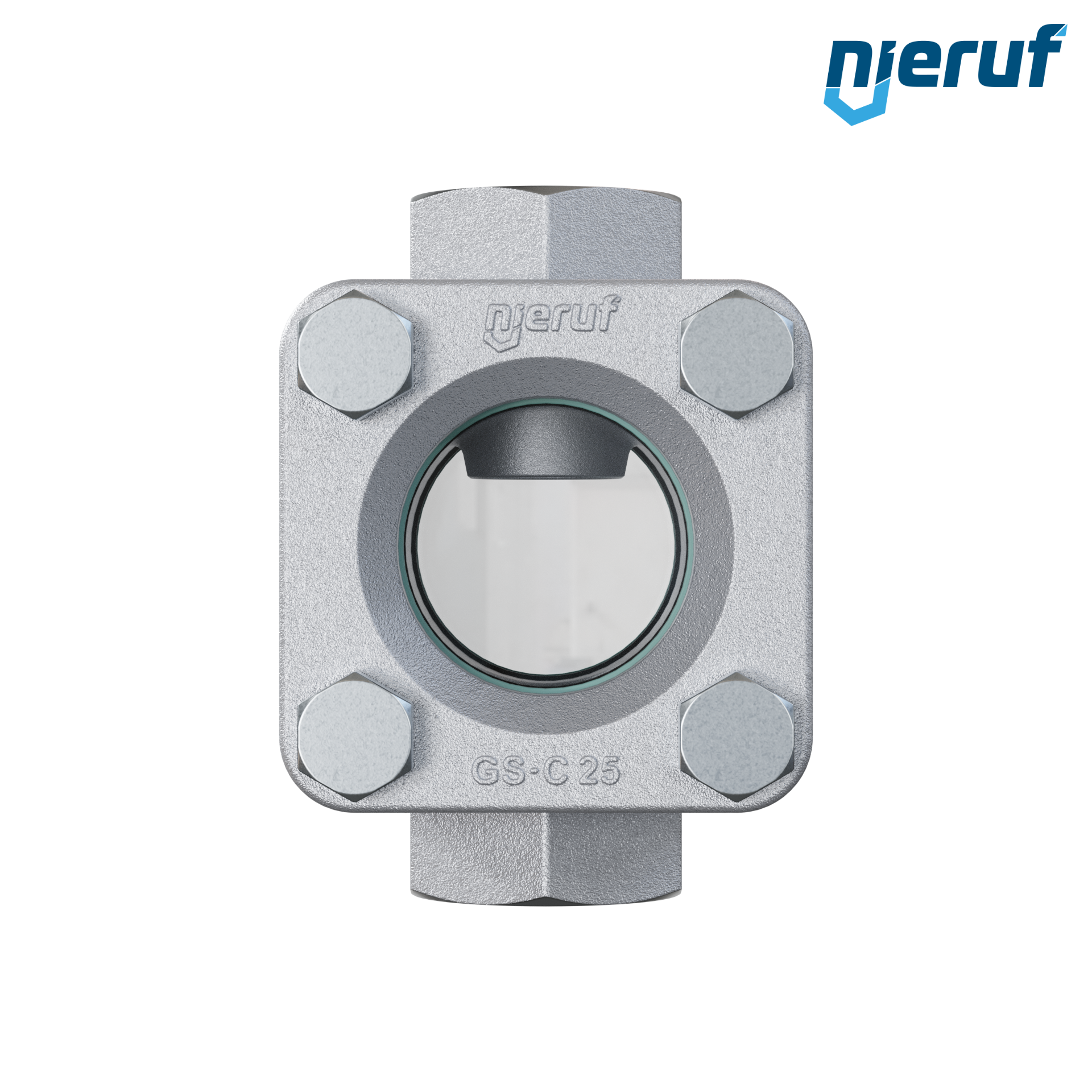

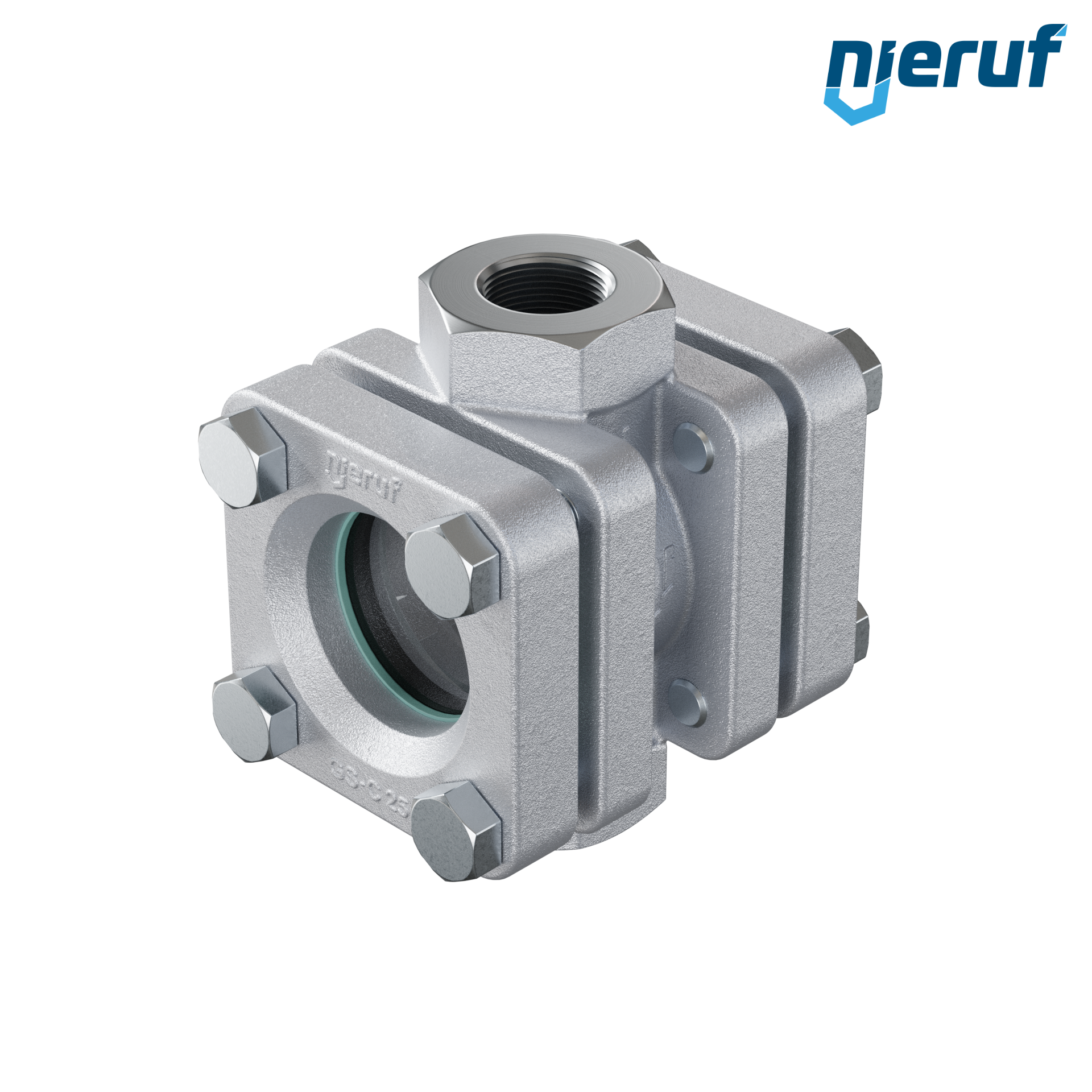

sight flow indicator G 3/4" Inch carbon steel 1.0619 40 bar female thread BSP borosilicate glass standard version
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
sight flow indicator G 3/4" Inch carbon steel 1.0619 40 bar female thread BSP borosilicate glass standard version
sight flow indicator standard version type GS02 made of carbon steel 1.0619, borosilicate glass and seal graphit G 3/4" Inch female thread BSP 40 bar
| product | sight flow indicator |
|---|---|
| type | GS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 3/4" Inch |
| connection | female thread BSP |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 40 bar |
| installation position | any position |
| product feature | standard version |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
sight flow indicator G 3/4" Inch carbon steel 1.0619 40 bar female thread BSP borosilicate glass standard version
Article no.
: GS02021004
product:
sight flow indicator
type:
GS02
manufacturer:
NieRuf
design:
straightway form
diameter:
G 3/4" Inch
connection:
female thread BSP
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
borosilicate glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 280°C
max. working pressure:
40 bar
installation position:
any position
product feature:
standard version
