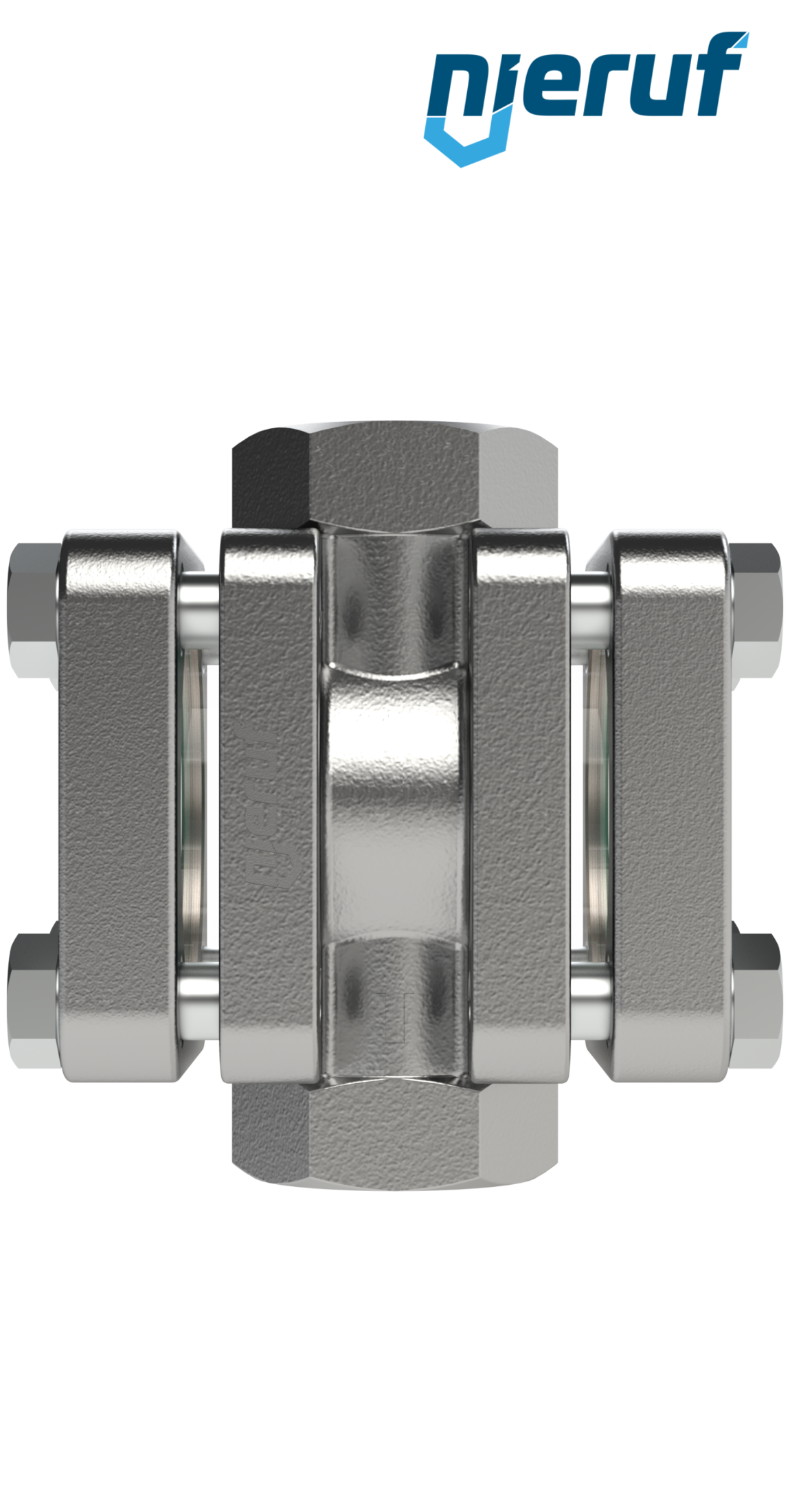

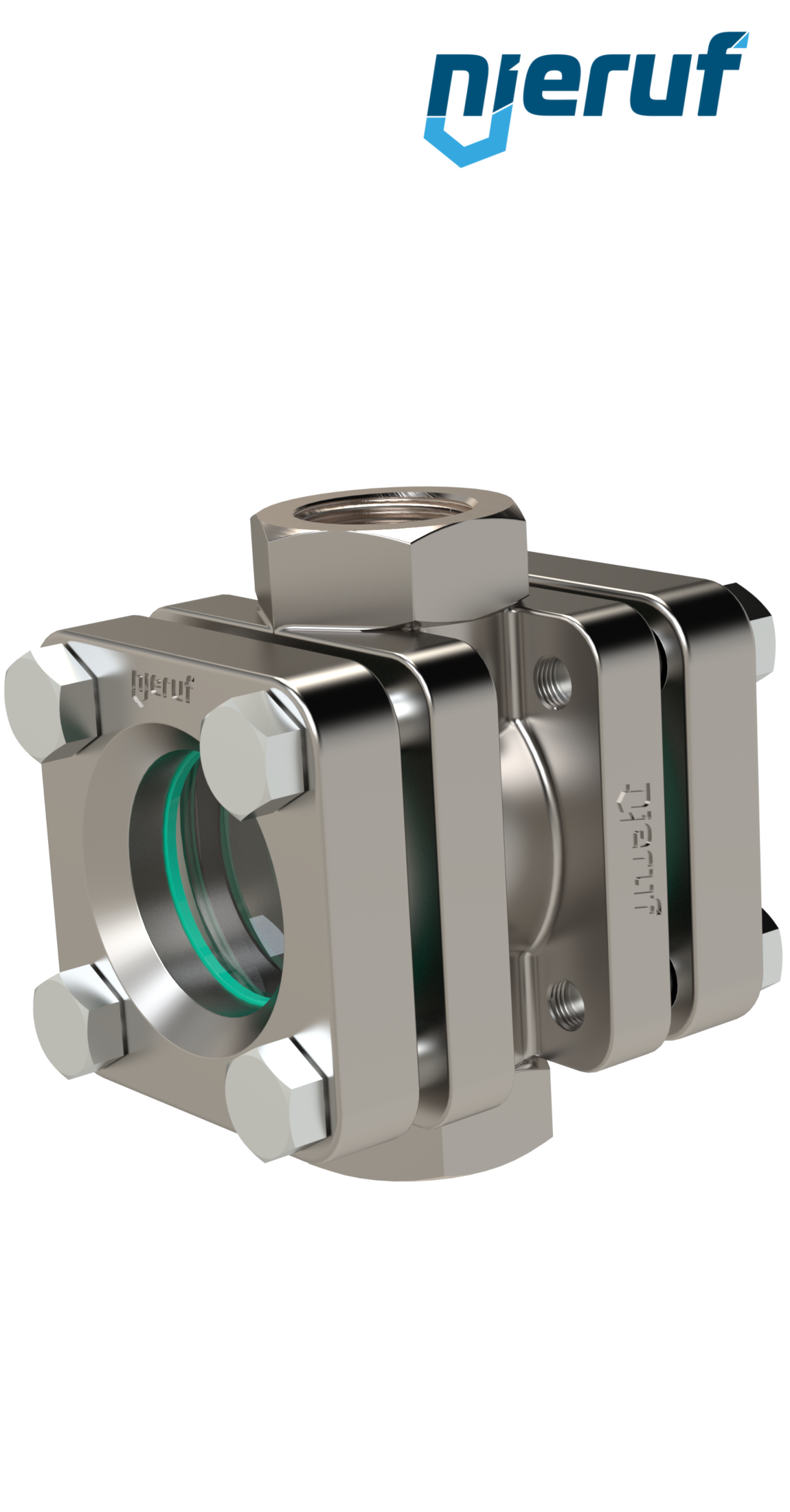

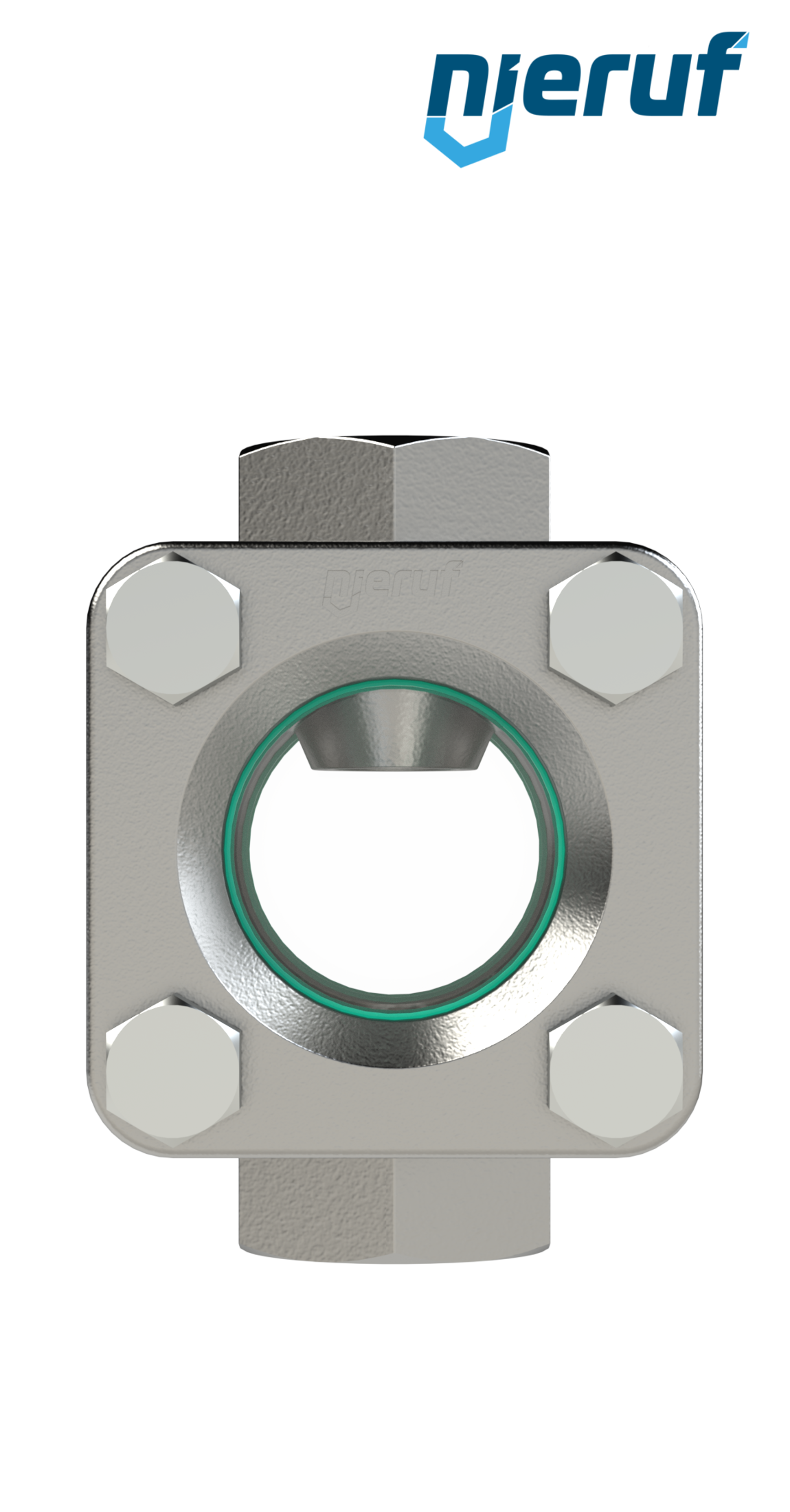

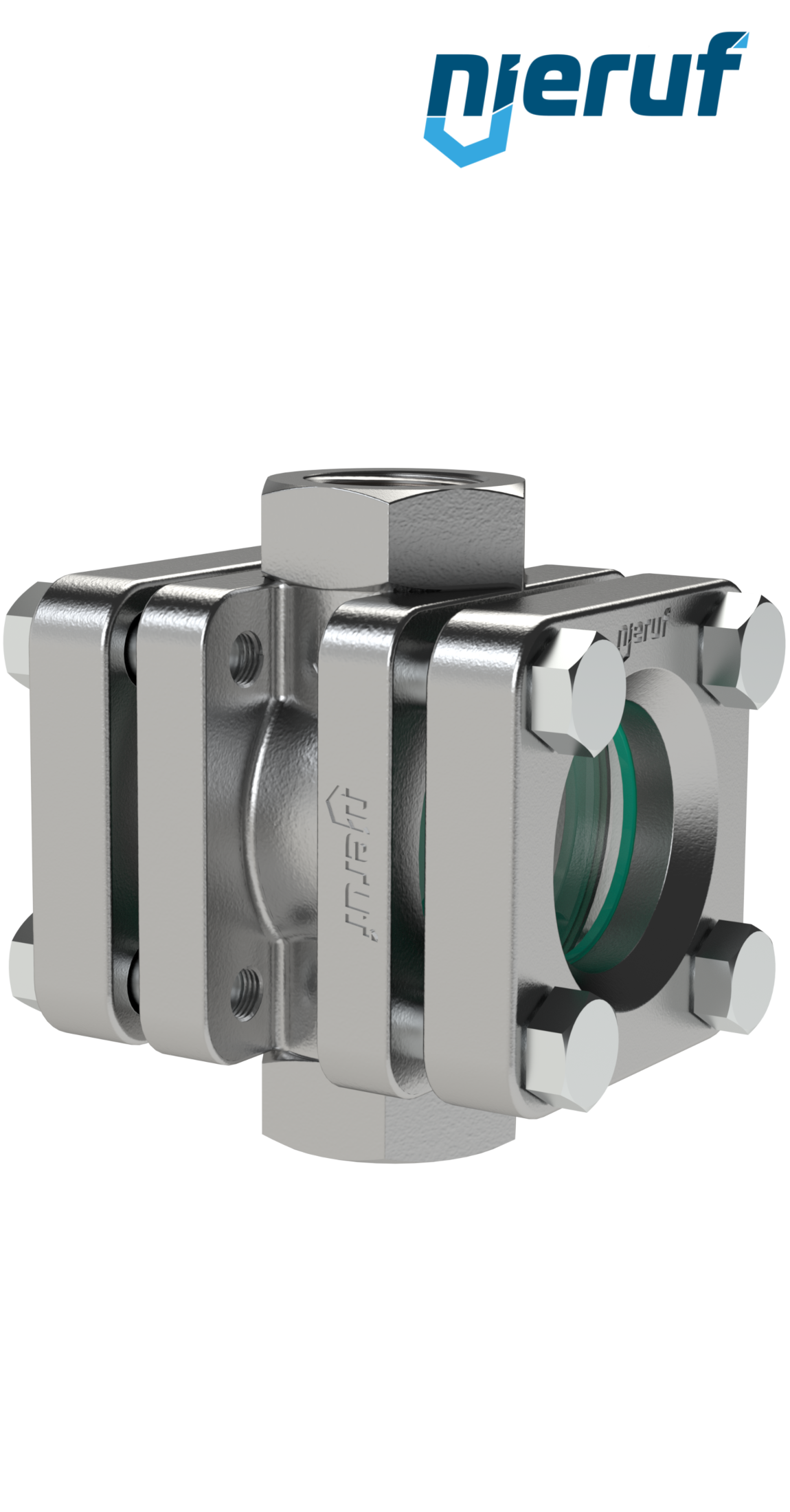

sight flow indicator DN8 - 1/4" Inch GS - C25 soda lime glass

GS02010001
quantity (pcs.):
119.00€ * 141.61€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
sight flow indicator DN8 - 1/4" Inch GS - C25 soda lime glass
sight flow indicator DN8 - 1/4" Inch Typ GS02 GS - C25 soda lime glass graphit max 16 bar
design: straightway form
diameter: DN8 - 1/4" Inch
connection: female thread
body material: GS - C25
cover material: GS - C25
glass: soda lime glass
seal: graphit
media: liquid and gaseous media
temperature: min -10°C up to max + 150°C
max. working pressure: max 16 bar
installation position: any position
sight flow indicator DN8 - 1/4" Inch GS - C25 soda lime glass

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

sight flow indicator DN8 - 1/4" Inch GS - C25 soda lime glass
