GS03010003
flow-through sight flow indicator G 1/2" Inch stainless steel soda lime glass
- Lead time
- 2 - 3 weeks
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
sight glass round SG01 Ø 45 x 10 mm round DIN 7080 - 40
€19.52 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

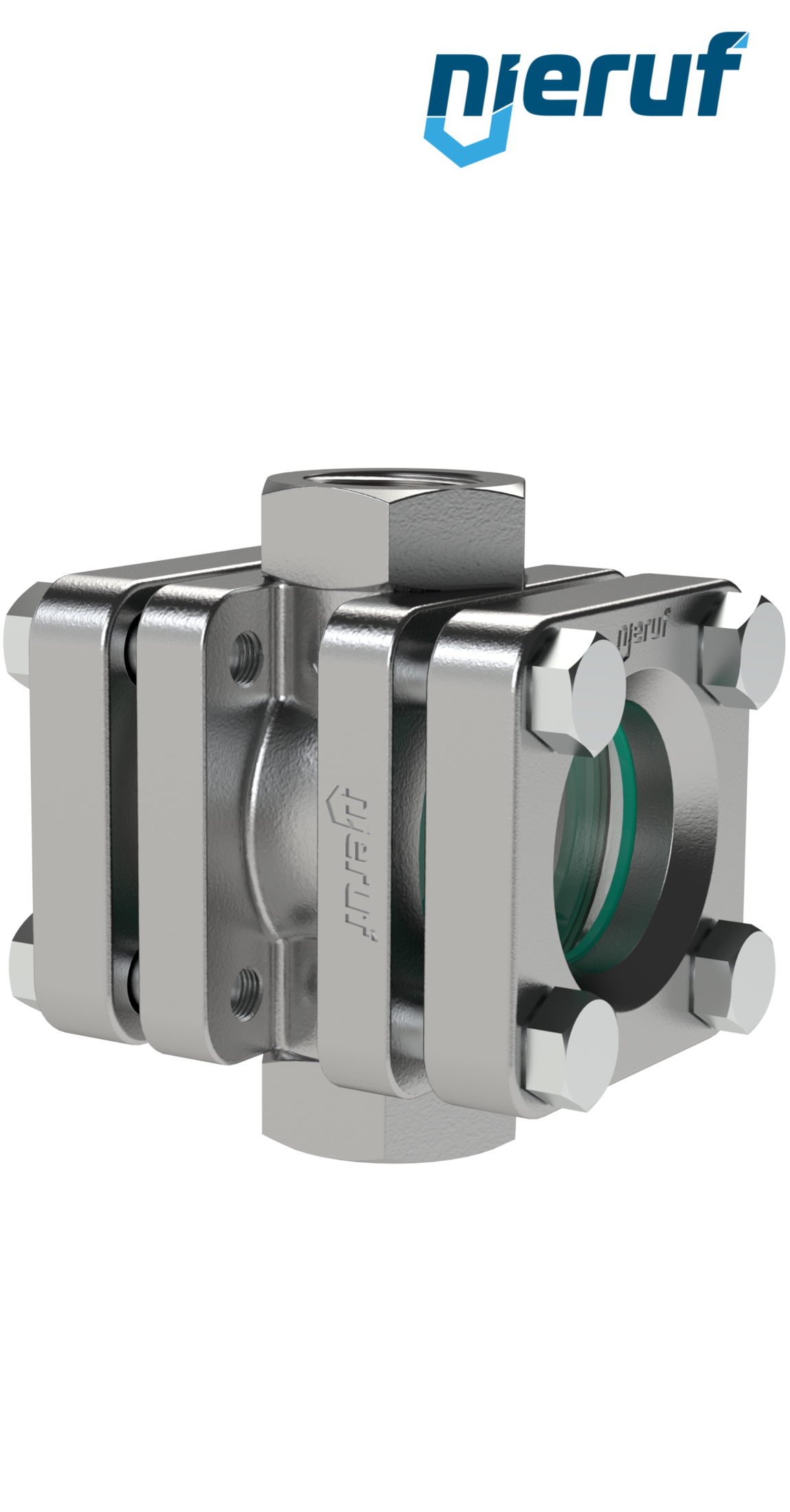

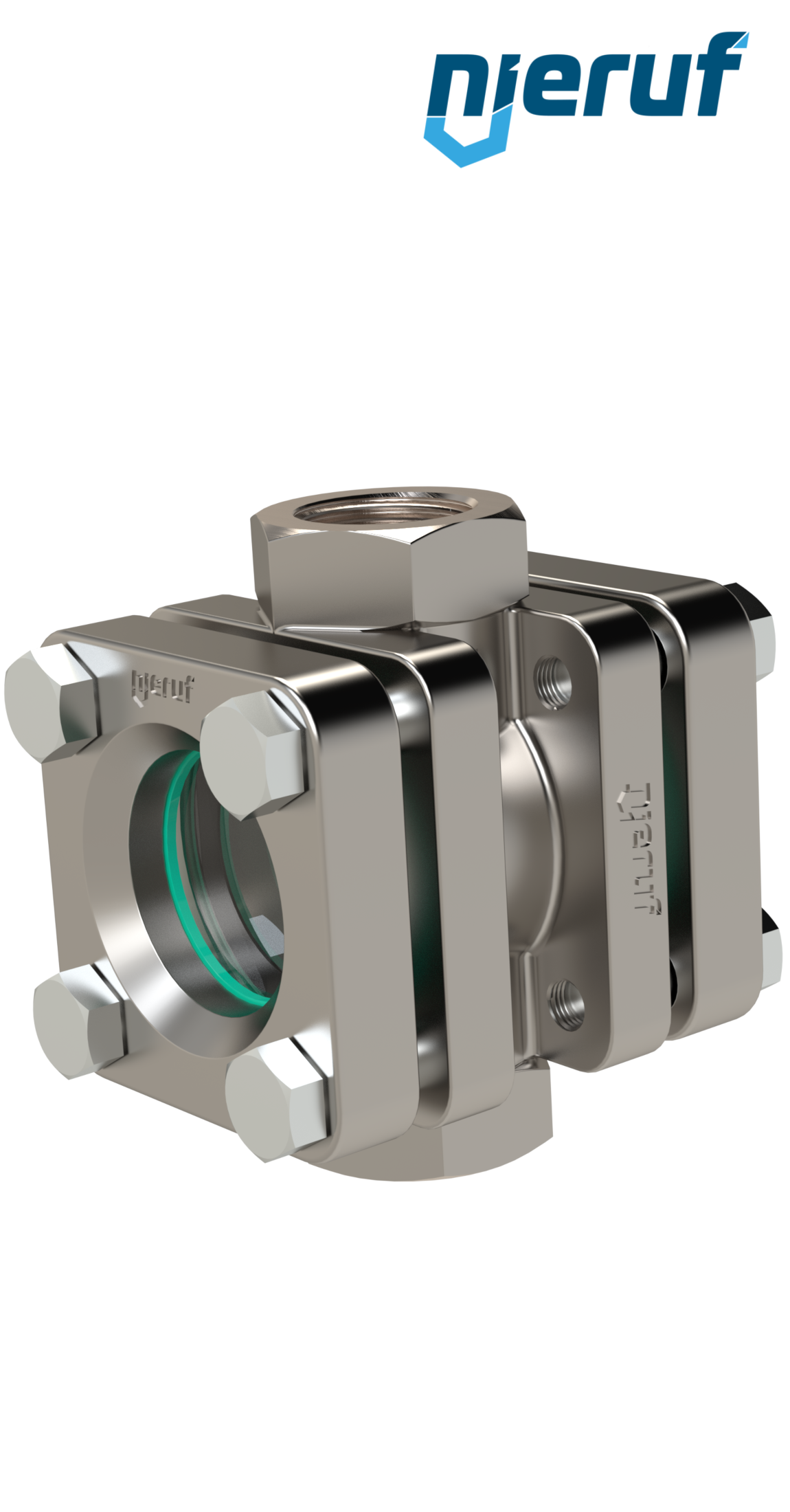

flow-through sight flow indicator G 1/2" Inch stainless steel soda lime glass
flow-through sight flow indicator DN15 - 1/2" Inch Typ GS03 stainless steel soda lime glass graphit max 40 bar
| product | flow-through sight flow indicator |
|---|---|
| type | GS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 1/2" Inch |
| connection | female thread BSP |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -60°C up to + 150°C |
| max. working pressure | 40 bar |
| installation position | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flow-through sight flow indicator G 1/2" Inch stainless steel soda lime glass
Article no.
: GS03010003
product:
flow-through sight flow indicator
type:
GS03
manufacturer:
NieRuf
design:
straightway form
diameter:
G 1/2" Inch
connection:
female thread BSP
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-60°C up to + 150°C
max. working pressure:
40 bar
installation position:
any position
