GS04020005
sight flow indicator DN25 - 1" Inch DIN 11851 stainless steel 1.4404 / AISI 316L
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 05. October
Guaranteed delivery until Tuesday, 06. October, 12 o'clock
Equipment
sight glass round SG01 Ø 63 x 10 mm round DIN 7080 - 16
€17.73 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

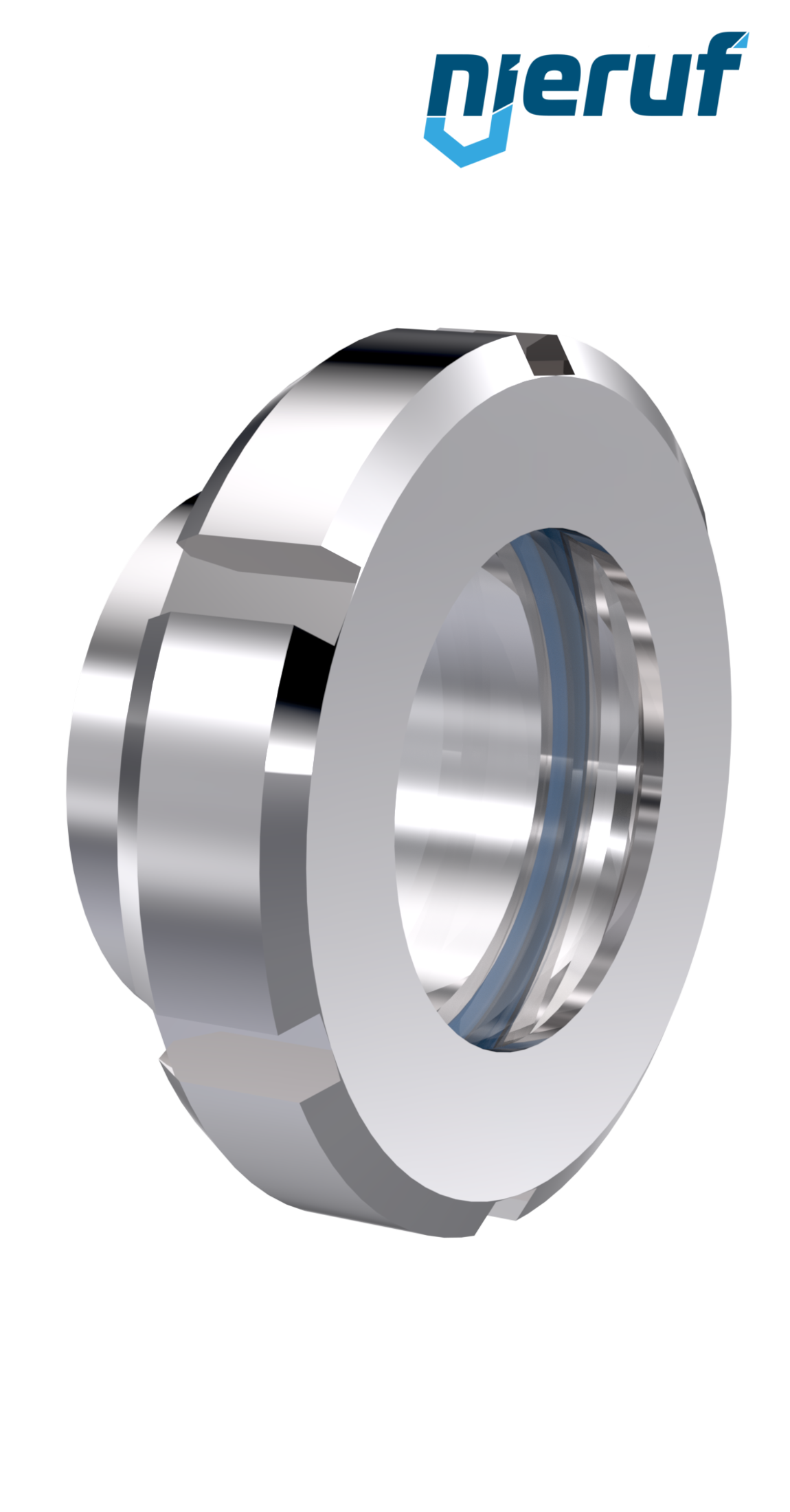

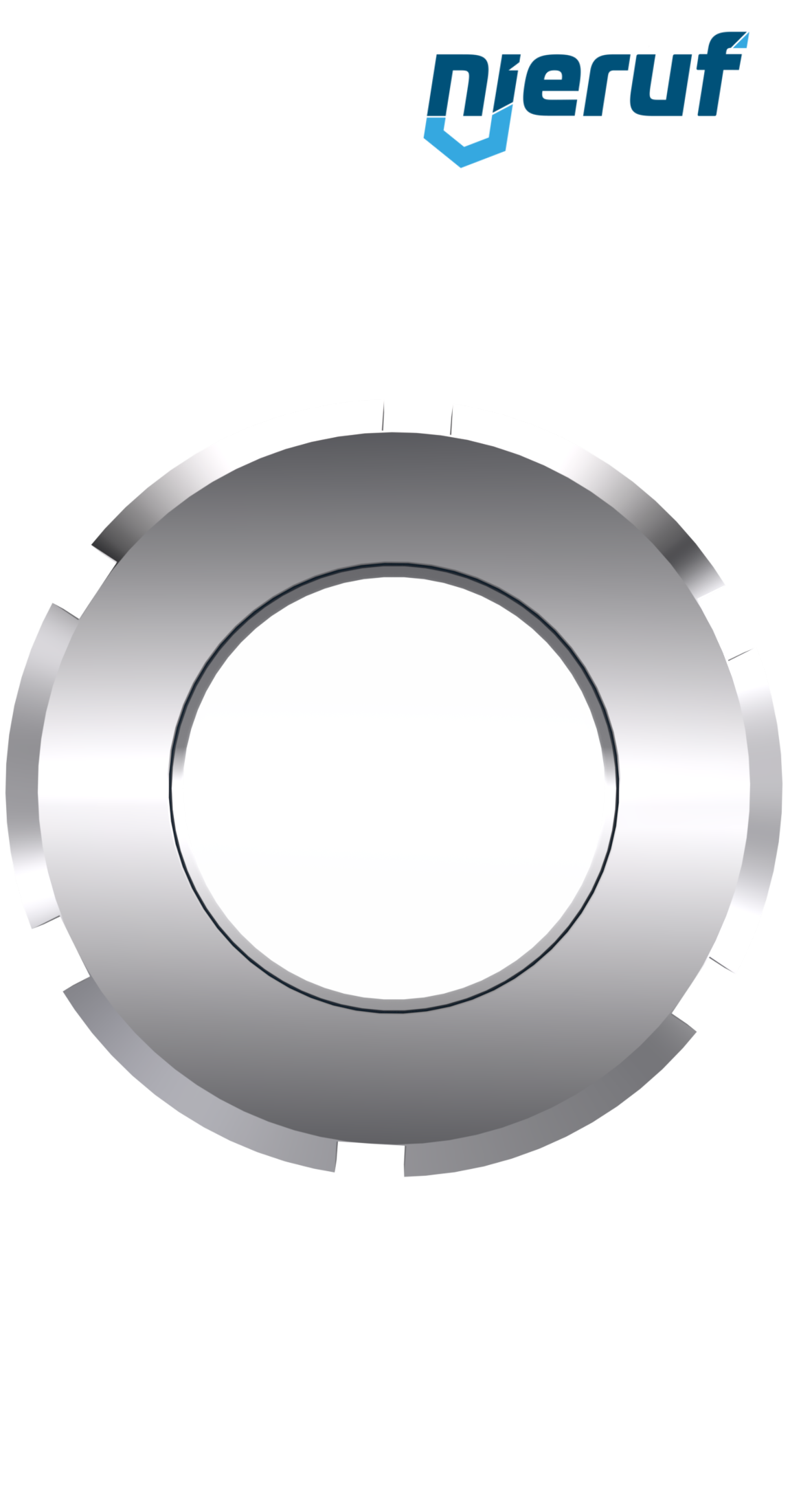

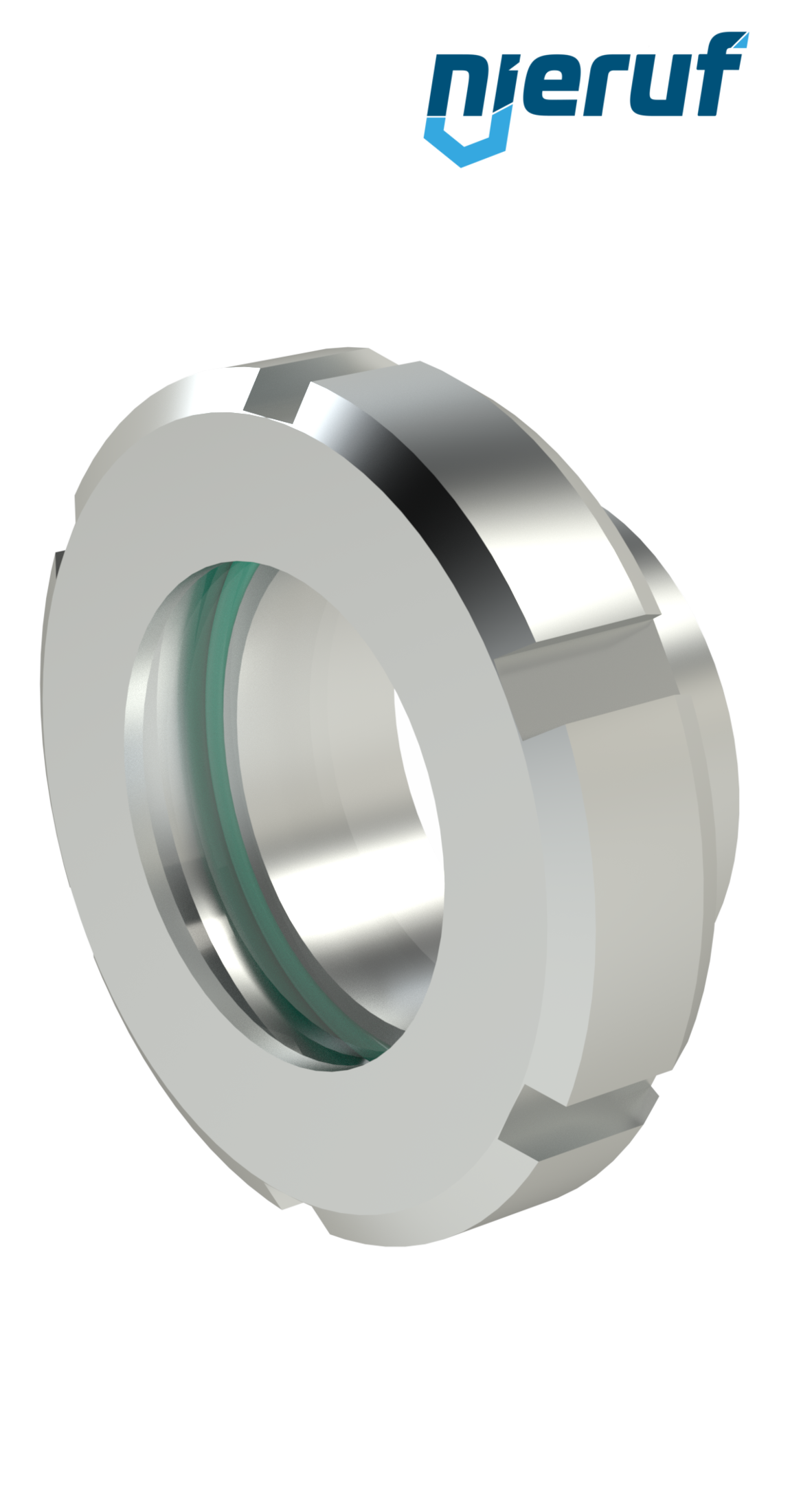

sight flow indicator DN25 - 1" Inch DIN 11851 stainless steel 1.4404 / AISI 316L
sight flow indicator DN25 - 1" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar
| product | sight flow indicator |
|---|---|
| type | GS04 |
| manufacturer | NieRuf |
| design | for welding |
| diameter | DN25 - 1" Inch |
| connection | to be welded directly to tank acc. DIN 11851 |
| body material | stainless steel 1.4404 / 316 L |
| glass | borosilicate glass |
| seal | NBR |
| media | liquid and gaseous media |
| temperature | 0°C up to + 80°C |
| max. working pressure | 10 bar |
| requirements | acc. similar DIN 11851 |
| installation position | any position |
| product feature II | Application in the food sector, dairy, breweries, beverage industry, and in the pharmaceutical and medical technology sector. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
sight flow indicator DN25 - 1" Inch DIN 11851 stainless steel 1.4404 / AISI 316L
Article no.
: GS04020005
product:
sight flow indicator
type:
GS04
manufacturer:
NieRuf
design:
for welding
diameter:
DN25 - 1" Inch
connection:
to be welded directly to tank acc. DIN 11851
body material:
stainless steel 1.4404 / 316 L
glass:
borosilicate glass
seal:
NBR
media:
liquid and gaseous media
temperature:
0°C up to + 80°C
max. working pressure:
10 bar
requirements:
acc. similar DIN 11851
installation position:
any position
product feature II:
Application in the food sector, dairy, breweries, beverage industry, and in the pharmaceutical and medical technology sector.
