SV10000208
safety valve 2" x 2" fm SV10 gaseous media, stainless steel FKM
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

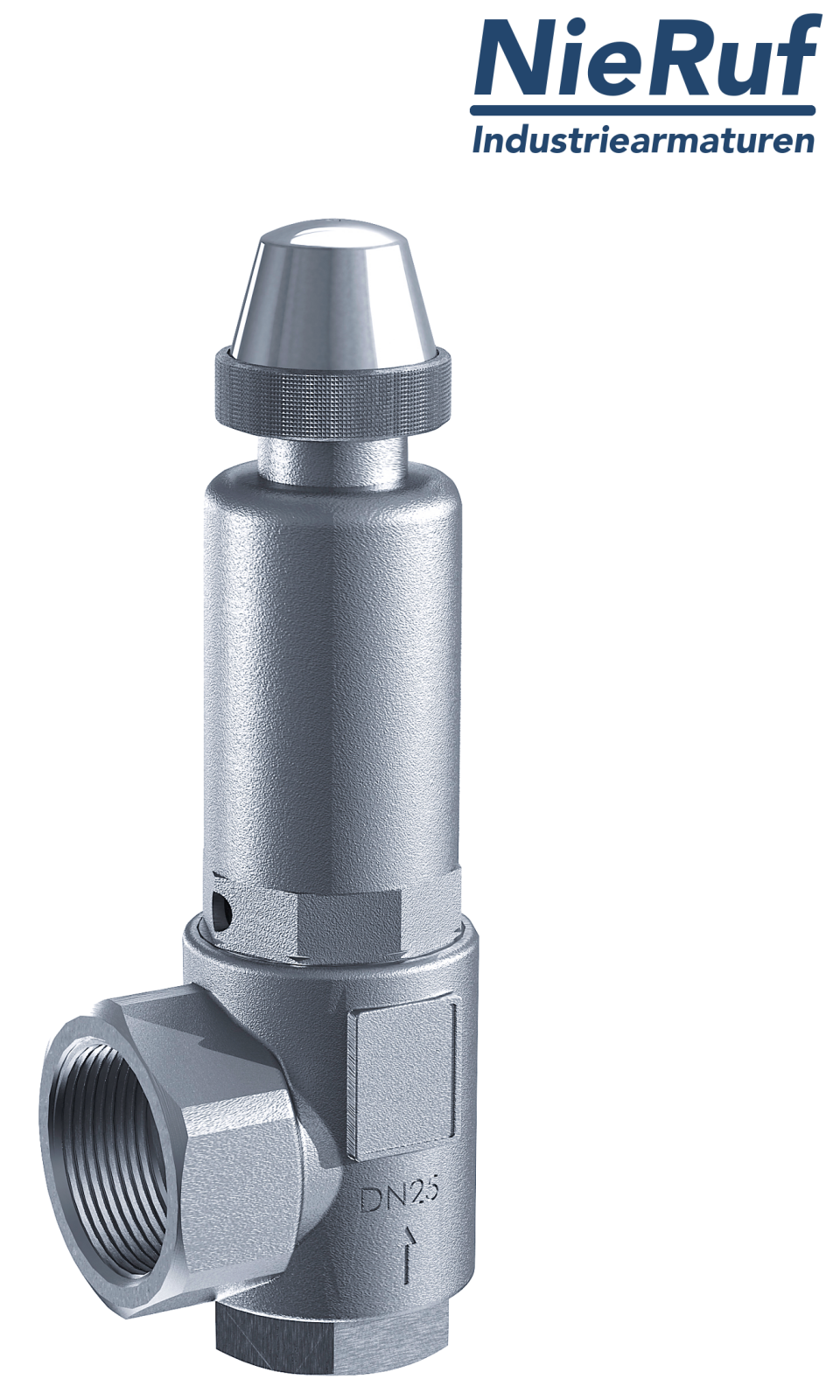

safety valve 2" x 2" fm SV10 gaseous media, stainless steel FKM
safety valve 2" mit with bellows SV10 for gaseous media made of stainless steel seal FKM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version twist-type lifting mechanism
| product | safety valve |
|---|---|
| type | SV10 |
| manufacturer | NieRuf |
| diameter | 2" x 2" fm |
| d0 | 30,3 mm |
| connection | Female screw threaded BSP-P |
| seal | FKM |
| media | gaseous media |
| temperature | -20°C up to +200°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | twist-type lifting mechanism |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 2" x 2" fm SV10 gaseous media, stainless steel FKM
Article no.
: SV10000208
product:
safety valve
type:
SV10
manufacturer:
NieRuf
diameter:
2" x 2" fm
d0:
30,3 mm
connection:
Female screw threaded BSP-P
seal:
FKM
media:
gaseous media
temperature:
-20°C up to +200°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
twist-type lifting mechanism
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
