SV09000305
safety valve 1" x 1 1/2" fm SV09 neutral gaseous media, stainless steel PTFE
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

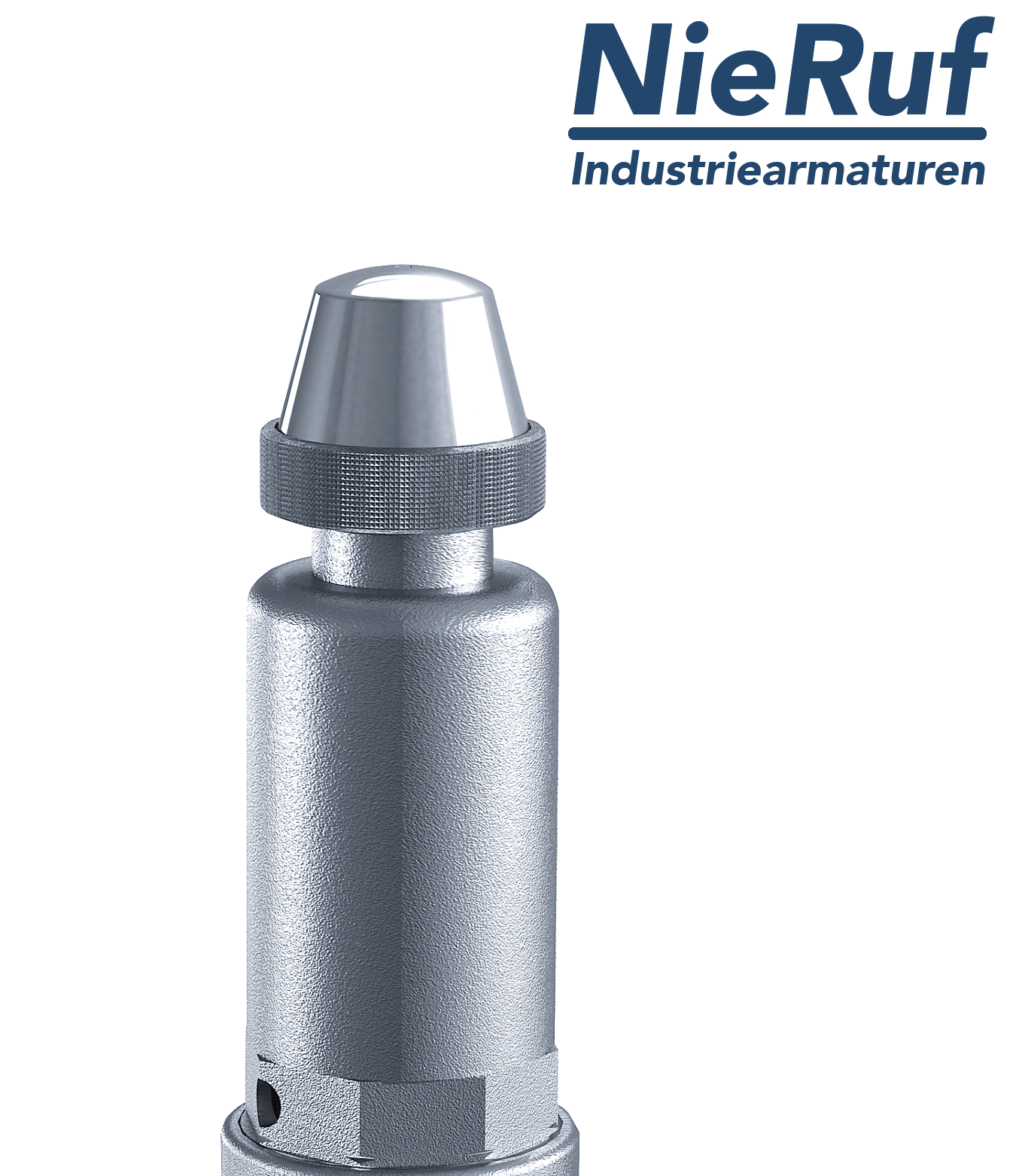

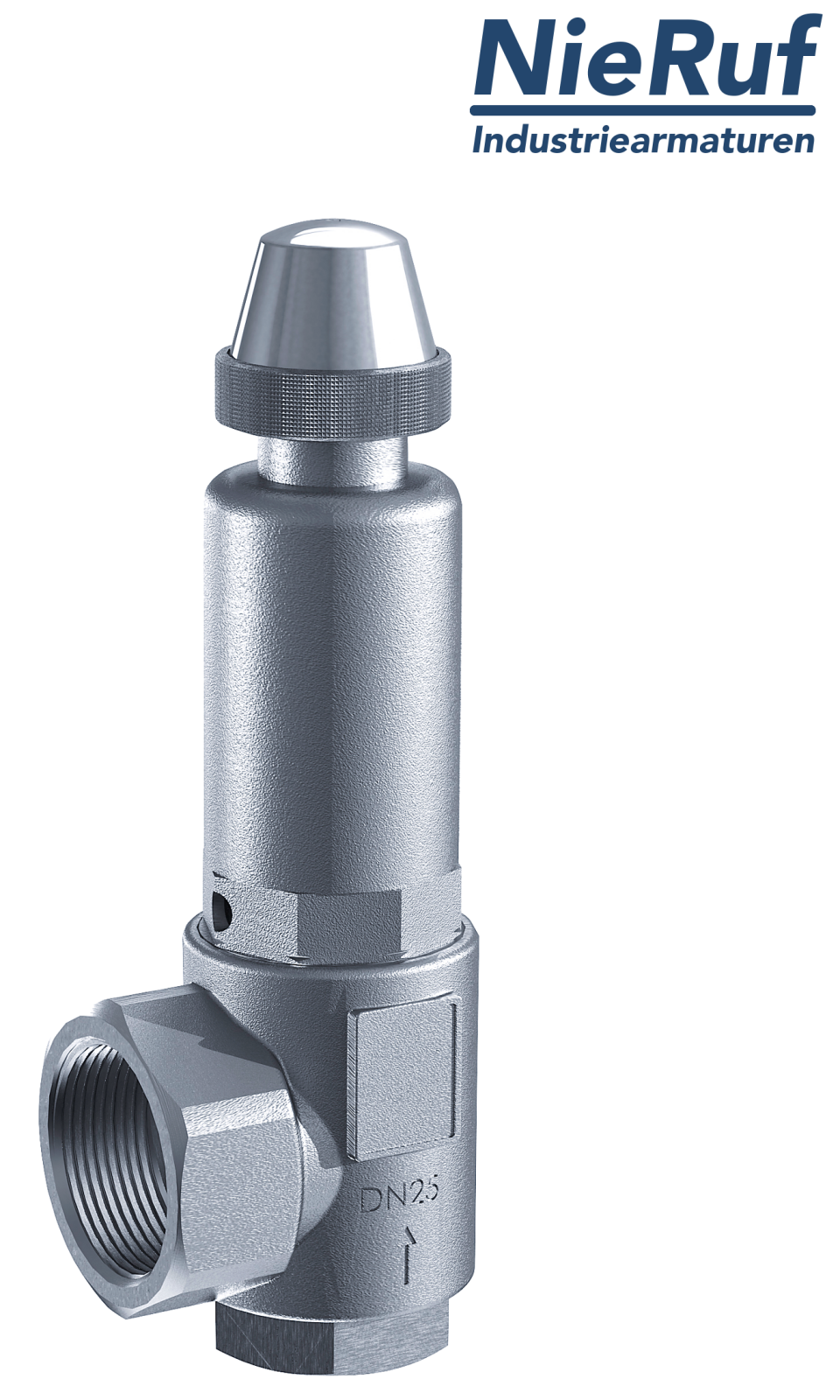

safety valve 1" x 1 1/2" fm SV09 neutral gaseous media, stainless steel PTFE
safety valve 1" x 1 1/2" fm set pressure 0,5 - 70,0 bar for neutral gaseous media made of stainless steel seal PTFE with an twist-type lifting mechanism
| product | safety valve |
|---|---|
| type | SV09 |
| manufacturer | NieRuf |
| diameter | 1" x 1 1/2" fm |
| d0 | 23,0 mm |
| connection | Female screw threaded BSP-P |
| seal | PTFE |
| media | neutral gaseous media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 70,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | twist-type lifting mechanism |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" x 1 1/2" fm SV09 neutral gaseous media, stainless steel PTFE
Article no.
: SV09000305
product:
safety valve
type:
SV09
manufacturer:
NieRuf
diameter:
1" x 1 1/2" fm
d0:
23,0 mm
connection:
Female screw threaded BSP-P
seal:
PTFE
media:
neutral gaseous media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 70,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
twist-type lifting mechanism
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
Equipment
hexagon nipple 1 1/2" inch male stainless steel 316
Lead time: in stock
pipe bend (welded) 90° 33,7 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
