SV01000305
safety valve 1" m SV01 for compressed air PTFE brass set pressure 25.1 - 50.0 bar
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

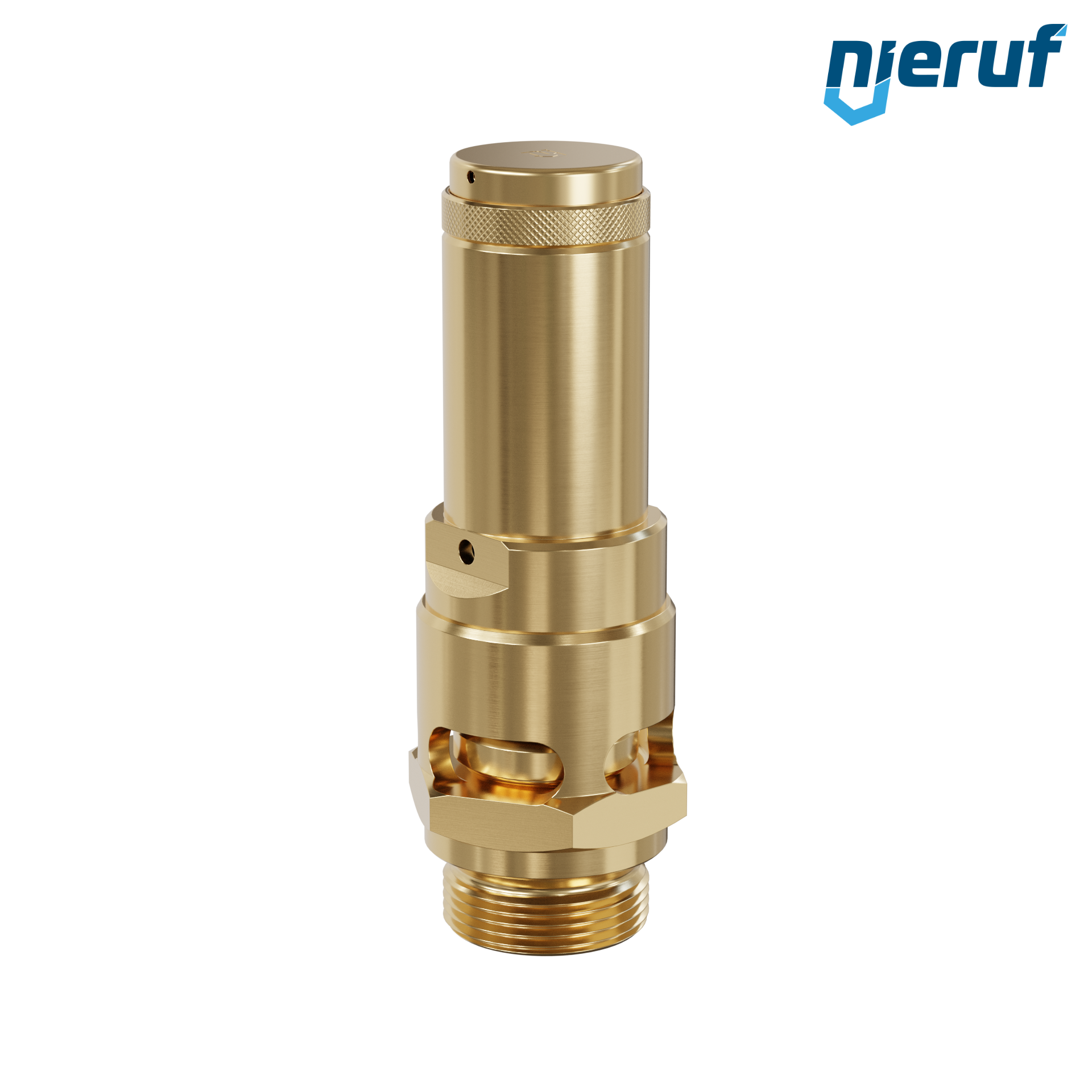

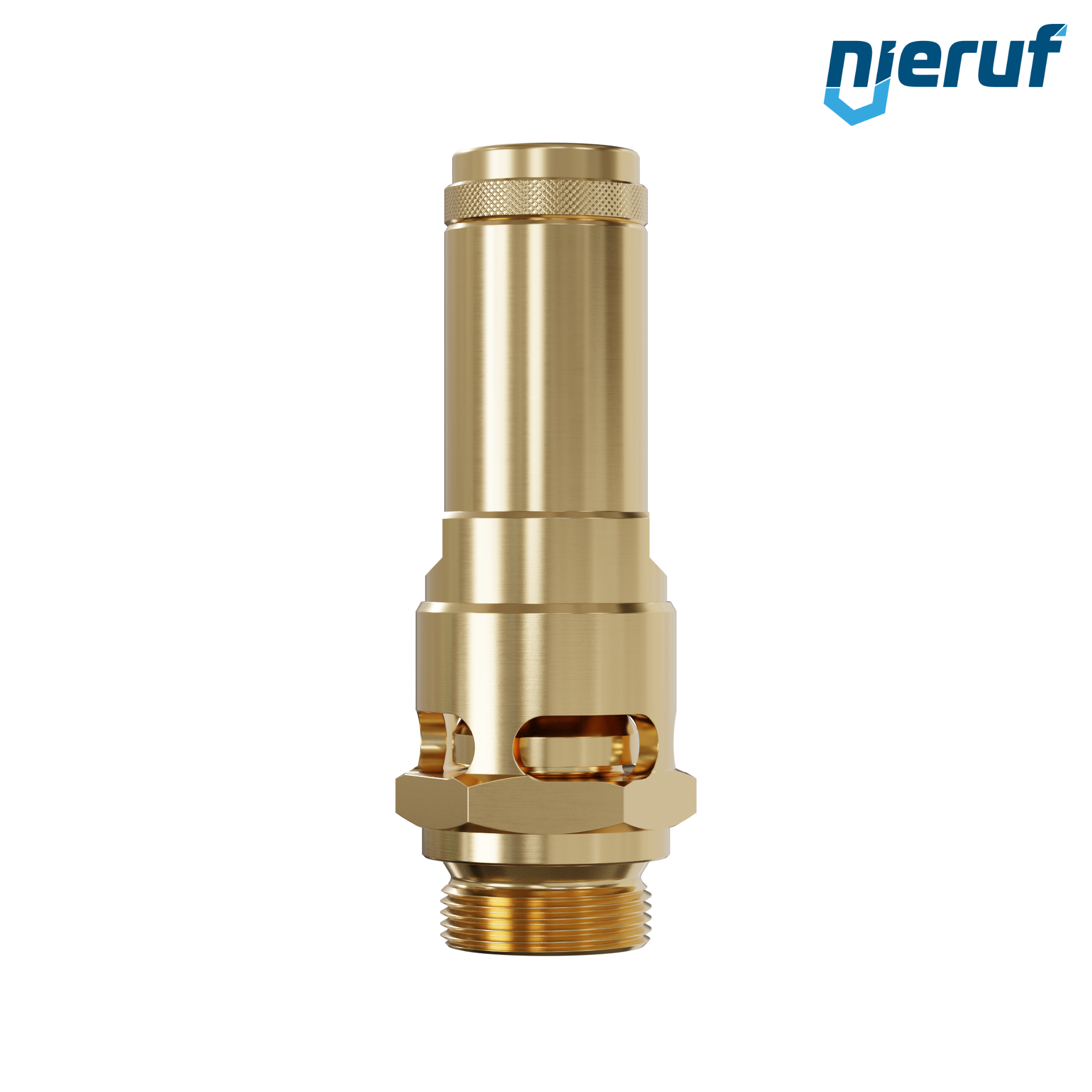

safety valve 1" m SV01 for compressed air PTFE brass set pressure 25.1 - 50.0 bar
safety valve 1" m type SV01 atmospheric discharge for compressed air & pneumatic applications, made of brass with PTFE seal, set pressure 25.1 - 50.0 bar
| Product | safety valve |
|---|---|
| Type | SV01 |
| Manufacturer | NieRuf |
| Diameter | 1" m |
| D0 | 20.0 mm |
| Connection | male screw threaded BSP-P |
| Seal | PTFE |
| Media | neutral gaseous media |
| Temperature | -60°C to +225°C |
| Set pressure | 25.1 - 50.0 bar |
| Design | atmospheric discharge |
| Material | brass CW617N |
| Lifting | twist-type lifting mechanism |
| Type test approval | TÜV = D/G 2055 / EU type examination = S/G |
| Requirements | acc. EN ISO 4126-1, AD2000-A2 |
| Installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| SIL - safety integrity level | SIL 3 (on request) |
| Product feature 1 | for compressed air & pneumatic applications |
| Product feature 2 | cylindrical form, atmospheric discharge, for air and similar neutral, non-toxic and non-flammable gases that can be freely discharged into the atmosphere. Ideal for pneumatic applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" m SV01 for compressed air PTFE brass set pressure 25.1 - 50.0 bar
Article no.
: SV01000305
Product:
safety valve
Type:
SV01
Manufacturer:
NieRuf
Diameter:
1" m
D0:
20.0 mm
Connection:
male screw threaded BSP-P
Seal:
PTFE
Media:
neutral gaseous media
Temperature:
-60°C to +225°C
Set pressure:
25.1 - 50.0 bar
Design:
atmospheric discharge
Material:
brass CW617N
Lifting:
twist-type lifting mechanism
Type test approval:
TÜV = D/G 2055 / EU type examination = S/G
Requirements:
acc. EN ISO 4126-1, AD2000-A2
Installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3 (on request)
Product feature 1:
for compressed air & pneumatic applications
Product feature 2:
cylindrical form, atmospheric discharge, for air and similar neutral, non-toxic and non-flammable gases that can be freely discharged into the atmosphere. Ideal for pneumatic applications.
