SV02000001
safety valve 1/4" SV02 for compressed air, stainless steel FKM set pressure 0.2 - 25.0 bar
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?

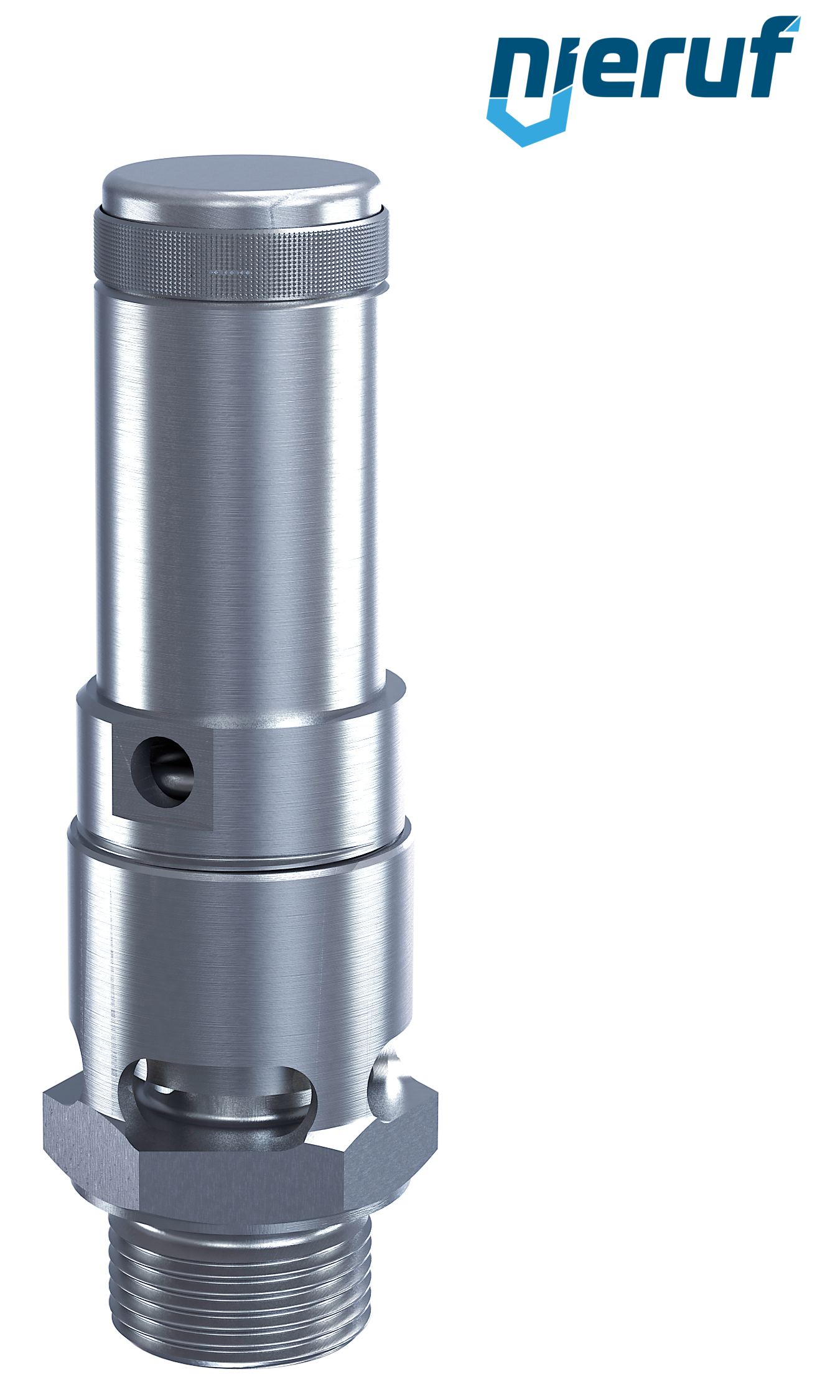

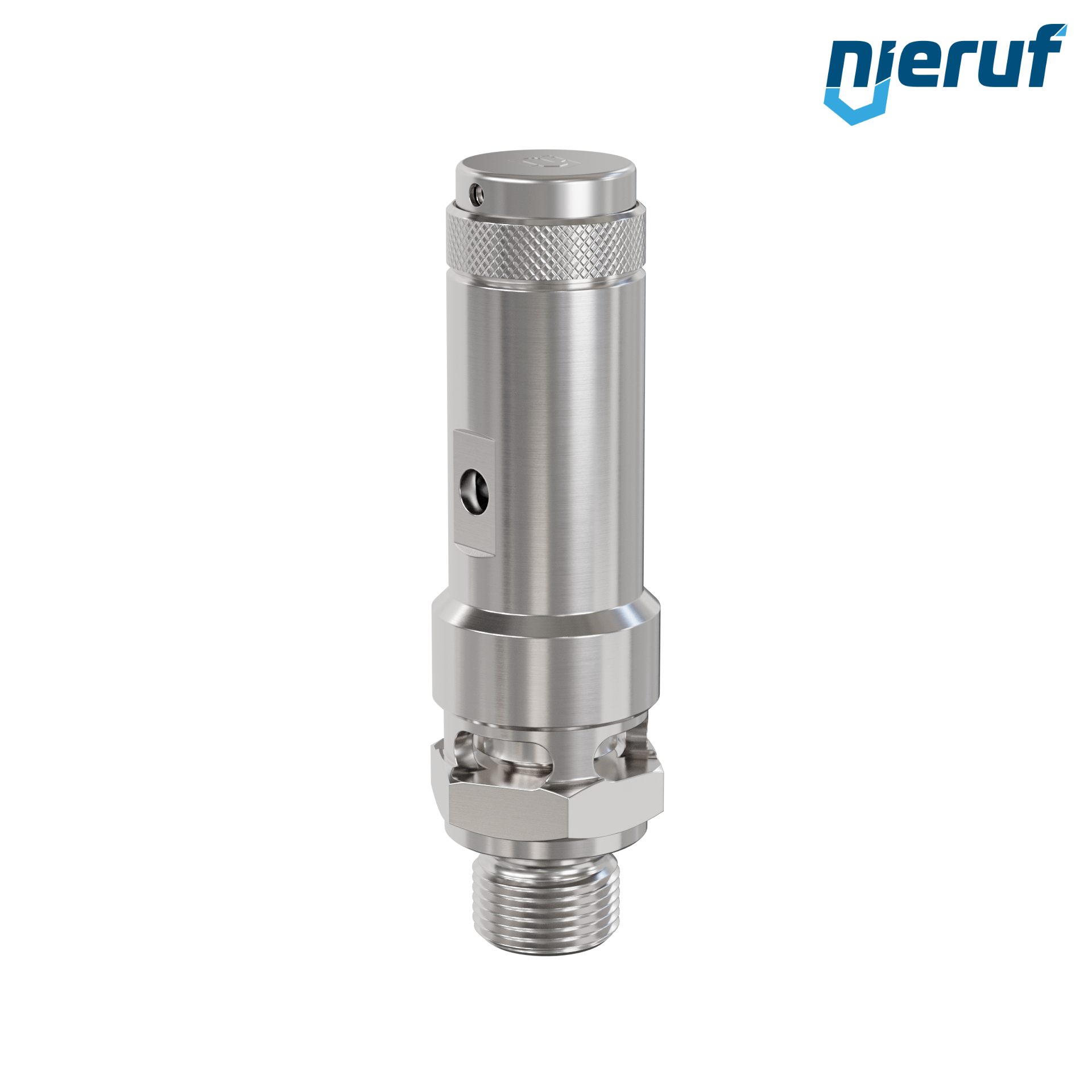

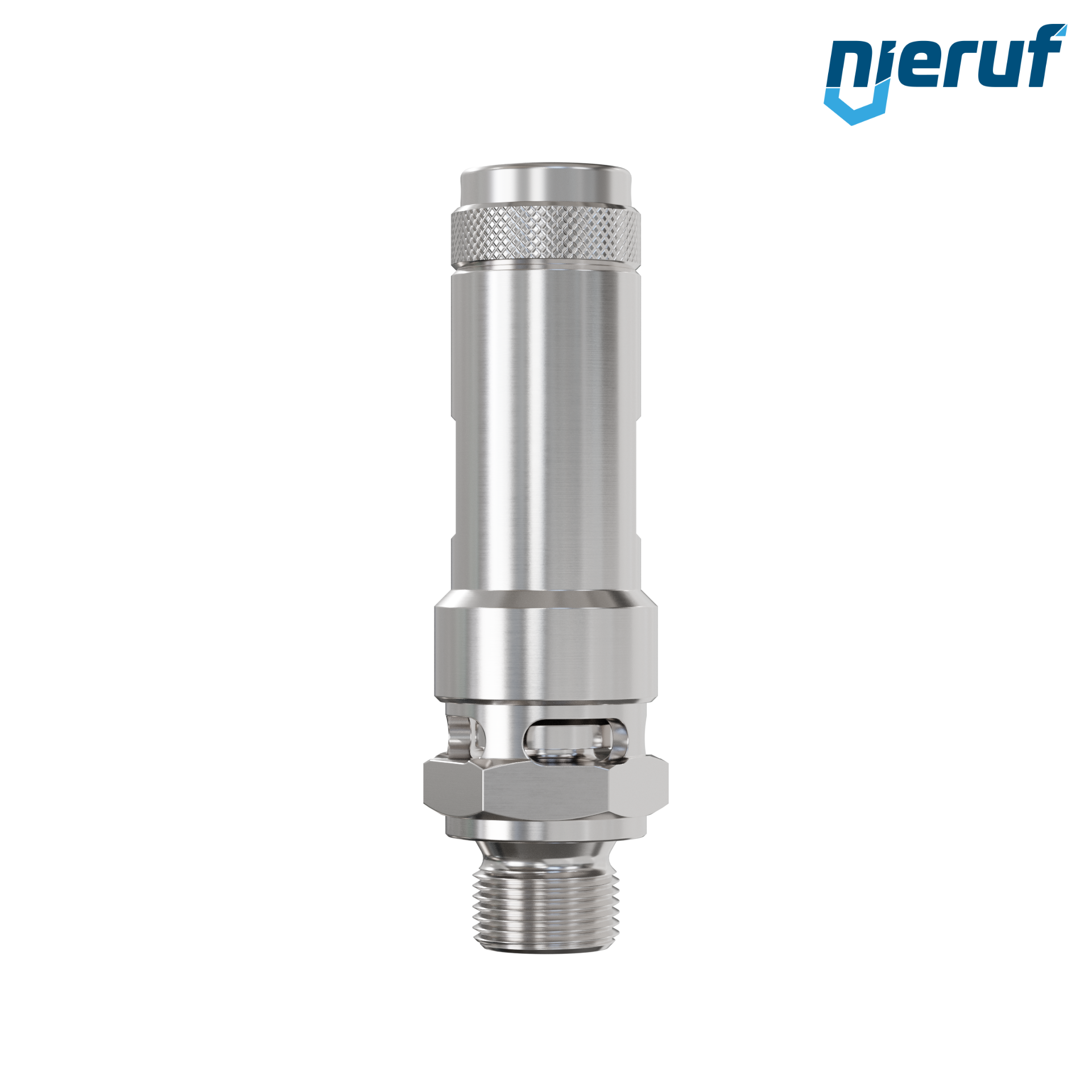

safety valve 1/4" m Typ SV02 atmospheric discharge for compressed air & pneumatic applications, made of stainless steel with an FKM seal, set pressure 0.2 - 25.0 bar- higher pressures possible in PTFE version
| Product | safety valve |
|---|---|
| Type | SV02 |
| Manufacturer | NieRuf |
| Diameter | 1/4" m |
| D0 | 7.5 mm |
| Connection | male screw threaded BSP-P |
| Seal | FKM |
| Media | neutral gaseous media |
| Temperature | -20°C to +200°C |
| Set pressure | 0.2 - 25.0 bar- higher pressures possible in PTFE version |
| Design | atmospheric discharge |
| Material | stainless steel 1.4404 |
| Lifting | twist-type lifting mechanism |
| Type test approval | TUV = D/G 2055 / EG = S/G |
| Requirements | acc. EN ISO 4126-1, AD2000-A2 |
| Installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| SIL - safety integrity level | SIL 3 (on request) |
| Product feature 1 | for compressed air & pneumatic applications |
| Product feature 2 | cylindrical form, atmospheric discharge, for air and similar neutral, non-toxic and non-flammable gases that can be freely discharged into the atmosphere. Ideal for pneumatic applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1/4" SV02 for compressed air, stainless steel FKM set pressure 0.2 - 25.0 bar
Article no.
: SV02000001
Product:
safety valve
Type:
SV02
Manufacturer:
NieRuf
Diameter:
1/4" m
D0:
7.5 mm
Connection:
male screw threaded BSP-P
Seal:
FKM
Media:
neutral gaseous media
Temperature:
-20°C to +200°C
Set pressure:
0.2 - 25.0 bar- higher pressures possible in PTFE version
Design:
atmospheric discharge
Material:
stainless steel 1.4404
Lifting:
twist-type lifting mechanism
Type test approval:
TUV = D/G 2055 / EG = S/G
Requirements:
acc. EN ISO 4126-1, AD2000-A2
Installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3 (on request)
Product feature 1:
for compressed air & pneumatic applications
Product feature 2:
cylindrical form, atmospheric discharge, for air and similar neutral, non-toxic and non-flammable gases that can be freely discharged into the atmosphere. Ideal for pneumatic applications.
