DM07020003

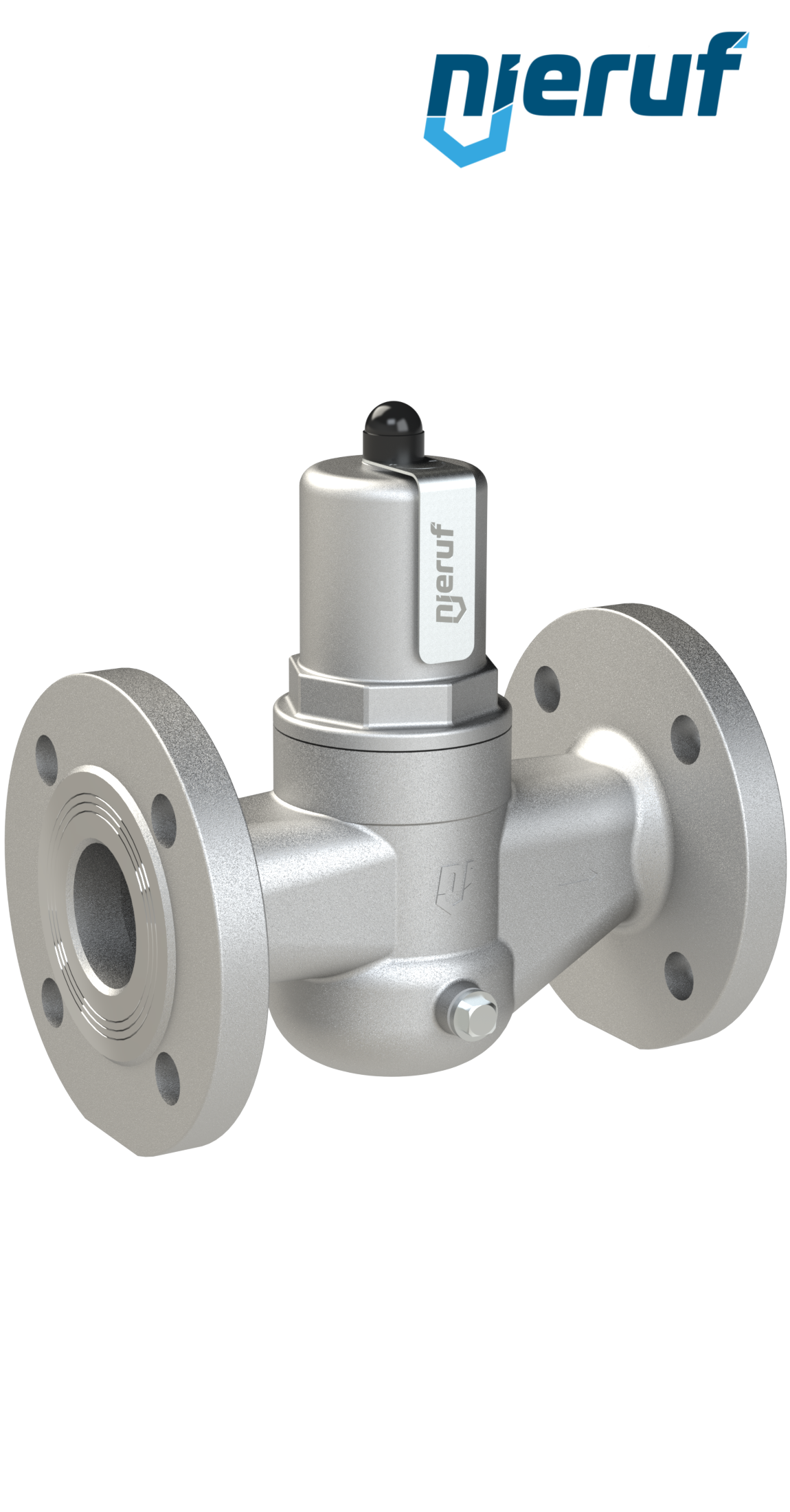

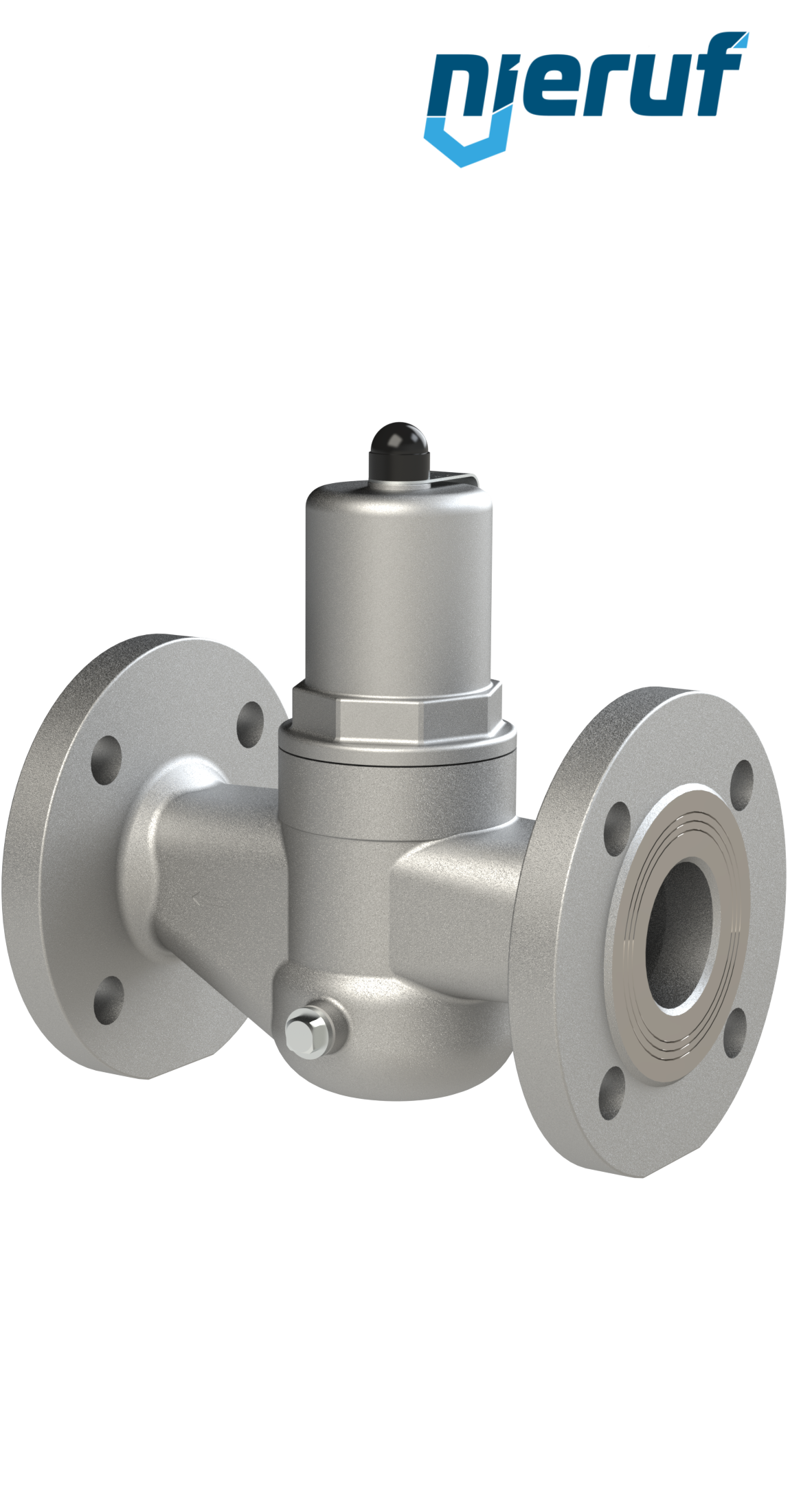

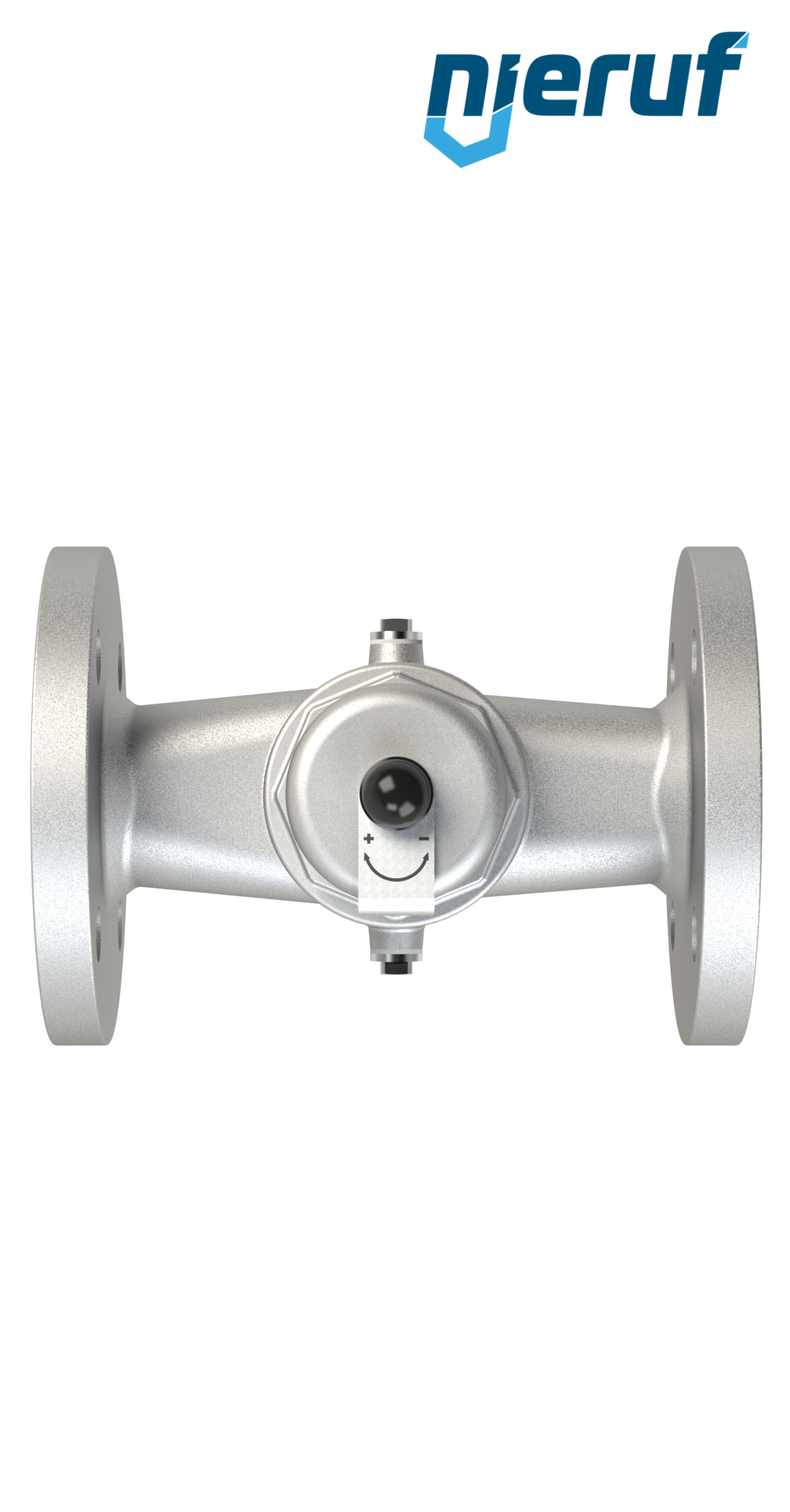

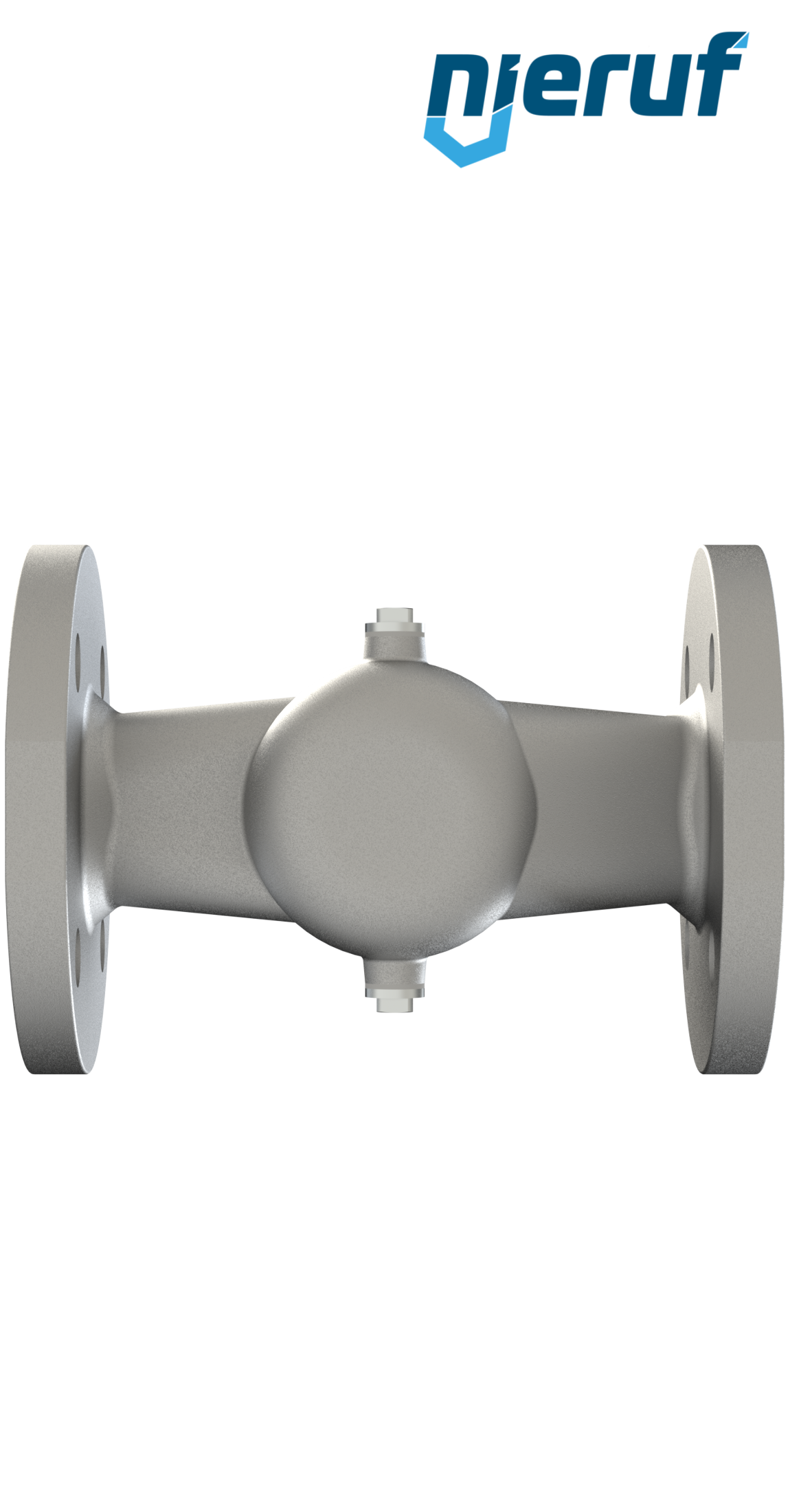

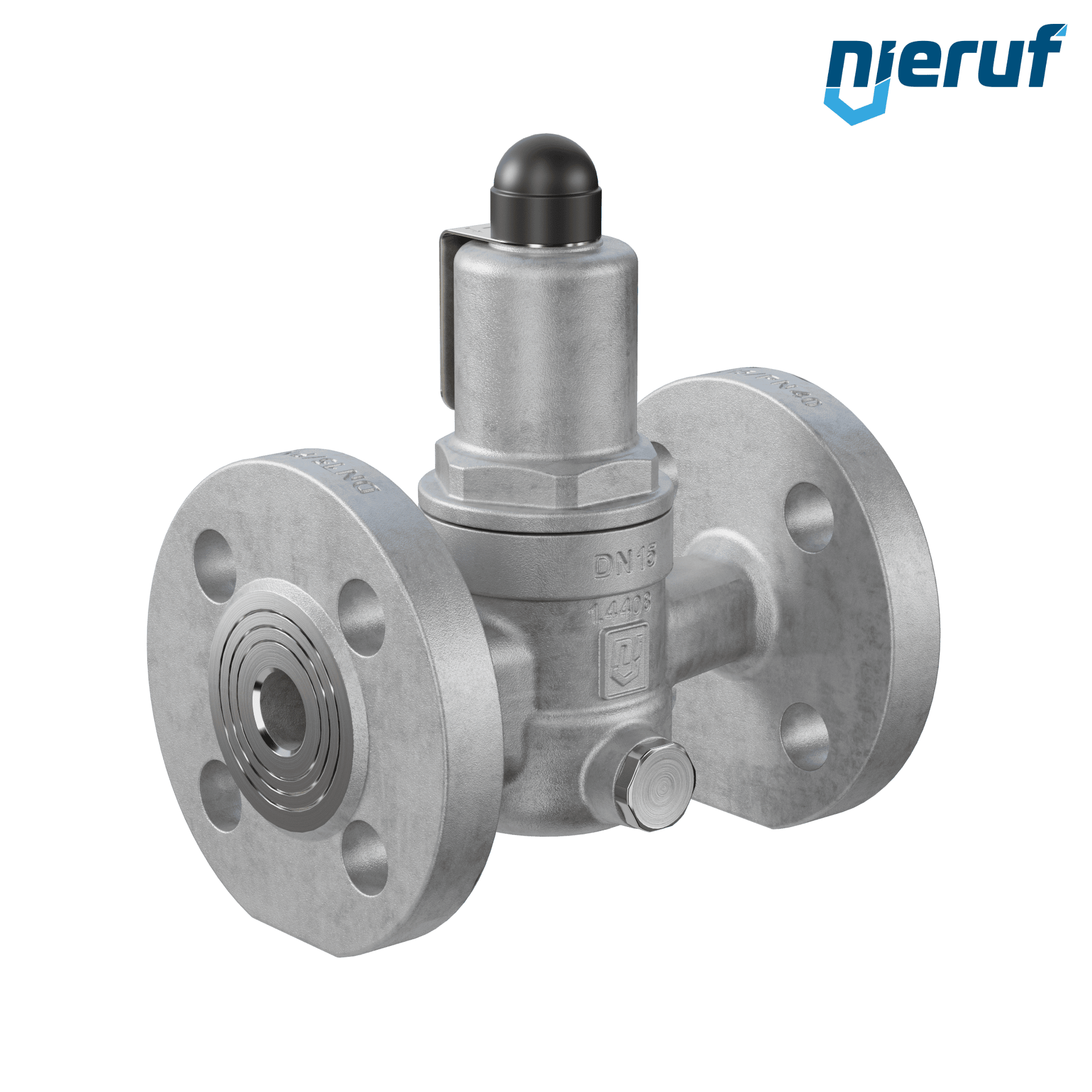

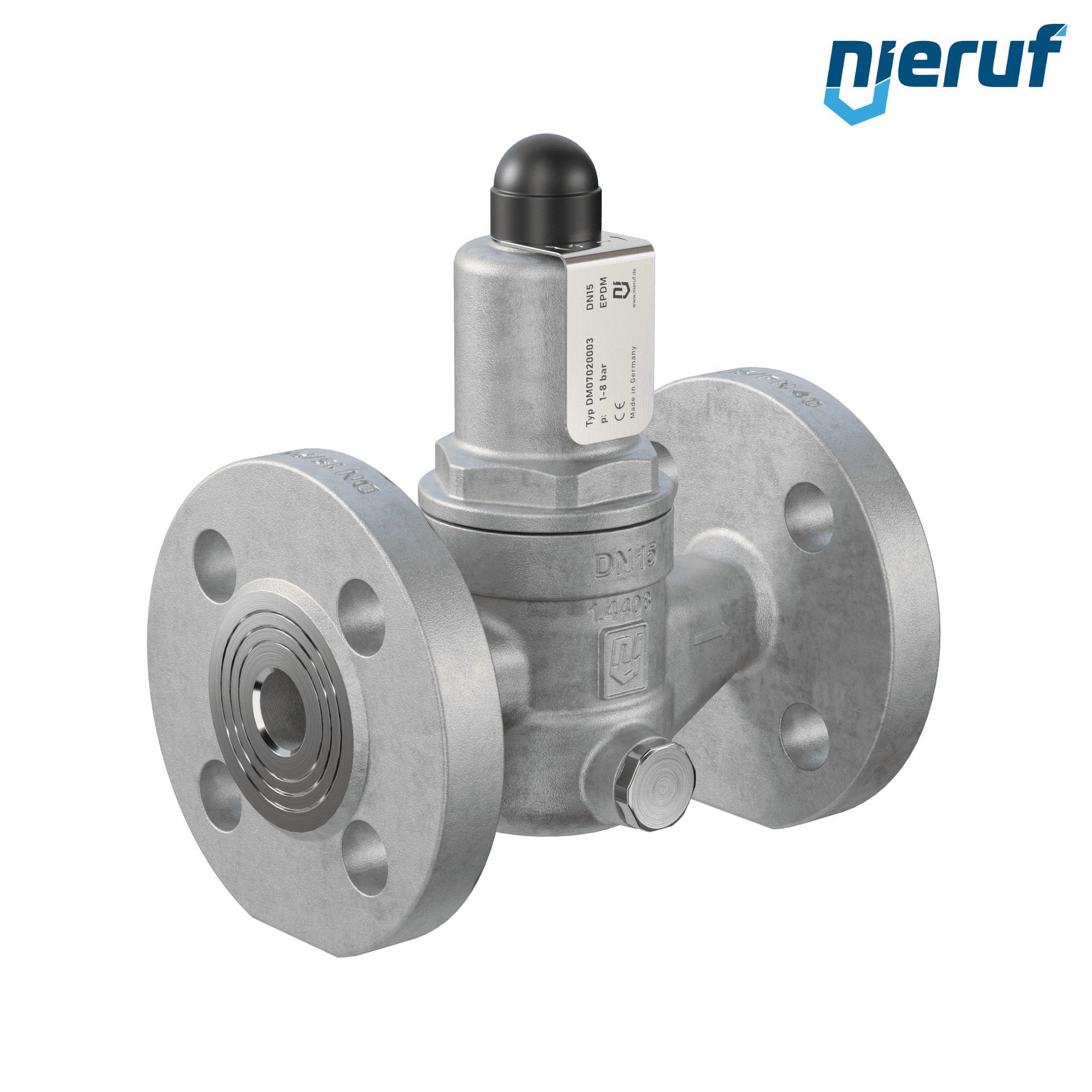

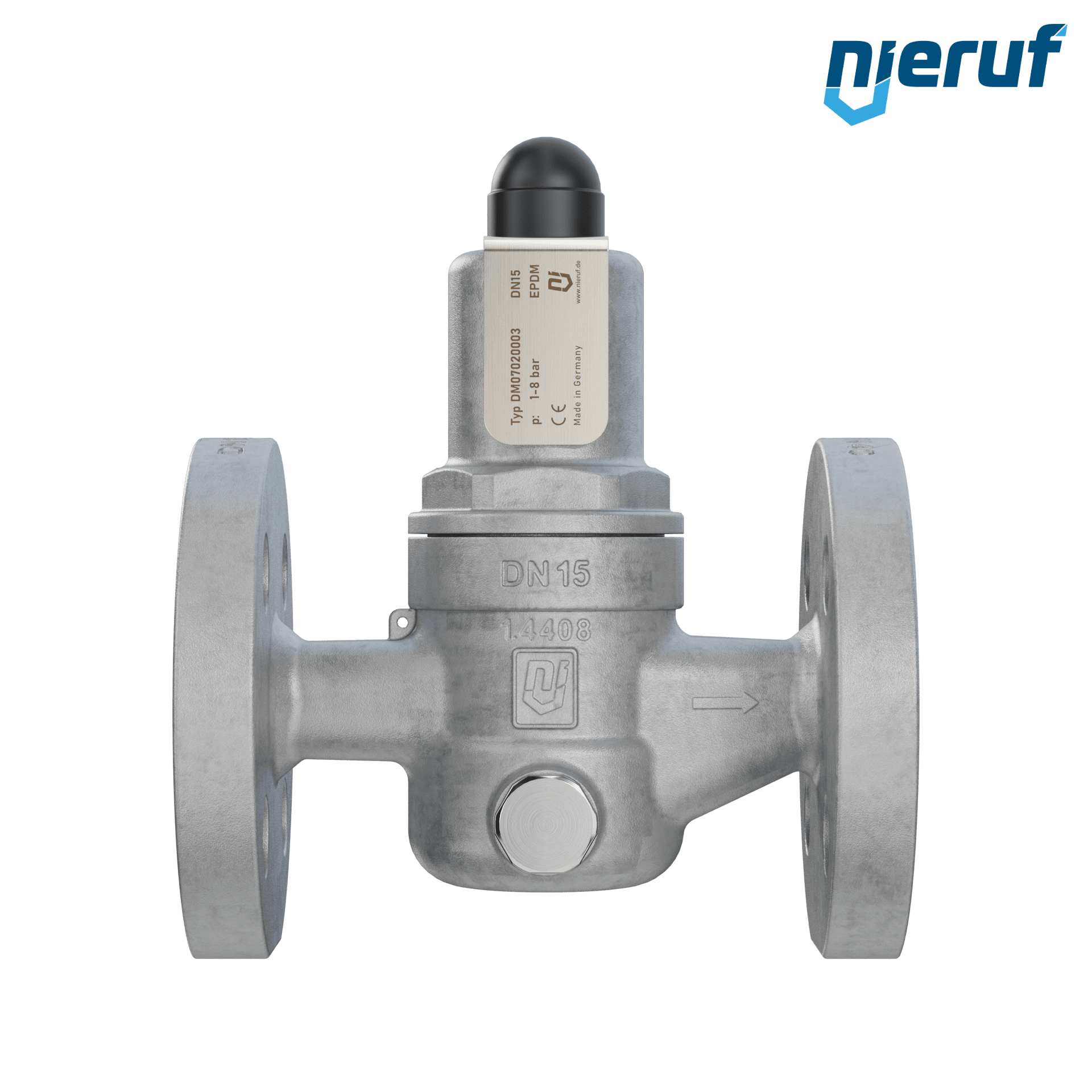

Flange-pressure reducing valve DN 15 PN40 DM07 stainless steel EPDM 1.0 - 8.0 bar
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
Delivery time: in stock
Express delivery*:
€4.76 VAT included.
Welding neck flange DN15 PN10/16/25/40 EN1092-1 11 B1 1.4541
Delivery time: in stock
Express delivery*:
€18.80 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
Delivery time: in stock
Express delivery*:
€1.90 VAT included.
pressure gauge 0 - 10,0 bar G 1/4" axial 50 mm stainless steel MM05
Delivery time: in stock
Express delivery*:
€101.27 VAT included.
Alternative

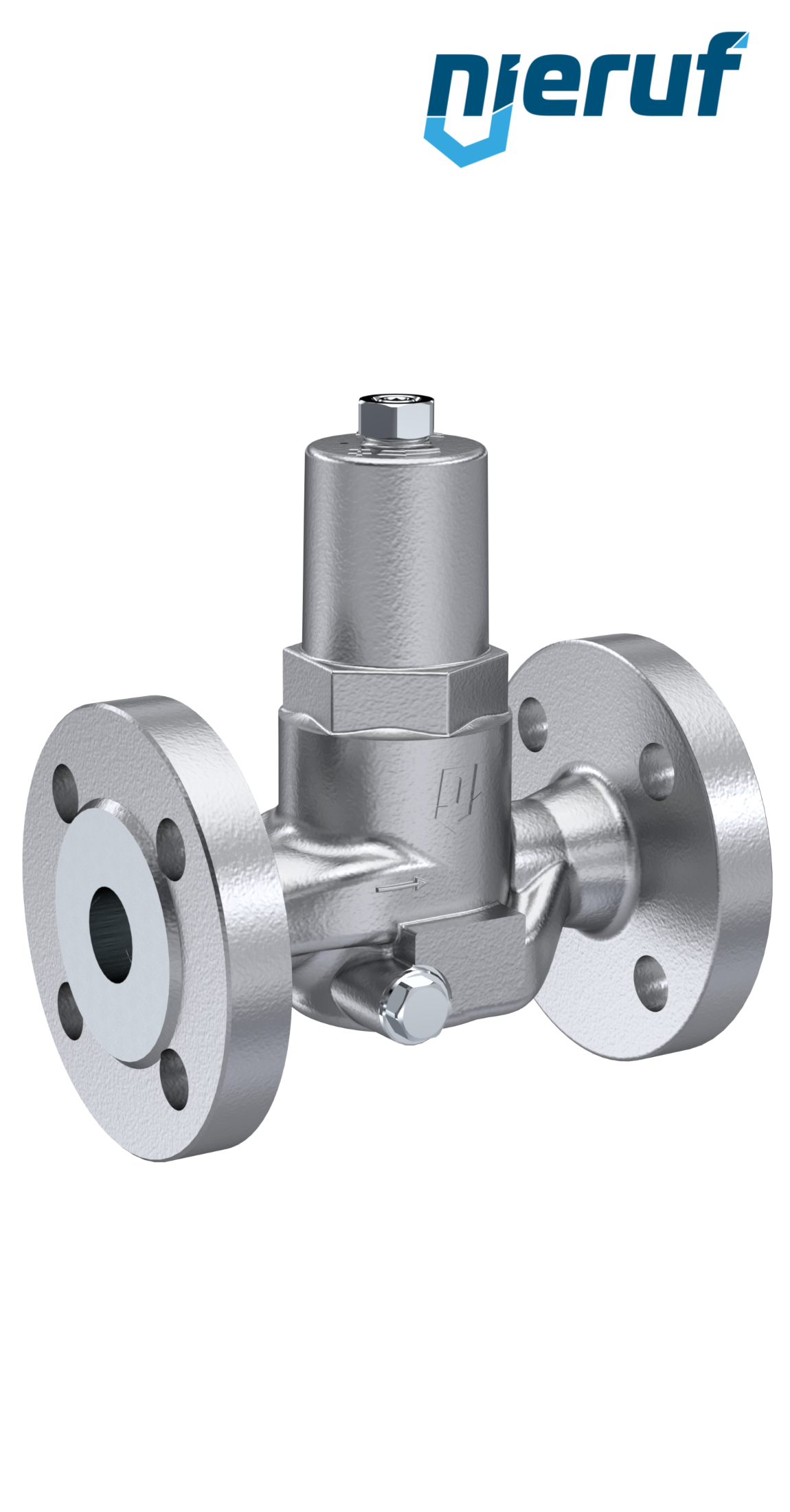

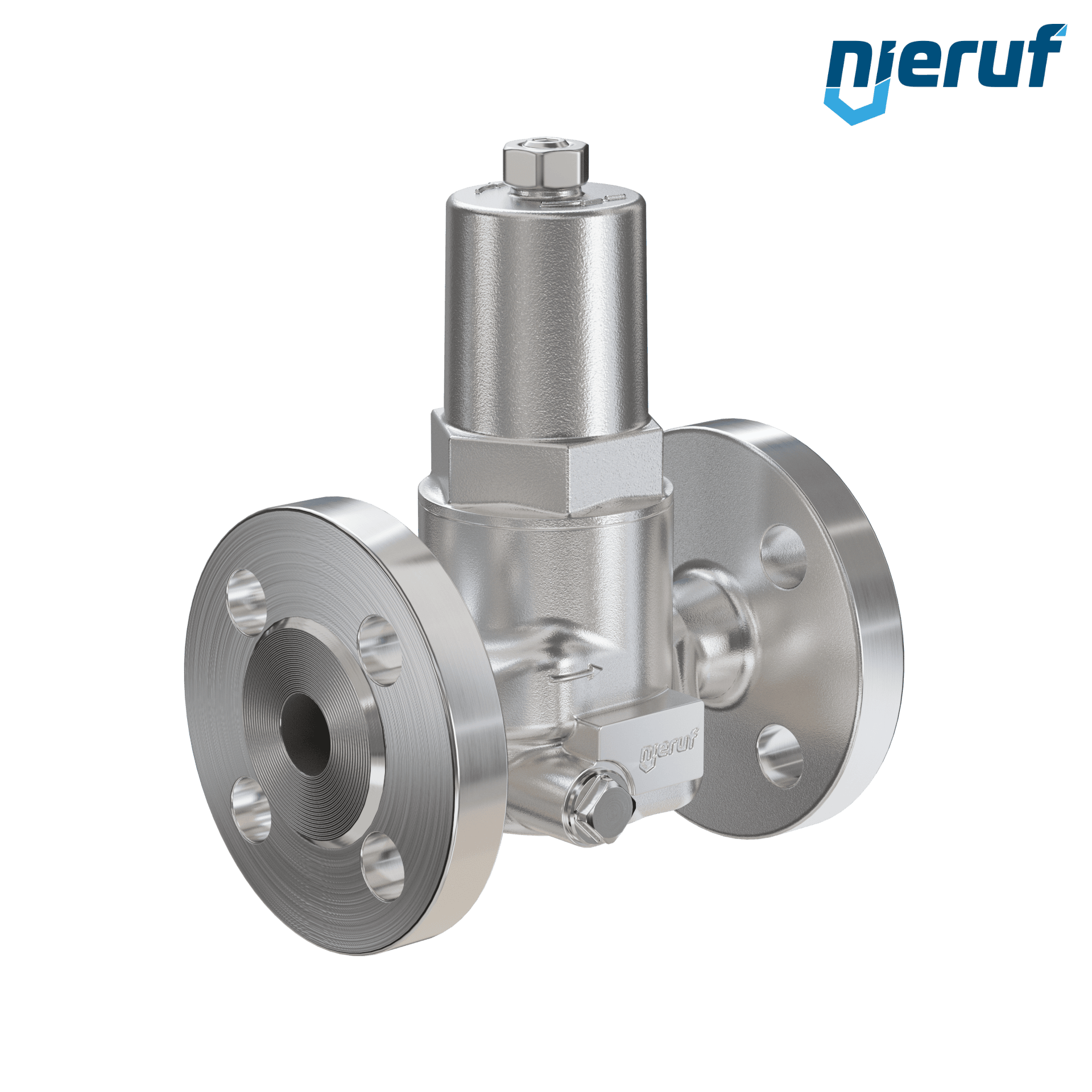

pressure reducing valve DN 15 DM20 stainless steel EPDM 0.5 - 9.0 bar
Delivery time: in stock
Express delivery*:
€913.44 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Flange-pressure reducing valve DN 15 PN40 flange acc. DIN EN 1092 made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
product: | Flange-pressure reducing valve |
---|---|
type: | DM07 |
manufacturer: | NieRuf |
diameter: | DN 15 PN40 |
connection: | flange acc. DIN EN 1092 |
material: | stainless steel |
seal: | EPDM |
media: | liquid and gaseous media (no steam) |
temperature: | -20°C up to +120°C |
range of adjustment: | 1.0 - 8.0 bar |
max. inlet pressure: | 40 bar |
design: | straightway form |
installation position: | any position |
SIL - safety integrity level: | SIL 2 |
product feature: | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-pressure reducing valve DN 15 PN40 DM07 stainless steel EPDM 1.0 - 8.0 bar
Article no.
: DM07020003
product:
Flange-pressure reducing valve
type:
DM07
manufacturer:
NieRuf
diameter:
DN 15 PN40
connection:
flange acc. DIN EN 1092
material:
stainless steel
seal:
EPDM
media:
liquid and gaseous media (no steam)
temperature:
-20°C up to +120°C
range of adjustment:
1.0 - 8.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.
