DM06030011
pressure reducing valve DN 100 PN16 DM06 gunmetal/brass FKM 5.0 - 13.0 bar
- Lead time
- 3 - 5 working days
Equipment
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 16,0 bar
€12.61 VAT included.
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€40.70 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€15.23 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

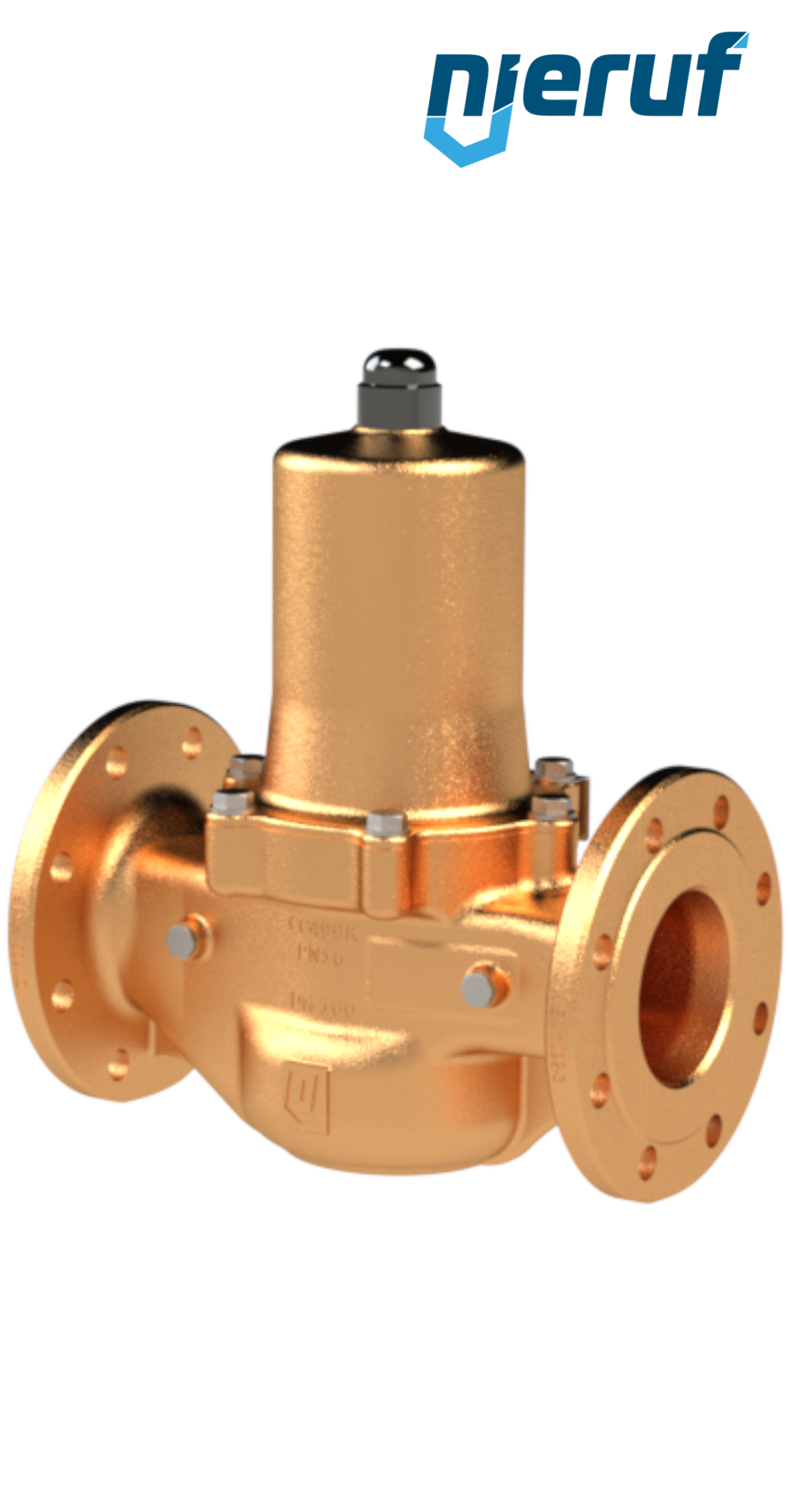

pressure reducing valve DN 100 PN16 DM06 gunmetal/brass FKM 5.0 - 13.0 bar
pressure reducing valve DN 100 PN16 flange acc. DIN EN 1092 made of gunmetal/brass seal FKM for liquid and gaseous media (no steam), set pressure 5.0 - 13.0 bar
| product | pressure reducing valve |
|---|---|
| type | DM06 |
| manufacturer | NieRuf |
| diameter | DN 100 PN16 |
| connection | flange acc. DIN EN 1092 |
| material | gunmetal/brass |
| seal | FKM |
| media | liquid and gaseous media (no steam) |
| temperature | -10°C up to +120°C (back pressure starting 8 bar max. +95°C) |
| range of adjustment | 5.0 - 13.0 bar |
| max. inlet pressure | 16 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | High-quality pressure reducing valve with Stainless steel piston. Adjustment by means of non-rising spindle. Balanced single seat valve |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure reducing valve DN 100 PN16 DM06 gunmetal/brass FKM 5.0 - 13.0 bar
Article no.
: DM06030011
product:
pressure reducing valve
type:
DM06
manufacturer:
NieRuf
diameter:
DN 100 PN16
connection:
flange acc. DIN EN 1092
material:
gunmetal/brass
seal:
FKM
media:
liquid and gaseous media (no steam)
temperature:
-10°C up to +120°C (back pressure starting 8 bar max. +95°C)
range of adjustment:
5.0 - 13.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality pressure reducing valve with Stainless steel piston. Adjustment by means of non-rising spindle. Balanced single seat valve
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
Compact ball valve DN100 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4308
Lead time: 3 - 5 working days
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 10,0 bar
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
