DM04020004
pressure reducing valve 3/4" inch male thread DM04 stainless steel FKM 1.0 - 8.0 bar
- Lead time
- 3 - 5 working days
Equipment
pressure gauge 0 - 10,0 bar G 1/4" axial 50 mm stainless steel MM05
€103.89 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

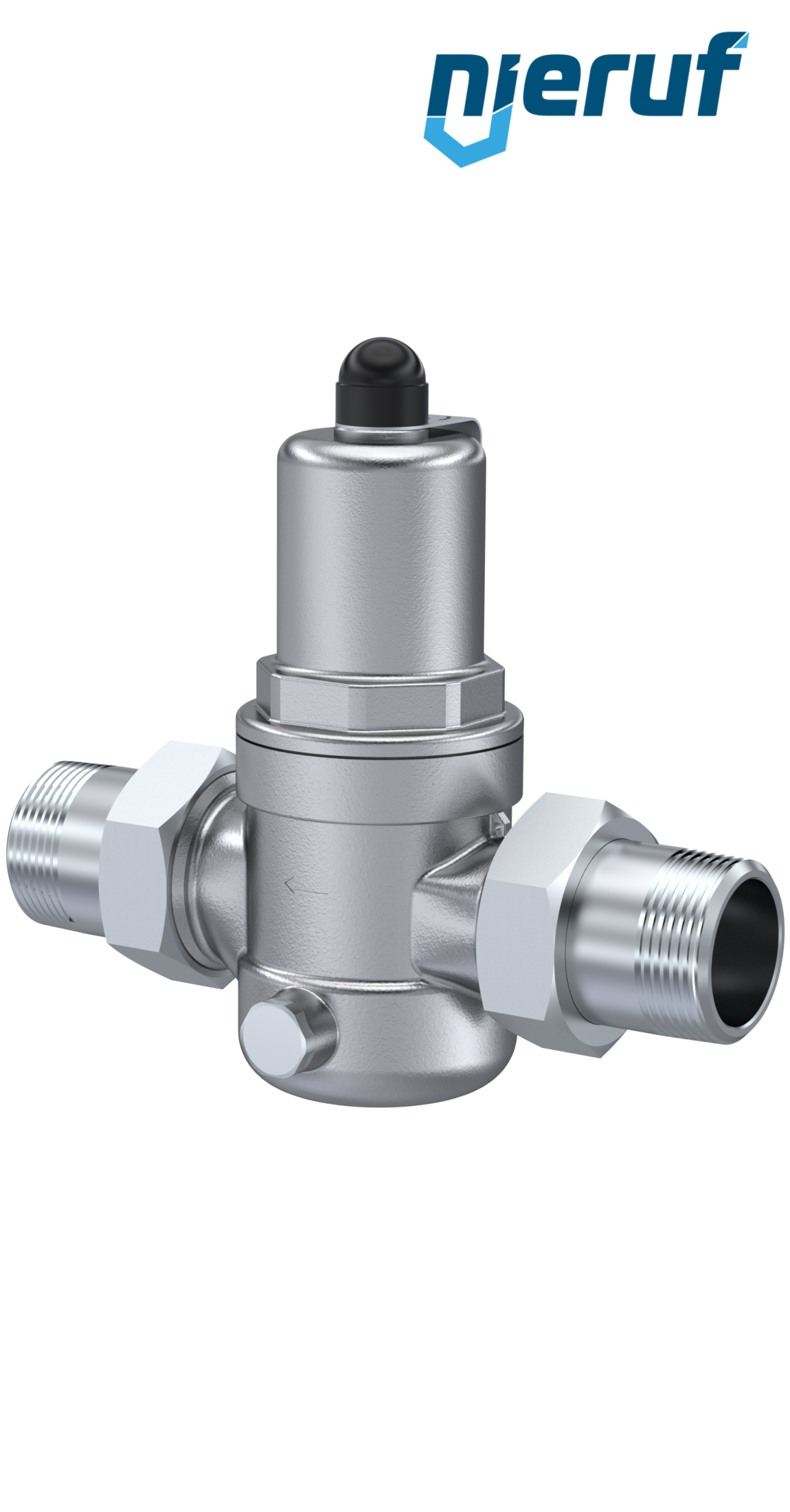

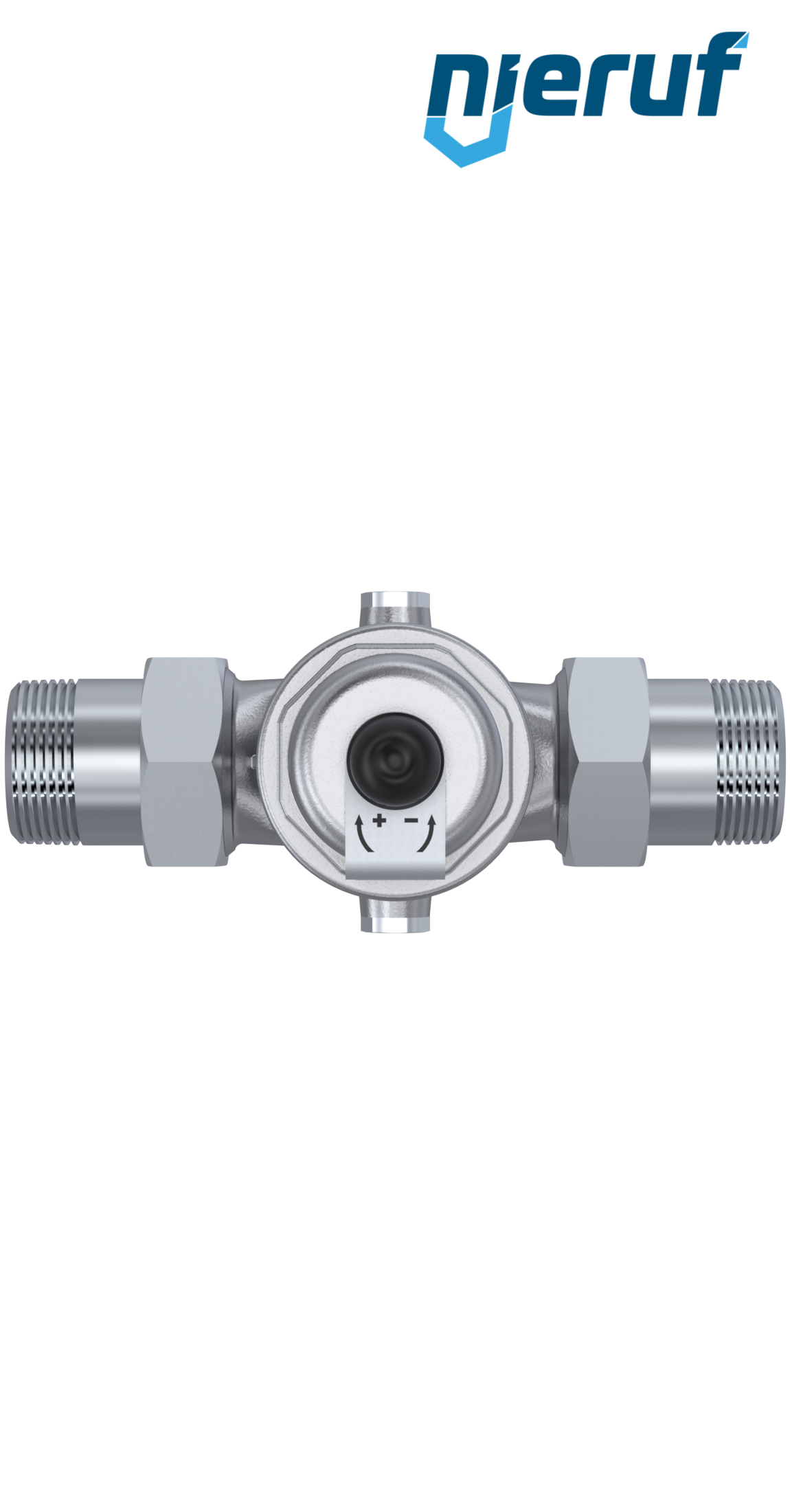

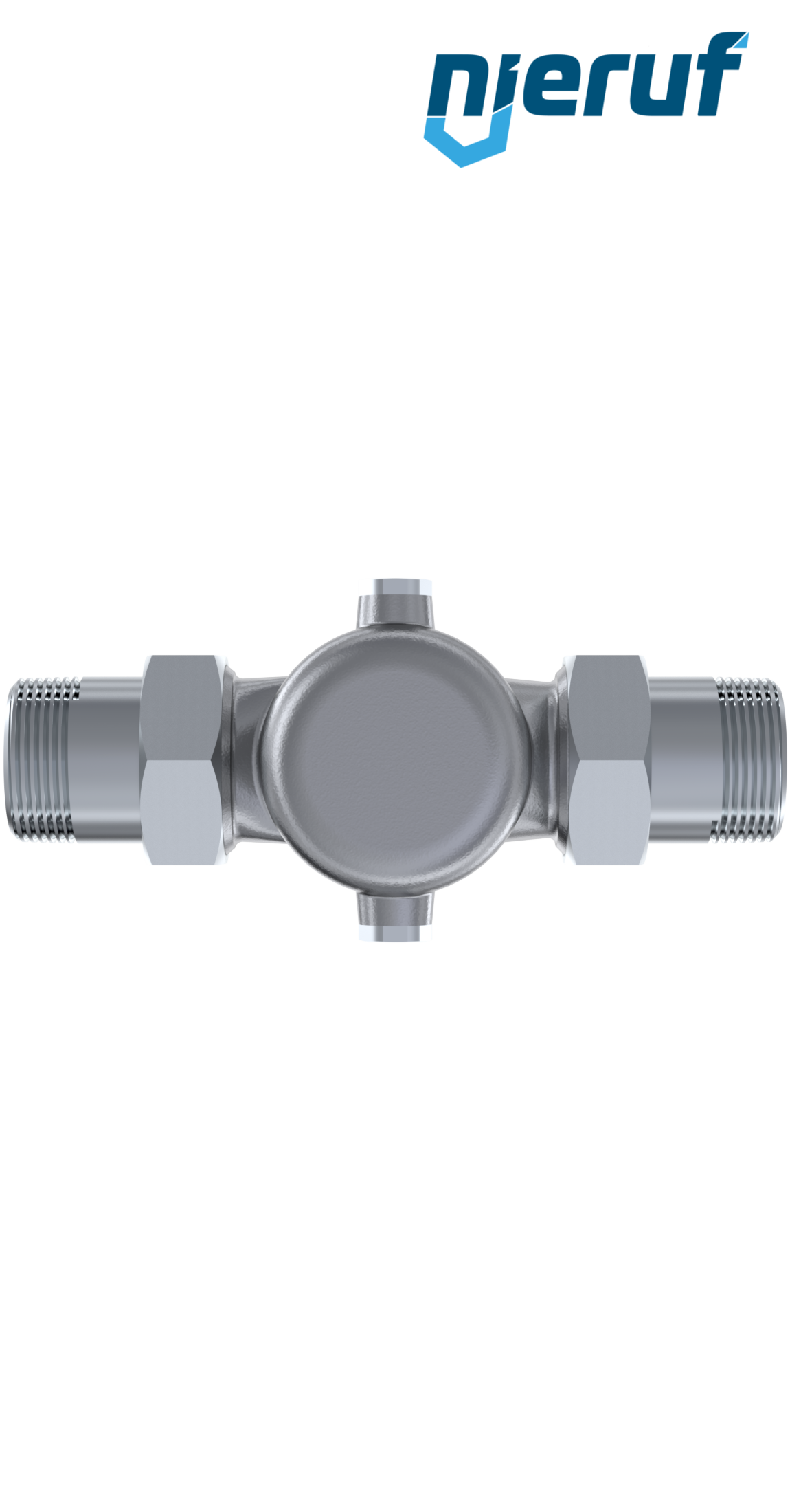

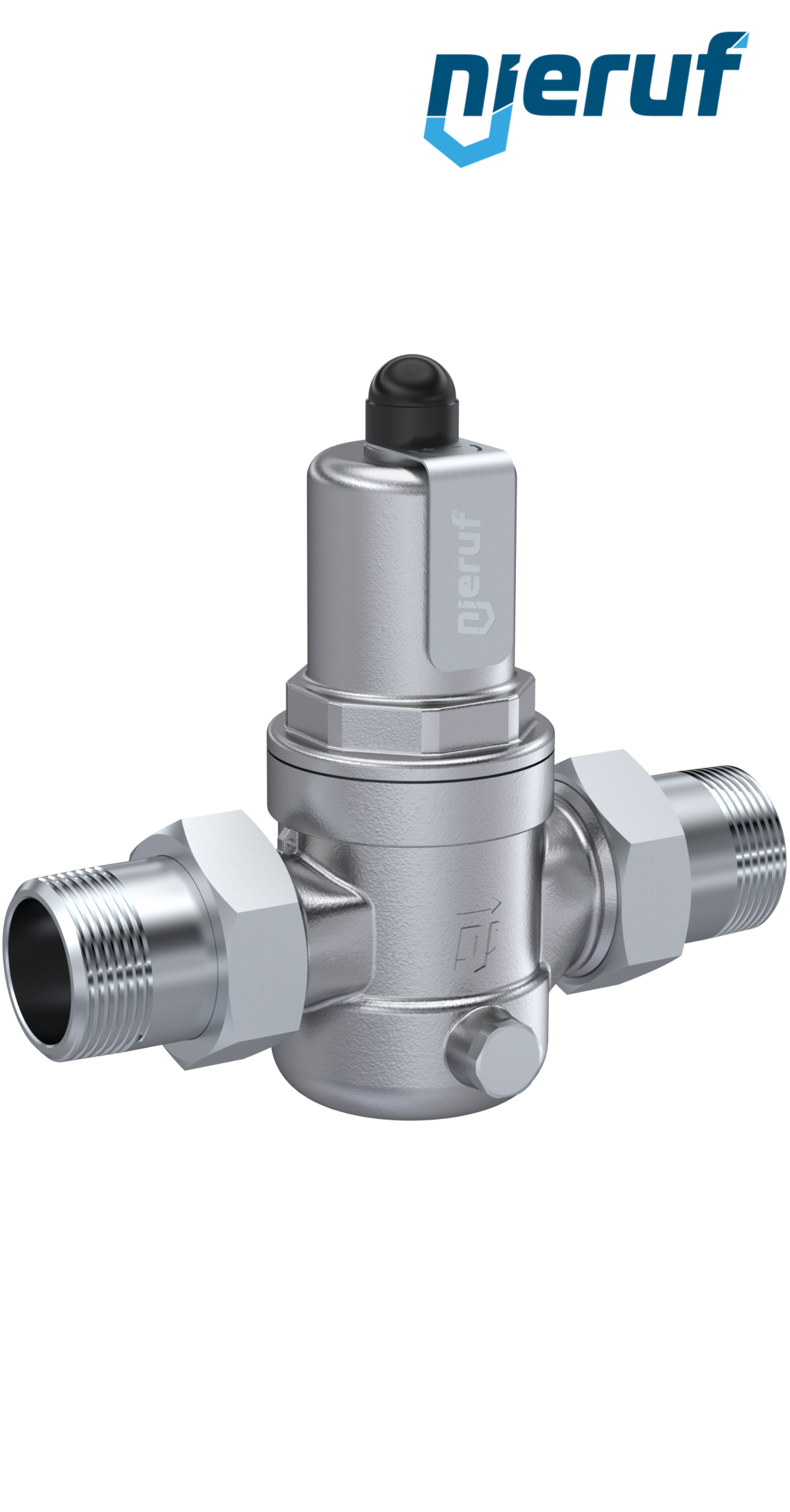

pressure reducing valve 3/4" inch male thread DM04 stainless steel FKM 1.0 - 8.0 bar
pressure reducing valve 3/4" inch male thread male thread BSP-T made of stainless steel seal FKM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
| product | pressure reducing valve |
|---|---|
| type | DM04 |
| manufacturer | NieRuf |
| diameter | 3/4" inch male thread |
| connection | male thread BSP-T |
| material | stainless steel |
| seal | FKM |
| media | liquid and gaseous media (no steam) |
| temperature | -10°C up to +120°C |
| range of adjustment | 1.0 - 8.0 bar |
| max. inlet pressure | 40 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Pressure adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure reducing valve 3/4" inch male thread DM04 stainless steel FKM 1.0 - 8.0 bar
Article no.
: DM04020004
product:
pressure reducing valve
type:
DM04
manufacturer:
NieRuf
diameter:
3/4" inch male thread
connection:
male thread BSP-T
material:
stainless steel
seal:
FKM
media:
liquid and gaseous media (no steam)
temperature:
-10°C up to +120°C
range of adjustment:
1.0 - 8.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Pressure adjustment by means of non-rising spindle.
Equipment
pressure gauge 0 - 10,0 bar G 1/4" axial 50 mm stainless steel MM05
Lead time: in stock

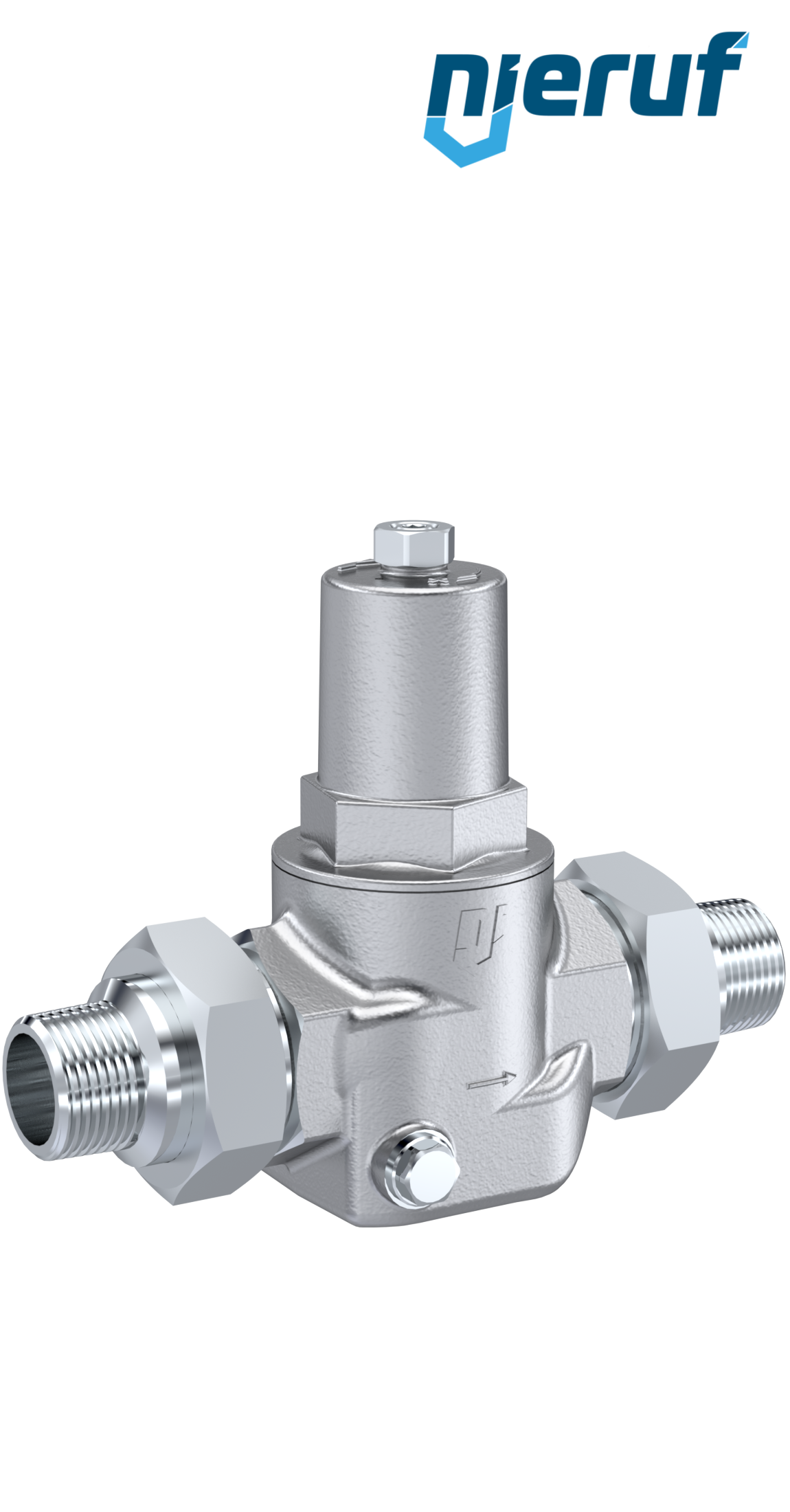

pressure reducing valve male thread 3/4" Inch DM12 stainless steel FPM 0.5 - 9.0 bar
