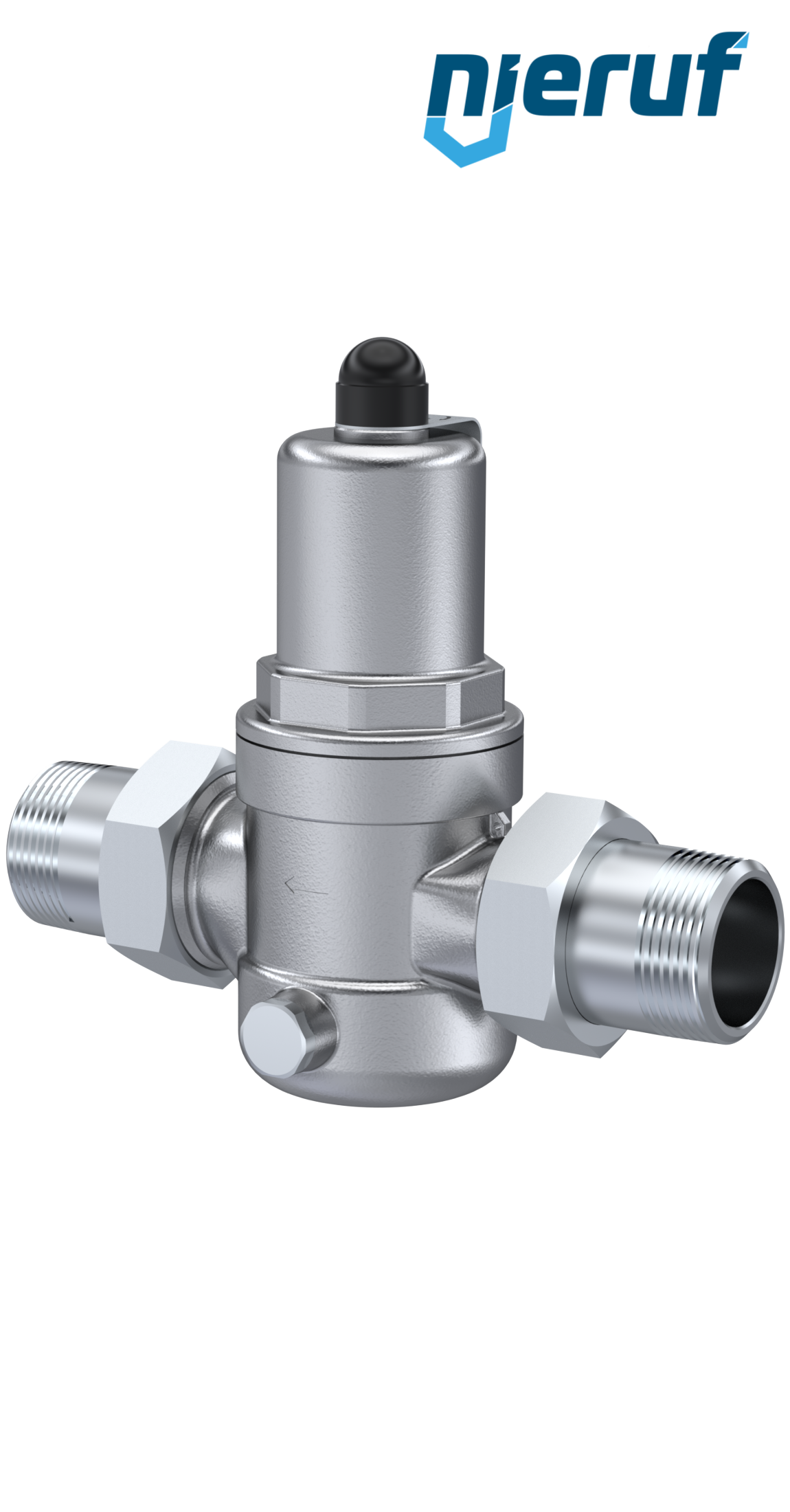

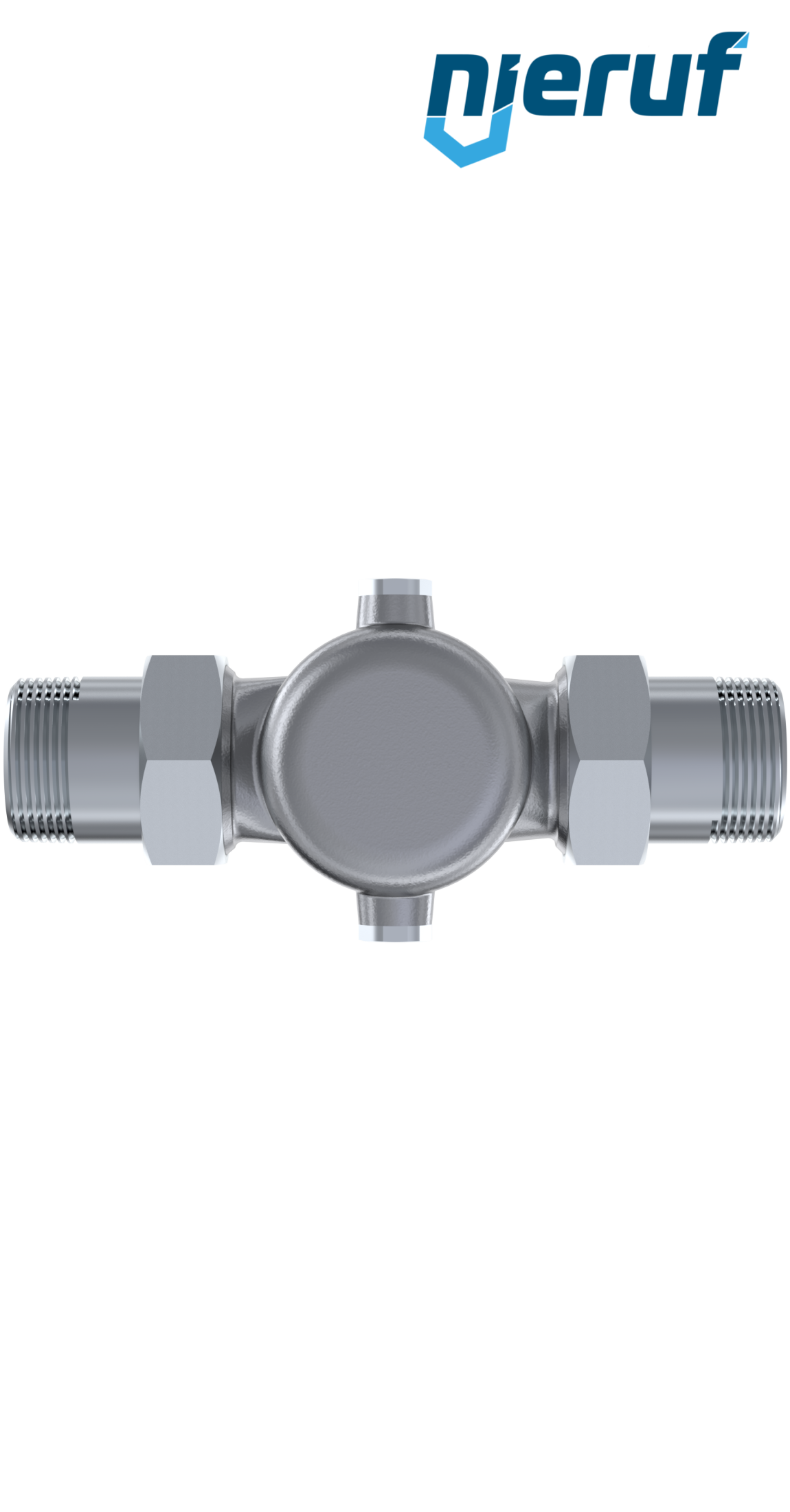

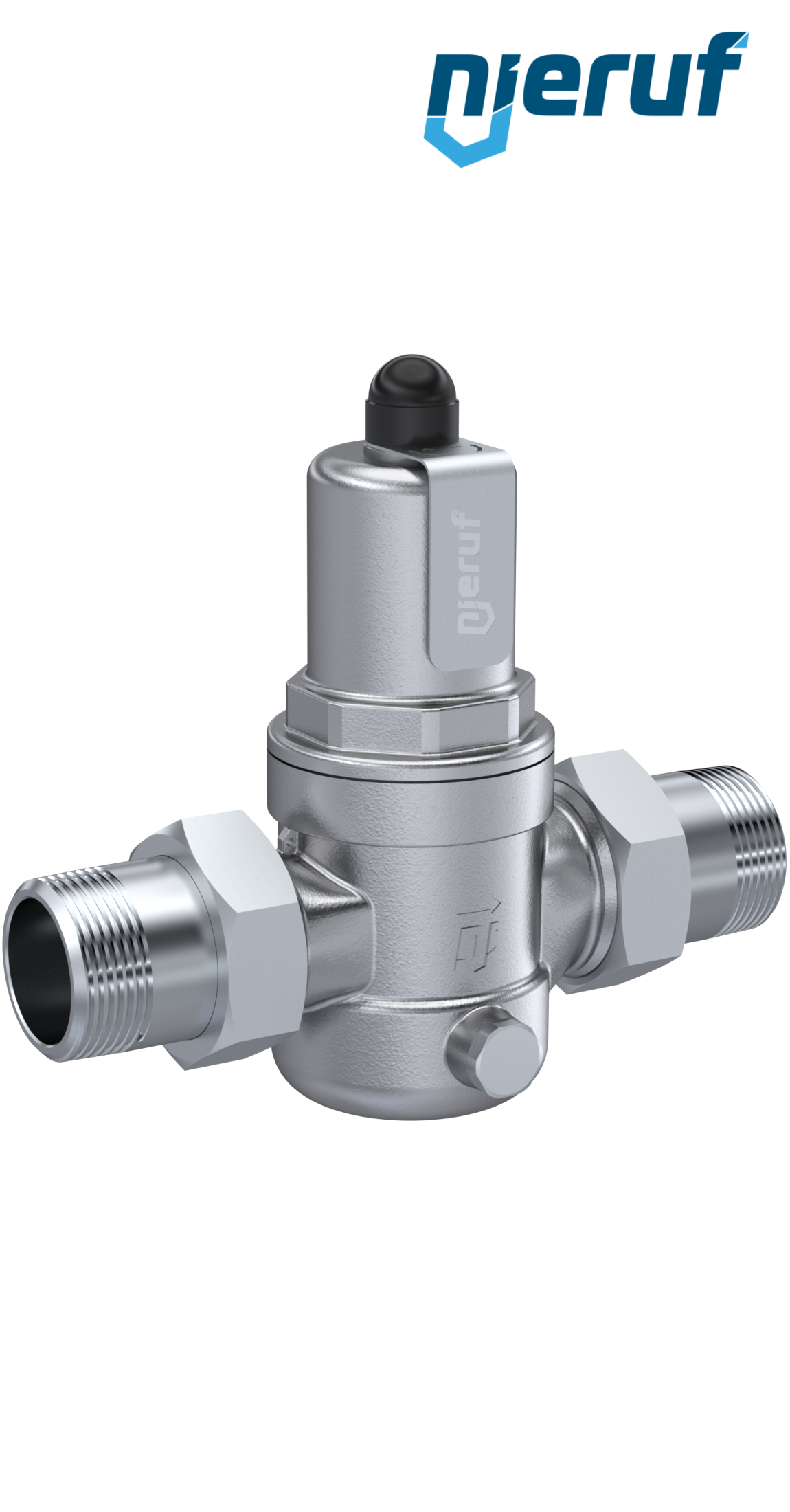

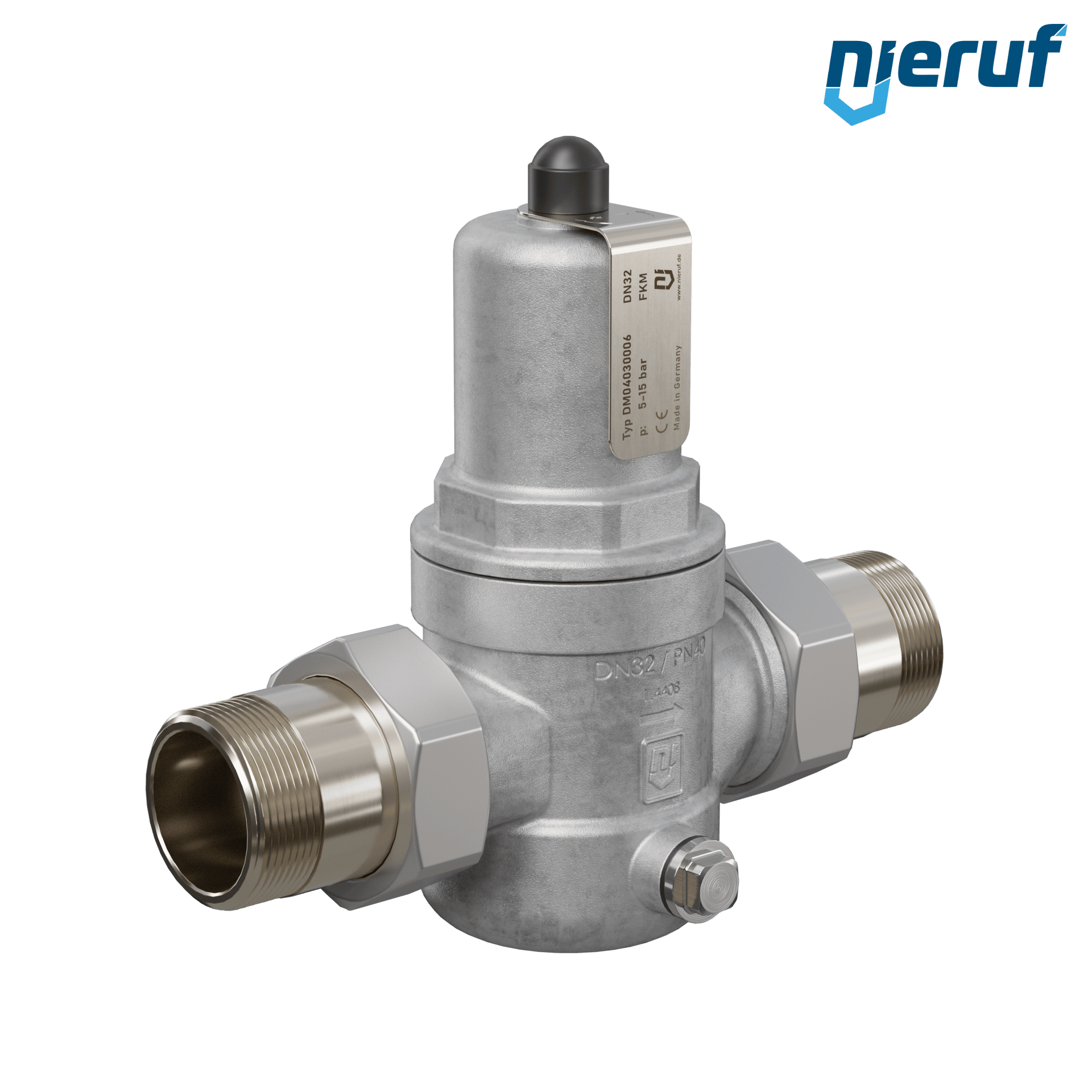

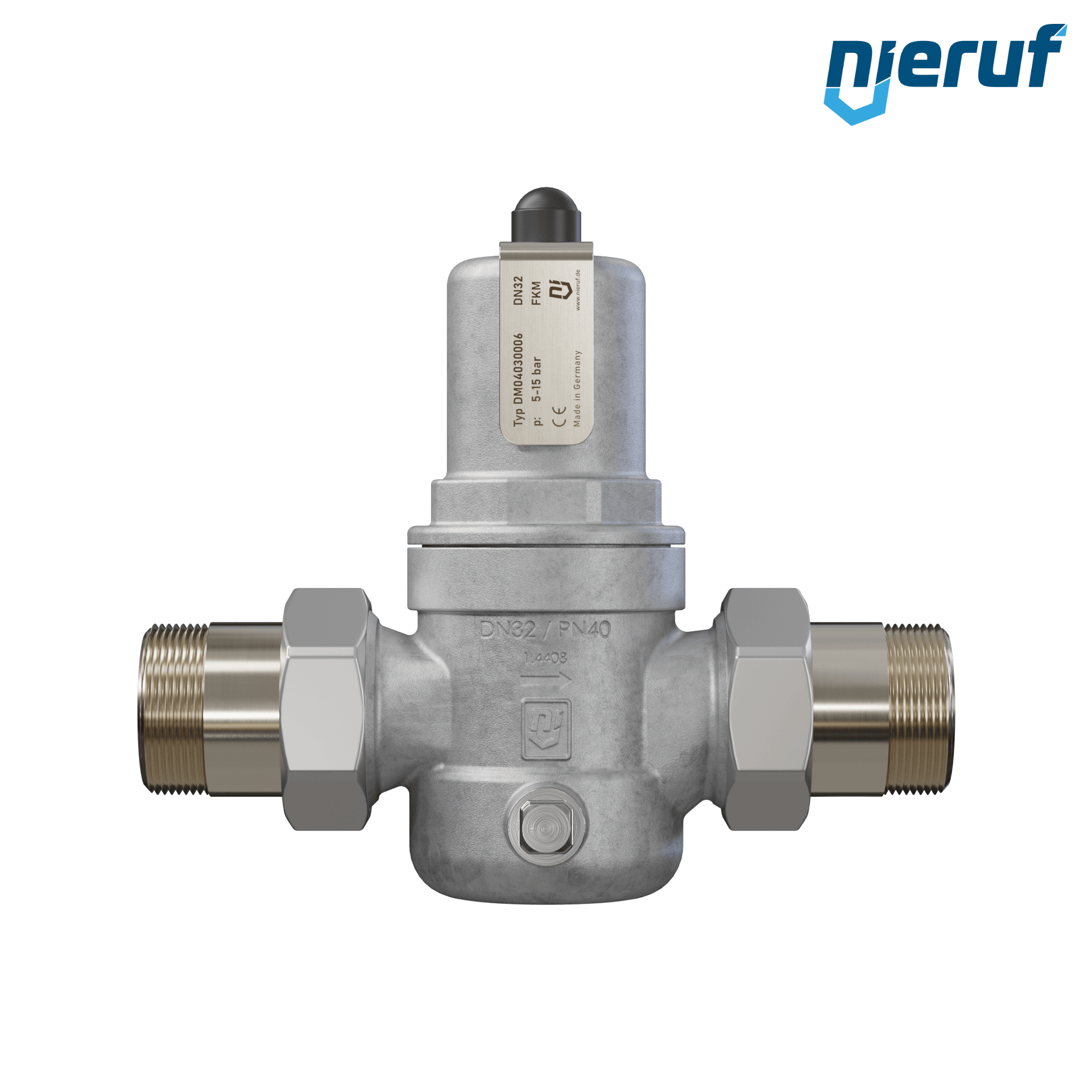

pressure reducing valve 1 1/4" inch male thread DM04 stainless steel FKM 5,0 - 15,0 bar

DM04030006
quantity (pcs.):
577.40€ * 669.78€ incl. VAT
*Price plus VAT and shipping costs

Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
pressure reducing valve 1 1/4" inch male thread DM04 stainless steel FKM 5,0 - 15,0 bar
pressure reducing valve 1 1/4" inch male thread male thread BSP-T made of stainless steel seal FKM for liquid and gaseous media (no steam), set pressure 5,0 - 15,0 bar
diameter: 1 1/4" inch male thread
connection: male thread BSP-T
material: stainless steel
seal: FKM
media: liquid and gaseous media (no steam)
temperature: -10°C up to +120°C
range of adjustment: 5,0 - 15,0 bar
max. inlet pressure: 40 bar
design: straightway form
installation position: any position
SIL - safety integrity level: SIL 2

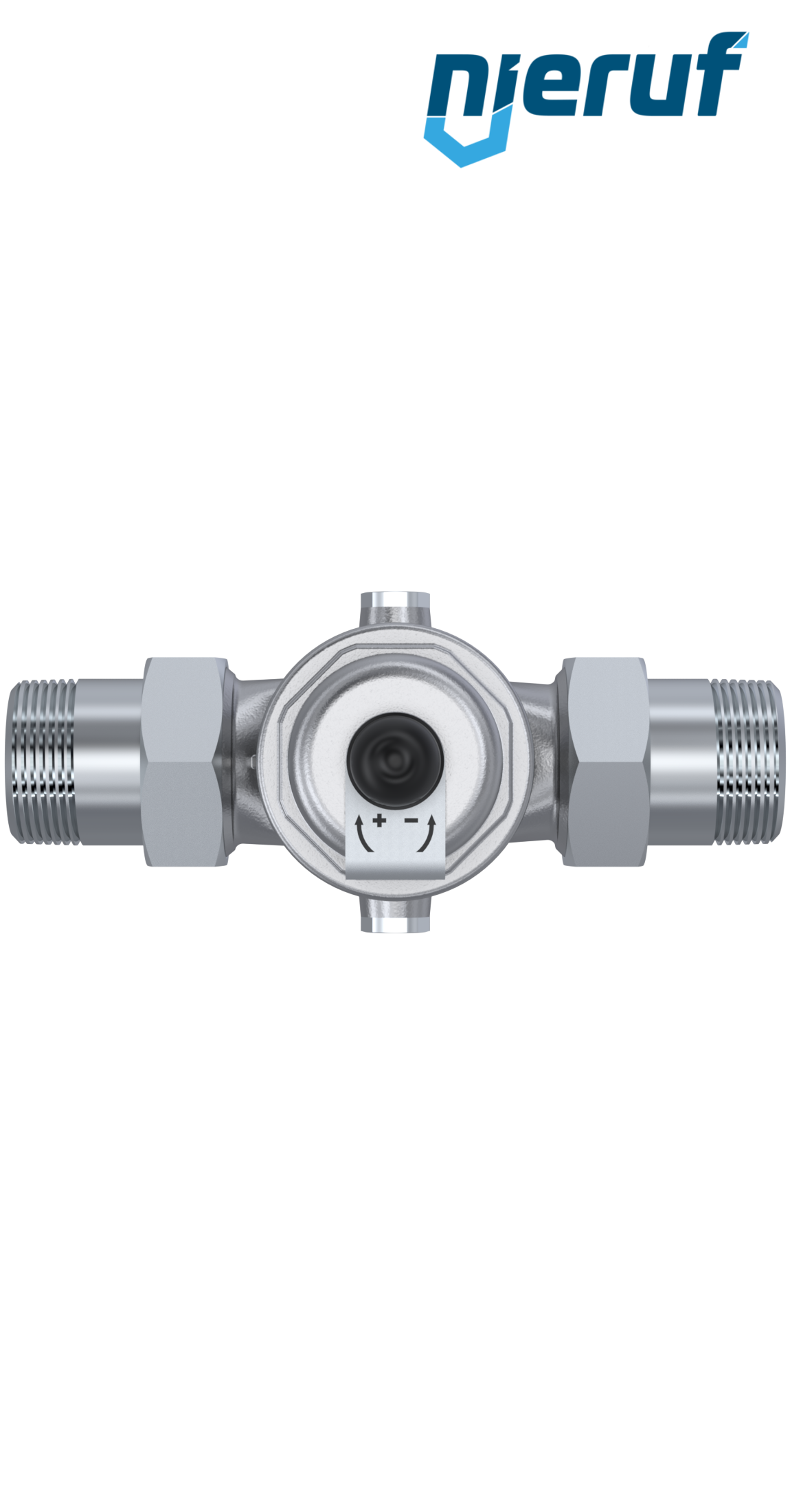

product feature: High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Pressure adjustment by means of non-rising spindle.
pressure reducing valve 1 1/4" inch male thread DM04 stainless steel FKM 5,0 - 15,0 bar

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

pressure reducing valve 1 1/4" inch male thread DM04 stainless steel FKM 5,0 - 15,0 bar
