Press Fitting Coupling F x F DN40 - 42,0 mm stainless steel
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Press Fitting Coupling F x F DN40 - 42,0 mm stainless steel

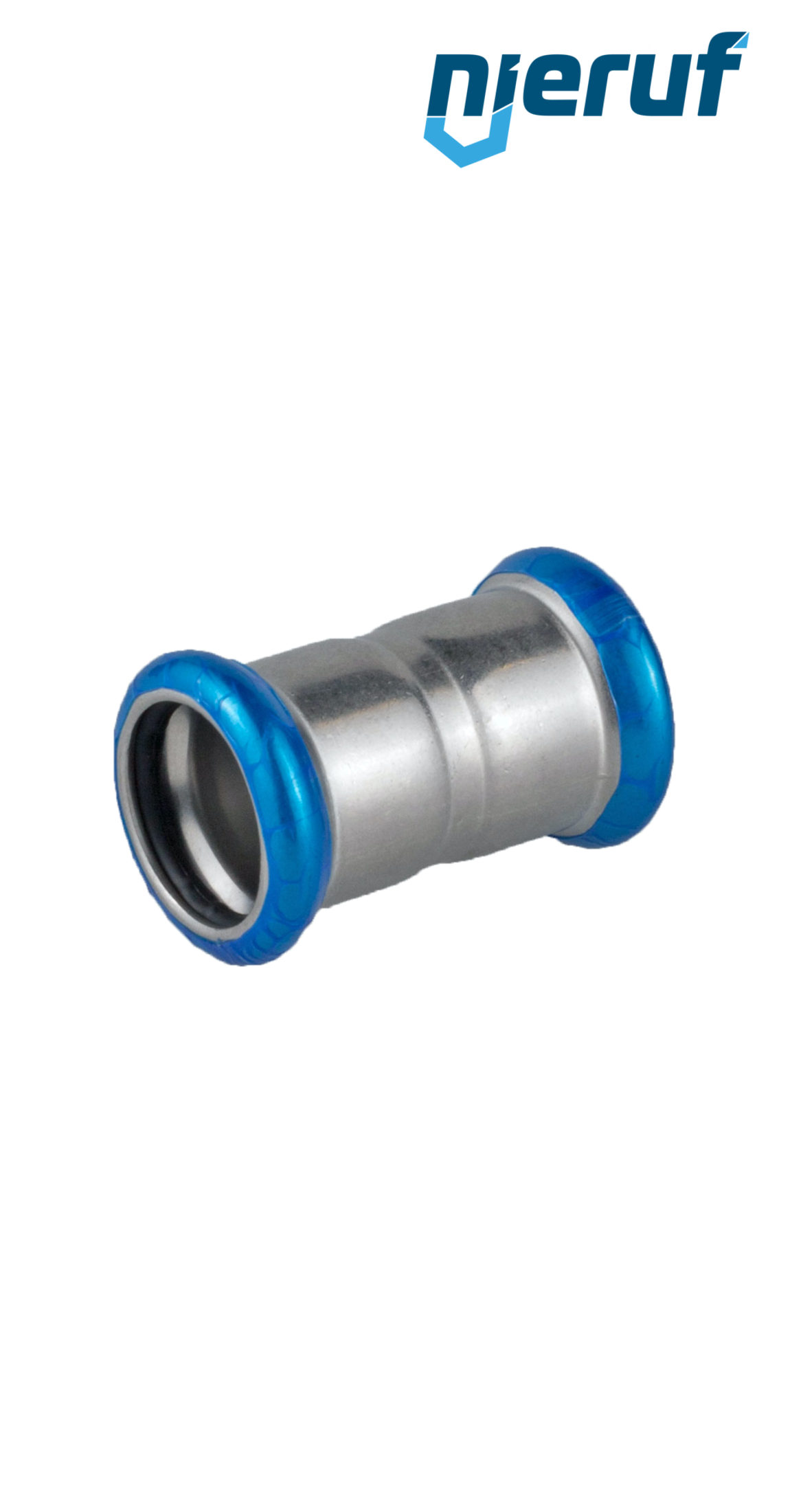

Press Fitting Coupling PF01-06 F x F DN40 - 42,0 mm made of stainless steel for liquid and gaseous media
| product | Press Fitting Coupling |
|---|---|
| type | PF01-06 |
| manufacturer | NieRuf |
| diameter 1 | DN40 - 42,0 mm |
| connection 1 | F x F |
| Contour | M-Contour |

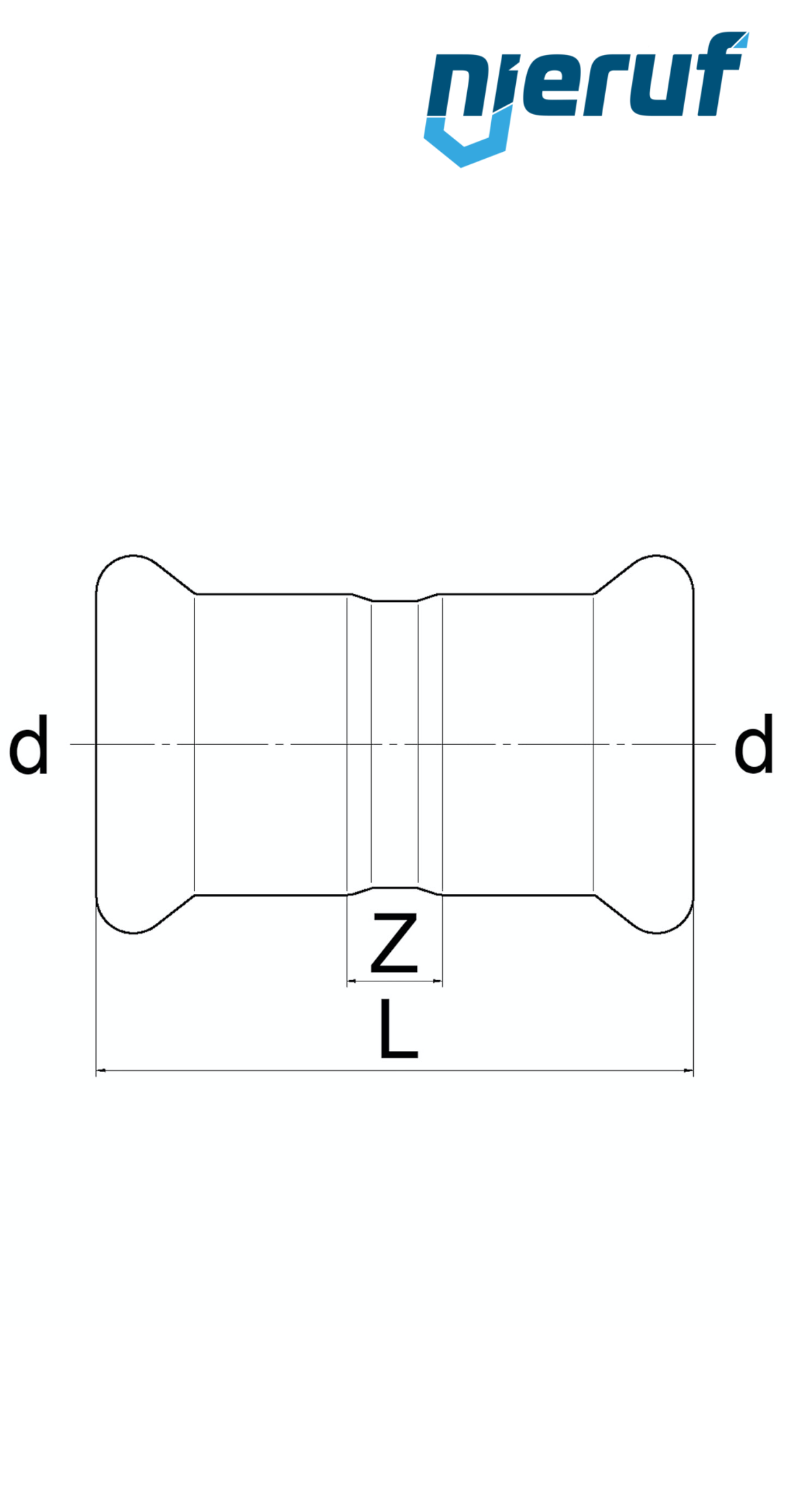

| d | 42,0 |
| L | 71,0 |
| Z | 11,0 |
| max. working pressure | 16 bar at +20°C |
| material | stainless steel 316 L |
| certification | DVGW-drinking water |
| product feature 1 | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2 | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Press Fitting Coupling F x F DN40 - 42,0 mm stainless steel
Article no.
: PF01060007
product:
Press Fitting Coupling
type:
PF01-06
manufacturer:
NieRuf
diameter 1:
DN40 - 42,0 mm
connection 1:
F x F
Contour:
M-Contour
d:
42,0
L:
71,0
Z:
11,0
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
