DM10000108

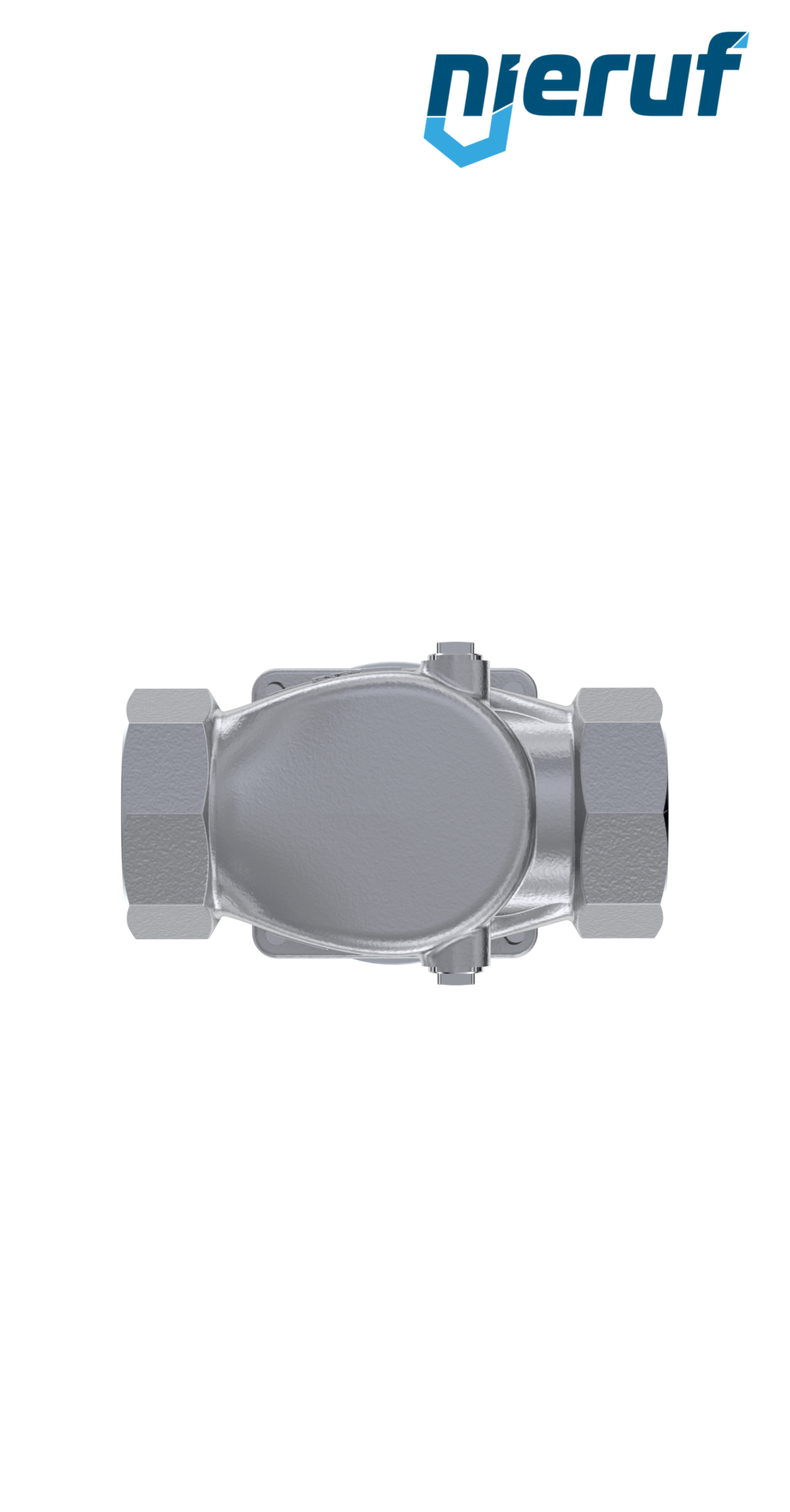

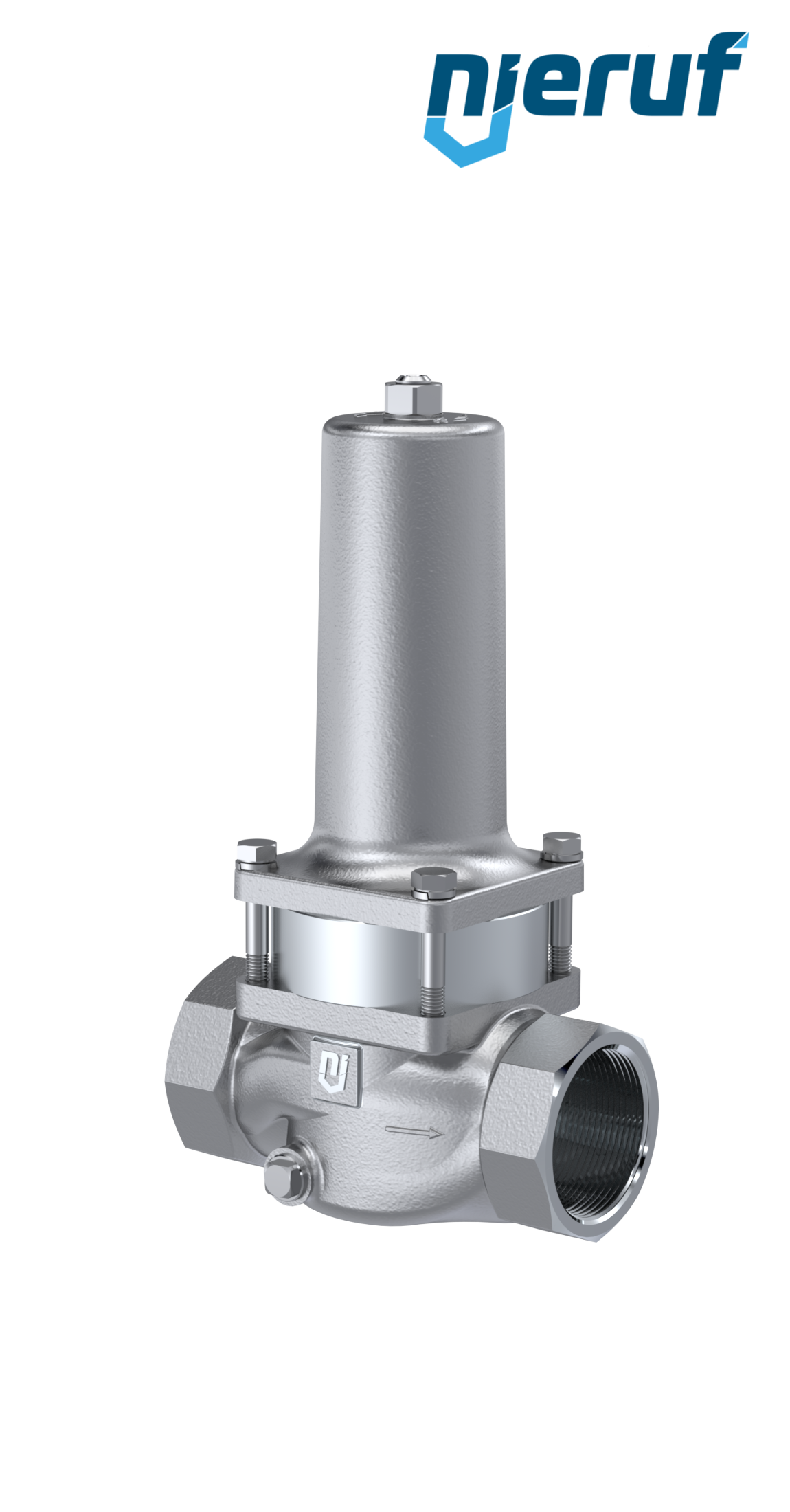

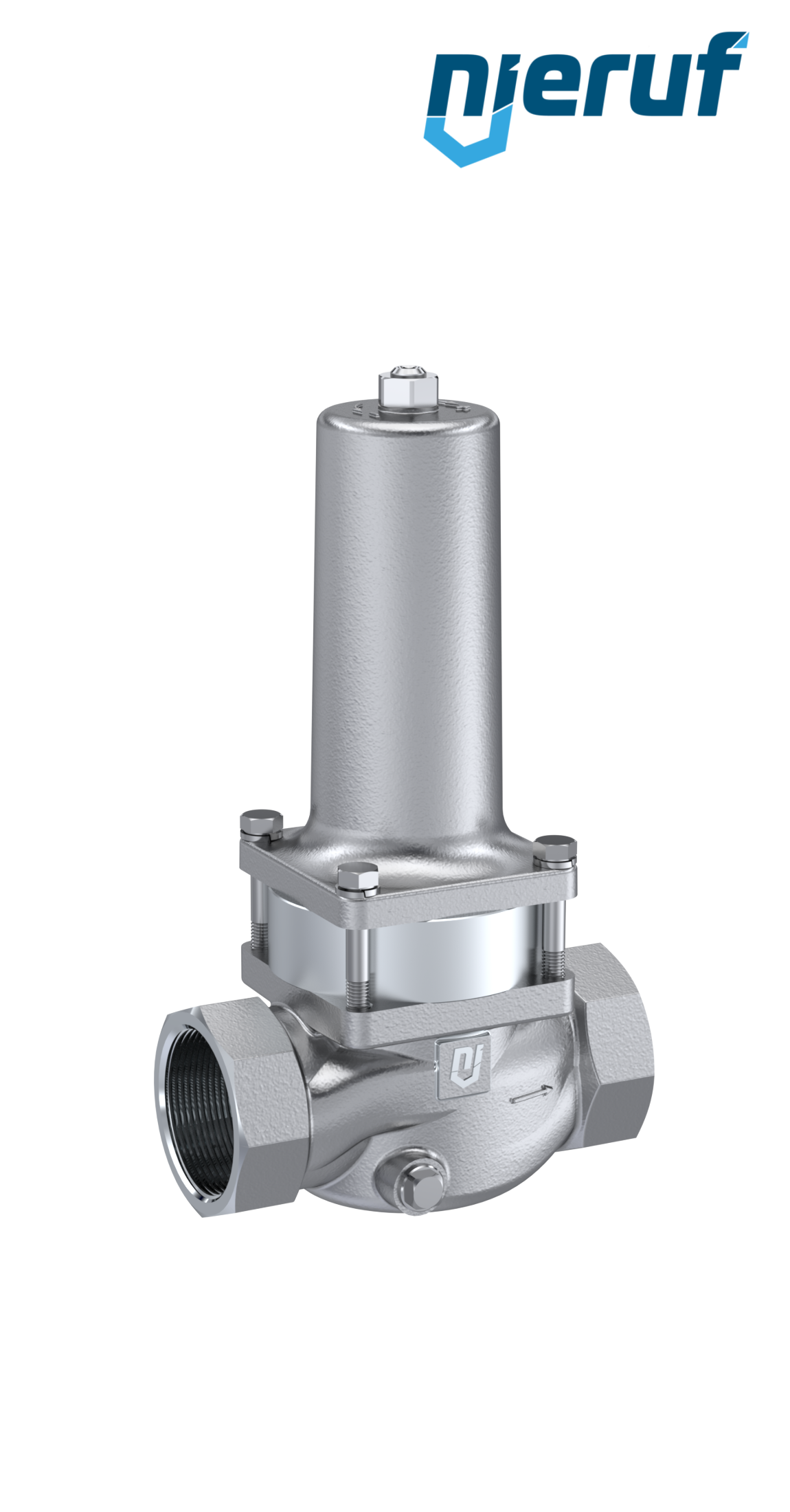

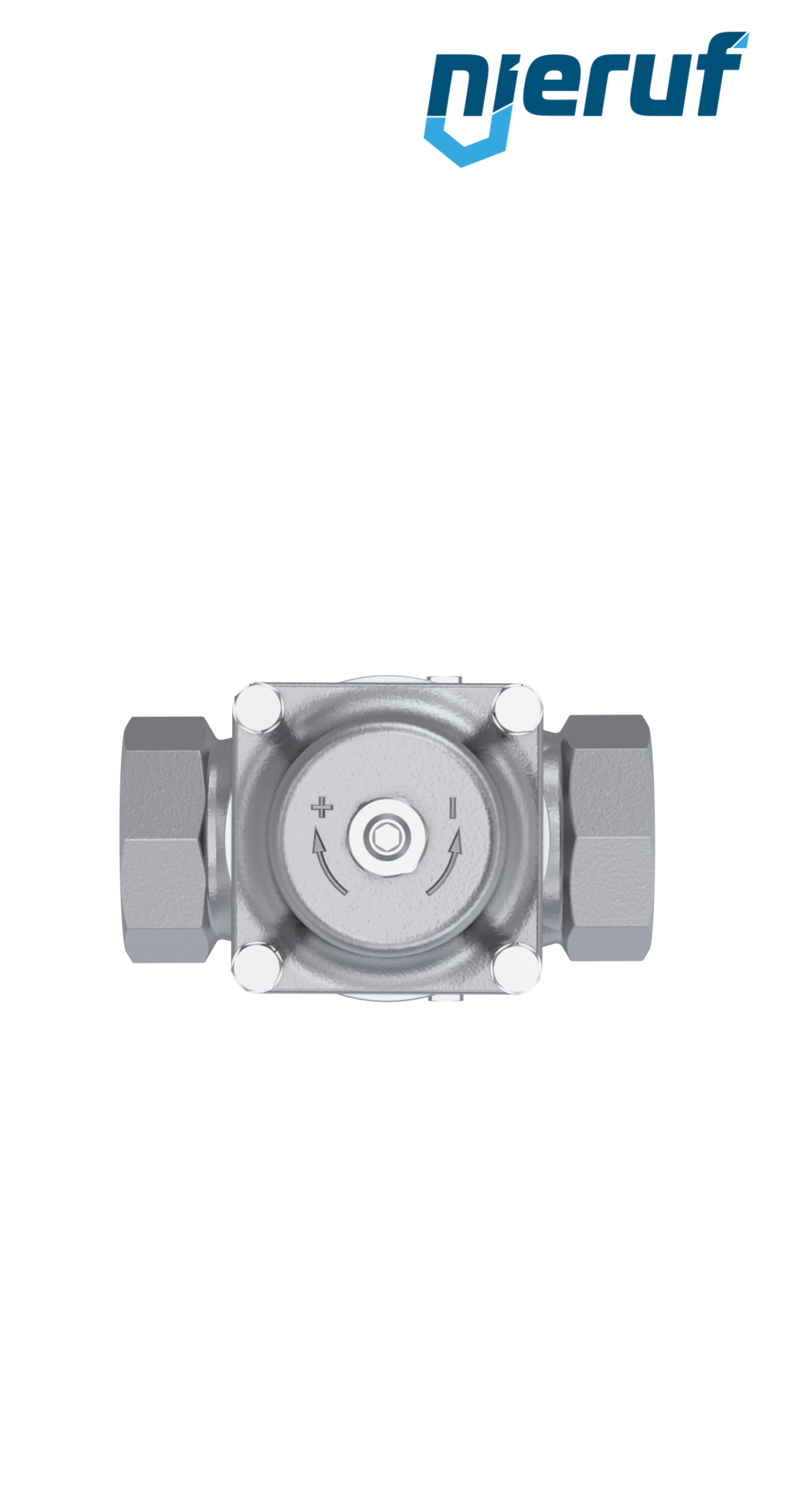

Piston-pressure reducing valve 2" Inch NPT DM10 stainless steel FPM / FKM 2.0 - 20.0 bar
Delivery time: 3 - 5 working days
Equipment
pressure gauge 0 - 40,0 bar G 1/4" axial 50 mm stainless steel MM05
€92.94 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Piston-pressure reducing valve 2" Inch NPT female thread NPT made of stainless steel seal FPM / FKM for liquid and neutral gaseous media, set pressure 2.0 - 20.0 bar
product: | Piston-pressure reducing valve |
---|---|
type: | DM10 |
manufacturer: | NieRuf |
diameter: | 2" Inch NPT |
connection: | female thread NPT |
material: | stainless steel |
seal: | FPM / FKM |
media: | liquid and neutral gaseous media |
temperature: | -10°C up to +190°C |
range of adjustment: | 2.0 - 20.0 bar |
max. inlet pressure: | 40 bar |
design: | straightway form |
installation position: | any position |
product feature: | This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Piston-pressure reducing valve 2" Inch NPT DM10 stainless steel FPM / FKM 2.0 - 20.0 bar
Article no.
: DM10000108
product:
Piston-pressure reducing valve
type:
DM10
manufacturer:
NieRuf
diameter:
2" Inch NPT
connection:
female thread NPT
material:
stainless steel
seal:
FPM / FKM
media:
liquid and neutral gaseous media
temperature:
-10°C up to +190°C
range of adjustment:
2.0 - 20.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
product feature:
This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting
