DM11000007
Piston-pressure reducing valve DN40 DM11 stainless steel FPM / FKM 2.0 - 20.0 bar
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
pressure gauge 0 - 40,0 bar G 1/4" axial 50 mm stainless steel MM05
€92.94 VAT included.
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
€54.15 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

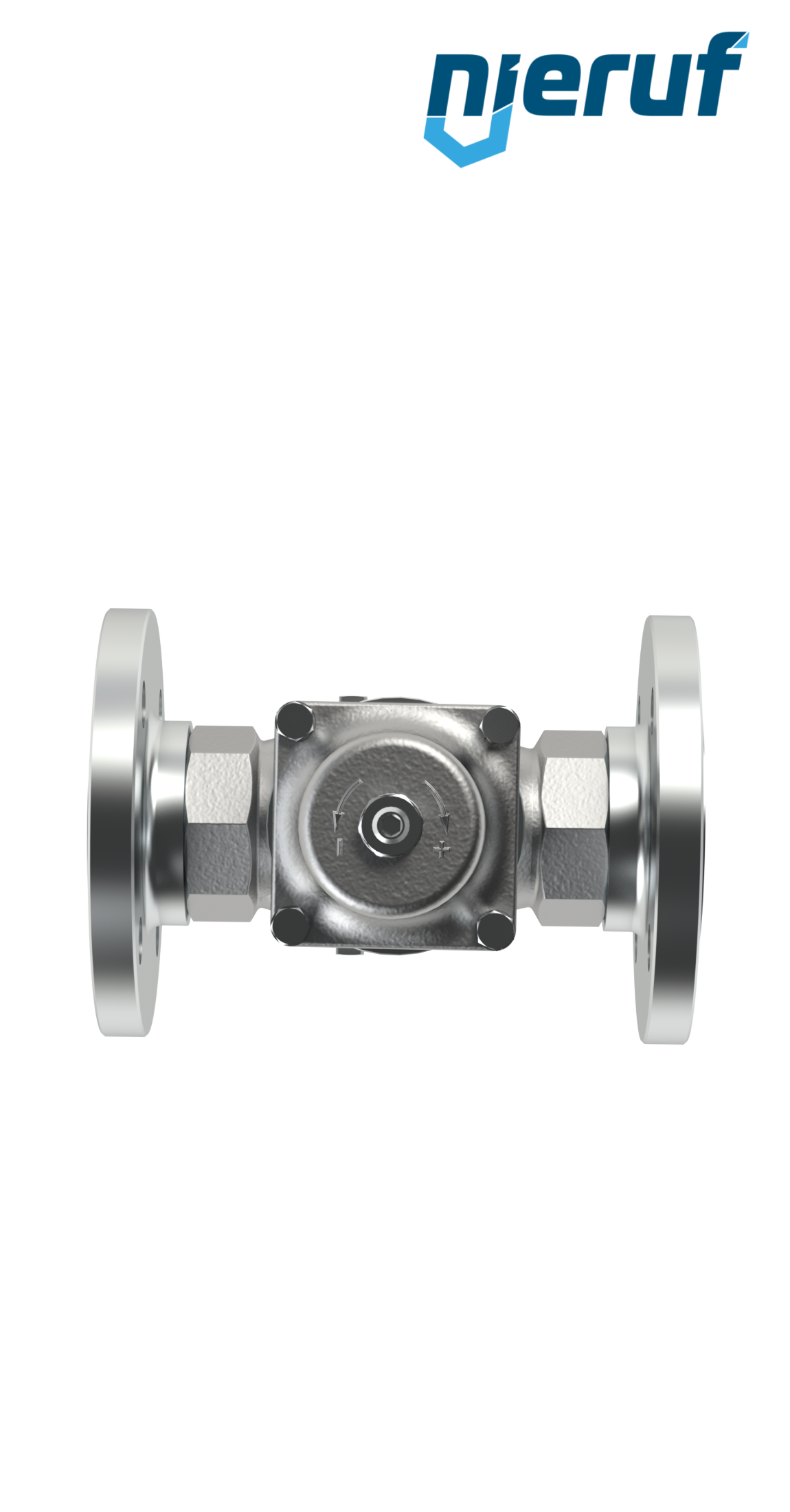

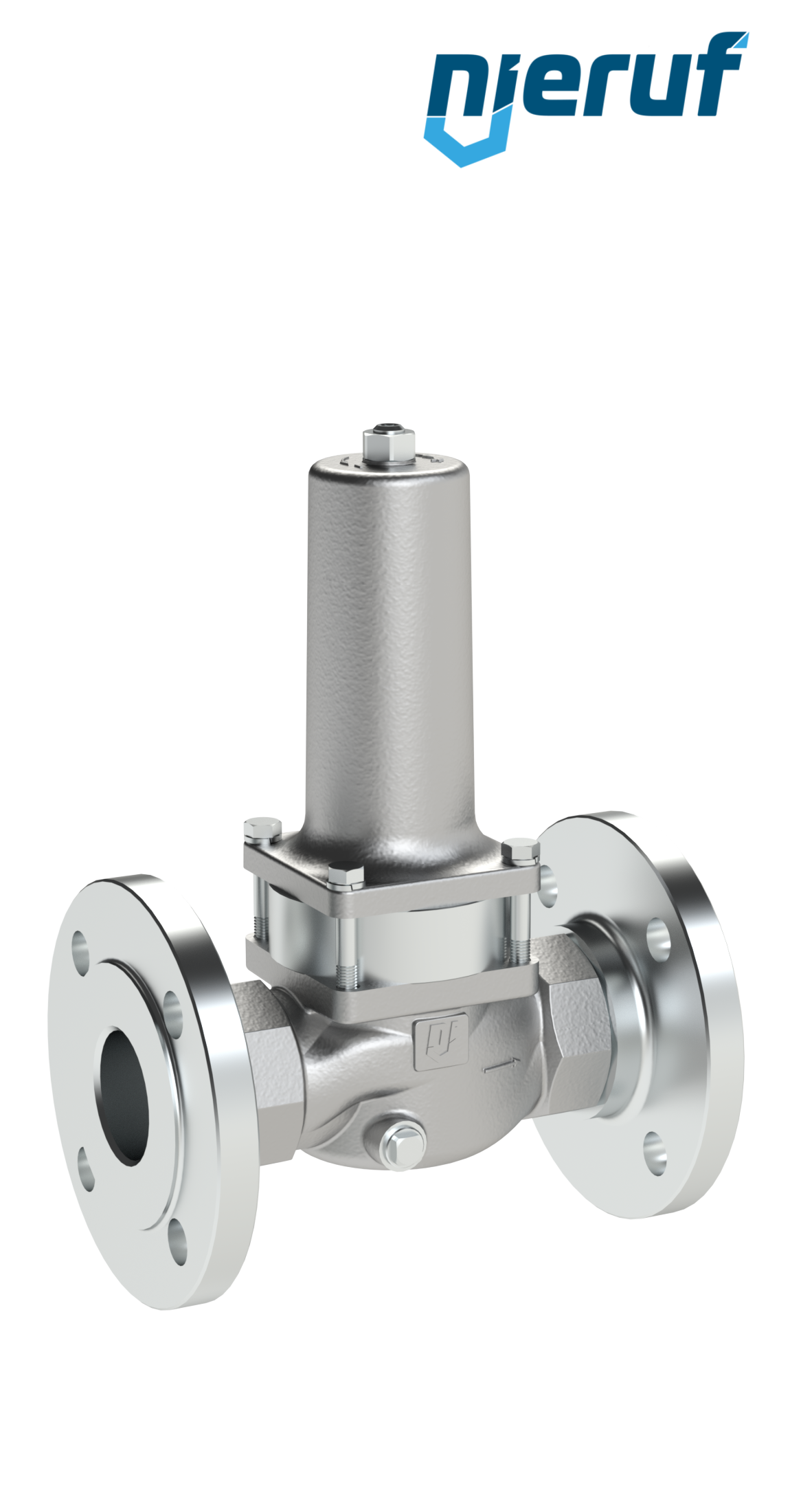

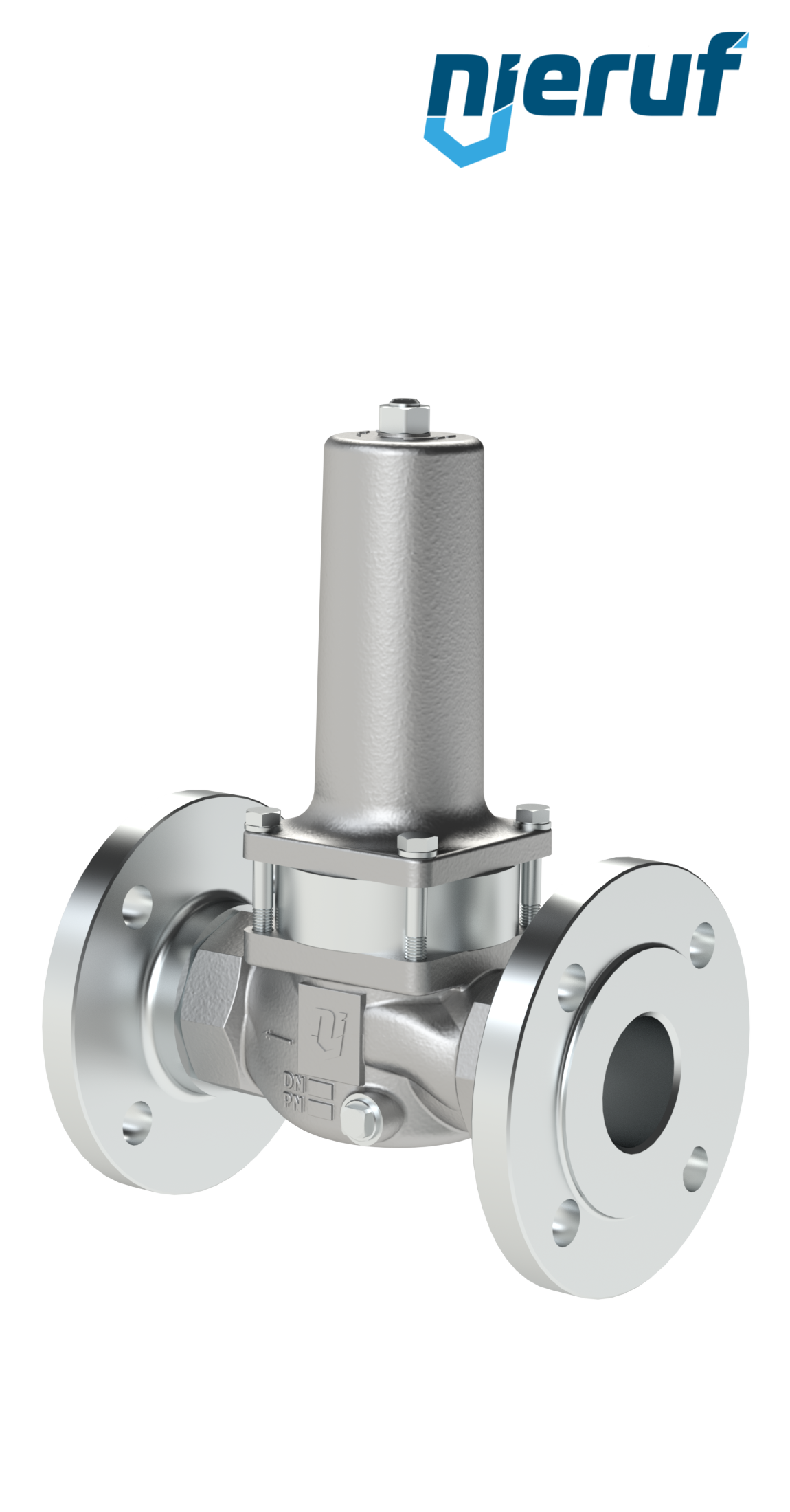

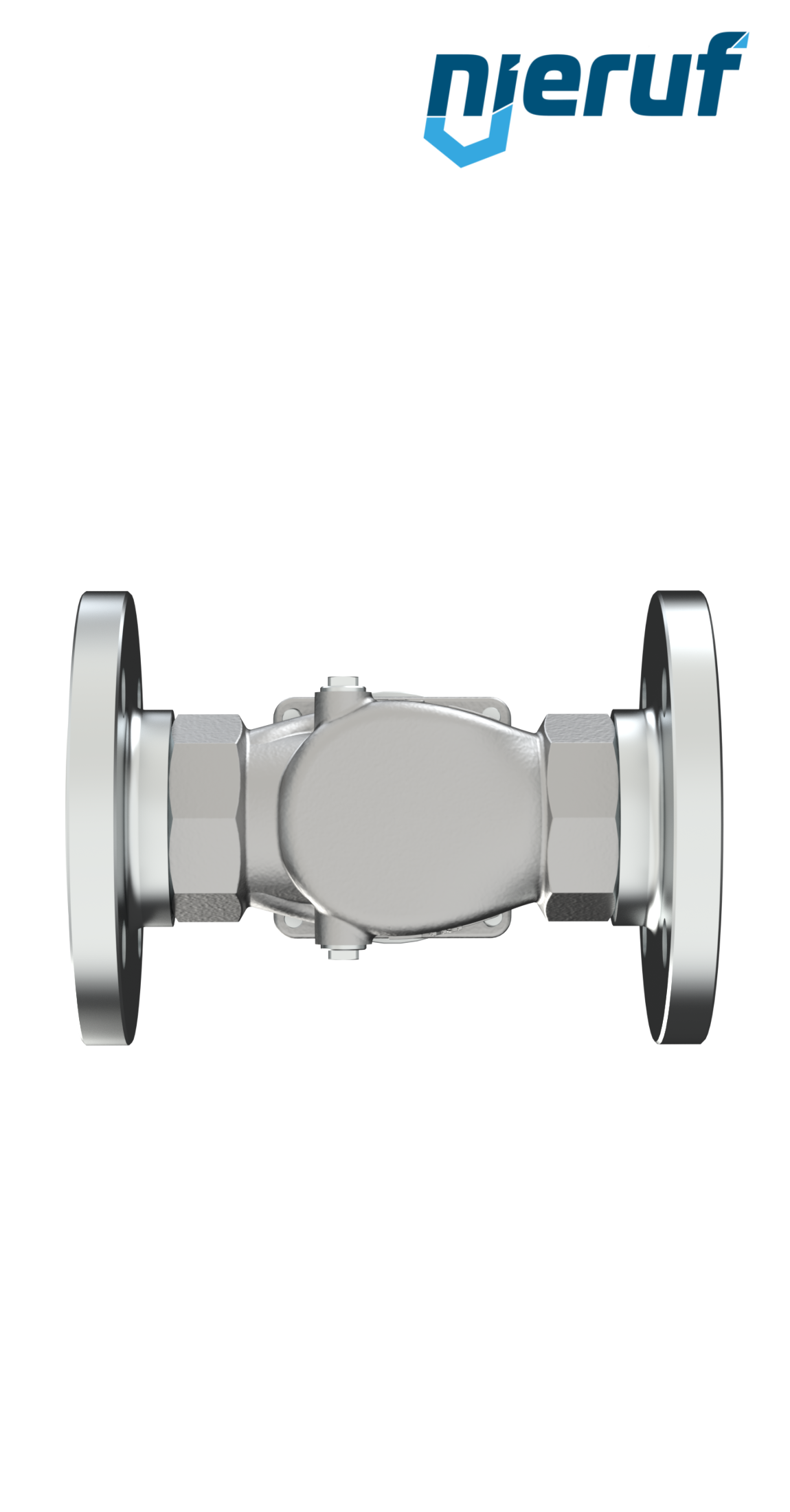

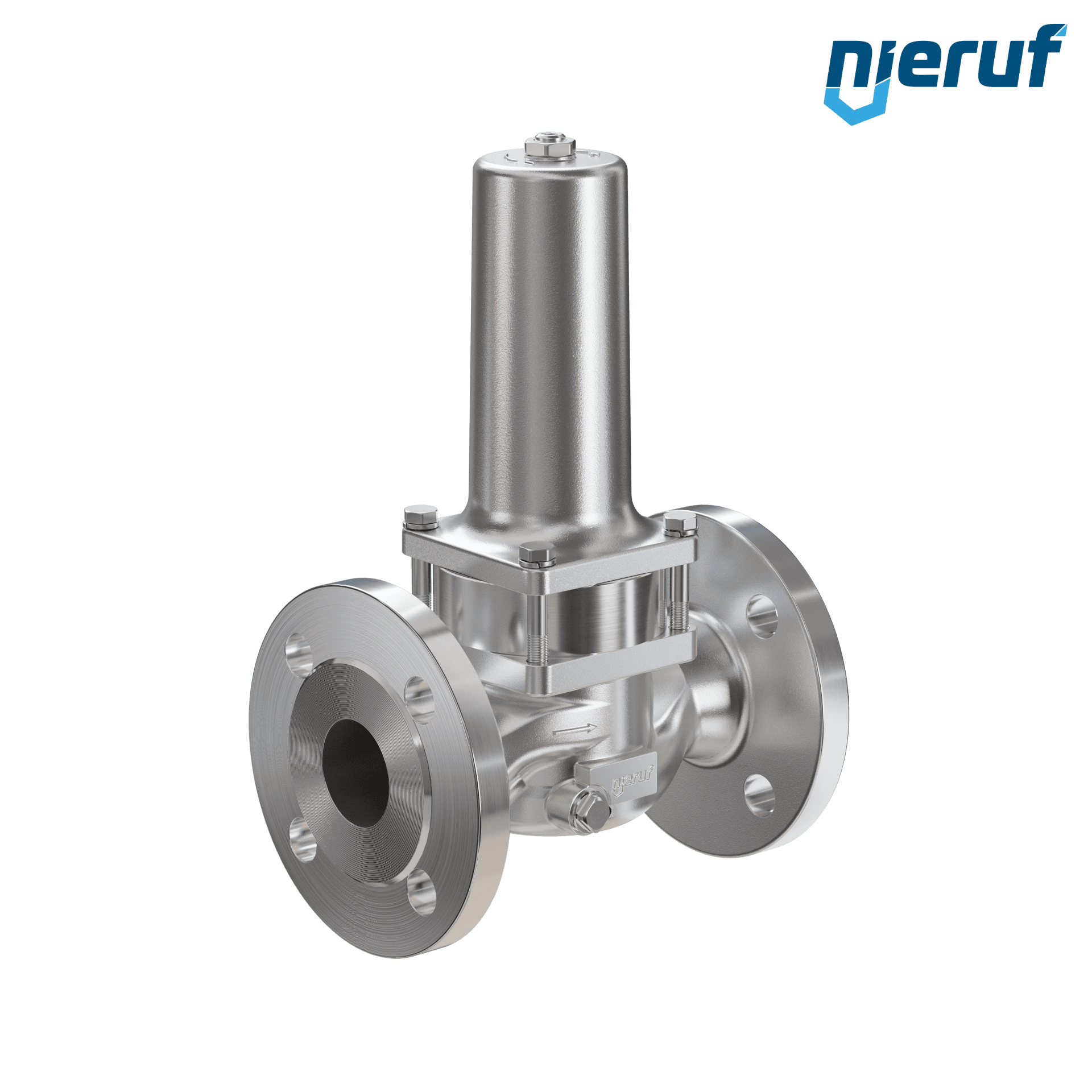

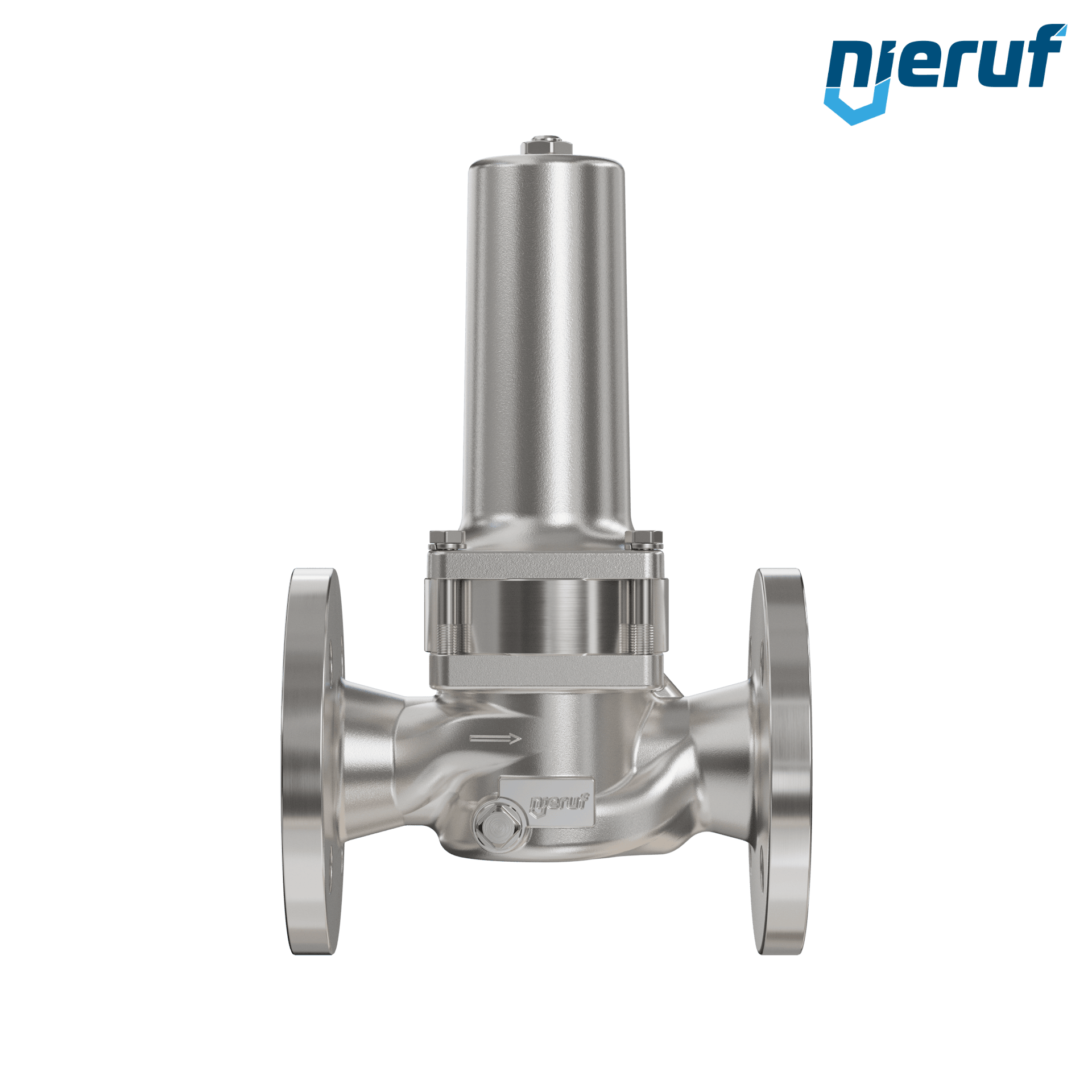

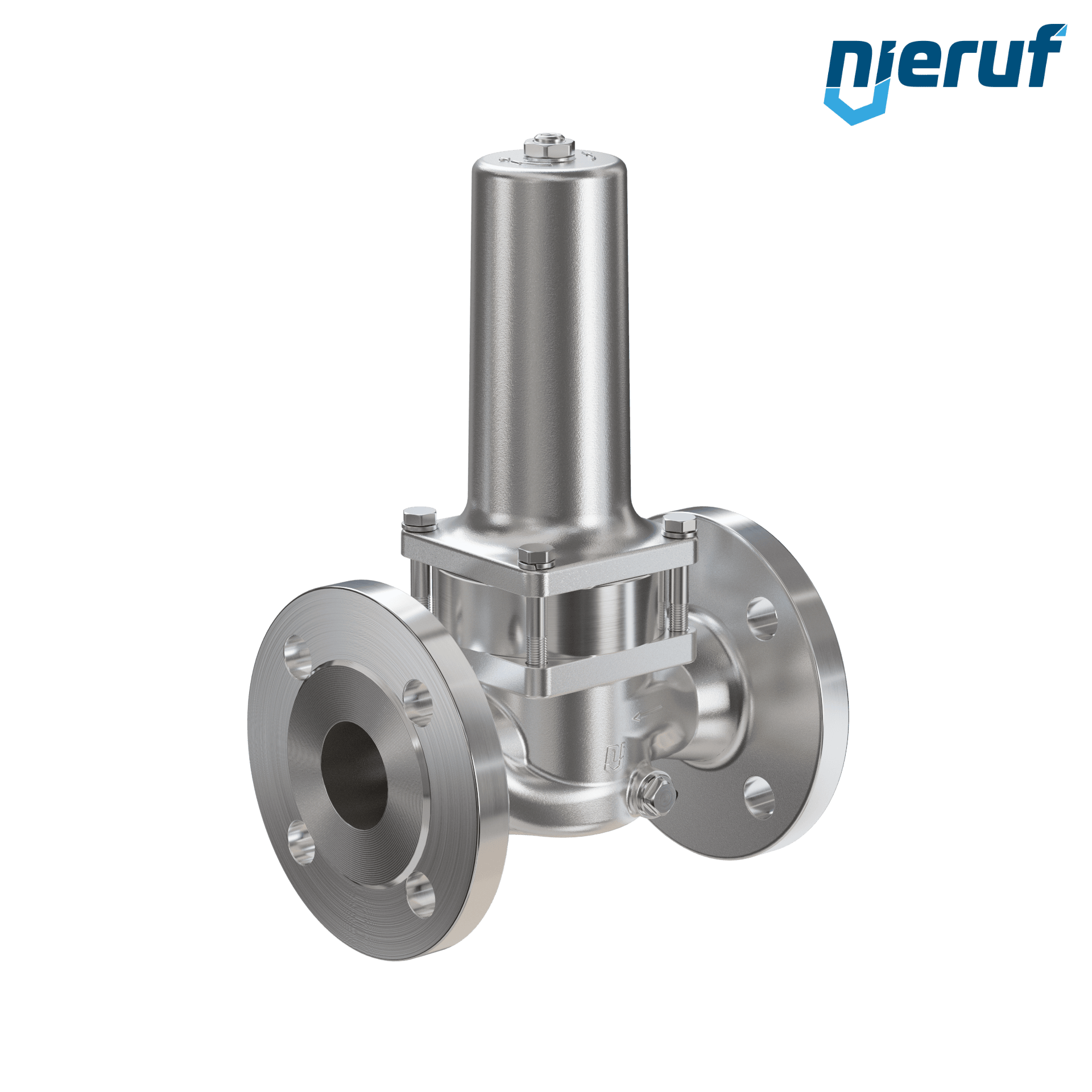

Piston-pressure reducing valve DN40 flange made of stainless steel seal FPM / FKM for liquid and neutral gaseous media, set pressure 2.0 - 20.0 bar
| product: | Piston-pressure reducing valve |
|---|---|
| type: | DM11 |
| manufacturer: | NieRuf |
| diameter: | DN40 |
| connection: | flange |
| material: | stainless steel |
| seal: | FPM / FKM |
| media: | liquid and neutral gaseous media |
| temperature: | -10°C up to +190°C |
| range of adjustment: | 2.0 - 20.0 bar |
| max. inlet pressure: | 40 bar |
| design: | straightway form |
| installation position: | any position |
| product feature: | This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel, cast iron flanges, dirt-trap and double-ended G 1/4" manometer fitting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Piston-pressure reducing valve DN40 DM11 stainless steel FPM / FKM 2.0 - 20.0 bar
Article no.
: DM11000007
product:
Piston-pressure reducing valve
type:
DM11
manufacturer:
NieRuf
diameter:
DN40
connection:
flange
material:
stainless steel
seal:
FPM / FKM
media:
liquid and neutral gaseous media
temperature:
-10°C up to +190°C
range of adjustment:
2.0 - 20.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
product feature:
This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel, cast iron flanges, dirt-trap and double-ended G 1/4" manometer fitting
€2.86 VAT included.
€54.15 VAT included.
€262.63 VAT included.
€92.94 VAT included.
€10.00 VAT included.
