DM10000005
Piston-pressure reducing valve 1" Inch DM10 stainless steel FPM / FKM 2.0 - 20.0 bar
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
pressure gauge 0 - 40,0 bar G 1/4" axial 50 mm stainless steel MM05
€103.89 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

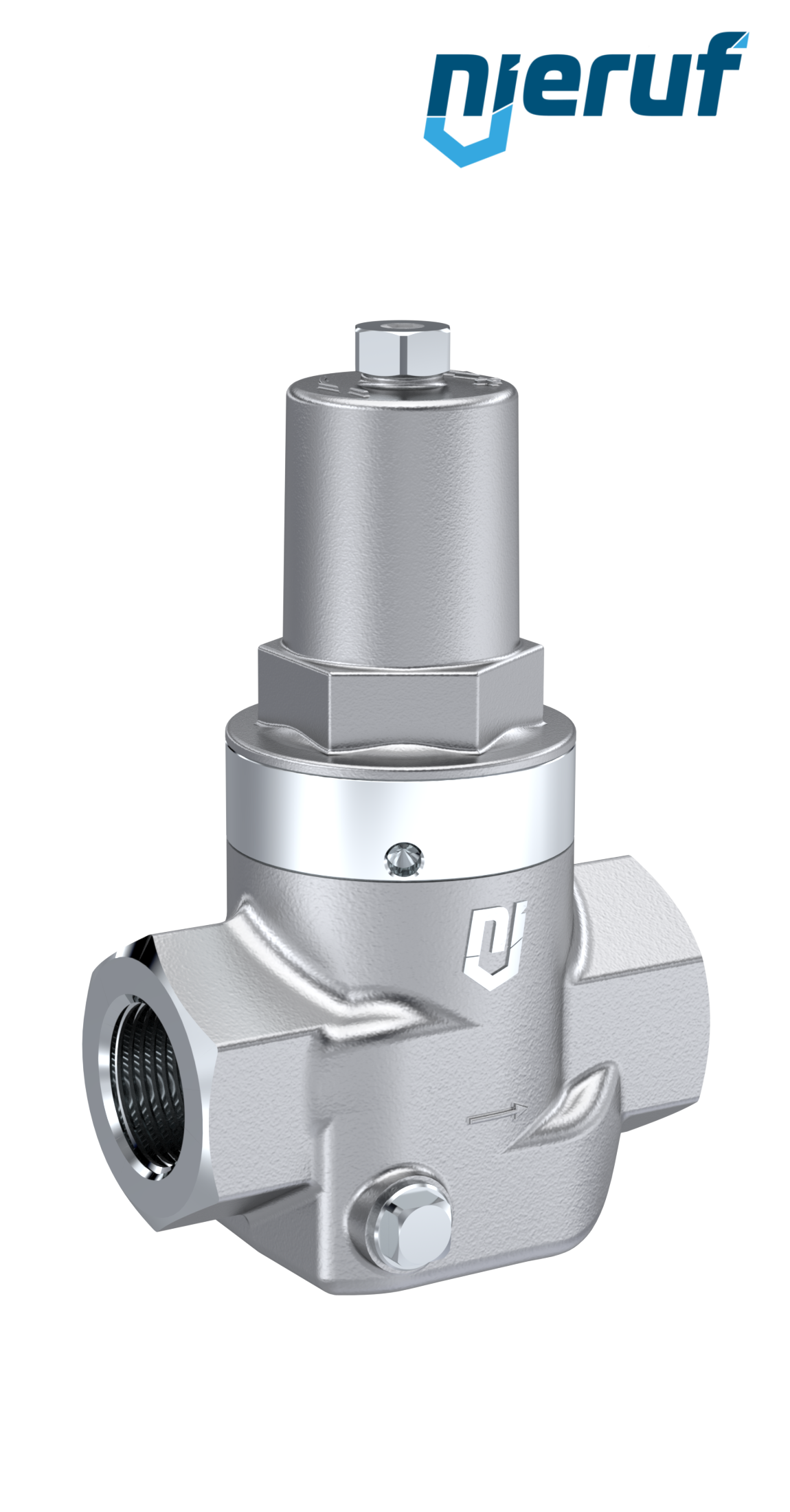

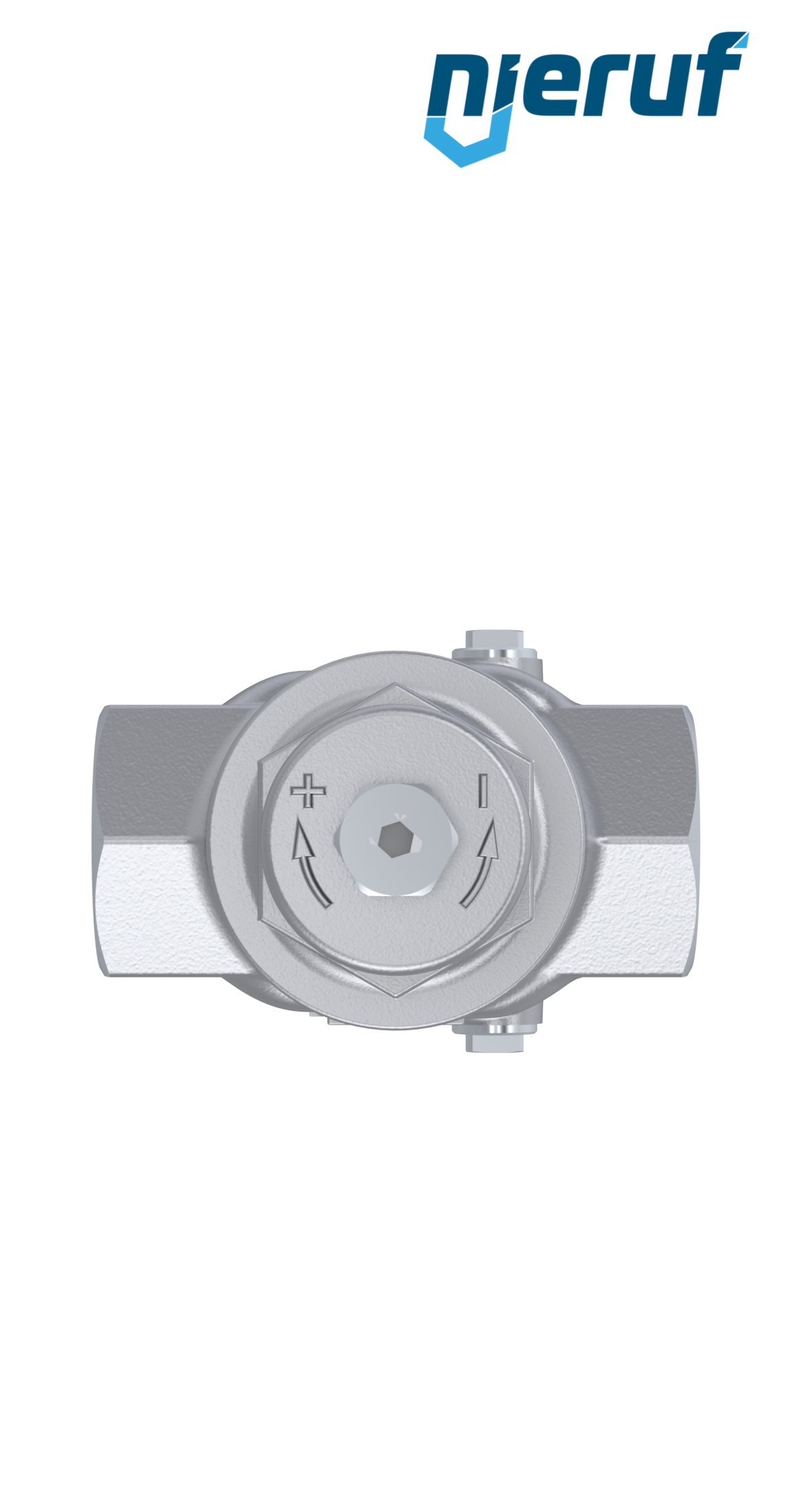

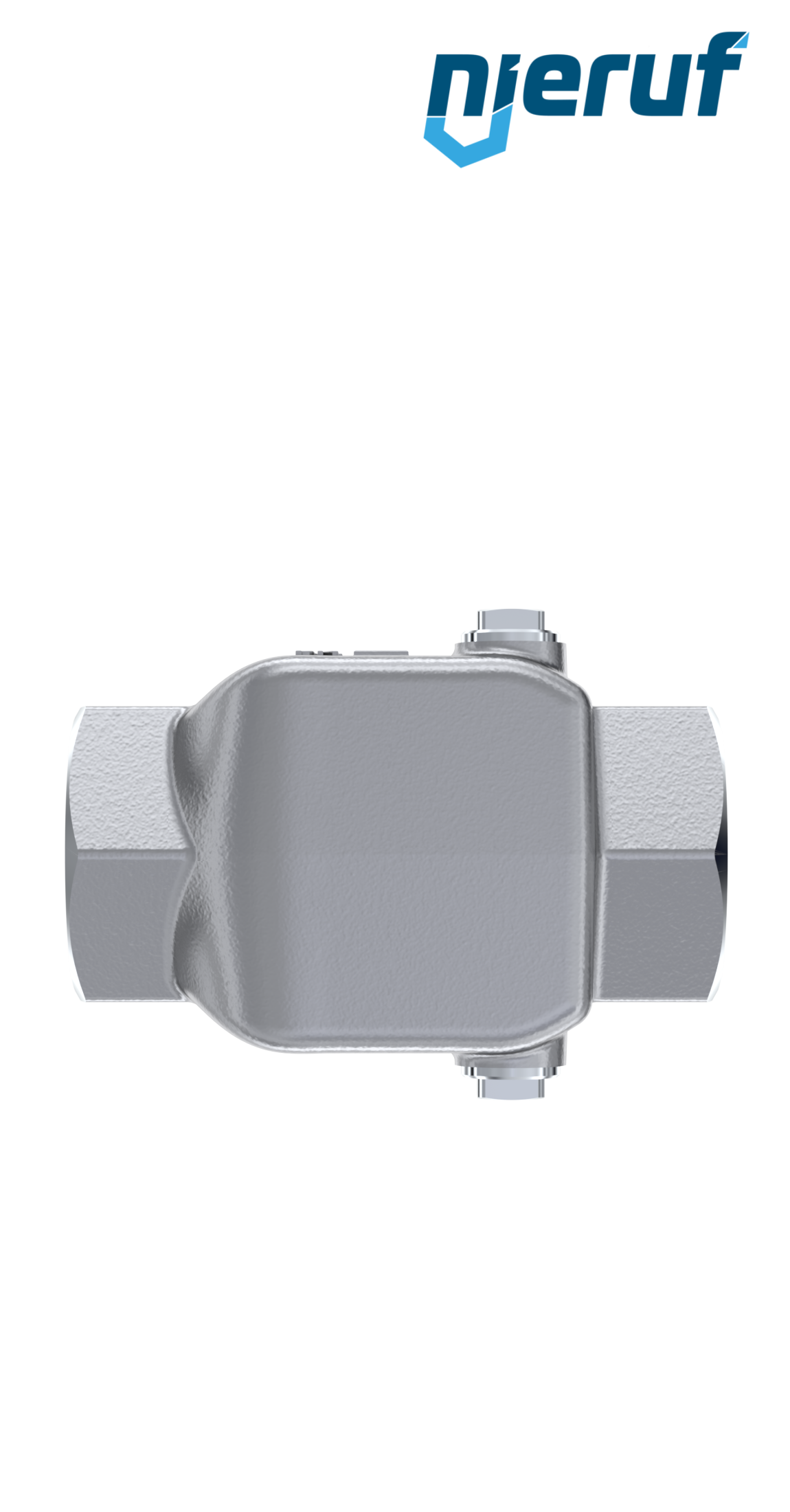

Piston-pressure reducing valve 1" Inch DM10 stainless steel FPM / FKM 2.0 - 20.0 bar
Piston-pressure reducing valve 1" Inch female thread made of stainless steel seal FPM / FKM for liquid and neutral gaseous media, set pressure 2.0 - 20.0 bar
| product | Piston-pressure reducing valve |
|---|---|
| type | DM10 |
| manufacturer | NieRuf |
| diameter | 1" Inch |
| connection | female thread |
| material | stainless steel |
| seal | FPM / FKM |
| media | liquid and neutral gaseous media |
| temperature | -10°C up to +190°C |
| range of adjustment | 2.0 - 20.0 bar |
| max. inlet pressure | 40 bar |
| design | straightway form |
| installation position | any position |
| product feature | This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Piston-pressure reducing valve 1" Inch DM10 stainless steel FPM / FKM 2.0 - 20.0 bar
Article no.
: DM10000005
product:
Piston-pressure reducing valve
type:
DM10
manufacturer:
NieRuf
diameter:
1" Inch
connection:
female thread
material:
stainless steel
seal:
FPM / FKM
media:
liquid and neutral gaseous media
temperature:
-10°C up to +190°C
range of adjustment:
2.0 - 20.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
product feature:
This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting
Equipment
pressure gauge 0 - 40,0 bar G 1/4" axial 50 mm stainless steel MM05
Lead time: in stock
