angle-type overflow valve 3/4" inch fm UV04 stainless steel AISI 316L 0,5 - 2,5 bar

UV04010004
quantity (pcs.):
350.10€ * 416.62€ incl. VAT
*Price plus VAT and shipping costs

Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

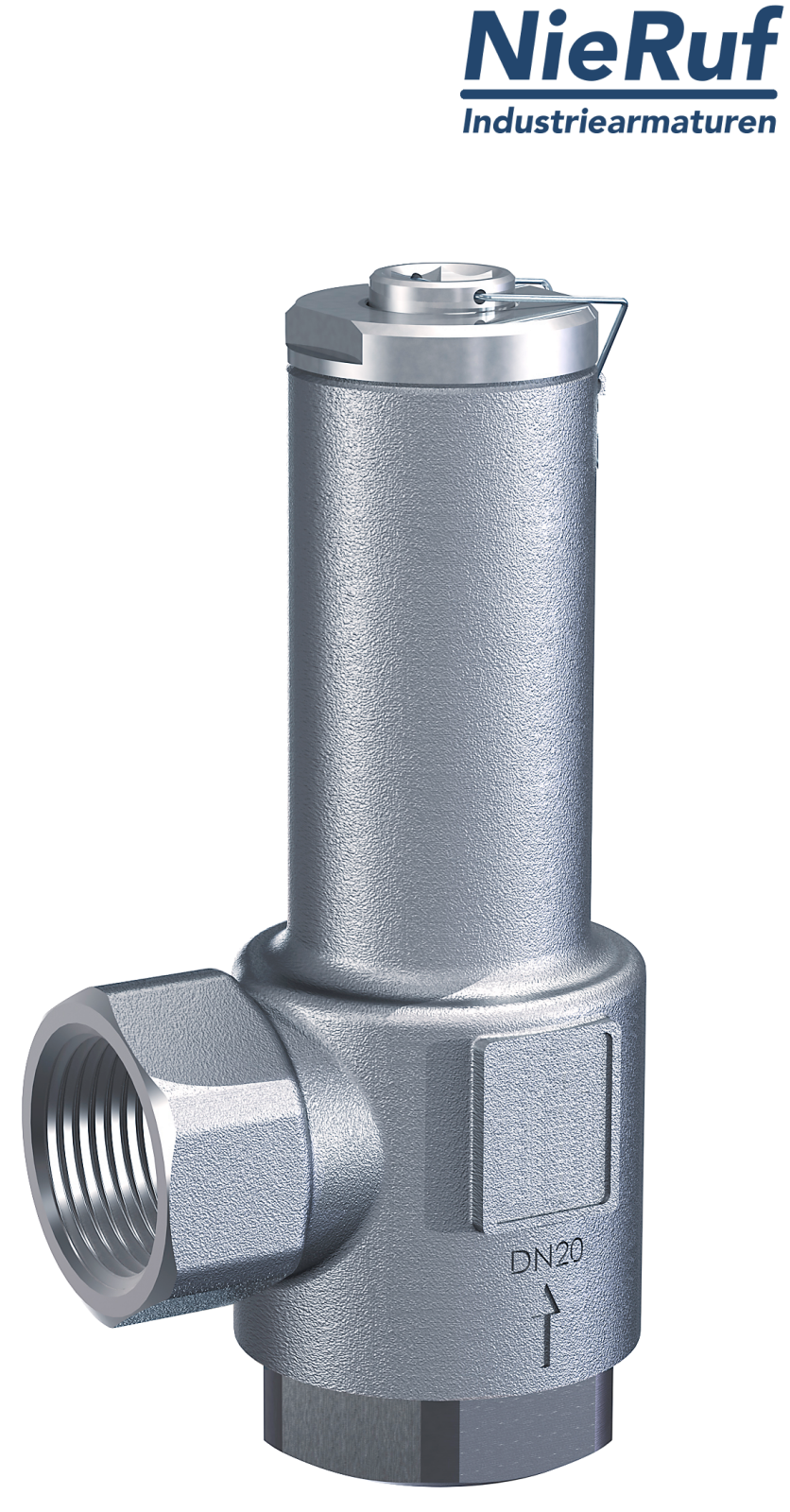

angle-type overflow valve 3/4" inch fm UV04 stainless steel AISI 316L 0,5 - 2,5 bar
angle-type overflow valve 3/4" inch fm type UV04 made of stainless steel AISI 316L pressure range 0,5 - 2,5 bar seal PTFE for liquid and gaseous media
diameter: 3/4" inch fm
connection: female thread BSP-P
seal: PTFE
media: liquid and gaseous media
temperature: -60°C to +225°C
range of adjustment: 0,5 - 2,5 bar
design: angle-type
material: stainless steel AISI 316L
installation position: any position
SIL - safety integrity level: SIL 3
product feature: Adjustable under operating conditions without medium escaping into the atmosphere.
angle-type overflow valve 3/4" inch fm UV04 stainless steel AISI 316L 0,5 - 2,5 bar

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

angle-type overflow valve 3/4" inch fm UV04 stainless steel AISI 316L 0,5 - 2,5 bar
