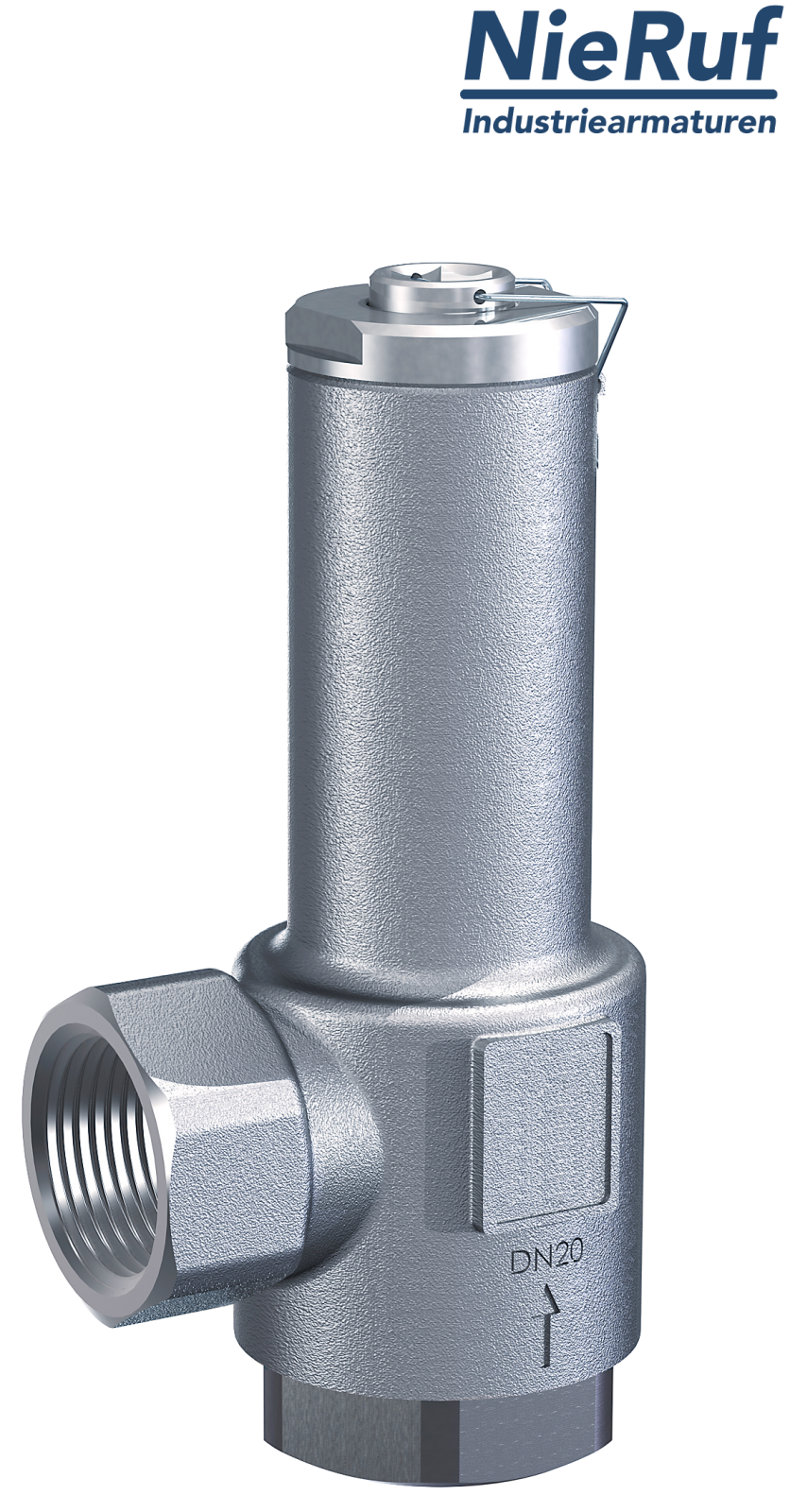

angle-type overflow valve 1 1/2" inch fm type UV04 made of stainless steel AISI 316L pressure range 12,0 - 20,0 bar seal PTFE for liquid and gaseous media
| product | angle-type overflow valve |
|---|---|
| type | UV04 |
| manufacturer | NieRuf |
| diameter | 1 1/2" inch fm |
| connection | female thread BSP-P |
| seal | PTFE |
| media | liquid and gaseous media |
| temperature | -60°C to +225°C |
| range of adjustment | 12,0 - 20,0 bar |
| design | angle-type |
| material | stainless steel AISI 316L |
| installation position | any position |
| SIL - safety integrity level | SIL 3 |
| product feature | Adjustable under operating conditions without medium escaping into the atmosphere. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type overflow valve 1 1/2" inch fm UV04 stainless steel AISI 316L 12,0 - 20,0 bar
Article no.
: UV04030007
product:
angle-type overflow valve
type:
UV04
manufacturer:
NieRuf
diameter:
1 1/2" inch fm
connection:
female thread BSP-P
seal:
PTFE
media:
liquid and gaseous media
temperature:
-60°C to +225°C
range of adjustment:
12,0 - 20,0 bar
design:
angle-type
material:
stainless steel AISI 316L
installation position:
any position
SIL - safety integrity level:
SIL 3
product feature:
Adjustable under operating conditions without medium escaping into the atmosphere.
