DM12000005

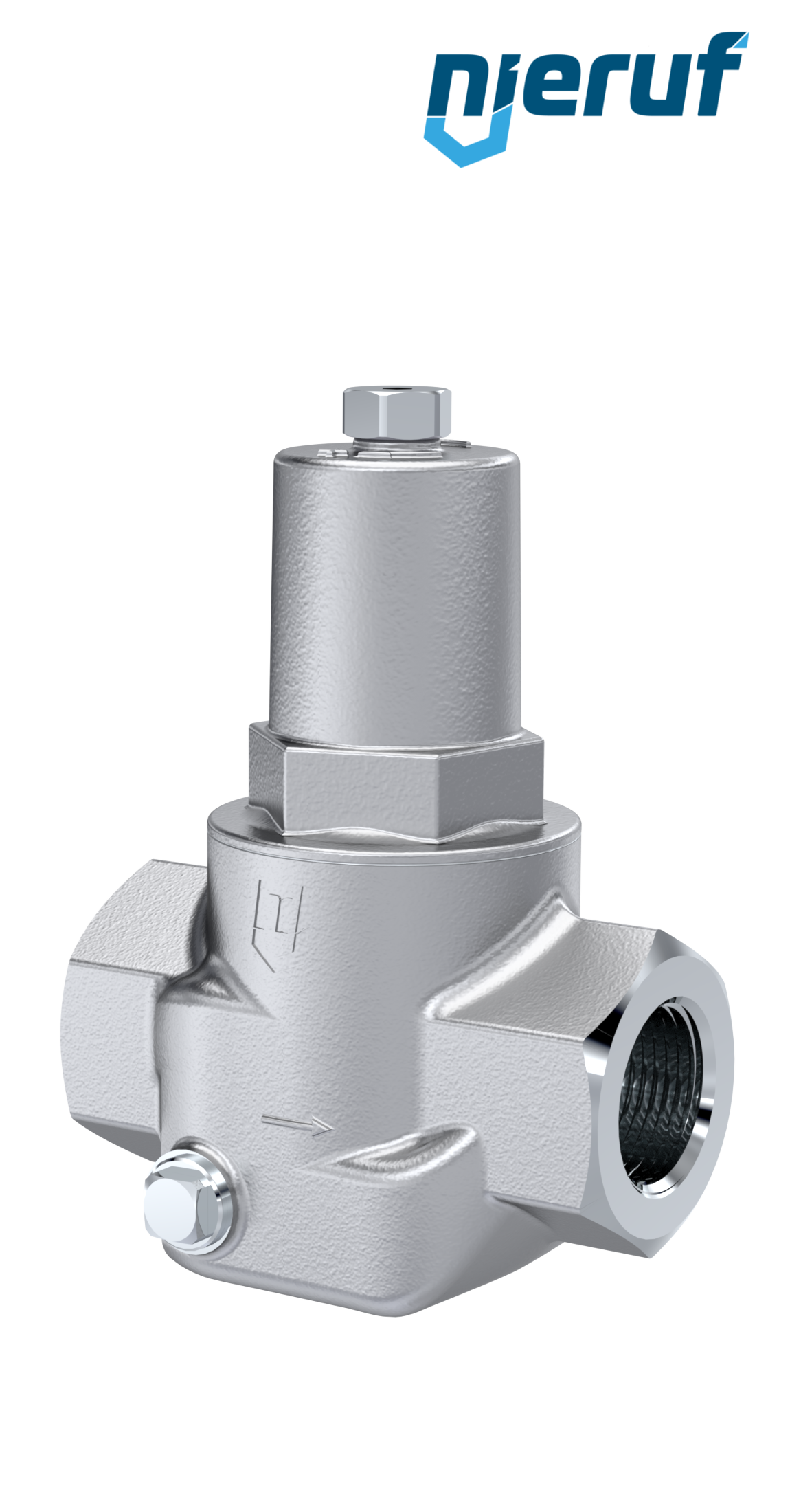

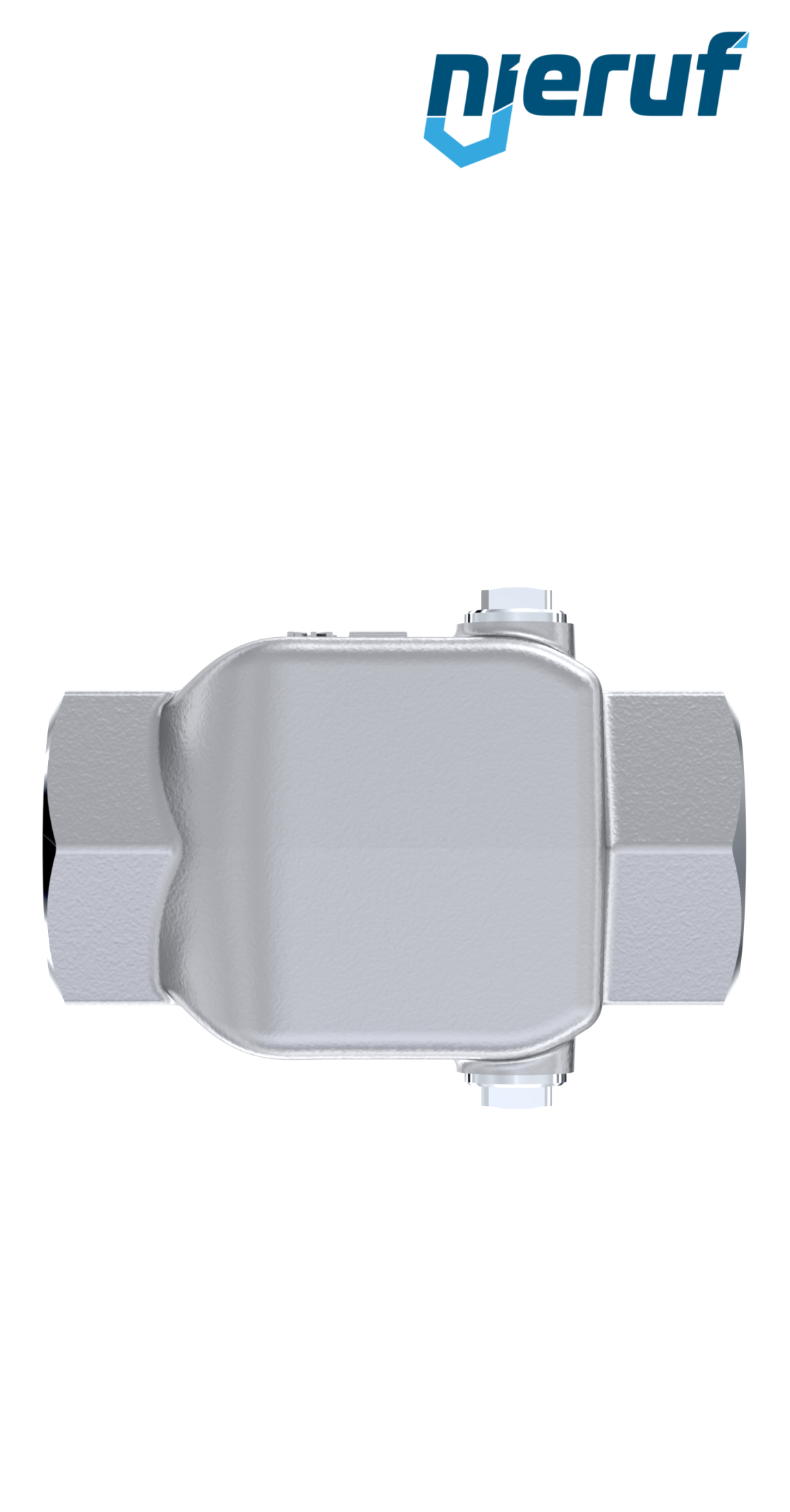

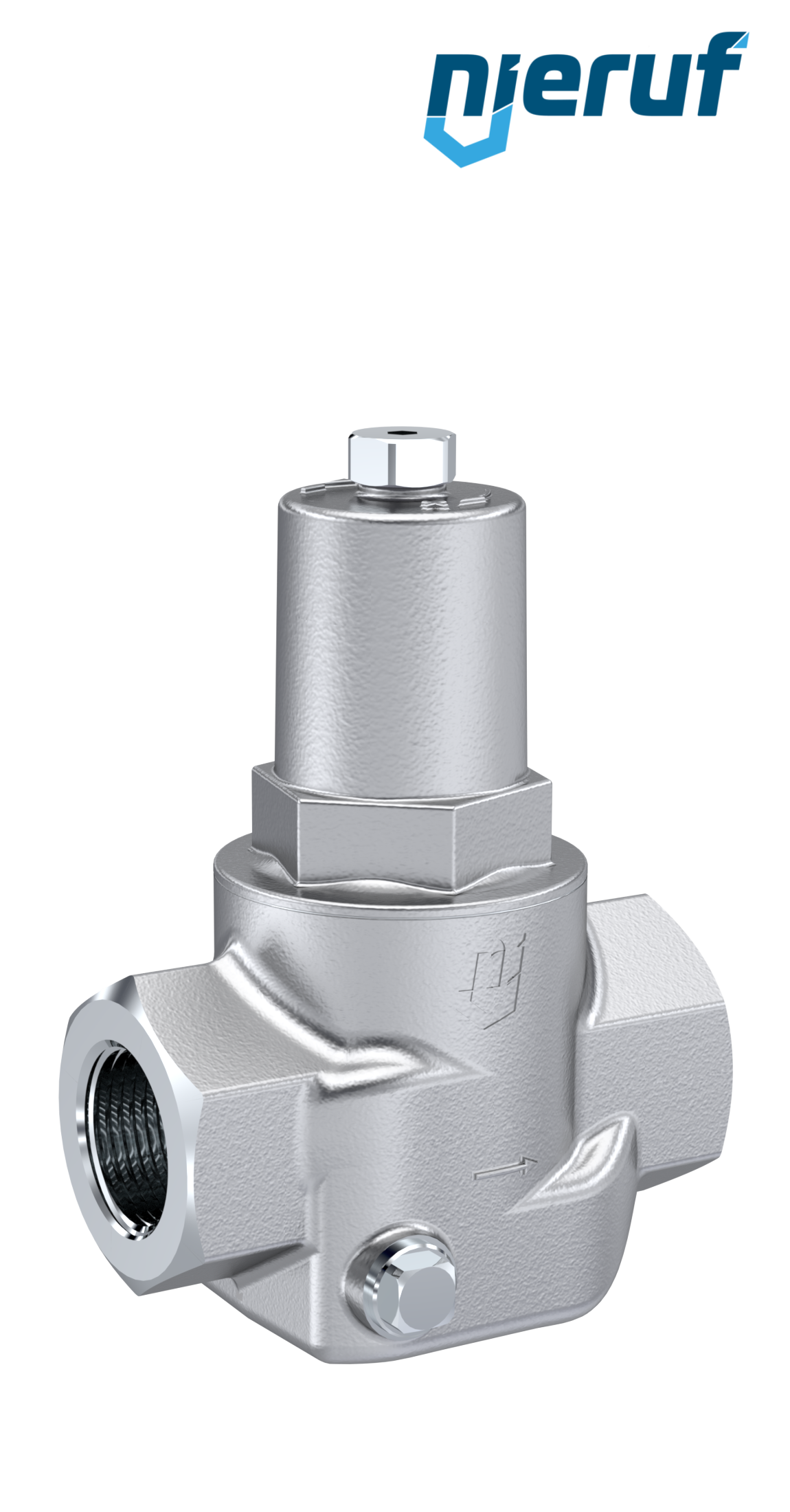

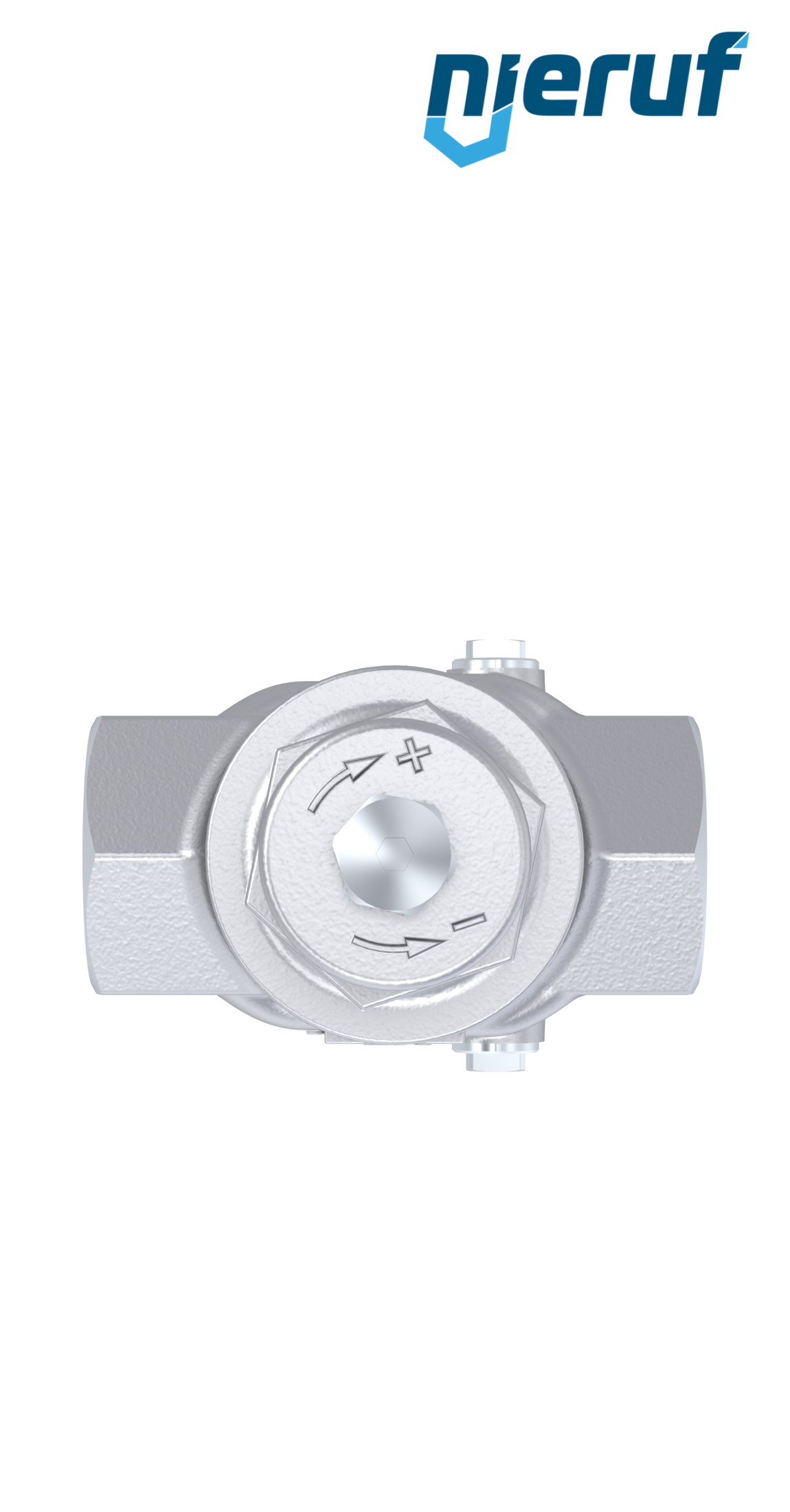

membrane pressure reducing valve 1" Inch DM12 stainless steel FPM / FKM 1.5 - 6.0 bar

€523.50*

€622.97 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

GF01300005

hexagon nipple 1" inch male stainless steel 316

€3.90*

€4.64 VAT included.


MM05100701

pressure gauge 0 - 10,0 bar G 1/4" axial 50 mm stainless steel MM05

€85.10*

€101.27 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: DM12000005
membrane pressure reducing valve 1" Inch DM12 stainless steel FPM / FKM 1.5 - 6.0 bar

membrane pressure reducing valve 1" Inch female thread made of stainless steel seal FPM / FKM for liquid and neutral gaseous media, set pressure 1.5 - 6.0 bar

product: membrane pressure reducing valve
type: DM12
manufacturer: NieRuf
diameter: 1" Inch
connection: female thread
material: stainless steel
seal: FPM / FKM
media: liquid and neutral gaseous media
temperature: -10°C up to +190°C
range of adjustment: 1.5 - 6.0 bar
max. inlet pressure: 40 bar
design: straightway form
installation position: any position
product feature: This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

membrane pressure reducing valve 1" Inch DM12 stainless steel FPM / FKM 1.5 - 6.0 bar

Article no. : DM12000005
product: membrane pressure reducing valve
type: DM12
manufacturer: NieRuf
diameter: 1" Inch
connection: female thread
material: stainless steel
seal: FPM / FKM
media: liquid and neutral gaseous media
temperature: -10°C up to +190°C
range of adjustment: 1.5 - 6.0 bar
max. inlet pressure: 40 bar
design: straightway form
installation position: any position
product feature: This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting

No spare parts were found for the item number .
