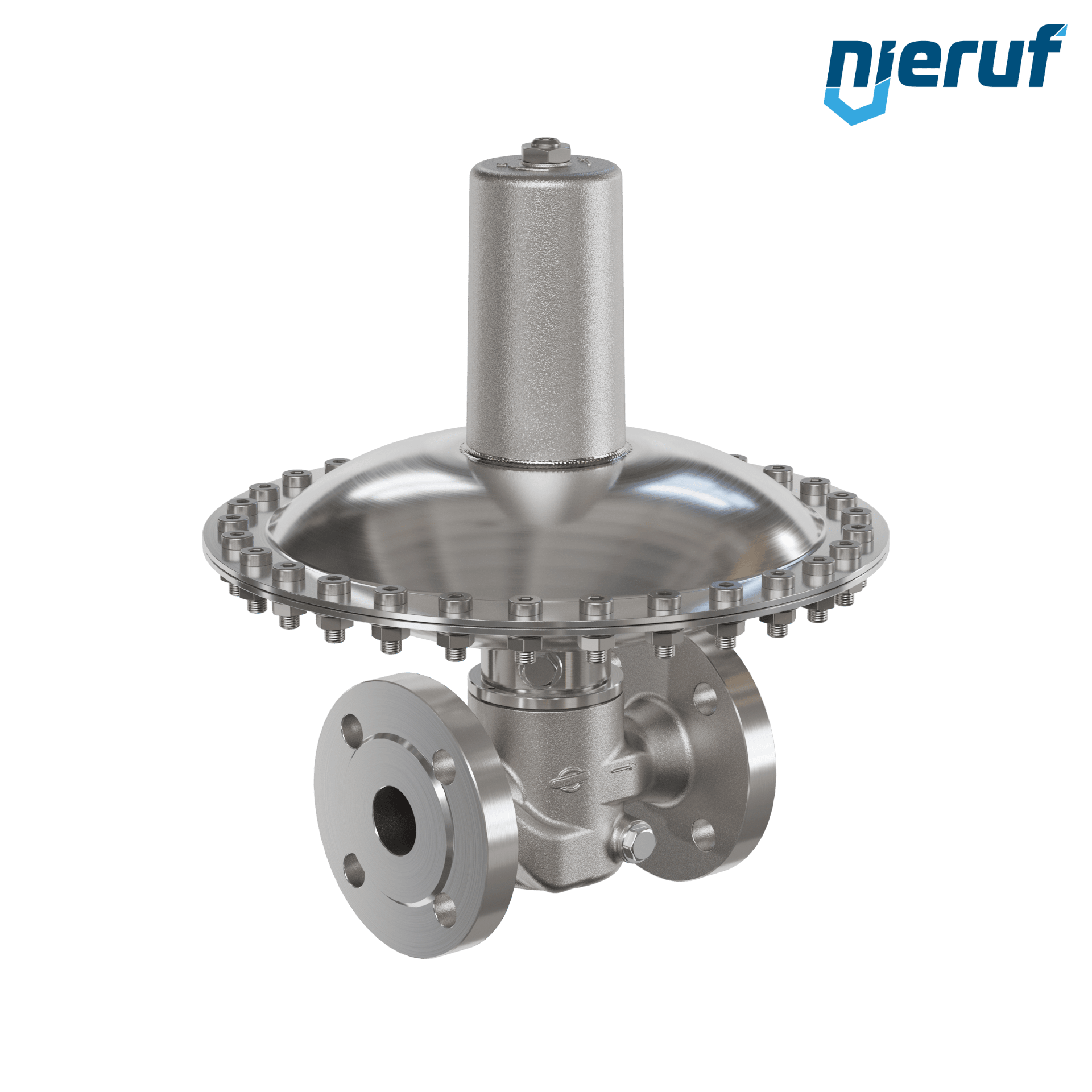

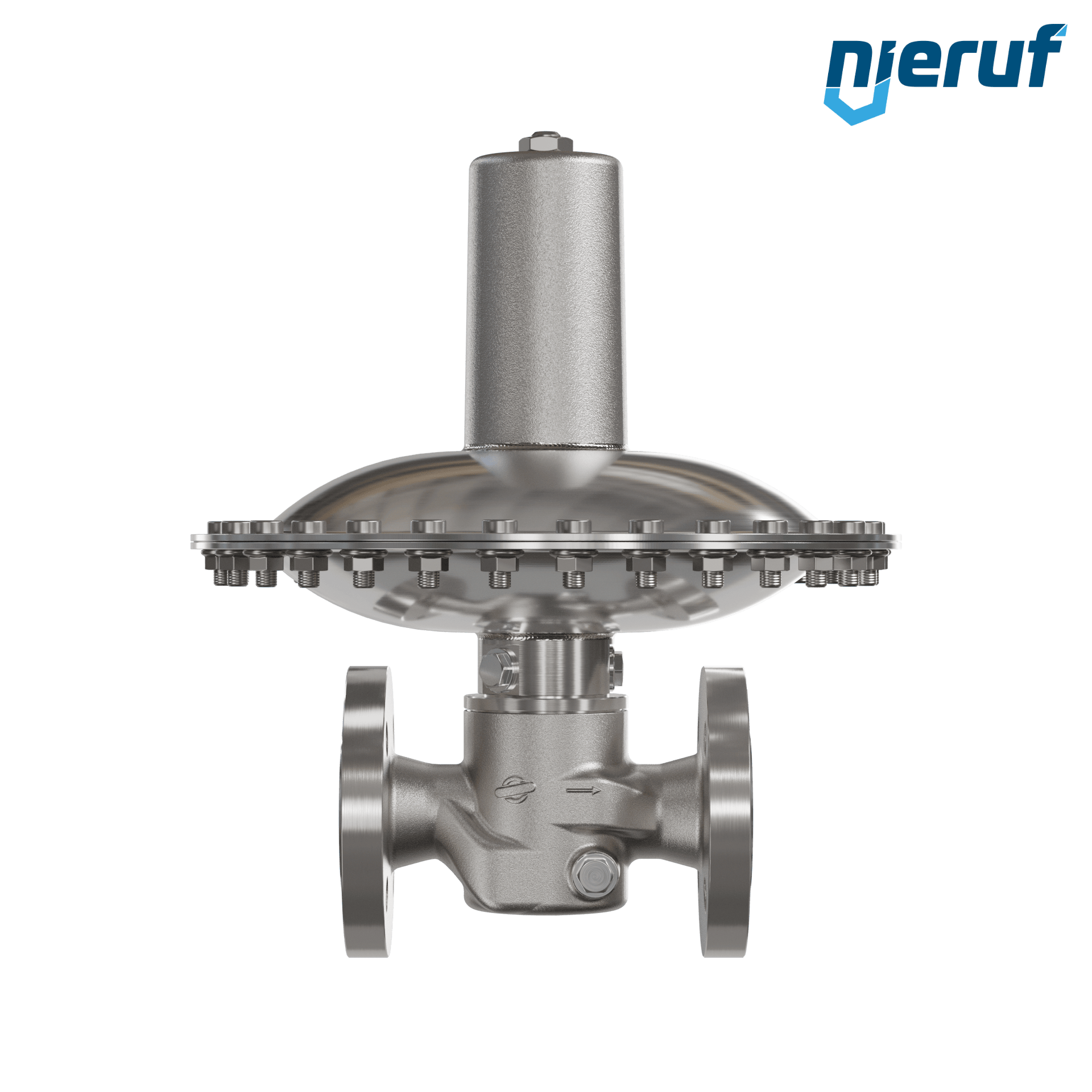

Millibar overflow valve DN25 flange type UV17 stainless steel 7 - 100 mbar seal FKM / PTFE for neutral gaseous media
| product | Millibar overflow valve |
|---|---|
| type | UV17 |
| manufacturer | NieRuf |
| diameter | DN25 |
| connection | flange acc. DIN EN 1092 |
| seal | FKM / PTFE |
| media | neutral gaseous media |
| temperature | -10°C to +180°C |
| range of adjustment | 7 - 100 mbar |
| max. inlet pressure | 1,5 bar |
| design | straightway form |
| material | stainless steel 1.4408 / AISI 316L |
| installation position | horizontal |
| product feature | Diaphragm-controlled overflow valve with continously adjustable pressure setting and double-ended G 1/4" manometer fitting. Ideal for tank blanketing applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Millibar overflow valve flange DN25 UV17 stainless steel FKM / PTFE 7 - 100 mbar
Article no.
: UV17000205
product:
Millibar overflow valve
type:
UV17
manufacturer:
NieRuf
diameter:
DN25
connection:
flange acc. DIN EN 1092
seal:
FKM / PTFE
media:
neutral gaseous media
temperature:
-10°C to +180°C
range of adjustment:
7 - 100 mbar
max. inlet pressure:
1,5 bar
design:
straightway form
material:
stainless steel 1.4408 / AISI 316L
installation position:
horizontal
product feature:
Diaphragm-controlled overflow valve with continously adjustable pressure setting and double-ended G 1/4" manometer fitting. Ideal for tank blanketing applications.
