FL03020109
Loose flange DN65 PN10/16 EN1092-1 02 A C22.8 / P250GH bare
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
€7.62 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Loose flange DN65 PN10/16 EN1092-1 02 A C22.8 / P250GH bare
Loose flange made of steel C22.8 / P250GH bare DN65 flange according DIN PN10/16 EN1092-1 Typ 02 A
| product | Loose flange |
|---|---|
| type | FL03 |
| manufacturer | NieRuf |
| diameter | DN65 |
| connection | PN10/16 |
| material | steel |
| material nr. | C22.8 / P250GH bare |
| norm | EN1092-1 |
| norm-type | 02 |
| surface | A |

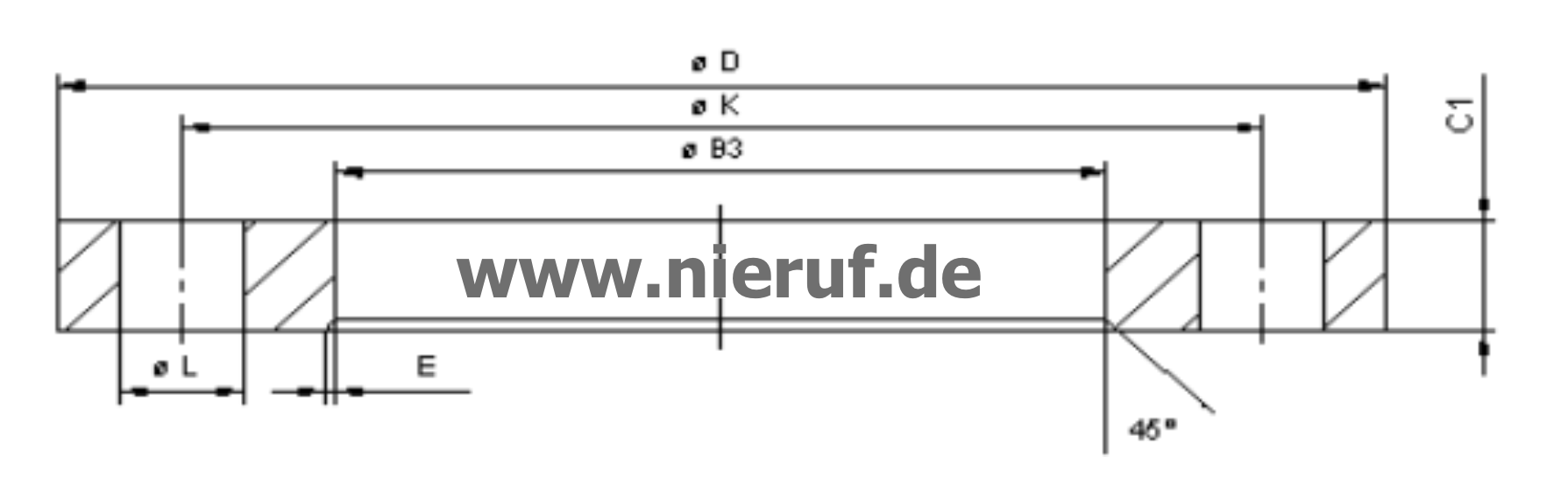

| Design | Loose flange |
| D | 185 |
| K | 145 |
| E | 6 |
| b | 20 |
| d1 | 81 |
| screw | M16 |
| Qty. Screws | 4 |
| L | 18 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Loose flange DN65 PN10/16 EN1092-1 02 A C22.8 / P250GH bare
Article no.
: FL03020109
product:
Loose flange
type:
FL03
manufacturer:
NieRuf
diameter:
DN65
connection:
PN10/16
material:
steel
material nr.:
C22.8 / P250GH bare
norm:
EN1092-1
norm-type:
02
surface:
A
Design:
Loose flange
D:
185
K:
145
E:
6
b:
20
d1:
81
screw:
M16
Qty. Screws:
4
L:
18
Equipment
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 76,1 x 2,0 stainless steel 1.4571
Lead time: in stock
