FL03000117
Loose flange DN350 PN10 EN1092-1 02 A 1.4541
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Loose flange DN350 PN10 EN1092-1 02 A 1.4541

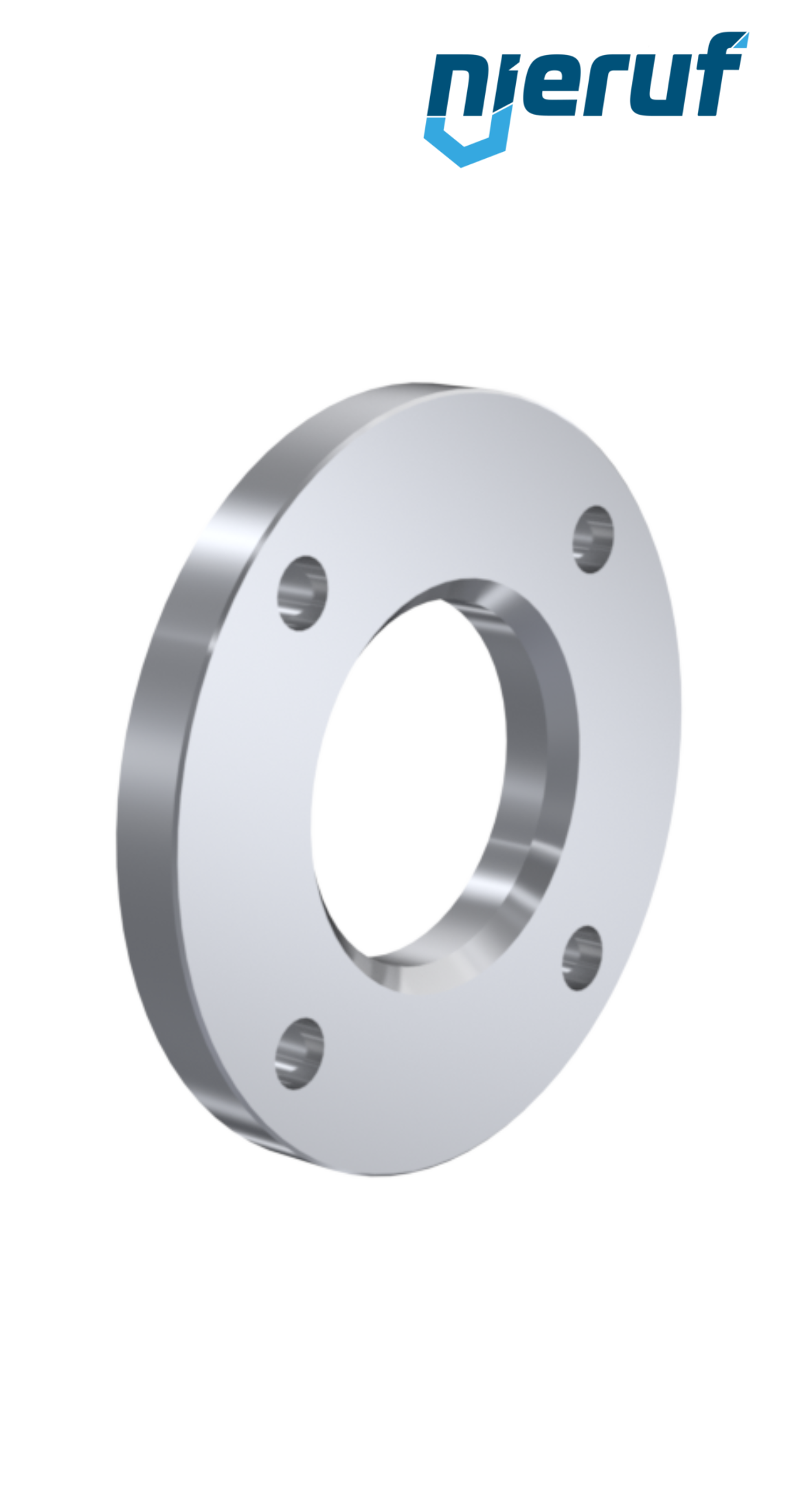

Loose flange made of stainless steel 1.4541 DN350 flange according DIN PN10 EN1092-1 Typ 02 A
| product | Loose flange |
|---|---|
| type | FL03 |
| manufacturer | NieRuf |
| diameter | DN350 |
| connection | PN10 |
| material | stainless steel |
| material nr. | 1.4541 |
| norm | EN1092-1 |
| norm-type | 02 |
| surface | A |

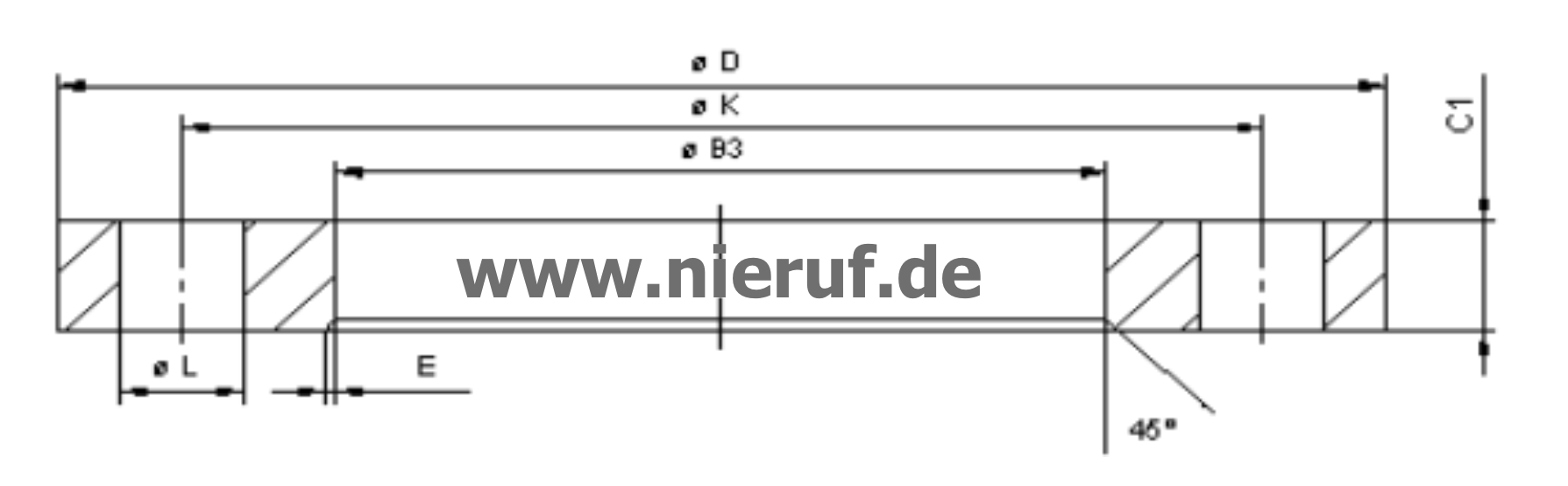

| Design | Loose flange |
| B3 | 365 |
| D | 505 |
| C1 | 30 |
| K | 460 |
| E | 8 |
| screw | M20 |
| Qty. Screws | 16 |
| L | 22 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Loose flange DN350 PN10 EN1092-1 02 A 1.4541
Article no.
: FL03000117
product:
Loose flange
type:
FL03
manufacturer:
NieRuf
diameter:
DN350
connection:
PN10
material:
stainless steel
material nr.:
1.4541
norm:
EN1092-1
norm-type:
02
surface:
A
Design:
Loose flange
B3:
365
D:
505
C1:
30
K:
460
E:
8
screw:
M20
Qty. Screws:
16
L:
22
